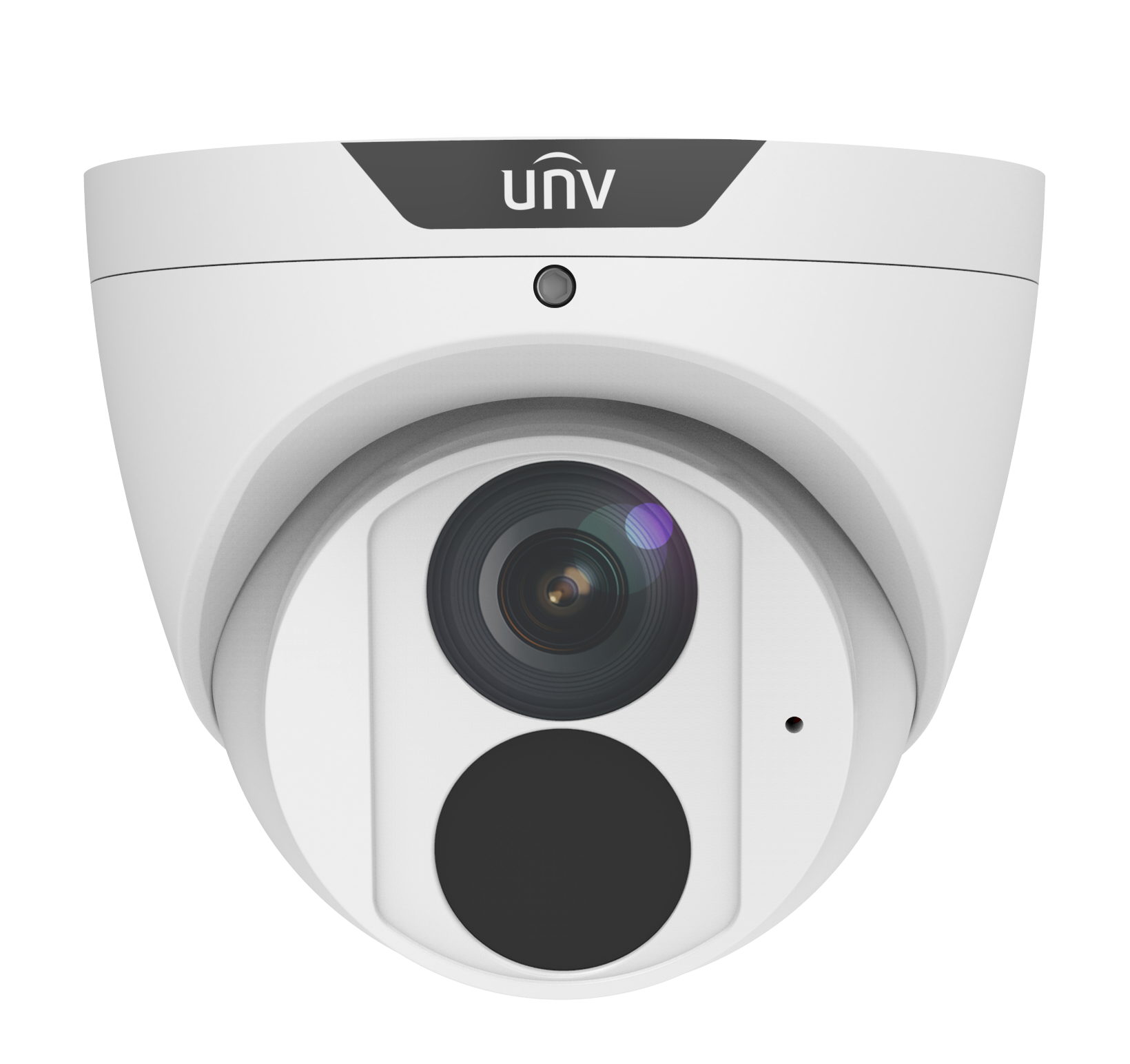

IPC3615SB-ADF28KM-I0 Купольная IP видеокамера

<table width="100%">
<tbody>
<tr>
<td>
</td><td colspan="4" width="40%">IPC3615SB-ADF28KM-I0</td>
<td colspan="4" width="40%">IPC3615SB-ADF40KM-I0</td>
</tr>
<tr>
<td colspan="9">Camera</td>
</tr>
<tr>
<td>Sensor</td>
<td colspan="8">1/2.7", 5.0 megapixel, progressive scan, CMOS</td>
</tr>
<tr>
<td>Lens</td>
<td colspan="4">2.8mm@F1.6</td>
<td colspan="4">4.0mm@F1.6</td>
</tr>
<tr>
<td rowspan="3">DORI Distance</td>
<td>Lens (mm)</td>
<td colspan="2">Detect (m)</td>
<td colspan="2">Observe (m)</td>
<td colspan="2">Recognize (m)</td>
<td>Identify (m)</td>
</tr>
<tr>
<td>2.8</td>
<td colspan="2">63.0</td>
<td colspan="2">25.2</td>
<td colspan="2">12.6</td>
<td>6.3</td>
</tr>
<tr>
<td>4.0</td>
<td colspan="2">90.0</td>
<td colspan="2">36.0</td>
<td colspan="2">18.0</td>
<td>9.0</td>
</tr>
<tr>
<td>Angle of view(H)</td>
<td colspan="4">96.1°</td>
<td colspan="4">78.7°</td>
</tr>
<tr>
<td>Angle of View (V)</td>
<td colspan="4">55.3°</td>
<td colspan="4">44.9°</td>
</tr>
<tr>
<td>Angle of View (O)</td>
<td colspan="4">111.1°</td>
<td colspan="4">89.2°</td>
</tr>
<tr>
<td>Adjustment angle</td>
<td colspan="2">Pan: 0° ~ 360°</td>
<td colspan="4">Tilt: 0° ~ 80°</td>
<td colspan="2">Rotate: 0° ~ 360°</td>
</tr>
<tr>
<td>Shutter</td>
<td colspan="8">Auto/Manual, 1 ~ 1/100000s</td>
</tr>
<tr>
<td>Minimum Illumination</td>
<td colspan="8">Colour: 0.003Lux (F1.6, AGC ON)<br>0Lux with IR on</td>
</tr>
<tr>
<td>Day/Night</td>
<td colspan="8">IR-cut filter with auto switch (ICR)</td>
</tr>
<tr>
<td>Digital Noise Reduction</td>
<td colspan="8">2D/3D DNR</td>
</tr>
<tr>
<td>S/N</td>
<td colspan="8">&gt;56dB</td>
</tr>
<tr>
<td>IR Range</td>
<td colspan="8">Up to 30m (98ft) IR range</td>
</tr>
<tr>
<td>Wavelength</td>
<td colspan="8">850nm</td>
</tr>
<tr>
<td>IR On/Off Control</td>
<td colspan="8">Auto/Manual</td>
</tr>
<tr>
<td>Defog</td>
<td colspan="8">Digital Defog</td>
</tr>
<tr>
<td>WDR</td>
<td colspan="8">120dB</td>
</tr>
<tr>
<td colspan="9">Video</td>
</tr>
<tr>
<td>Video Compression</td>
<td colspan="8">Ultra 265, H.265, H.264, MJPEG</td>
</tr>
<tr>
<td>H.264 code profile</td>
<td colspan="8">Baseline profile, Main profile, High profile</td>
</tr>
<tr>
<td>Frame Rate</td>
<td colspan="8">Main Stream:5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps;<br>Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;<br>Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;</td>
</tr>
<tr>
<td>Video Bit Rate</td>
<td colspan="8">128 Kbps~16 Mbps</td>
</tr>
<tr>
<td>OSD</td>
<td colspan="8">Up to 8 OSDs</td>
</tr>
<tr>
<td>Privacy Mask</td>
<td colspan="8">Up to 4 areas</td>
</tr>
<tr>
<td>ROI</td>
<td colspan="8">Up to 8 areas</td>
</tr>
<tr>
<td>Motion Detection</td>
<td colspan="8">Up to 4 areas</td>
</tr>
<tr>
<td colspan="9">Image</td>
</tr>
<tr>
<td>White Balance</td>
<td colspan="8">Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2</td>
</tr>
<tr>
<td>Digital noise reduction</td>
<td colspan="8">2D/3D DNR</td>
</tr>
<tr>
<td>Smart IR</td>
<td colspan="8">Support</td>
</tr>
<tr>
<td>Flip</td>
<td colspan="8">Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise</td>
</tr>
<tr>
<td>Dewarping</td>
<td colspan="8">N/A</td>
</tr>
<tr>
<td>HLC</td>
<td colspan="8">Supported</td>
</tr>
<tr>
<td>BLC</td>
<td colspan="8">Supported</td>
</tr>
<tr>
<td colspan="9">Audio</td>
</tr>
<tr>
<td>Audio Compression</td>
<td colspan="8">G.711</td>
</tr>
</tbody>
</table>

Характеристики

Разрешение: 5 мп
Наличие микрофона: Да
Бренд: Uniview
Наличие MicroSD: Да
Рабочая температура: -30°C до +60°C
Материал корпуса: Металл
Исполнение: Внутреннее
Объектив: 2.8 мм
Тип объектива: Фиксированный
Дальность ИК-подсветки: 30 м
