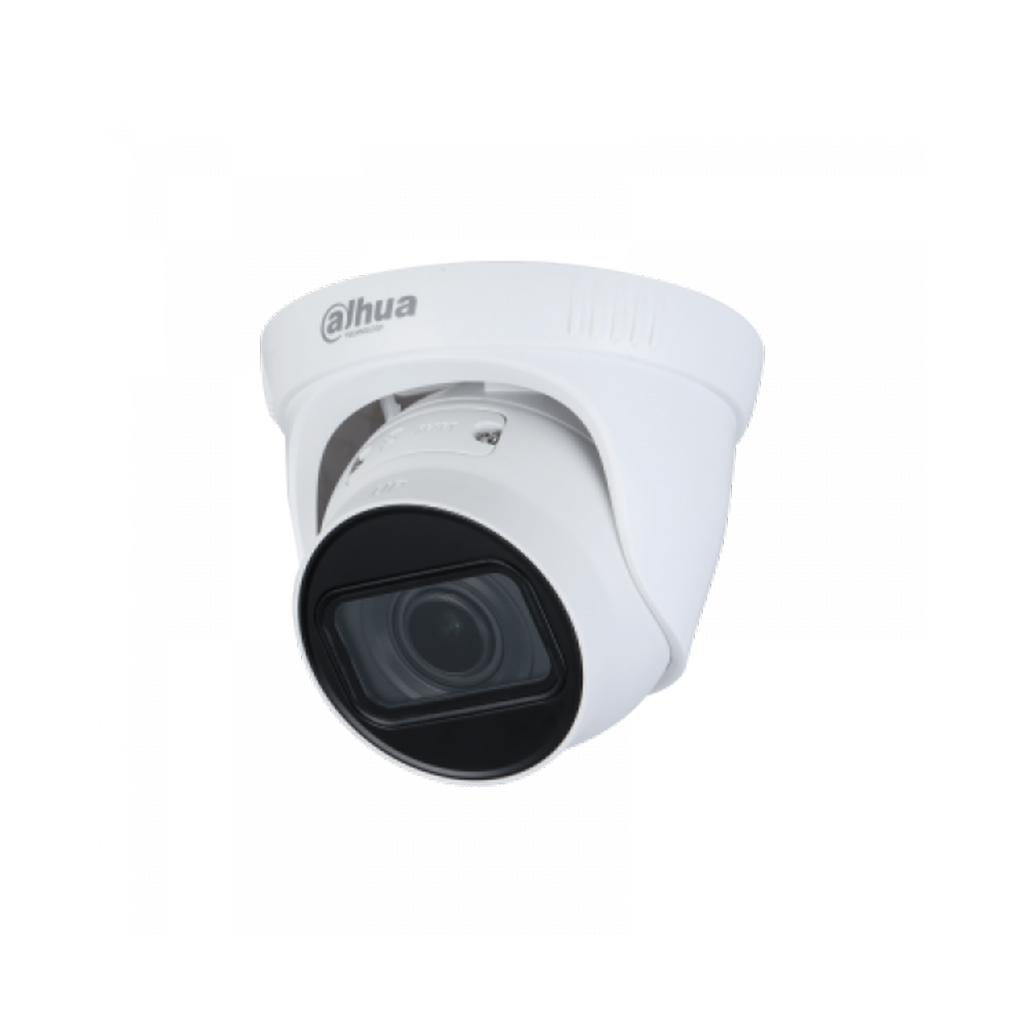

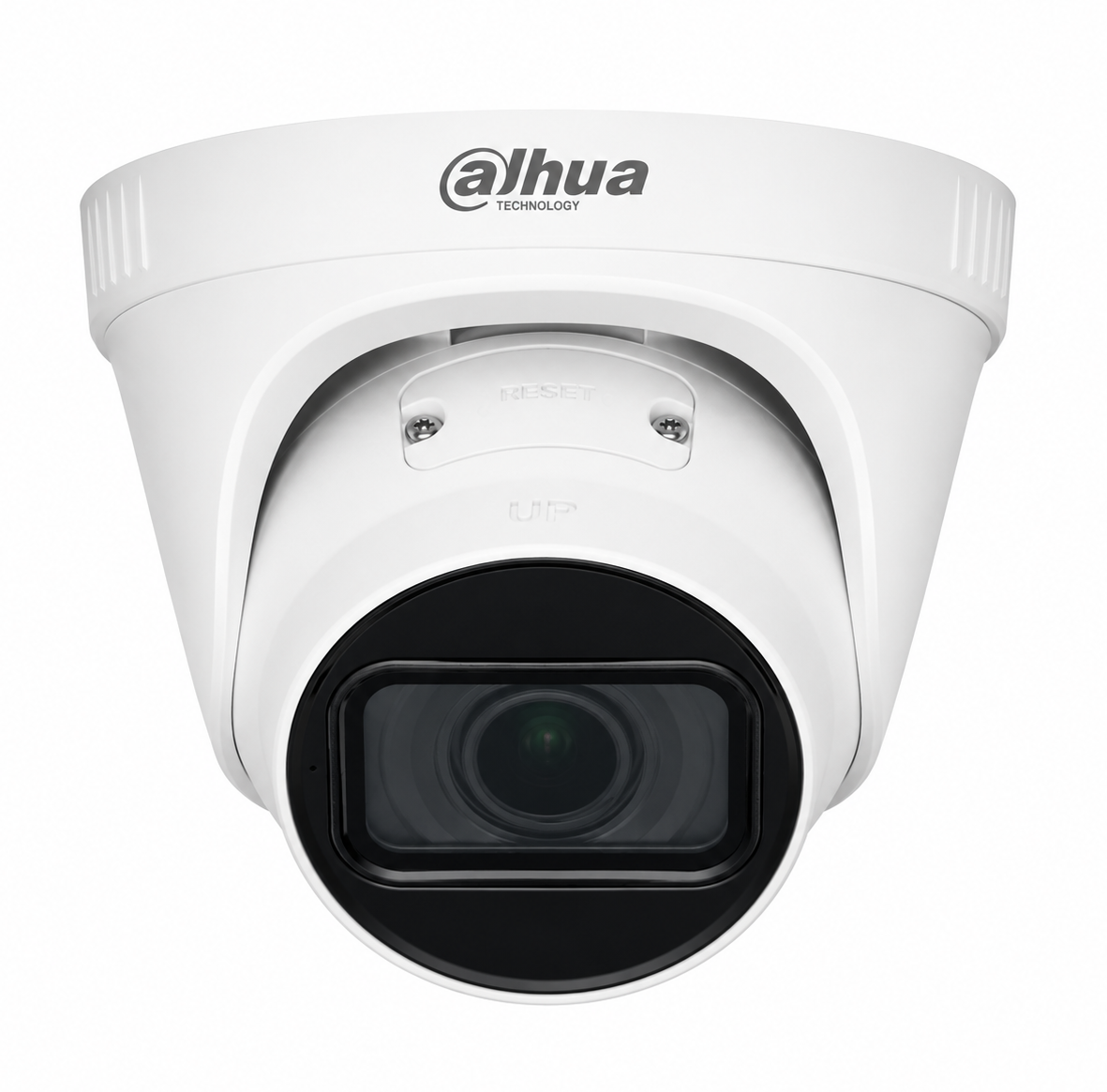

DH-IPC-HDW1230T1P-ZS-2812 Купольная 2 мегапиксельная IP видеокамера

<table>
<tbody>
<tr>
<td colspan="60">
<p>Camera</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Image Sensor</p>
</td>
<td colspan="42">
<p>1/2.8" CMOS</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Max. Resolution</p>
</td>
<td colspan="42">
<p>1920 (H) × 1080 (V)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>ROM</p>
</td>
<td colspan="42">
<p>16 MB</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>RAM</p>
</td>
<td colspan="42">
<p>128 MB</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Scanning System</p>
</td>
<td colspan="42">
<p>Progressive</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Electronic Shutter Speed</p>
</td>
<td colspan="42">
<p>Auto/Manual 1/3 s–1/100,000 s</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Min. Illumination</p>
</td>
<td colspan="42">
<p>0.005 Lux@F1.5 (Color, 30 IRE)</p>
<p>0.0005 Lux@F1.5 (B/W, 30 IRE)</p>
<p>0 Lux (Illuminator on)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>S/N Ratio</p>
</td>
<td colspan="42">
<p>&gt; 56 dB</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Illumination Distance</p>
</td>
<td colspan="42">
<p>40 m (131.23 ft) (IR)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Illuminator On/Off Control</p>
</td>
<td colspan="42">
<p>Auto; Manual</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Illuminator Number</p>
</td>
<td colspan="42">
<p>2 (IR)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Pan/Tilt/Rotation Range</p>
</td>
<td colspan="42">
<p>Pan: 0°–355°</p>
<p>Tilt: 0°–78°</p>
<p>Rotation: 0°–360°</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Lens</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Lens Type</p>
</td>
<td colspan="42">
<p>Motorized vari-focal</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Lens Mount</p>
</td>
<td colspan="42">
<p>φ14</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Focal Length</p>
</td>
<td colspan="42">
<p>2.8 mm–12 mm</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Max. Aperture</p>
</td>
<td colspan="42">
<p>F1.5</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Field of View</p>
</td>
<td colspan="42">
<p>Horizontal: 101°–33.5°; Vertical: 52.5°–19°;</p>
<p>Diagonal: 125°–38.5°</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Iris Control</p>
</td>
<td colspan="42">
<p>Fixed</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Close Focus Distance</p>
</td>
<td colspan="42">
<p>1.2 m (3.94 ft)</p>
</td>
</tr>
<tr>
<td colspan="18" rowspan="3">
<p>DORI Distance</p>
</td>
<td colspan="8">
<p>Lens</p>
</td>
<td colspan="8">
<p>Detect</p>
</td>
<td colspan="8">
<p>Observe</p>
</td>
<td colspan="8">
<p>Recognize</p>
</td>
<td colspan="10">
<p>Identify</p>
</td>
</tr>
<tr>
<td colspan="8">
<p>W</p>
</td>
<td colspan="8">
<p>48 m</p>
<p>(157.48 ft)</p>
</td>
<td colspan="8">
<p>19 m</p>
<p>(62.34 ft)</p>
</td>
<td colspan="8">
<p>10 m</p>
<p>( 32.81 ft)</p>
</td>
<td colspan="10">
<p>5m</p>
<p>(16.40 ft)</p>
</td>
</tr>
<tr>
<td colspan="8">
<p>T</p>
</td>
<td colspan="8">
<p>131 m</p>
<p>(429.79 ft)</p>
</td>
<td colspan="8">
<p>52 m</p>
<p>(170.60 ft)</p>
</td>
<td colspan="8">
<p>26 m</p>
<p>( 85.30 ft)</p>
</td>
<td colspan="10">
<p>13m</p>
<p>(42.65 ft)</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Video</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Video Compression</p>
</td>
<td colspan="42">
<p>H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Smart Codec</p>
</td>
<td colspan="42">
<p>Smart H.265+; Smart H.264+</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Video Frame Rate</p>
</td>
<td colspan="42">
<p>Main stream:1920 × 1080@1–25/30 fps</p>
<p>Sub stream: 704 × 576@1–25 fps/704 × 480@1–30 fps</p>
<p>*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Bit Rate Control</p>
</td>
<td colspan="42">
<p>CBR/VBR</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Video Bit Rate</p>
</td>
<td colspan="42">
<p>H.264: 32 kbps–6144 kbps</p>
<p>H.265: 12 kbps–6144 kbps</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Day/Night</p>
</td>
<td colspan="42">
<p>Auto(ICR)/Color/B/W</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>BLC</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>HLC</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>WDR</p>
</td>
<td colspan="42">
<p>DWDR</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Scene Self-adaptation (SSA)</p>
</td>
<td colspan="42">
<p>NA</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>White Balance</p>
</td>
<td colspan="42">
<p>Auto; natural; street lamp; outdoor; manual; regional custom</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Gain Control</p>
</td>
<td colspan="42">
<p>Auto; manual</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Noise Reduction</p>
</td>
<td colspan="42">
<p>3D NR</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Motion Detection</p>
</td>
<td colspan="42">
<p>OFF/ON (4 areas, rectangular)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Region of Interest (RoI)</p>
</td>
<td colspan="42">
<p>Yes (4 areas)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Image Stabilization</p>
</td>
<td colspan="42">
<p>NA</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Smart Illumination</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Defog</p>
</td>
<td colspan="42">
<p>NA</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Image Rotation</p>
</td>
<td colspan="42">
<p>0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Mirror</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
</tbody>
</table>

Характеристики

Наличие микрофона: Нет
Наличие MicroSD: Да
Разрешение: 2 мп
Рабочая температура: -30°C до +60°C
Материал корпуса: Металл+пластик
Исполнение: Внутреннее
Объектив: 2.8 мм — 12 мм
Тип объектива: Моторизованный вариофокальный
Дальность ИК-подсветки: 40 м
Бренд: Dahua
