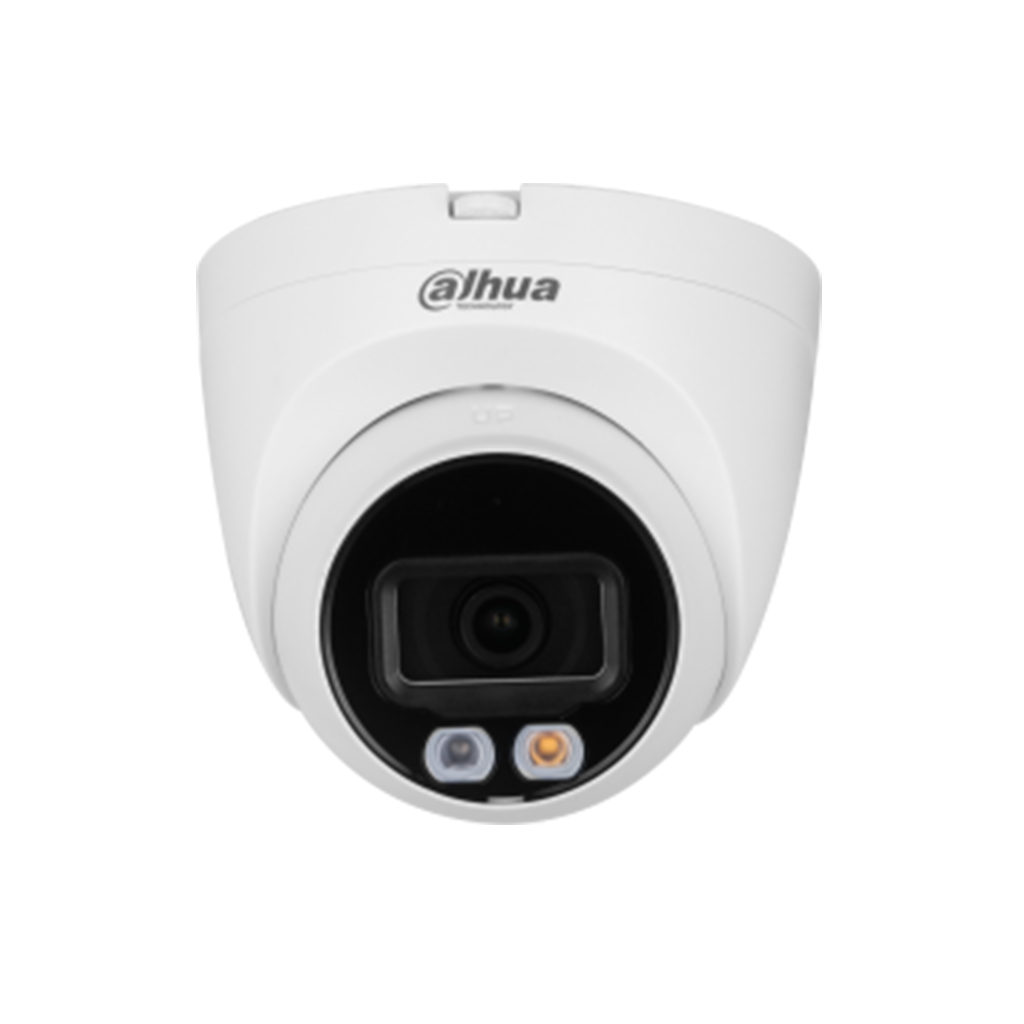

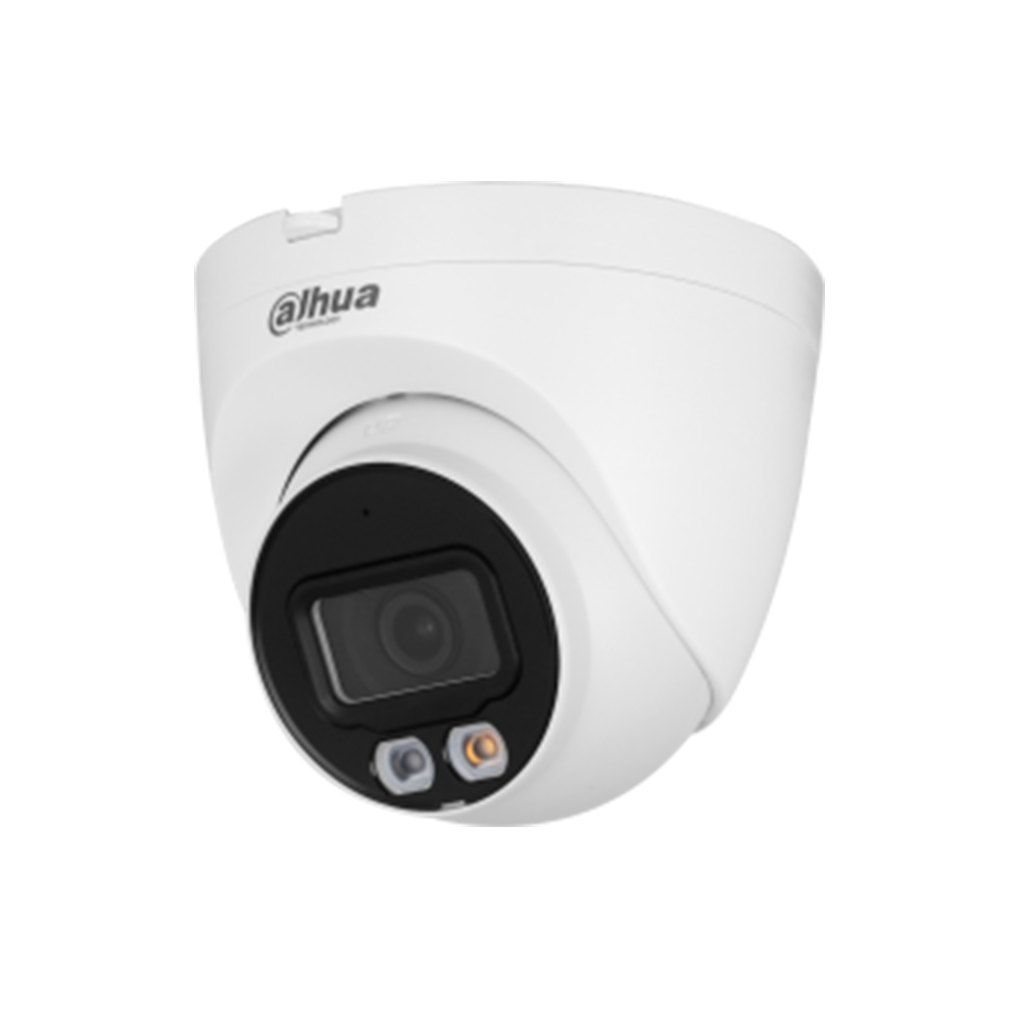

DH-IPC-HDW2849TP-S-IL-0280B IP видеокамера

<div data-v-1adf18f6="">
<div data-v-1adf18f6="">
<div>
<div>
<table>
<tbody>
<tr>
<td colspan="60">
<p>Camera</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Image Sensor</p>
</td>
<td colspan="42">
<p>1/2.7" CMOS</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Max. Resolution</p>
</td>
<td colspan="42">
<p>3840 (H) × 2160 (V)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>ROM</p>
</td>
<td colspan="42">
<p>128 MB</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>RAM</p>
</td>
<td colspan="42">
<p>256 MB</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Scanning System</p>
</td>
<td colspan="42">
<p>Progressive</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Electronic Shutter Speed</p>
</td>
<td colspan="42">
<p>Auto/Manual 1/3 s–1/100,000 s</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Min. Illumination</p>
</td>
<td colspan="42">
<p>0.008 lux@F1.6 (Color, 30 IRE) <br> 0.0008 lux@F1.6 (B/W, 30 IRE) <br> 0 lux (Illuminator on)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>S/N Ratio</p>
</td>
<td colspan="42">
<p>&gt;56 dB</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Illumination Distance</p>
</td>
<td colspan="42">
<p>30 m (98.43 ft) (IR); 30 m (98.43 ft) (Warm light)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Illuminator On/Off Control</p>
</td>
<td colspan="42">
<p>Auto; Manual</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Illuminator Number</p>
</td>
<td colspan="42">
<p>1 (IR LED); 1(Warm light)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Pan/Tilt/Rotation Range</p>
</td>
<td colspan="42">
<p>Pan: 0°–360° <br> Tilt: 0°–78° <br> Rotation: 0°–360°</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Lens</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Lens Type</p>
</td>
<td colspan="42">
<p>Fixed-focal</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Lens Mount</p>
</td>
<td colspan="42">
<p>M12</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Focal Length</p>
</td>
<td colspan="42">
<p>2.8 mm; 3.6 mm</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Max. Aperture</p>
</td>
<td colspan="42">
<p>F1.6</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Field of View</p>
</td>
<td colspan="42">
<p>2.8 mm: H: 111°; V: 58°; D: 132°<br> 3.6 mm: H: 87°; V: 49°; D: 100°</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Iris Control</p>
</td>
<td colspan="42">
<p>Fixed</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Close Focus Distance</p>
</td>
<td colspan="42">
<p>2.8 mm: 1.5 m (4.92 ft)<br> 3.6 mm: 1.9 m (6.23 ft)</p>
</td>
</tr>
<tr>
<td colspan="18" rowspan="3">
<p>DORI Distance</p>
</td>
<td colspan="8">
<p>Lens</p>
</td>
<td colspan="8">
<p>Detect</p>
</td>
<td colspan="8">
<p>Observe</p>
</td>
<td colspan="8">
<p>Recognize</p>
</td>
<td colspan="10">
<p>Identify</p>
</td>
</tr>
<tr>
<td colspan="8">
<p>2.8 mm</p>
</td>
<td colspan="8">
<p>84.8 m</p>
<p>(278.22 ft)</p>
</td>
<td colspan="8">
<p>33.9 m</p>
<p>(111.22 ft)</p>
</td>
<td colspan="8">
<p>17.0 m</p>
<p>(55.77 ft)</p>
</td>
<td colspan="10">
<p>8.5 m</p>
<p>(27.89 ft)</p>
</td>
</tr>
<tr>
<td colspan="8">
<p>3.6 mm</p>
</td>
<td colspan="8">
<p>98.7 m</p>
<p>(350.07 ft)</p>
</td>
<td colspan="8">
<p>39.5 m</p>
<p>(129.59 ft)</p>
</td>
<td colspan="8">
<p>19.7 m</p>
<p>(64.63 ft)</p>
</td>
<td colspan="10">
<p>9.9 m</p>
<p>(32.48 ft)</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Intelligence</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>IVS (Perimeter Protection)</p>
</td>
<td colspan="42">
<p>Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Smart Search</p>
</td>
<td colspan="42">
<p>Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Video</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Video Compression</p>
</td>
<td colspan="42">
<p>H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Smart Codec</p>
</td>
<td colspan="42">
<p>Smart H.265+; Smart H.264+</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Video Frame Rate</p>
</td>
<td colspan="42">
<p>Main stream: 3840 × 2160 @(1–20 fps )/2688 × 1520@(1–25/30 fps) <br> sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) <br> *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Stream Capability</p>
</td>
<td colspan="42">
<p>2 streams</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Resolution</p>
</td>
<td colspan="42">
<p>3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 × 1728 (3072 × 1728); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Bit Rate Control</p>
</td>
<td colspan="42">
<p>CBR/VBR</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Video Bit Rate</p>
</td>
<td colspan="42">
<p>H.264: 32 kbps–8192 kbps <br> H.265: 12 kbps–8192 kbps</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Day/Night</p>
</td>
<td colspan="42">
<p>Auto(ICR)/Color/B/W</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>BLC</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>HLC</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>WDR</p>
</td>
<td colspan="42">
<p>120 dB</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>White Balance</p>
</td>
<td colspan="42">
<p>Auto; natural; street lamp; outdoor; manual; regional custom</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Gain Control</p>
</td>
<td colspan="42">
<p>Auto; Manual</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Noise Reduction</p>
</td>
<td colspan="42">
<p>3D NR</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Motion Detection</p>
</td>
<td colspan="42">
<p>OFF/ON (4 areas, rectangular)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Region of Interest (RoI)</p>
</td>
<td colspan="42">
<p>Yes (4 areas)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Smart Illumination</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Image Rotation</p>
</td>
<td colspan="42">
<p>0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Mirror</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Privacy Masking</p>
</td>
<td colspan="42">
<p>4 areas</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Audio</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Built-in MIC</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Audio Compression</p>
</td>
<td colspan="42">
<p>G.711a; G.711Mu; PCM; G.726</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Alarm</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Alarm Event</p>
</td>
<td colspan="42">
<p>No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Network</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Network Port</p>
</td>
<td colspan="42">
<p>RJ-45 (10/100 Base-T)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>SDK and API</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Network Protocol</p>
</td>
<td colspan="42">
<p>IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Interoperability</p>
</td>
<td colspan="42">
<p>ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>User/Host</p>
</td>
<td colspan="42">
<p>20 (Total bandwidth: 48 M)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Storage</p>
</td>
<td colspan="42">
<p>FTP; SFTP; Micro SD card (support max. 256 GB); NAS</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Browser</p>
</td>
<td colspan="42">
<p>IE <br> Chrome <br> Firefox</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Management Software</p>
</td>
<td colspan="42">
<p>Smart PSS; DSS; DMSS</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Mobile Client</p>
</td>
<td colspan="42">
<p>iOS; Android</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Cyber Security</p>
</td>
<td colspan="42">
<p>Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Certification</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Certifications</p>
</td>
<td colspan="42">
<p>CE-LVD: EN62368-1 <br> CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU <br> FCC: 47 CFR FCC Part 15, Subpart B <br> UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Power</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Power Supply</p>
</td>
<td colspan="42">
<p>12 VDC/PoE (802.3af)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Power Consumption</p>
</td>
<td colspan="42">
<p>Basic: 2.6 W (12 VDC); 3.3 W (PoE) <br> Max. (H.265+ max. resolution + max. stream+ WDR + warm light intensity + IVS): 5 W (12 VDC); 5.9 W (PoE)</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Environment</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Operating Temperature</p>
</td>
<td colspan="42">
<p>–40 °C to +55 °C (–40 °F to +131 °F)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Operating Humidity</p>
</td>
<td colspan="42">
<p>≤95%</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Storage Temperature</p>
</td>
<td colspan="42">
<p>–40 °C to +60 °C (–40 °F to +140 °F)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Storage Humidity</p>
</td>
<td colspan="42">
<p>≤95%</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Protection</p>
</td>
<td colspan="42">
<p>IP67</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Structure</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Casing Material</p>
</td>
<td colspan="42">
<p>Inner core: Metal <br> Cover: Plastic</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Product Dimensions</p>
</td>
<td colspan="42">
<p>100.9 mm × Φ109.9 mm (3.97"× Φ4.33")</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Net Weight</p>
</td>
<td colspan="42">
<p>0.38 kg (0.84 lb)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Gross Weight</p>
</td>
<td colspan="42">
<p>0.52 kg (1.15 lb)</p>
</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
</div>

Характеристики

Дальность ИК-подсветки: 30 м
Объектив: 2.8 мм
Исполнение: Внутреннее
Материал корпуса: Металл+пластик
Рабочая температура: -40°C до +55°C
Разрешение: 8 мп
Наличие MicroSD: Да
Тип объектива: Фиксированный
Наличие микрофона: Да
LED подсветка: 30 м
Бренд: Dahua
