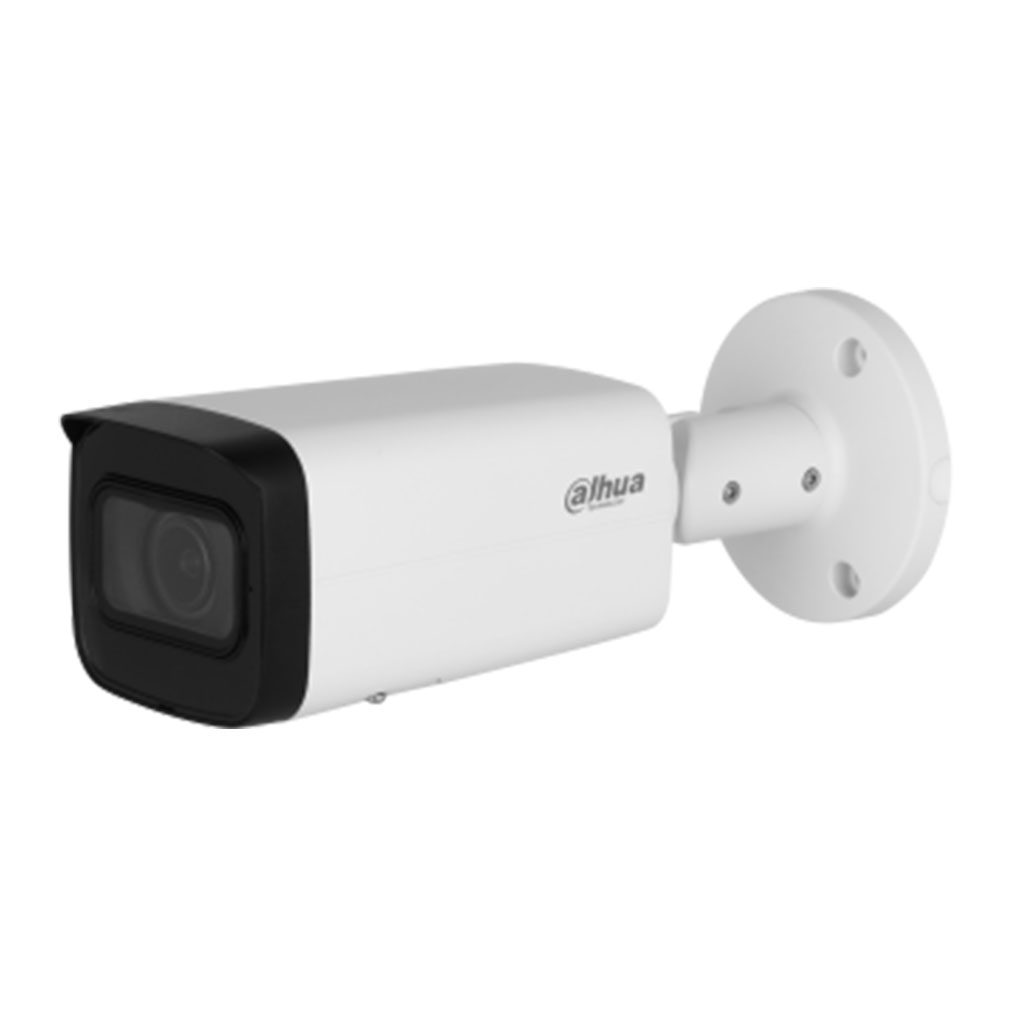

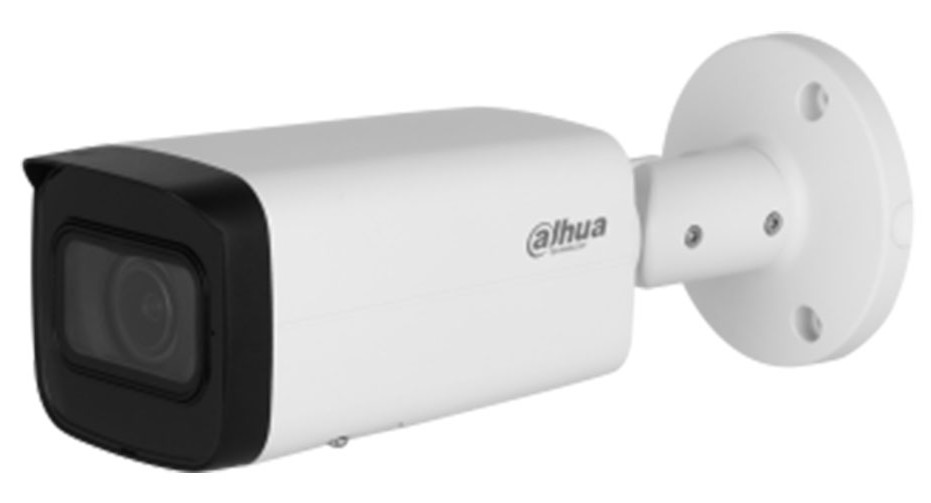

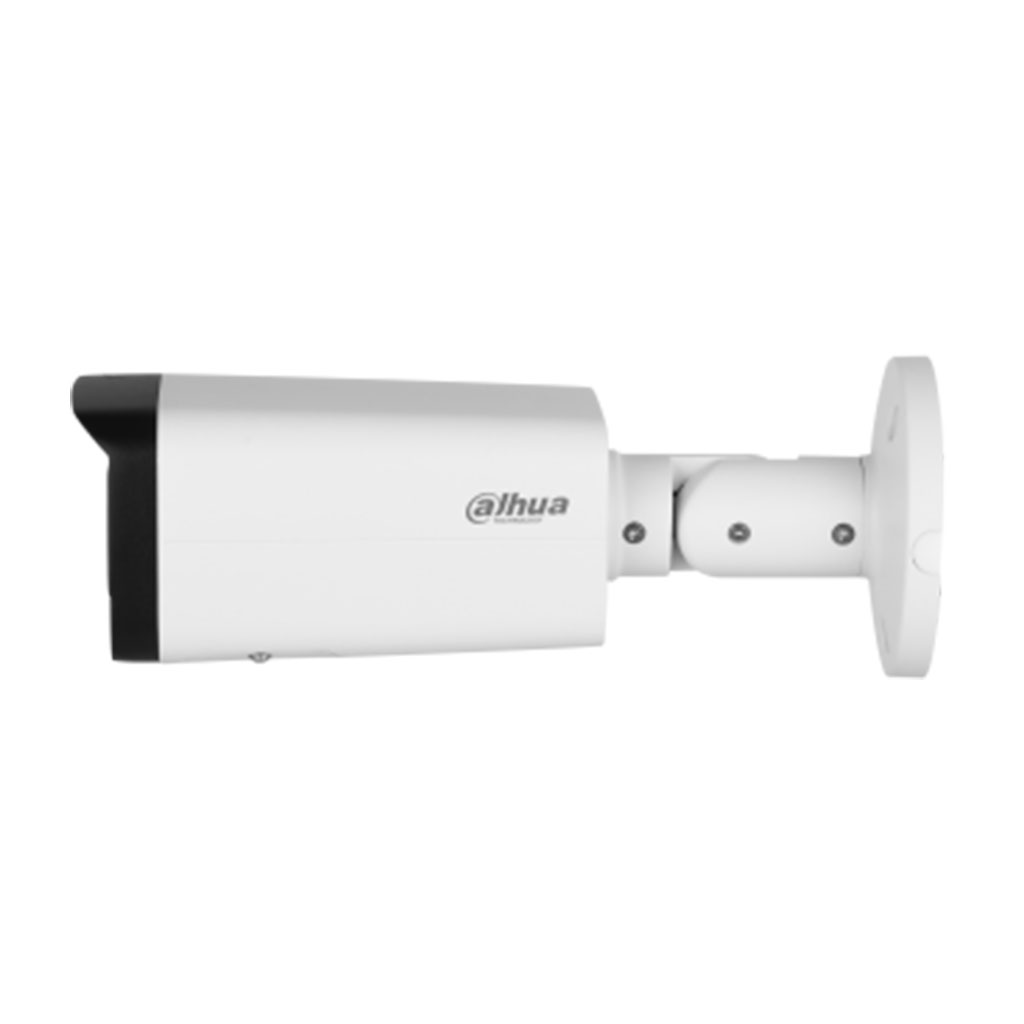

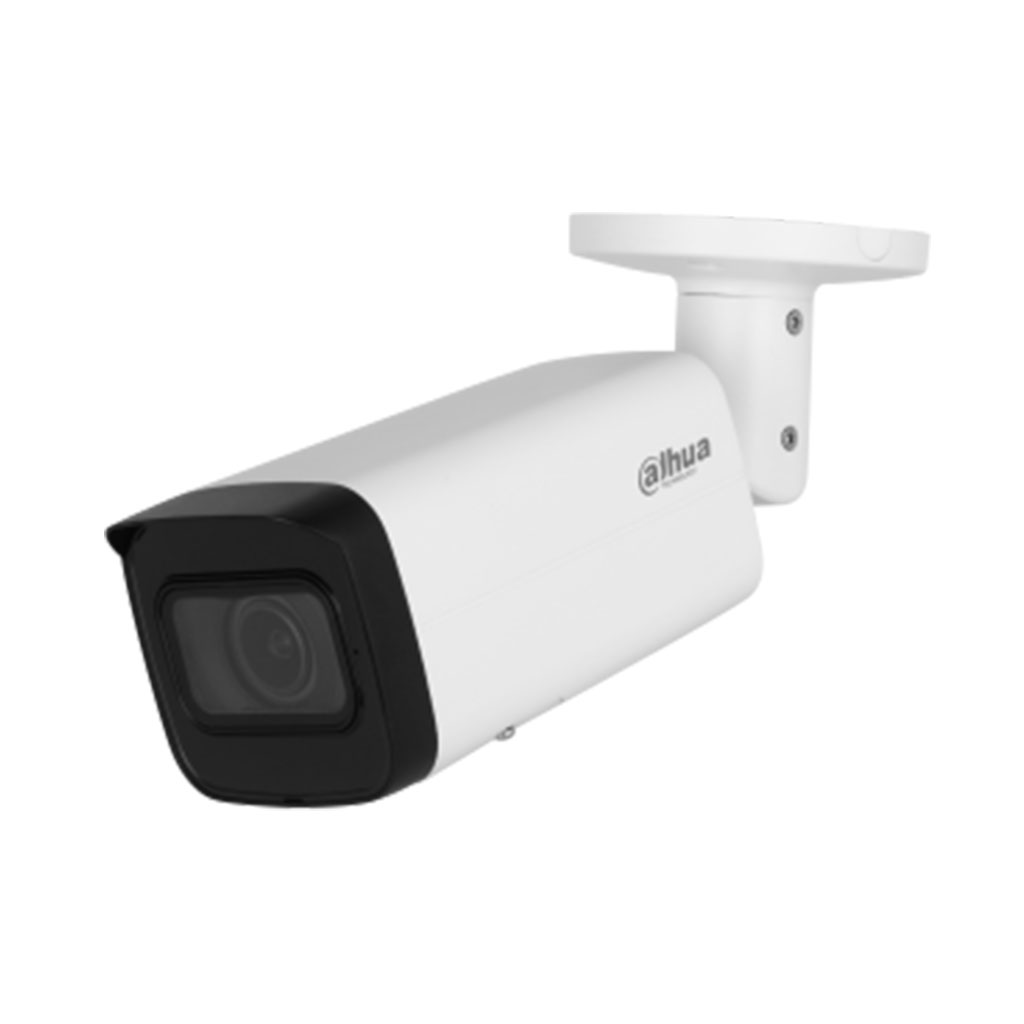

DH-IPC-HFW2841TP-ZAS-27135 IP видеокамера

<div data-v-1adf18f6="">
<div data-v-1adf18f6="">
<div>
<div>
<table>
<tbody>
<tr>
<td colspan="60">
<p>Camera</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Image Sensor</p>
</td>
<td colspan="42">
<p>1/2.7" CMOS</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Max. Resolution</p>
</td>
<td colspan="42">
<p>3840 (H) × 2160 (V)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>ROM</p>
</td>
<td colspan="42">
<p>128 MB</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>RAM</p>
</td>
<td colspan="42">
<p>256 MB</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Scanning System</p>
</td>
<td colspan="42">
<p>Progressive</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Electronic Shutter Speed</p>
</td>
<td colspan="42">
<p>Auto/Manual 1/3 s–1/100,000 s</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Min. Illumination</p>
</td>
<td colspan="42">
<p>0.008 lux@F1.5 (Color, 30 IRE) <br> 0.0008 lux@F1.5 (B/W, 30 IRE) <br> 0 lux (Illuminator on)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>S/N Ratio</p>
</td>
<td colspan="42">
<p>&gt;56 dB</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Illumination Distance</p>
</td>
<td colspan="42">
<p>Up to 60 m (196.85 ft) (IR)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Illuminator On/Off Control</p>
</td>
<td colspan="42">
<p>Auto; Manual</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Illuminator Number</p>
</td>
<td colspan="42">
<p>4 (IR LED)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Pan/Tilt/Rotation Range</p>
</td>
<td colspan="42">
<p>Pan: 0°–360° <br> Tilt: 0°–90° <br> Rotation: 0°–360°</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Lens</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Lens Type</p>
</td>
<td colspan="42">
<p>Motorized vari-focal</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Lens Mount</p>
</td>
<td colspan="42">
<p>φ14</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Focal Length</p>
</td>
<td colspan="42">
<p>2.7 mm–13.5 mm</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Max. Aperture</p>
</td>
<td colspan="42">
<p>F1.5</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Field of View</p>
</td>
<td colspan="42">
<p>H: 113°–31°; V: 58°–18°; D: 138°–36°</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Iris Control</p>
</td>
<td colspan="42">
<p>Fixed</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Close Focus Distance</p>
</td>
<td colspan="42">
<p>0.8 m (2.62 ft)</p>
</td>
</tr>
<tr>
<td colspan="18" rowspan="3">
<p>DORI Distance</p>
</td>
<td colspan="8">
<p>Lens</p>
</td>
<td colspan="8">
<p>Detect</p>
</td>
<td colspan="8">
<p>Observe</p>
</td>
<td colspan="8">
<p>Recognize</p>
</td>
<td colspan="10">
<p>Identify</p>
</td>
</tr>
<tr>
<td colspan="8">
<p>W</p>
</td>
<td colspan="8">
<p>85.3 m (279.86 ft)</p>
</td>
<td colspan="8">
<p>34.1 m</p>
<p>(111.88 ft)</p>
</td>
<td colspan="8">
<p>17.1 m</p>
<p>(56.10 ft)</p>
</td>
<td colspan="10">
<p>8.5 m</p>
<p>(27.89 ft)</p>
</td>
</tr>
<tr>
<td colspan="8">
<p>T</p>
</td>
<td colspan="8">
<p>280.0 m (918.64 ft)</p>
</td>
<td colspan="8">
<p>112.0 m</p>
<p>(367.45 ft)</p>
</td>
<td colspan="8">
<p>56.0 m</p>
<p>(183.73 ft)</p>
</td>
<td colspan="10">
<p>28.0 m</p>
<p>(97.86 ft)</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Intelligence</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>IVS (Perimeter Protection)</p>
</td>
<td colspan="42">
<p>Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Smart Search</p>
</td>
<td colspan="42">
<p>Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Video</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Video Compression</p>
</td>
<td colspan="42">
<p>H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Smart Codec</p>
</td>
<td colspan="42">
<p>Smart H.265+; Smart H.264+</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Video Frame Rate</p>
</td>
<td colspan="42">
<p>Main stream: 3840 × 2160@(1–20 fps)/2688 × 1520@(1–25/30 fps) <br> sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) <br> *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Stream Capability</p>
</td>
<td colspan="42">
<p>2 streams</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Resolution</p>
</td>
<td colspan="42">
<p>3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 × 1728 (3072 × 1728); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Bit Rate Control</p>
</td>
<td colspan="42">
<p>CBR/VBR</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Video Bit Rate</p>
</td>
<td colspan="42">
<p>H.264: 32 kbps–8192 kbps <br> H.265: 12 kbps–8192 kbps</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Day/Night</p>
</td>
<td colspan="42">
<p>Auto(ICR)/Color/B/W</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>BLC</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>HLC</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>WDR</p>
</td>
<td colspan="42">
<p>120 dB</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>White Balance</p>
</td>
<td colspan="42">
<p>Auto; natural; street lamp; outdoor; manual; regional custom</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Gain Control</p>
</td>
<td colspan="42">
<p>Auto; Manual</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Noise Reduction</p>
</td>
<td colspan="42">
<p>3D NR</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Motion Detection</p>
</td>
<td colspan="42">
<p>OFF/ON (4 areas, rectangular)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Region of Interest (RoI)</p>
</td>
<td colspan="42">
<p>Yes (4 areas)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Smart Illumination</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Image Rotation</p>
</td>
<td colspan="42">
<p>0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Mirror</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Privacy Masking</p>
</td>
<td colspan="42">
<p>4 areas</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Audio</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Built-in MIC</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Audio Compression</p>
</td>
<td colspan="42">
<p>G.711a; G.711Mu; PCM; G.726</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Alarm</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Alarm Event</p>
</td>
<td colspan="42">
<p>No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; external alarm (Only — ZAS supports); SMD; security exception</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Network</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Network Port</p>
</td>
<td colspan="42">
<p>RJ-45 (10/100 Base-T)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>SDK and API</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Network Protocol</p>
</td>
<td colspan="42">
<p>IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour; P2P</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Interoperability</p>
</td>
<td colspan="42">
<p>ONVIF (Profile S/Profile G/Profile T); CGI;</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>User/Host</p>
</td>
<td colspan="42">
<p>20 (Total bandwidth: 48 M)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Storage</p>
</td>
<td colspan="42">
<p>FTP; SFTP; Micro SD card (support max. 256 GB); NAS</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Browser</p>
</td>
<td colspan="42">
<p>IE; Chrome; Firefox</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Management Software</p>
</td>
<td colspan="42">
<p>SmartPSS Lite; DSS; DMSS</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Mobile Client</p>
</td>
<td colspan="42">
<p>iOS; Android</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Cyber Security</p>
</td>
<td colspan="42">
<p>Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Certification</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Certifications</p>
</td>
<td colspan="42">
<p>CE-LVD: EN62368-1;</p>
<p>CE-EMC: Electromagnetic Compatibility Directive</p>
<p>2014/30/EU;</p>
<p>FCC: 47 CFR FCC Part 15, Subpart B;</p>
<p>UL/CUL: UL62368-1 &amp; CAN/CSA C22.2 No. 62368-1-14</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Port</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Audio Input</p>
</td>
<td colspan="42">
<p>1 channel (RCA port) (Only — ZAS supports)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Audio Output</p>
</td>
<td colspan="42">
<p>1 channel (RCA port) (Only — ZAS supports)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Alarm Input</p>
</td>
<td colspan="42">
<p>1 channel in: 5mA 3V–5 VDC (Only — ZAS supports)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Alarm Output</p>
</td>
<td colspan="42">
<p>1 channel out: 300mA 12 VDC (Only — ZAS supports)</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Power</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Power Supply</p>
</td>
<td colspan="42">
<p>12 VDC/PoE (802.3af)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Power Consumption</p>
</td>
<td colspan="42">
<p>-ZS:</p>
<p>Basic: 2.7 W (12 VDC); 3.6 W (PoE);</p>
<p>Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 8.3 W (12 VDC); 9.6 W (PoE)</p>
<p>-ZAS:</p>
<p>Basic: 2.7 W (12 VDC); 3.6 W (PoE);</p>
<p>Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 8.4 W (12 VDC); 9.7 W (PoE)</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Environment</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Operating Temperature</p>
</td>
<td colspan="42">
<p>–30 °C to +60 °C (–22 °F to +140 °F)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Operating Humidity</p>
</td>
<td colspan="42">
<p>≤95%</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Storage Temperature</p>
</td>
<td colspan="42">
<p>–40 °C to +60 °C (–40 °F to +140 °F)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Storage Humidity</p>
</td>
<td colspan="42">
<p>≤95%</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Protection</p>
</td>
<td colspan="42">
<p>IP67; IK10 (optional)</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Structure</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Casing Material</p>
</td>
<td colspan="42">
<p>Metal</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Product Dimensions</p>
</td>
<td colspan="42">
<p>238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57") (L × W × H)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Net Weight</p>
</td>
<td colspan="42">
<p>-ZS: 0.74 kg (1.63 lb) <br> -ZAS: 0.77 kg (1.70 lb)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Gross Weight</p>
</td>
<td colspan="42">
<p>-ZS: 0.98 kg (2.16 lb)<br> -ZAS: 1.01 kg (2.23 lb)</p>
</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
</div>

Характеристики

Дальность ИК-подсветки: 60 м
Тип объектива: Моторизованный вариофокальный
Объектив: 2.7 мм — 13.5 мм
Исполнение: Уличное
Материал корпуса: Металл
Рабочая температура: -30°C до +60°C
Разрешение: 8 мп
Наличие MicroSD: Да
Наличие микрофона: Да
Бренд: Dahua
