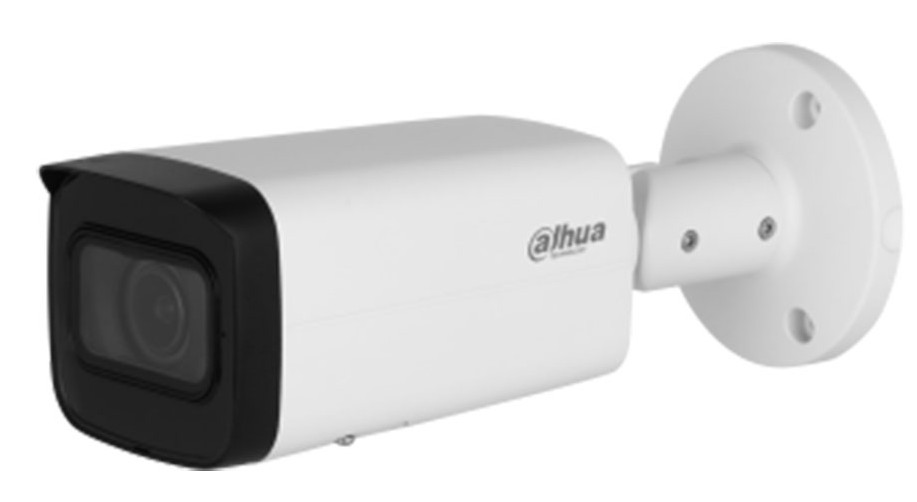

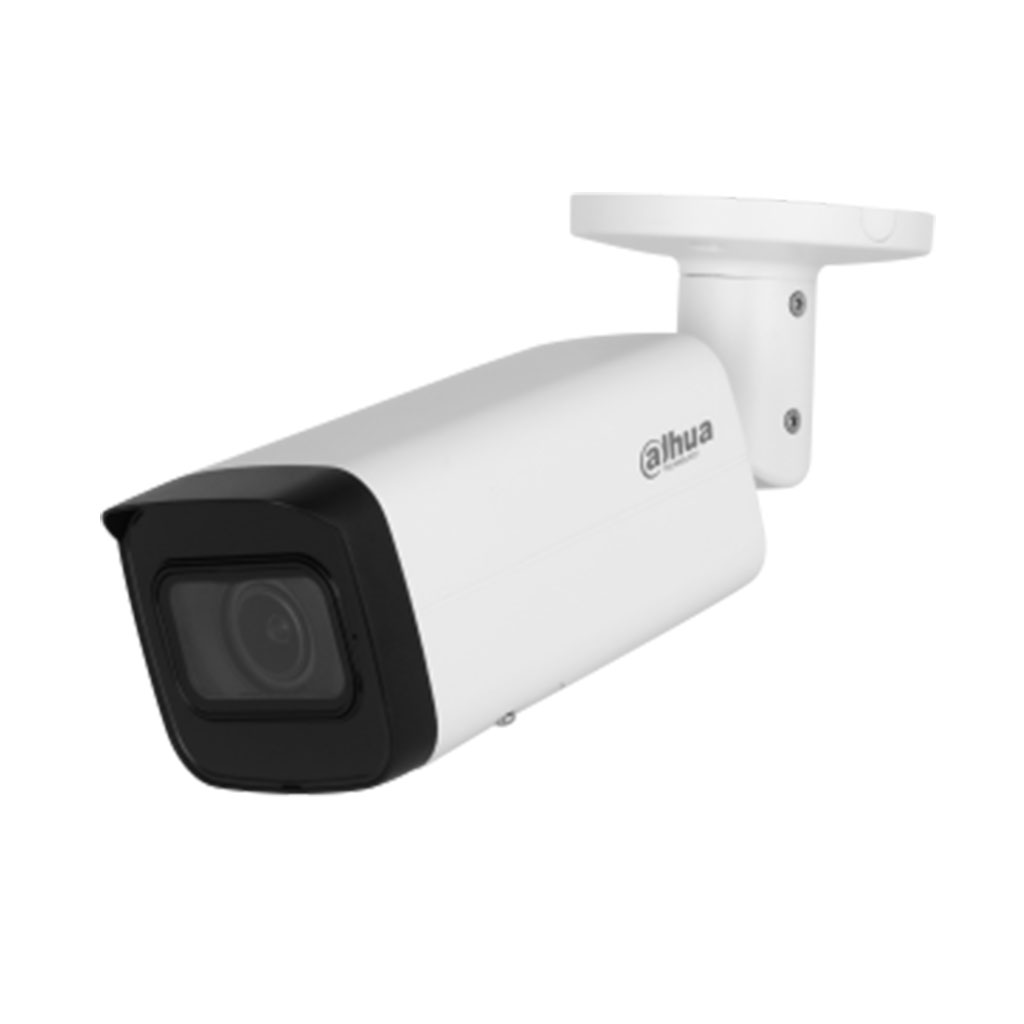

IPC-HFW2241TP-ZAS-27135 IP видеокамера

<table>
<tbody>
<tr>
<td colspan="60">
<p>Camera</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Image Sensor</p>
</td>
<td colspan="42">
<p>1/2.8" CMOS</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Max. Resolution</p>
</td>
<td colspan="42">
<p>1920 (H) × 1080 (V)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>ROM</p>
</td>
<td colspan="42">
<p>128 MB</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>RAM</p>
</td>
<td colspan="42">
<p>128 MB</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Scanning System</p>
</td>
<td colspan="42">
<p>Progressive</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Electronic Shutter Speed</p>
</td>
<td colspan="42">
<p>Auto/Manual 1/3 s–1/100,000 s</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Min. Illumination</p>
</td>
<td colspan="42">
<p>0.002 lux@F1.5 (Color, 30 IRE) <br> 0.0002 lux@F1.5 (B/W, 30 IRE) <br> 0 lux (Illuminator on)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>S/N Ratio</p>
</td>
<td colspan="42">
<p>&gt;56 dB</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Illumination Distance</p>
</td>
<td colspan="42">
<p>Up to 60 m (196.85 ft) (IR LED)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Illuminator On/Off Control</p>
</td>
<td colspan="42">
<p>Auto;Manual</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Illuminator Number</p>
</td>
<td colspan="42">
<p>4 (IR LED)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Pan/Tilt/Rotation Range</p>
</td>
<td colspan="42">
<p>Pan: 0°–360° <br> Tilt: 0°–90° <br> Rotation: 0°–360°</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Lens</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Lens Type</p>
</td>
<td colspan="42">
<p>Motorized vari-focal</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Lens Mount</p>
</td>
<td colspan="42">
<p>φ14</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Focal Length</p>
</td>
<td colspan="42">
<p>2.7 mm–13.5 mm</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Max. Aperture</p>
</td>
<td colspan="42">
<p>F1.5</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Field of View</p>
</td>
<td colspan="42">
<p>H: 108°–30°; <br> V: 56°–17°; <br> D: 131°–35°</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Iris Control</p>
</td>
<td colspan="42">
<p>Fixed</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Close Focus Distance</p>
</td>
<td colspan="42">
<p>0.8 m (2.62 ft)</p>
</td>
</tr>
<tr>
<td colspan="18" rowspan="3">
<p>DORI Distance</p>
</td>
<td colspan="8">
<p>Lens</p>
</td>
<td colspan="8">
<p>Detect</p>
</td>
<td colspan="8">
<p>Observe</p>
</td>
<td colspan="8">
<p>Recognize</p>
</td>
<td colspan="10">
<p>Identify</p>
</td>
</tr>
<tr>
<td colspan="8">
<p>W</p>
</td>
<td colspan="8">
<p>44.1 m (144.69 ft)</p>
</td>
<td colspan="8">
<p>17.7 m</p>
<p>(58.07 ft)</p>
</td>
<td colspan="8">
<p>8.8 m</p>
<p>(28.87 ft)</p>
</td>
<td colspan="10">
<p>4.4 m</p>
<p>(14.44 ft)</p>
</td>
</tr>
<tr>
<td colspan="8">
<p>T</p>
</td>
<td colspan="8">
<p>144.8 m (475.07 ft)</p>
</td>
<td colspan="8">
<p>57.9 m</p>
<p>(189.96 ft)</p>
</td>
<td colspan="8">
<p>29.0 m</p>
<p>(96.14 ft)</p>
</td>
<td colspan="10">
<p>14.5 m</p>
<p>(47.57 ft)</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Intelligence</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>IVS (Perimeter Protection)</p>
</td>
<td colspan="42">
<p>Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Smart Search</p>
</td>
<td colspan="42">
<p>Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Video</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Video Compression</p>
</td>
<td colspan="42">
<p>H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Smart Codec</p>
</td>
<td colspan="42">
<p>Smart H.265+; Smart H.264+</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Video Frame Rate</p>
</td>
<td colspan="42">
<p>Main stream: 1920 × 1080@(1–25/30 fps)<br> Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) <br> *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Stream Capability</p>
</td>
<td colspan="42">
<p>2 streams</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Resolution</p>
</td>
<td colspan="42">
<p>1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Bit Rate Control</p>
</td>
<td colspan="42">
<p>CBR/VBR</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Video Bit Rate</p>
</td>
<td colspan="42">
<p>H.264: 32 kbps–6144 kbps</p>
<p>H.265: 12 kbps–6144 kbps</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Day/Night</p>
</td>
<td colspan="42">
<p>Auto(ICR)/Color/B/W</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>BLC</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>HLC</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>WDR</p>
</td>
<td colspan="42">
<p>120 dB</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>White Balance</p>
</td>
<td colspan="42">
<p>Auto; natural; street lamp; outdoor; manual; regional custom</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Gain Control</p>
</td>
<td colspan="42">
<p>Manual;Auto</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Noise Reduction</p>
</td>
<td colspan="42">
<p>3D NR</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Motion Detection</p>
</td>
<td colspan="42">
<p>OFF/ON (4 areas, rectangular)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Region of Interest (RoI)</p>
</td>
<td colspan="42">
<p>Yes (4 areas)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Smart Illumination</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Image Rotation</p>
</td>
<td colspan="42">
<p>0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Mirror</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Privacy Masking</p>
</td>
<td colspan="42">
<p>4 areas</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Audio</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Built-in MIC</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Audio Compression</p>
</td>
<td colspan="42">
<p>G.711a; G.711Mu; G.726; PCM</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Alarm</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Alarm Event</p>
</td>
<td colspan="42">
<p>No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; external alarm (Only — ZAS supports); SMD; security exception</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Network</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Network Port</p>
</td>
<td colspan="42">
<p>RJ-45 (10/100 Base-T)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>SDK and API</p>
</td>
<td colspan="42">
<p>Yes</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Network Protocol</p>
</td>
<td colspan="42">
<p>IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Interoperability</p>
</td>
<td colspan="42">
<p>ONVIF (Profile S/Profile T); CGI</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>User/Host</p>
</td>
<td colspan="42">
<p>6 (Total bandwidth: 36 M)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Storage</p>
</td>
<td colspan="42">
<p>FTP; SFTP; Micro SD card (support max. 256 GB)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Browser</p>
</td>
<td colspan="42">
<p>IE <br> Chrome <br> Firefox</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Management Software</p>
</td>
<td colspan="42">
<p>SmartPSS Lite; DSS; DMSS</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Mobile Client</p>
</td>
<td colspan="42">
<p>iOS; Android</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Cyber Security</p>
</td>
<td colspan="42">
<p>Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Certification</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Certifications</p>
</td>
<td colspan="42">
<p>CE-LVD: EN62368-1;</p>
<p>CE-EMC: Electromagnetic Compatibility Directive</p>
<p>2014/30/EU;</p>
<p>FCC: 47 CFR FCC Part 15, Subpart B;</p>
<p>UL/CUL: UL62368-1 &amp; CAN/CSA C22.2 No. 62368-1-14</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Port</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Audio Input</p>
</td>
<td colspan="42">
<p>1 channel (RCA port) (Only — ZAS supports)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Audio Output</p>
</td>
<td colspan="42">
<p>1 channel (RCA port) (Only — ZAS supports)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Alarm Input</p>
</td>
<td colspan="42">
<p>1 channel in: 5mA 3V–5V DC (Only — ZAS supports)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Alarm Output</p>
</td>
<td colspan="42">
<p>1 channel out: 300mA 12V DC (Only — ZAS supports)</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Power</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Power Supply</p>
</td>
<td colspan="42">
<p>12 VDC/PoE (802.3af)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Power Consumption</p>
</td>
<td colspan="42">
<p>-ZS:<br> Basic: 2W (12 VDC); 2.6 W (PoE)<br> Max. (H.265+intelligence on +WDR +IR on): 8.5 W (12 VDC); 9.8 W (PoE)<br> -ZAS:<br> Basic: 2W (12 VDC); 2.6 W (PoE)<br> Max. (H.265+intelligence on +WDR +IR on): 8.6 W (12 VDC); 9.9 W (PoE)</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Environment</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Operating Temperature</p>
</td>
<td colspan="42">
<p>–30 °C to +60 °C (–22 °F to +140 °F)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Operating Humidity</p>
</td>
<td colspan="42">
<p>≤95%</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Storage Temperature</p>
</td>
<td colspan="42">
<p>–40 °C to +60 °C (–40°F to +140°F)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Protection</p>
</td>
<td colspan="42">
<p>IP67, IK10 (optional)</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Structure</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Casing Material</p>
</td>
<td colspan="42">
<p>Metal</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Product Dimensions</p>
</td>
<td colspan="42">
<p>238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57") (L × W × H)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Net Weight</p>
</td>
<td colspan="42">
<p>-ZS: 0.73 kg (1.6 lb) <br> -ZAS: 0.76 kg (1.7 lb)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Gross Weight</p>
</td>
<td colspan="42">
<p>-ZS: 0.99 kg (2.2 lb)<br> -ZAS: 1.02 kg (2.2 lb)</p>
</td>
</tr>
</tbody>
</table>

Характеристики

Тип объектива: Вариофокальный
Объектив: 2.7-13.5 мм
Исполнение: Уличное
Материал корпуса: Металл
Рабочая температура: -30°C до +60°C
Дальность ИК-подсветки: 60 м
Наличие микрофона: Да
Разрешение: 2 мп
Наличие MicroSD: Да
Бренд: Dahua
Тип корпуса: Цилиндр
