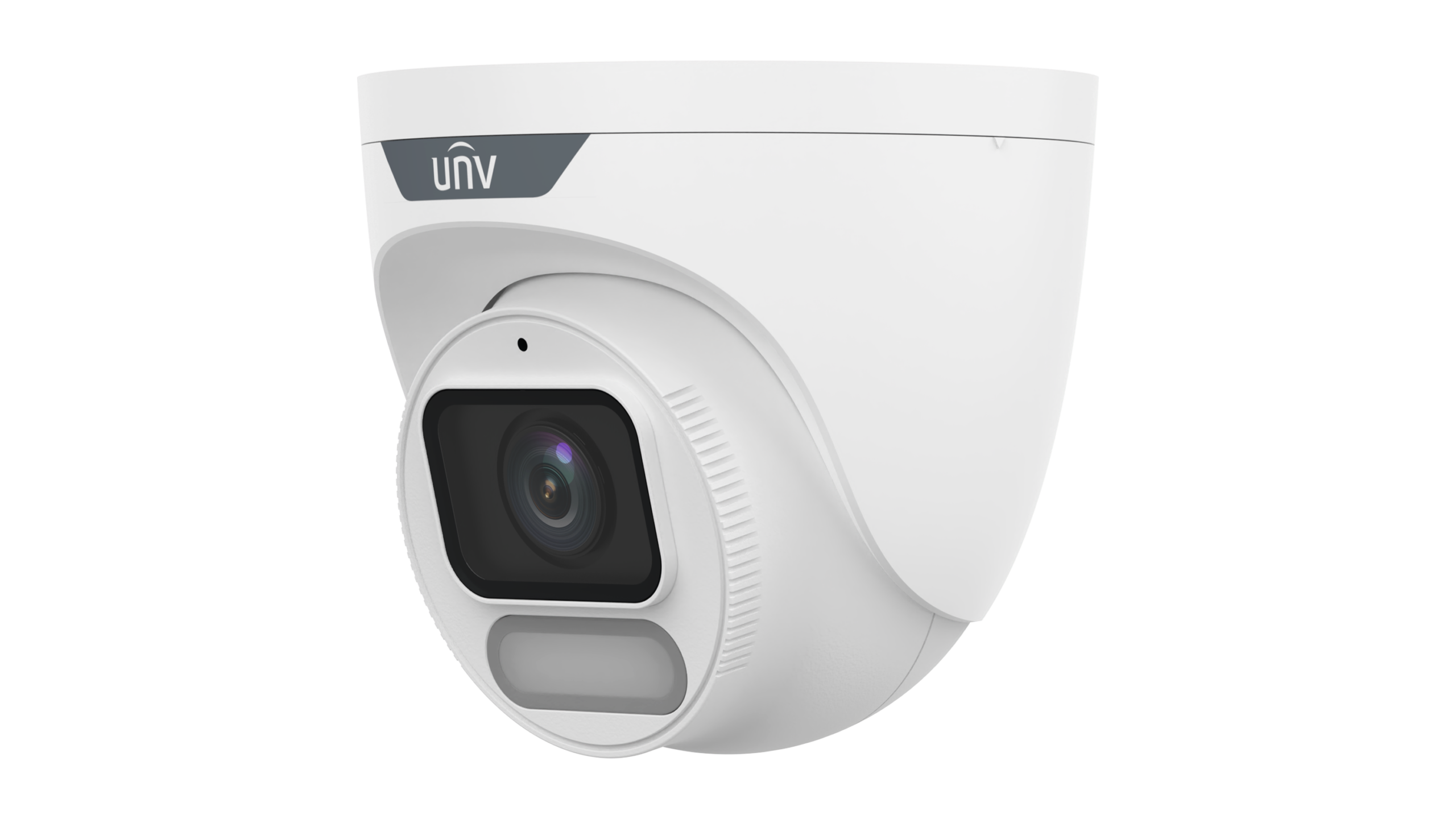

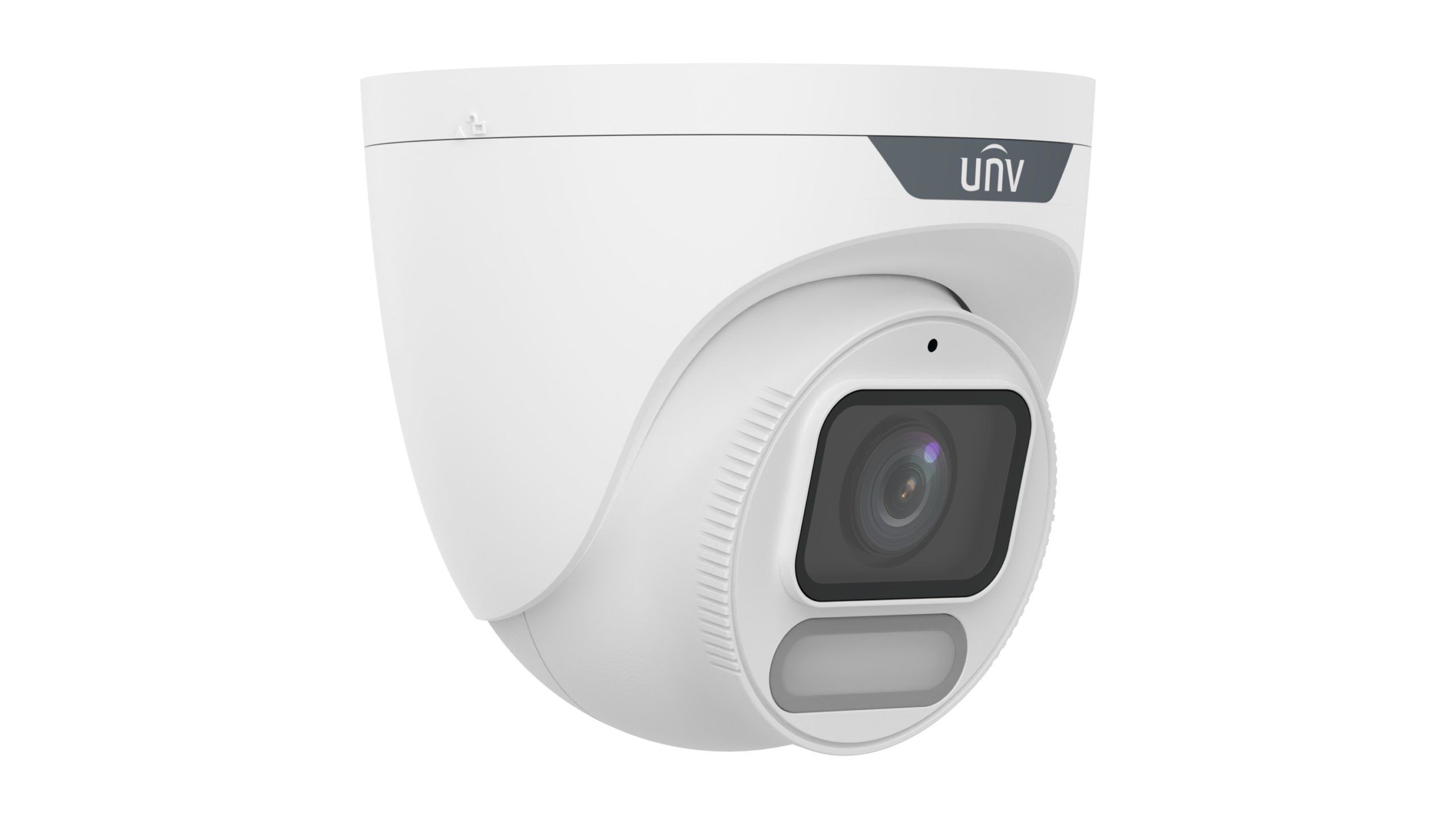

IPC3628LE-ADF28K-WP Купольная IP видеокамера

<div class="tableProDetails"><table width="100%"><tbody><tr><td class="thead" width="20%">&nbsp;</td><td class="thead" width="40%" colspan="4">IPC3628LE-ADF28K-WP</td><td class="thead" width="40%" colspan="4">IPC3628LE-ADF40K-WP</td></tr><tr><td class="thead" colspan="9">Camera<b></b></td></tr><tr><td>Max Resolution</td><td colspan="8">8 MP</td></tr><tr><td>Sensor</td><td colspan="8">1/1.8" CMOS</td></tr><tr><td>Min. Illumination</td><td colspan="8">Colour: 0.0003 lux (F1.0, AGC ON)</td></tr><tr><td>Shutter</td><td colspan="8">Auto/Manual, 1 ~ 1/100000s</td></tr><tr><td>Adjustment Angle</td><td colspan="8">Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°</td></tr><tr><td>S/N</td><td colspan="8">&gt;52 dB</td></tr><tr><td>WDR</td><td colspan="8">120 dB</td></tr><tr><td class="thead" colspan="9">Lens<b></b></td></tr><tr><td>Focal Length</td><td colspan="4">2.8 mm</td><td colspan="4">4.0 mm</td></tr><tr><td>Iris Type</td><td colspan="8">Fixed</td></tr><tr><td>Iris</td><td colspan="8">F1.0</td></tr><tr><td>Field of View (H)</td><td colspan="4">111.0°</td><td colspan="4">94.2°</td></tr><tr><td>Field of View (V)</td><td colspan="4">63.0°</td><td colspan="4">51.0°</td></tr><tr><td>Field of View (D)</td><td colspan="4">131.0°</td><td colspan="4">111.7°</td></tr><tr><td>Lens Type</td><td colspan="8">Fixed</td></tr><tr><td class="thead" colspan="9">DORI<b></b></td></tr><tr><td>DORI Distance (Lens)</td><td colspan="4">2.8mm</td><td colspan="4">4.0mm</td></tr><tr><td>DORI Distance (Detect)</td><td colspan="4">63.0 (206.7ft)</td><td colspan="4">90.0(295.3ft)</td></tr><tr><td>DORI Distance (Observe)</td><td colspan="4">25.2 (82.7ft)</td><td colspan="4">36.0(118.1ft)</td></tr><tr><td>DORI Distance (Recognize)</td><td colspan="4">12.6 (41.3ft)</td><td colspan="4">18.0(59.1ft)</td></tr><tr><td>DORI Distance (Identify)</td><td colspan="4">6.3 (20.7ft)</td><td colspan="4">9.0(29.5ft)</td></tr><tr><td class="thead" colspan="9">Illuminator<b></b></td></tr><tr><td>Supplemental Light</td><td colspan="8">Warm light</td></tr><tr><td>Illumination Distance (Warm Light)</td><td colspan="8">30 m (98.4 ft)</td></tr><tr><td>Light On/Off Control</td><td colspan="8">Auto/Manual</td></tr><tr><td class="thead" colspan="9">Video<b></b></td></tr><tr><td>Video Compression</td><td colspan="8">Ultra 265, H.265, H.264, MJPEG</td></tr><tr><td>H.264 Code Profile</td><td colspan="8">Baseline profile, Main profile, High profile</td></tr><tr><td>Frame Rate</td><td colspan="8">Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; <br>Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps</td></tr><tr><td>Video Bit Rate</td><td colspan="8">128 Kbps to 6144 Kbps</td></tr><tr><td>U-code</td><td colspan="8">Support</td></tr><tr><td>OSD</td><td colspan="8">Up to 4 OSDs</td></tr><tr><td>Privacy Mask</td><td colspan="8">Up to 4 areas</td></tr><tr><td>ROI</td><td colspan="8">Support</td></tr><tr><td>Video Stream</td><td colspan="8">Dual Streams</td></tr><tr><td class="thead" colspan="9">Image<b></b></td></tr><tr><td>White Balance</td><td colspan="8">Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2</td></tr><tr><td>Digital Noise Reduction</td><td colspan="8">2D/3D DNR</td></tr><tr><td>Smart Illumination</td><td colspan="8">Support</td></tr><tr><td>Flip</td><td colspan="8">Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise</td></tr><tr><td>Dewarping</td><td colspan="8">N/A</td></tr><tr><td>HLC</td><td colspan="8">Support</td></tr><tr><td>BLC</td><td colspan="8">Support</td></tr><tr><td>Defog</td><td colspan="8">Digital Defog</td></tr><tr><td>Image Stabilization</td><td colspan="8">N/A</td></tr><tr><td class="thead" colspan="9">Events<b></b></td></tr><tr><td>Basic Detection</td><td colspan="8">Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection</td></tr><tr><td>General Function</td><td colspan="8">Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication</td></tr><tr><td class="thead" colspan="9">Intelligent<b></b></td></tr><tr><td>Smart Intrusion Prevention (Lite)</td><td colspan="8">Intrusion, Crossline Detection (Both detection are based on human body and vehicle detection)</td></tr><tr><td class="thead" colspan="9">Audio<b></b></td></tr><tr><td>Audio Compression</td><td colspan="8">G.711U, G.711A</td></tr><tr><td>Audio Bitrate</td><td colspan="8">64 Kbps</td></tr><tr><td>Two-way Audio</td><td colspan="8">N/A</td></tr><tr><td>Suppression</td><td colspan="8">Support</td></tr><tr><td>Sampling Rate</td><td colspan="8">8 kHz</td></tr><tr><td class="thead" colspan="9">Storage<b></b></td></tr><tr><td>Edge Storage</td><td colspan="8">Micro SD, up to 512 GB</td></tr><tr><td>Network Storage</td><td colspan="8">ANR, NAS (NFS)</td></tr><tr><td class="thead" colspan="9">Network<b></b></td></tr><tr><td>Protocols</td><td colspan="8">IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS</td></tr><tr><td>Compatible Integration</td><td colspan="8">ONVIF (Profile S, Profile G, Profile T), <br>API, SDK</td></tr><tr><td>User/Host</td><td colspan="8">Up to 32 users, 2 user levels: administrator and common user</td></tr><tr><td>Security</td><td colspan="8">Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF</td></tr><tr><td>Client</td><td colspan="8">UNV-Link, UNV-Link Pro, EZStation</td></tr><tr><td>Web Browser</td><td colspan="8">Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+</td></tr><tr><td class="thead" colspan="9">Interface<b></b></td></tr><tr><td>Audio I/O</td><td colspan="8">N/A</td></tr><tr><td>Alarm I/O</td><td colspan="8">N/A</td></tr><tr><td>Serial Port</td><td colspan="8">N/A</td></tr><tr><td>Built-in Mic</td><td colspan="8">Support</td></tr><tr><td>Built-in Speaker</td><td colspan="8">N/A</td></tr><tr><td>WIFI</td><td colspan="8">N/A</td></tr><tr><td>Network</td><td colspan="8">1 × RJ45 10 M/100 M Base-TX Ethernet</td></tr><tr><td>Video Output</td><td colspan="8">N/A</td></tr><tr><td class="thead" colspan="9">Certification<b></b></td></tr><tr><td>EMC</td><td colspan="8">CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)<br>FCC (FCC 47 CFR part15 B)</td></tr><tr><td>Safety</td><td colspan="8">CE LVD (EN 62368-1)<br>UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)</td></tr><tr><td>Environment</td><td colspan="8">CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)</td></tr><tr><td>Protection</td><td colspan="8">IP67 (IEC 60529)</td></tr><tr><td class="thead" colspan="9">General<b></b></td></tr><tr><td>Power</td><td colspan="8">DC 12V±25%, PoE (IEEE 802.3af)</td></tr><tr><td>Power Consumption</td><td colspan="8">Max 3.9W</td></tr><tr><td>Power Interface</td><td colspan="8">Ø5.5 mm coaxial power plug</td></tr><tr><td>Dimensions</td><td colspan="8">Ø118 x 106mm (Ø4.6” x 4.2”) (Ø x H)</td></tr><tr><td>Weight</td><td colspan="8">0.48kg(1.06lb)</td></tr><tr><td>Material</td><td colspan="8">Metal + Plastic</td></tr><tr><td>Working Environment</td><td colspan="8">-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)</td></tr><tr><td>Storage Environment</td><td colspan="8">-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)</td></tr><tr><td>Surge Protection</td><td colspan="8">4 KV</td></tr><tr><td>Reset Button</td><td colspan="8">Support</td></tr><tr><td>Web Client Language</td><td colspan="8">13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian</td></tr></tbody></table></div>

Характеристики

Наличие микрофона: Да
Наличие MicroSD: Да
Разрешение: 8 мп
Рабочая температура: -30°C до +60°C
Материал корпуса: Металл+пластик
Исполнение: Внутреннее
Объектив: 2.8 мм
Тип объектива: Фиксированный
Дальность ИК-подсветки: 30 м
Бренд: Uniview
