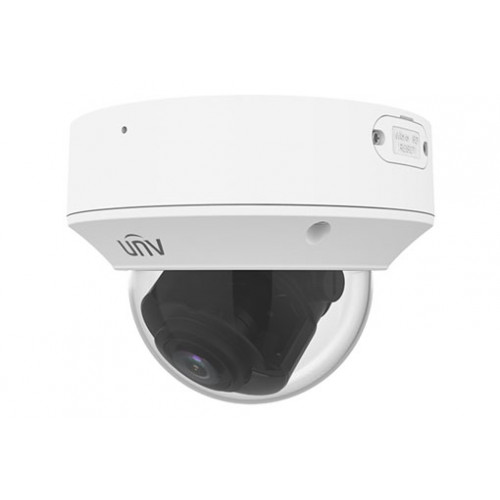

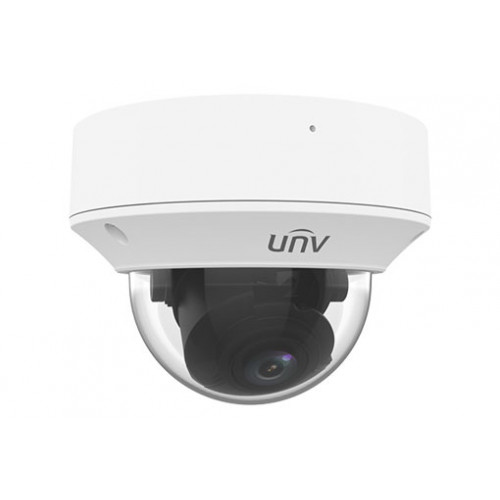

IPC3238SB-ADZK-I0 Купольная IP видеокамера

<table width="100%">
<tbody>
<tr>
<td>
</td><td colspan="5" width="70%">IPC3238SB-ADZK-I0</td>
</tr>
<tr>
<td colspan="6">Camera</td>
</tr>
<tr>
<td>Sensor</td>
<td colspan="5">1/2.8", 8.0 megapixel, progressive scan, CMOS</td>
</tr>
<tr>
<td>Lens</td>
<td colspan="5">2.8 ~ 12mm, AF automatic focusing and motorized zoom lens</td>
</tr>
<tr>
<td rowspan="3">DORI Distance</td>
<td>Lens (mm)</td>
<td>Detect (m)</td>
<td>Observe (m)</td>
<td>Recognize (m)</td>
<td>Identify (m)</td>
</tr>
<tr>
<td>2.8</td>
<td>86.9</td>
<td>34.8</td>
<td>17.4</td>
<td>8.7</td>
</tr>
<tr>
<td>12</td>
<td>372.4</td>
<td>149.0</td>
<td>74.5</td>
<td>37.2</td>
</tr>
<tr>
<td>Angle of View (H)</td>
<td colspan="5">107.4°~ 29.2°</td>
</tr>
<tr>
<td>Angle of View (V)</td>
<td colspan="5">54.2°~ 16.3°</td>
</tr>
<tr>
<td>Angle of View (O)</td>
<td colspan="5">111.0°~33.1°</td>
</tr>
<tr>
<td>Adjustment angle</td>
<td colspan="2">Pan: 0° ~ 355°</td>
<td colspan="2">Tilt: 0° ~ 80°</td>
<td>Rotate: 0° ~ 355°</td>
</tr>
<tr>
<td>Shutter</td>
<td colspan="5">Auto/Manual, 1 ~ 1/100000s</td>
</tr>
<tr>
<td>Minimum Illumination</td>
<td colspan="5">Colour: 0.003Lux (F1.6, AGC ON)<br>0Lux with IR on</td>
</tr>
<tr>
<td>Day/Night</td>
<td colspan="5">IR-cut filter with auto switch (ICR)</td>
</tr>
<tr>
<td>Digital Noise Reduction</td>
<td colspan="5">2D/3D DNR</td>
</tr>
<tr>
<td>S/N</td>
<td colspan="5">&gt;56dB</td>
</tr>
<tr>
<td>IR Range</td>
<td colspan="5">Up to 40m (131ft) IR range</td>
</tr>
<tr>
<td>Wavelength</td>
<td colspan="5">850nm</td>
</tr>
<tr>
<td>IR On/Off Control</td>
<td colspan="5">Auto/Manual</td>
</tr>
<tr>
<td>Defog</td>
<td colspan="5">Digital Defog</td>
</tr>
<tr>
<td>WDR</td>
<td colspan="5">120dB</td>
</tr>
<tr>
<td colspan="6">Video</td>
</tr>
<tr>
<td>Video Compression</td>
<td colspan="5">Ultra 265, H.265, H.264, MJPEG</td>
</tr>
<tr>
<td>H.264 code profile</td>
<td colspan="5">Baseline profile, Main profile, High profile</td>
</tr>
<tr>
<td>Frame Rate</td>
<td colspan="5">Main Stream: 8MP (3840*2160), Max 20fps;5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max30fps; 1080P (1920*1080), Max 30fps;<br>Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;<br>Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;</td>
</tr>
<tr>
<td>Video Bit Rate</td>
<td colspan="5">128 Kbps~16 Mbps</td>
</tr>
<tr>
<td>OSD</td>
<td colspan="5">Up to 8 OSDs</td>
</tr>
<tr>
<td>Privacy Mask</td>
<td colspan="5">Up to 4 areas</td>
</tr>
<tr>
<td>ROI</td>
<td colspan="5">Up to 8 areas</td>
</tr>
<tr>
<td>Motion Detection</td>
<td colspan="5">Up to 4 areas</td>
</tr>
<tr>
<td colspan="6">Image</td>
</tr>
<tr>
<td>White Balance</td>
<td colspan="5">Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2</td>
</tr>
<tr>
<td>Smart IR</td>
<td colspan="5">Support</td>
</tr>
<tr>
<td>Flip</td>
<td colspan="5">Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise</td>
</tr>
<tr>
<td>Dewarping</td>
<td colspan="5">Supported</td>
</tr>
<tr>
<td>HLC</td>
<td colspan="5">Supported</td>
</tr>
<tr>
<td>BLC</td>
<td colspan="5">Supported</td>
</tr>
<tr>
<td colspan="6">Audio</td>
</tr>
<tr>
<td>Audio Compression</td>
<td colspan="5">G.711</td>
</tr>
<tr>
<td>Two-way audio</td>
<td colspan="5">Supported</td>
</tr>
<tr>
<td>Suppression</td>
<td colspan="5">Supported</td>
</tr>
<tr>
<td>Sampling Rate</td>
<td colspan="5">8KHZ</td>
</tr>
</tbody>
</table>

Характеристики

Бренд: Uniview
Наличие микрофона: Нет
Наличие MicroSD: Да
Разрешение: 8 мп
Рабочая температура: -30°C до +60°C
Материал корпуса: Металл+Пластик
Объектив: 2.8 мм — 12 мм
Исполнение: Внутреннее
Тип объектива: Моторизованный вариофокальный
Дальность ИК-подсветки: 40 м
