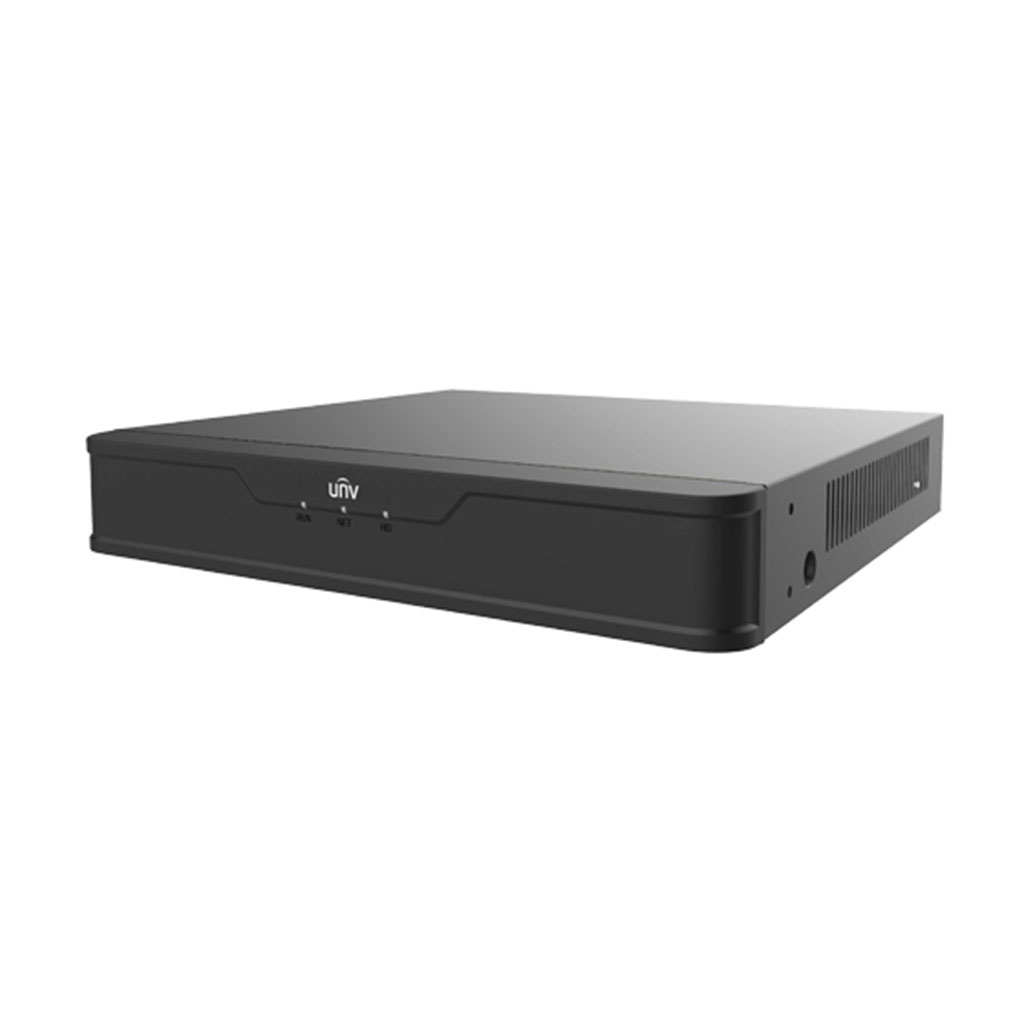

XVR301-08G3 Uniview 8-ми канальный гибридный видеорегистратор

<table>
<tbody>
<tr>
<td colspan="2">Model</td>
<td colspan="3">XVR301-04G3</td>
<td colspan="2">XVR301-08G3</td>
</tr>
<tr>
<td colspan="7">Video/Audio Input</td>
</tr>
<tr>
<td colspan="2">Analog Video Input</td>
<td colspan="3">4-ch, BNC</td>
<td colspan="2">8-ch, BNC</td>
</tr>
<tr>
<td colspan="2">IP Video Input</td>
<td colspan="3">2-ch(only IP up to 6ch), each channel up to 4MP</td>
<td colspan="2">4-ch(only IP up to 8ch), each channel up to 4MP</td>
</tr>
<tr>
<td colspan="2">Supported Analog Camera Types</td>
<td colspan="3">Support AHD input: 5MP@20fps<br>4MP@30fps<br>1080P@30fps<br>720P@60fps<br>Support TVI input: 5MP@20fps<br>4MP@30fps<br>1080P@30fps<br>720P@60fps<br>Support CVI input: 5MP@20fps<br>4MP@30fps<br>1080P@30fps<br>720P@30fps<br>Support CVBS input</td>
<td colspan="2">Support AHD input: 5MP@12fps<br>4MP@15fps<br>1080P@30fps<br>720P@30fps<br>Support TVI input: 5MP@12fps<br>4MP@15fps<br>1080P@30fps<br>720P@30fps<br>Support CVI input: 1080P@30fps<br>720P@30fps<br>Support CVBS input</td>
</tr>
<tr>
<td colspan="2">Audio Input</td>
<td colspan="5">1-ch, RCA</td>
</tr>
<tr>
<td colspan="2">Audio Compression</td>
<td colspan="5">G.711U</td>
</tr>
<tr>
<td colspan="7">Video/Audio Output</td>
</tr>
<tr>
<td colspan="2">VGA Output</td>
<td colspan="5">1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz</td>
</tr>
<tr>
<td colspan="2">HDMI Output</td>
<td colspan="5">1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz</td>
</tr>
<tr>
<td colspan="2">Audio Output</td>
<td colspan="5">1-ch, RCA</td>
</tr>
<tr>
<td colspan="2">Synchronous Playback</td>
<td colspan="3">HD:2-ch<br>SD:4-ch</td>
<td colspan="2">HD:4-ch<br>SD:8-ch</td>
</tr>
<tr>
<td colspan="2">Live view display</td>
<td colspan="3">HDMI/VGA: 1/4/6/8/9</td>
<td colspan="2">HDMI/VGA: 1/4/6/8/9/16</td>
</tr>
<tr>
<td colspan="2">Two-way Audio</td>
<td colspan="5">1-ch, RCA</td>
</tr>
<tr>
<td colspan="7">Network</td>
</tr>
<tr>
<td colspan="2">Incoming Bandwidth</td>
<td colspan="3">16Mbps (Up to 24Mbps after all analog channel conversion)</td>
<td colspan="2">32Mbps (Up to 40Mbps after all analog channel conversion)</td>
</tr>
<tr>
<td colspan="2">Outgoing Bandwidth</td>
<td colspan="3">48Mbps</td>
<td colspan="2">64Mbps</td>
</tr>
<tr>
<td colspan="2">Remote Users</td>
<td colspan="5">128</td>
</tr>
<tr>
<td colspan="2">Protocols</td>
<td colspan="5">TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP</td>
</tr>
<tr>
<td colspan="2">Browser</td>
<td colspan="5">IE(IE10/11) for Windows<br>Firefox (version 52.0 and above) for Windows<br>Chrome(version 45 and above) for Windows<br>Edge(version 79 and above) for Windows</td>
</tr>
<tr>
<td colspan="7">Encoding</td>
</tr>
<tr>
<td colspan="2">Recording Resolution</td>
<td colspan="2">5MP Lite/4MP Lite/1080P/720P/CIF</td>
<td colspan="3">5MP Lite/4MP Lite /1080P/1080P Lite/720P/CIF</td>
</tr>
<tr>
<td colspan="2" rowspan="5">Recording<br>Frame Rate</td>
<td>Main stream:</td>
<td>Sub stream:</td>
<td colspan="2">Main stream:</td>
<td>Sub stream:</td>
</tr>
<tr>
<td>5MP Lite@12fps</td>
<td>D1@12fps</td>
<td colspan="2">5MP Lite@6fps</td>
<td>D1@6fps</td>
</tr>
<tr>
<td>4MP Lite@15fps</td>
<td>D1@15fps</td>
<td colspan="2">4MP Lite@8fps</td>
<td>D1@8fps</td>
</tr>
<tr>
<td>1080P@15fps</td>
<td>D1@15fps</td>
<td colspan="2">1080P Lite@12fps</td>
<td>D1@12fps</td>
</tr>
<tr>
<td>720P@25fps</td>
<td>D1@25fps</td>
<td colspan="2">720P@12fps</td>
<td>D1@12fps</td>
</tr>
<tr>
<td colspan="2">Audio Sample Rate</td>
<td colspan="5">8KHz,16 bit per channel</td>
</tr>
<tr>
<td colspan="2">Audio Bit Rate</td>
<td colspan="5">64Kbps per channel</td>
</tr>
<tr>
<td colspan="7">Decoding</td>
</tr>
<tr>
<td colspan="2">Capability</td>
<td colspan="2">Analog: 2 x 5MP Lite@12, 2 x 4MP Lite@15, 2 x 1080P@15<br>IP: 1 x 4MP@30, 2 x 1080P@30</td>
<td colspan="3">Analog: 4 x 5MP Lite@6,4x 4MP Lite@8, 4x 1080P Lite @12fps<br>IP: 1 x 4MP@30, 2 x 1080P@30</td>
</tr>
<tr>
<td colspan="7">Hard Disk</td>
</tr>
<tr>
<td colspan="2">SATA</td>
<td colspan="5">1 SATA interface</td>
</tr>
<tr>
<td colspan="2">Capacity</td>
<td colspan="5">Up to 8TB for each HDD<br>(The maximum HDD capacity varies with environment temperature)</td>
</tr>
<tr>
<td colspan="7">General Alarm</td>
</tr>
<tr>
<td colspan="2">General Alarm</td>
<td colspan="5">Motion detection</td>
</tr>
<tr>
<td colspan="2">Alert Alarm</td>
<td colspan="5">IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal</td>
</tr>
<tr>
<td colspan="7">External Interface</td>
</tr>
<tr>
<td colspan="2">Network Interface</td>
<td colspan="5">1 RJ45 10M/100M self-adaptive Ethernet Interface</td>
</tr>
<tr>
<td colspan="2">USB Interface</td>
<td colspan="5">Rear panel: 2 x USB2.0</td>
</tr>
<tr>
<td colspan="7">General</td>
</tr>
<tr>
<td colspan="2">Power Supply</td>
<td colspan="5">12V DC<br>Power Consumption: ≤ 8 W( without HDD )</td>
</tr>
<tr>
<td colspan="2">Working Environment</td>
<td colspan="5">-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)</td>
</tr>
<tr>
<td colspan="2">Dimensions(W×D×H)</td>
<td colspan="5">260mm ×226mm× 47mm (10.2" × 8.9"×1.8")</td>
</tr>
<tr>
<td colspan="2">Weight ( without HDD )</td>
<td colspan="5">≤1.1 Kg ( 2.42lb )</td>
</tr>
<tr>
<td colspan="7">Certification</td>
</tr>
<tr>
<td colspan="2">Certification</td>
<td colspan="5">UL<br>CE<br>FCC<br>RoHS<br>WEEE</td>
</tr>
</tbody>
</table>

Характеристики

Бренд: Uniview
Количество SATA: 1
Количество каналов: 8
