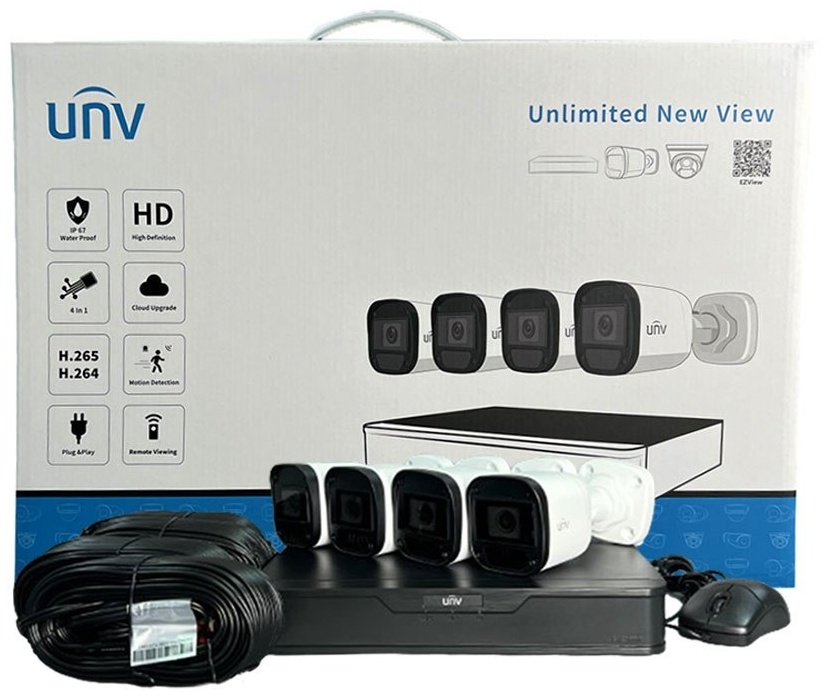

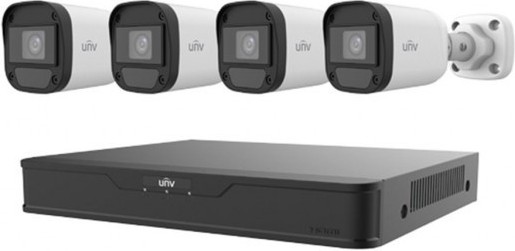

KIT/XVR301-04G3/4*UAC-B112-F28 уличная HD видеокамера

<table width="100%">
<tbody>
<tr>
<td width="30%"><strong>Model</strong></td>
<td colspan="2" width="70%"><strong>XVR301-04G3</strong></td>
</tr>
<tr>
<td colspan="3">Video/Audio Input</td>
</tr>
<tr>
<td>Analog Video Input</td>
<td colspan="2">4-ch, BNC</td>
</tr>
<tr>
<td>IP Video Input</td>
<td colspan="2">2-ch(only IP up to 6ch), each channel up to 4MP</td>
</tr>
<tr>
<td>Supported Analog Camera Types</td>
<td colspan="2"><strong>Support AHD input: </strong>5MP@20fps<br>4MP@30fps<br>1080P@30fps<br>720P@60fps<br><strong>Support TVI input: </strong>5MP@20fps<br>4MP@30fps<br>1080P@30fps<br>720P@60fps<br><strong>Support CVI input: </strong>5MP@20fps<br>4MP@30fps<br>1080P@30fps <br>720P@30fps<br><strong>Support CVBS input</strong></td>
</tr>
<tr>
<td>Audio Input</td>
<td colspan="2">1-ch, RCA</td>
</tr>
<tr>
<td>Audio Compression</td>
<td colspan="2">G.711U</td>
</tr>
<tr>
<td colspan="3">Video/Audio Output</td>
</tr>
<tr>
<td>VGA Output</td>
<td colspan="2">1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz</td>
</tr>
<tr>
<td>HDMI Output</td>
<td colspan="2">1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz</td>
</tr>
<tr>
<td>Audio Output</td>
<td colspan="2">1-ch, RCA</td>
</tr>
<tr>
<td>Synchronous Playback</td>
<td colspan="2">HD:2-ch<br>SD:4-ch</td>
</tr>
<tr>
<td>Live view display</td>
<td colspan="2">HDMI/VGA: 1/4/6/8/9</td>
</tr>
<tr>
<td>Two-way Audio</td>
<td colspan="2">1-ch, RCA</td>
</tr>
<tr>
<td colspan="3">Network</td>
</tr>
<tr>
<td>Incoming Bandwidth</td>
<td colspan="2">16Mbps (Up to 24Mbps after all analog channel conversion)</td>
</tr>
<tr>
<td>Outgoing Bandwidth</td>
<td colspan="2">48Mbps</td>
</tr>
<tr>
<td>Remote Users</td>
<td colspan="2">128</td>
</tr>
<tr>
<td>Protocols</td>
<td colspan="2">TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP</td>
</tr>
<tr>
<td>Browser</td>
<td colspan="2">IE(IE10/11) for Windows<br>Firefox (version 52.0 and above) for Windows<br>Chrome(version 45 and above) for Windows<br>Edge(version 79 and above) for Windows</td>
</tr>
<tr>
<td colspan="3">Encoding</td>
</tr>
<tr>
<td>Recording Resolution</td>
<td colspan="2">5MP Lite/4MP Lite/1080P/720P/CIF</td>
</tr>
<tr>
<td rowspan="5">Recording<br>Frame Rate</td>
<td><strong>Main stream:</strong></td>
<td><strong>Sub stream:</strong></td>
</tr>
<tr>
<td>5MP Lite@12fps</td>
<td>D1@12fps</td>
</tr>
<tr>
<td>4MP Lite@15fps</td>
<td>D1@15fps</td>
</tr>
<tr>
<td>1080P@15fps</td>
<td>D1@15fps</td>
</tr>
<tr>
<td>720P@25fps</td>
<td>D1@25fps</td>
</tr>
<tr>
<td>Audio Sample Rate</td>
<td colspan="2">8KHz,16 bit per channel</td>
</tr>
<tr>
<td>Audio Bit Rate</td>
<td colspan="2">64Kbps per channel</td>
</tr>
<tr>
<td colspan="3">Decoding</td>
</tr>
<tr>
<td>Capability</td>
<td colspan="2">Analog: 2 x 5MP Lite@12, 2 x 4MP Lite@15, 2 x 1080P@15<br>IP: 1 x 4MP@30, 2 x 1080P@30</td>
</tr>
<tr>
<td colspan="3">Hard Disk</td>
</tr>
<tr>
<td>SATA</td>
<td colspan="2">1 SATA interface</td>
</tr>
<tr>
<td>Capacity</td>
<td colspan="2">Up to 8TB for each HDD<br>(The maximum HDD capacity varies with environment temperature)</td>
</tr>
<tr>
<td colspan="3">General Alarm</td>
</tr>
<tr>
<td>General Alarm</td>
<td colspan="2">Motion detection</td>
</tr>
<tr>
<td>Alert Alarm</td>
<td colspan="2">IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal</td>
</tr>
<tr>
<td colspan="3">External Interface</td>
</tr>
<tr>
<td>Network Interface</td>
<td colspan="2">1 RJ45 10M/100M self-adaptive Ethernet Interface</td>
</tr>
<tr>
<td>USB Interface</td>
<td colspan="2">Rear panel: 2 x USB2.0</td>
</tr>
<tr>
<td colspan="3">General</td>
</tr>
<tr>
<td>Power Supply</td>
<td colspan="2">DC 12V<br>Power Consumption: ≤ 8 W( without HDD )</td>
</tr>
<tr>
<td>Working Environment</td>
<td colspan="2">-10°C to + 55°C ( +14°F to +131°F ), Humidity ≤ 90% RH(non-condensing)</td>
</tr>
<tr>
<td>Dimensions(W×D×H)</td>
<td colspan="2">260mm ×226mm× 47mm (10.2" × 8.9"×1.8")</td>
</tr>
<tr>
<td>Weight ( without HDD )</td>
<td colspan="2">≤1.1 Kg ( 2.42lb )</td>
</tr>
<tr>
<td colspan="3">Certification</td>
</tr>
<tr>
<td>Certification</td>
<td colspan="2">UL , CE , FCC , RoHS , WEEE</td>
</tr>
</tbody>
</table>

Характеристики

Бренд: Uniview
