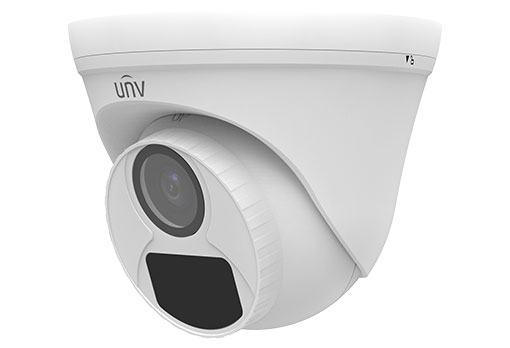

UAC-T115-F28 аналоговая видеокамера

<table>
<tbody>
<tr>
<td>Model</td>
<td>UAC-T115-F28</td>
<td>UAC-T115-F40</td>
</tr>
<tr>
<td colspan="3">Sensor</td>
</tr>
<tr>
<td>Pixel</td>
<td colspan="2">5MP</td>
</tr>
<tr>
<td>Size</td>
<td colspan="2">1/2.7"</td>
</tr>
<tr>
<td>Minimum illumination</td>
<td colspan="2">0.02lux(F2.0, AGC ON)<br>0.00 lux (IR on)</td>
</tr>
<tr>
<td colspan="3">Lens</td>
</tr>
<tr>
<td>Lens</td>
<td>2.8mm</td>
<td>4.0mm</td>
</tr>
<tr>
<td>Lens mount</td>
<td colspan="2">M12</td>
</tr>
<tr>
<td>Angle of view</td>
<td>H: 102.2° V: 53.9° D: 124.8°</td>
<td>H: 82.87° V: 46.01° D: 99.95°</td>
</tr>
<tr>
<td colspan="3">Illuminator</td>
</tr>
<tr>
<td>Illuminator</td>
<td colspan="2">One IR illuminator</td>
</tr>
<tr>
<td>Illumination distance</td>
<td colspan="2">20m</td>
</tr>
<tr>
<td>Lifetime</td>
<td colspan="2">≥60,000 hours</td>
</tr>
<tr>
<td colspan="3">Video</td>
</tr>
<tr>
<td>Resolution</td>
<td colspan="2">5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V)<br>4MP: 2560(H)×1440(V)<br>2MP: 1920(H)×1080(V)</td>
</tr>
<tr>
<td>Frame rate</td>
<td colspan="2">TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps<br>AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps<br>CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps<br>CVBS: PAL, NTSC</td>
</tr>
<tr>
<td>Shutter time</td>
<td colspan="2">PAL: 1/25s-1/50000s<br>NTSC: 1/30s–1/50000s</td>
</tr>
<tr>
<td colspan="3">Image</td>
</tr>
<tr>
<td>Exposure mode</td>
<td colspan="2">4 modes: Global (default), BLC, HLC, DWDR</td>
</tr>
<tr>
<td>Day/Night</td>
<td colspan="2">3 modes: Auto (default), Day, Night</td>
</tr>
<tr>
<td>Digital noise reduction</td>
<td colspan="2">2D</td>
</tr>
<tr>
<td>White balance</td>
<td colspan="2">Two modes: Auto (default), Manual</td>
</tr>
<tr>
<td>WDR</td>
<td colspan="2">DWDR</td>
</tr>
<tr>
<td>Smart IR</td>
<td colspan="2">Support</td>
</tr>
<tr>
<td>Flip</td>
<td colspan="2">Supports 180° horizontal flip, 180° vertical flip.</td>
</tr>
<tr>
<td colspan="3">Interface</td>
</tr>
<tr>
<td>Power</td>
<td colspan="2">5.5mm power interface</td>
</tr>
<tr>
<td>Video output</td>
<td colspan="2">BNC, supports TVI/AHD/CVI/CVBS</td>
</tr>
<tr>
<td colspan="3">Operating environment</td>
</tr>
<tr>
<td>Temperature</td>
<td colspan="2">-30℃ to 60℃(-22℉ to 140℉)</td>
</tr>
<tr>
<td>Humidity</td>
<td colspan="2">≤95% (RH, non-condensing)</td>
</tr>
<tr>
<td>Surge protection</td>
<td colspan="2">4KV</td>
</tr>
<tr>
<td>Ingress protection</td>
<td colspan="2">IP67</td>
</tr>
<tr>
<td colspan="3">General</td>
</tr>
<tr>
<td>Power</td>
<td colspan="2">DC 12V(±25%), with reverse polarity protection and surge protection, Max 5.04W</td>
</tr>
<tr>
<td>Mount</td>
<td colspan="2">Ceiling mount (default), optional backbox, wall mount bracket</td>
</tr>
<tr>
<td>Dimensions</td>
<td colspan="2">Φ118mm*96mm (diameter*height)</td>
</tr>
<tr>
<td>Material</td>
<td colspan="2">Plastic</td>
</tr>
<tr>
<td>Weight</td>
<td colspan="2">182g(0.401lb)</td>
</tr>
<tr>
<td>Certification</td>
<td colspan="2">CB, CE, FCC</td>
</tr>
</tbody>
</table>

Характеристики

Бренд: Uniview
Наличие микрофона: Нет
Рабочая температура: -30°C до +60°C
Разрешение: 5 мп
Наличие MicroSD: Нет
Материал корпуса: Пластик
Объектив: 2.8 мм
Исполнение: Внутреннее
Тип объектива: Фиксированный
Дальность ИК-подсветки: 20 м
