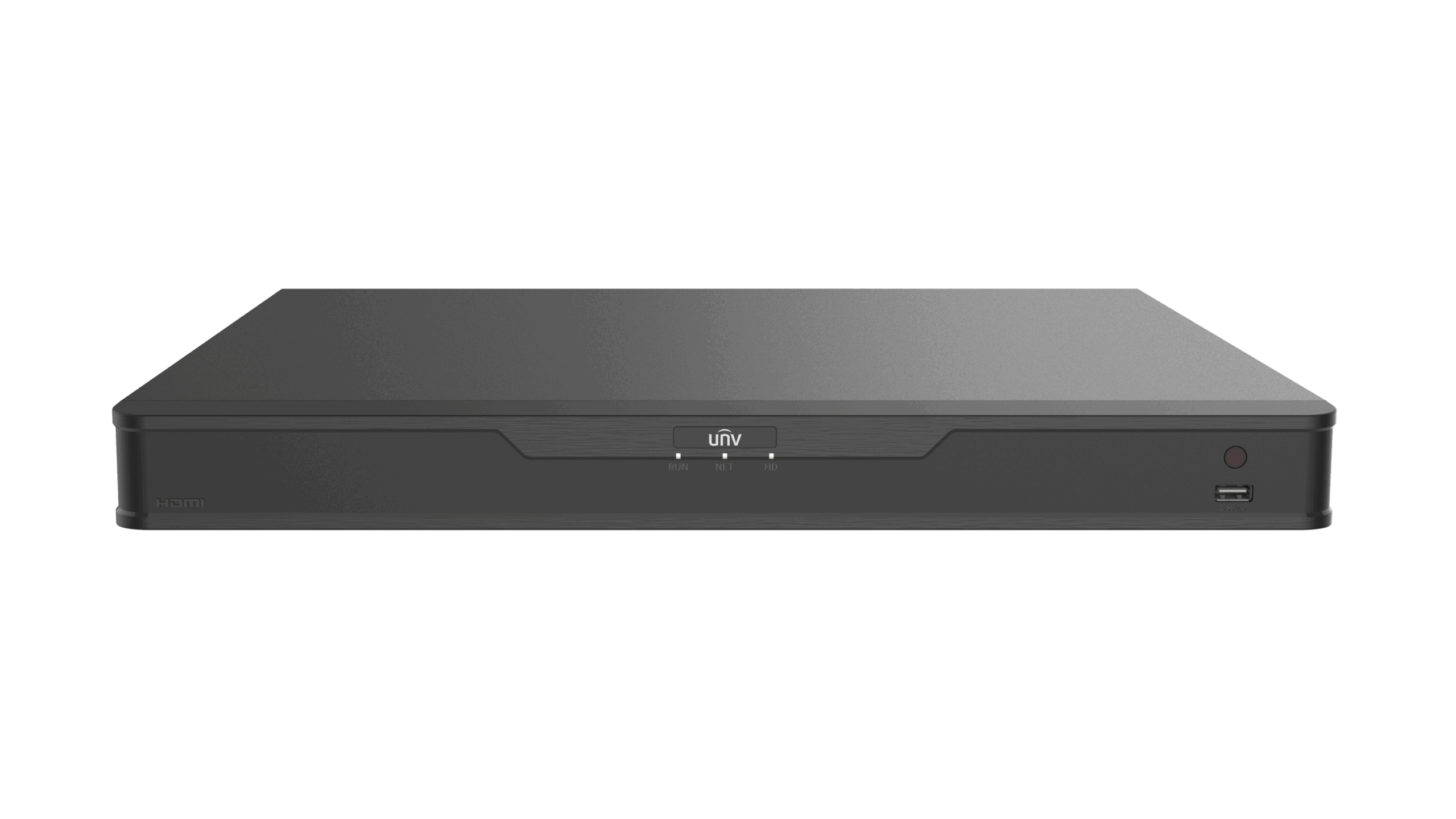

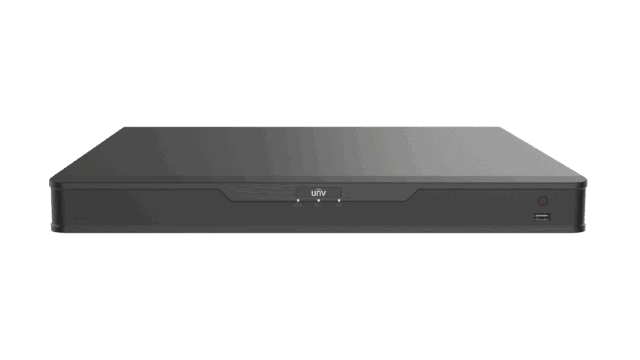

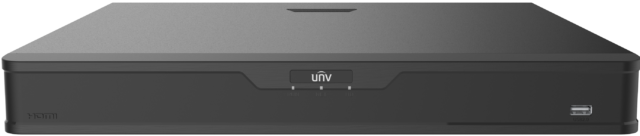

NVR304-16B-IQ 16-и канальный видеорегистратор

  NVR304-16B-IQ NVR304-32B-IQ Decoding Decoding Format Ultra 265,H.265,H.264 Decoding Capability Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 16 x 720P@30Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30 Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 20 x 720P@30, 32 x D1Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30, 32 x D1 Decoding Capability Description The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width Audio Compression G.711A, G.711U Network Incoming Bandwidth 160 Mbps Outgoing Bandwidth 128Mbps Remote Users 128 Protocols TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, 802.1x, IPv6, IPv4 Browser (Plugin) IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ Video/Audio Input IP Video Input 16-ch 32-ch RCA Audio Input 1-ch Video/Audio Output HDMI Output 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz VGA Output 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz RCA Audio Output 1-ch Liveview Display 1/4/6/8/9/16 1/4/6/8/9/16/25/32 Corridor Mode Screen 3/4/5/7/9/10/12/16 3/4/5/7/9/10/12/16/32 Two-way Audio Two-way Audio 1-ch,RCA(Using the audio input and output) Snapshot FTP/Schedule/Event Snapshot 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) Recording Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF Synchronous Playback in Local 16-ch Smart VCA Detection by IPC Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), People Counting (People Flow Counting, Crowd Density Monitoring), Traffic Monitoring Smart by NVR Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch Smart by IPC All channels (up to 8 images/s in total)Face Detection, Vehicle Detection, SIP, UMD, Traffic Monitoring Vehicle Picture Library Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total SIP by NVR 2-ch UMD by NVR 4-ch Alarm General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal GUI Language GUI Language 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian Hard Disk SATA 4 SATA Interfaces Capacity Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature) External Interface Network Interface 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface USB Front panel: 1 × USB2.0, Rear panel: 1 × USB2.0, 1 × USB3.0 RS485 N/A RS232 N/A Alarm In N/A Alarm Out N/A Power Supply DC 12 V/5 A Working Environment Working Temperature -10 ℃ ~ + 55 ℃ (+14 ℉ ~ +131 ℉) Working Humidity ≤ 90% RH (non-condensing) Power Consumption (without HDD) ≤ 12W Dimensions Weight (without HDD) ≤ 3.4Kg (7.5lb) Dimensions 440mm × 350mm × 48mm (17.3″×13.8″×1.9″) Certification Certification CE; FCC; UL; RoHS; WEEE CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 FCC Part15 Subpart B
