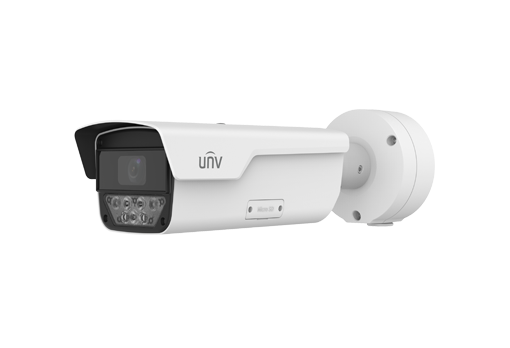

PKC2640@Z80-IR-P Камера с распознаванием номерных знаков

<table width="100%"> <tbody> <tr> <td width="30%"> Camera<b></b></td> <td width="70%"> Description<b></b></td></tr> <tr> <td> Sensor<b></b></td> <td> 1/1.8‑inch 4MP CMOS<b></b></td></tr> <tr> <td> Focal&nbsp;length<b></b></td> <td> PKC2640@Z80‑P:8 to 32mm<b></b> PKC2640@Z80‑IR‑P/PKC2640@Z80‑P/PKC2640@Z80‑IR‑P:8 to 32mm, motorized zoom<b></b></td></tr> <tr> <td> Shutter<b></b></td> <td> Auto/Manual, range: 1/30 to 1/100000s<b></b></td></tr> <tr> <td> Minimum&nbsp;illumination<b></b></td> <td> 0.002lux (F1.7)<b></b></td></tr> <tr> <td> Image<b></b></td> <td> Description<b></b></td></tr> <tr> <td> Image&nbsp;collection&nbsp;format<b></b></td> <td> 2688*1520@30 (default), 2688*1520@25<b></b></td></tr> <tr> <td> Resolution<b></b></td> <td> Main stream: 2688*1520, 1080P (default), 720P, D1; Sub stream: 720P (default), D1, 2CIF, CIF; Third stream: D1 (default), 2CIF, CIF<b></b></td></tr> <tr> <td> Frame&nbsp;rate<b></b></td> <td> 30 (default), 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1<b></b></td></tr> <tr> <td> Video&nbsp;compression<b></b></td> <td> H.264 (default), H.265<b></b></td></tr> <tr> <td> ROI<b></b></td> <td> Supports up to 8 regions<b></b></td></tr> <tr> <td> Video&nbsp;OSD<b></b></td> <td> Supports 8 overlay areas and allows contents including date, time, date&amp;time, zoom ratio, custom contents<b></b></td></tr> <tr> <td> Image&nbsp;OSD<b></b></td> <td> Supports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom contents (3 items), location<b></b></td></tr> <tr> <td> Smart<b></b></td> <td> Description<b></b></td></tr> <tr> <td> Application&nbsp;scenario<b></b></td> <td> ≤ 80km/h for regular roads;<br>Camera with the focal length of 8 to 32mm can be used for regular roads<b></b></td></tr> <tr> <td> Vehicle&nbsp;detection&nbsp;mode<b></b></td> <td> Supports video detection<b></b></td></tr> <tr> <td> License&nbsp;plate&nbsp;number&nbsp;recognition<b></b></td> <td> Supports recognition of license plates with numbers and letters by default<b></b></td></tr> <tr> <td> List&nbsp;configuration<b></b></td> <td> Supports allowlist and blocklist configuration, each list allows 20,000 items<br>Supports import, export, add, and delete operations<b></b></td></tr> <tr> <td> Barrier&nbsp;opening&nbsp;policy<b></b></td> <td> Open barrier only for the recognized vehicles<br>Open barrier for all vehicles<br>Open barrier only for vehicles on the allowlist<br>Open barrier for vehicles not on the blocklist<br>Configurable Boolean output ID<b></b></td></tr> <tr> <td> Storage<b></b></td> <td> Description<b></b></td></tr> <tr> <td> Edge&nbsp;storage<b></b></td> <td> Supports ANR with a Micro SD card, up to 256GB<b></b></td></tr> <tr> <td> Structure<b></b></td> <td> Description<b></b></td></tr> <tr> <td> Illumination<b></b></td> <td> PKC2640@Z80‑P/PKC2640@Z80‑P:Built‑in integrated illumination module, including 4 warm light LEDs, 50m illumination distance, automatic on/off control<b></b> PKC2640@Z80‑IR‑P/PKC2640@Z80‑IR‑P:Built‑in integrated illumination module, including 4 IR LEDs, 50m illumination distance, automatic on/off control<b></b></td></tr> <tr> <td> Bracket<b></b></td> <td> 3‑axis mounting bracket<b></b></td></tr> <tr> <td> Junction&nbsp;box<b></b></td> <td> The camera comes with a junction box for storing tail cable<b></b></td></tr> <tr> <td> Interface<b></b></td> <td> Description<b></b></td></tr> <tr> <td> Network&nbsp;interface<b></b></td> <td> 1 × 10M/100M RJ45<b></b></td></tr> <tr> <td> Serial&nbsp;port<b></b></td> <td> 1 × RS485<b></b></td></tr> <tr> <td> Boolean&nbsp;output<b></b></td> <td> 1 relay output, withstand voltage: AC 125V/0.3A, DC 30V/1A<b></b></td></tr> <tr> <td> Boolean&nbsp;input<b></b></td> <td> 2 x input, supports level (up to DC 5V) and switch signal<b></b></td></tr> <tr> <td> Audio&nbsp;interface<b></b></td> <td> 1 × audio input, 1 × audio output<b></b></td></tr> <tr> <td> Storage&nbsp;interface<b></b></td> <td> 1 × Micro SD card slot<b></b></td></tr> <tr> <td> General<b></b></td> <td> Description<b></b></td></tr> <tr> <td> Power&nbsp;supply<b></b></td> <td> DC12V + 25% ‑ 10%<br>Max. power consumption: 20W<br>Supports PoE (802.3at, class 4)<b></b></td></tr> <tr> <td> Dimensions&nbsp;(L×W×H)<b></b></td> <td> 406mm x 126mm x 130mm<b></b></td></tr> <tr> <td> Weight<b></b></td> <td> 2.1kg<b></b></td></tr> <tr> <td> Operating&nbsp;environment<b></b></td> <td> ‑40℃ to 60℃, ≤90% RH<b></b></td></tr> <tr> <td> Ingress&nbsp;protection<b></b></td> <td> IP67, IK10<b></b></td></tr></tbody></table>

Характеристики

Бренд: Uniview
Разрешение: 4 МП
Рабочая температура: ‑40℃ ~ 60℃
Объектив: 8 мм — 32 мм
Тип объектива: Моторизованный вариофокальный
