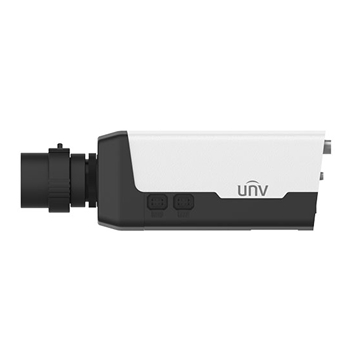

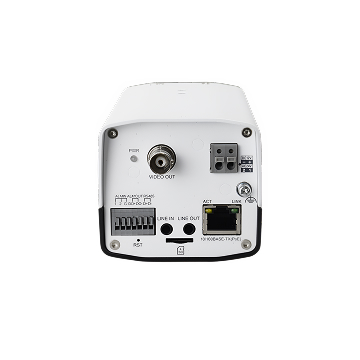

IPC542E-DLC-C Корпусная IP-камера

<table width="100%">
<tbody>
<tr>
<td class="thead" width="30%"><span style="font-size: 14px;">&nbsp;</span></td>
<td class="thead" width="70%"><span style="font-size: 14px;">IPC542E-DLC-C</span></td>
</tr>
<tr>
<td class="thead" colspan="2"><span style="font-size: 14px;">Camera</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Sensor</span></td>
<td><span style="font-size: 14px;">1/2.8", 2.0 megapixel, progressive scan, CMOS</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Shutter</span></td>
<td><span style="font-size: 14px;">Auto/Manual, 1 ~ 1/100000s</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Minimum Illumination</span></td>
<td><span style="font-size: 14px;">Colour: 0.0005Lux (F1.2, AGC ON)</span><br><span style="font-size: 14px;">B/W: 0.0001Lux(F1.2, AGC ON)</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Lens Mount</span></td>
<td><span style="font-size: 14px;">C/CS</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Iris</span></td>
<td><span style="font-size: 14px;">DC-Iris/P-Iris, DC 5V (4 Pins)</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Day/Night</span></td>
<td><span style="font-size: 14px;">IR-cut filter with auto switch (ICR)</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Digital noise reduction</span></td>
<td><span style="font-size: 14px;">2D/3D DNR</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">S/N</span></td>
<td><span style="font-size: 14px;">&gt;52dB</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Defog</span></td>
<td><span style="font-size: 14px;">Digital Defog</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">WDR</span></td>
<td><span style="font-size: 14px;">120dB</span></td>
</tr>
<tr>
<td class="thead" colspan="2"><span style="font-size: 14px;">Video</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Video Compression</span></td>
<td><span style="font-size: 14px;">Ultra 265, H.264, MJPEG</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">H.264 code profile</span></td>
<td><span style="font-size: 14px;">Baseline profile, Main Profile, High Profile</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Frame Rate</span></td>
<td><span style="font-size: 14px;">Main Stream: 2MP (1920*1080), Max 30fps; </span><br><span style="font-size: 14px;">Sub Stream: 2MP (1920*1080), Max 30fps;</span><br><span style="font-size: 14px;">Third Stream: D1 (720*576), Max 30fps</span><br><br></td>
</tr>
<tr>
<td><span style="font-size: 14px;">9:16 Corridor Mode</span></td>
<td><span style="font-size: 14px;">Supported</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">HLC</span></td>
<td><span style="font-size: 14px;">Supported</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">BLC</span></td>
<td><span style="font-size: 14px;">Supported</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">OSD</span></td>
<td><span style="font-size: 14px;">Up to 8 OSDs</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Privacy Mask</span></td>
<td><span style="font-size: 14px;">Up to 8 areas</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">ROI</span></td>
<td><span style="font-size: 14px;">Up to 8 areas</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Motion Detection</span></td>
<td><span style="font-size: 14px;">Up to 4 areas</span></td>
</tr>
<tr>
<td class="thead" colspan="2"><span style="font-size: 14px;">Smart</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">General Function</span></td>
<td><span style="font-size: 14px;">Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication</span></td>
</tr>
<tr>
<td class="thead" colspan="2"><span style="font-size: 14px;">Audio</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Audio Compression</span></td>
<td><span style="font-size: 14px;">G.711</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Two-way audio</span></td>
<td><span style="font-size: 14px;">Supported</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Suppression</span></td>
<td><span style="font-size: 14px;">Supported</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Sampling Rate</span></td>
<td><span style="font-size: 14px;">8KHZ</span></td>
</tr>
<tr>
<td class="thead" colspan="2"><span style="font-size: 14px;">Storage</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Edge Storage</span></td>
<td><span style="font-size: 14px;">Micro SD, up to 256GB</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Network Storage</span></td>
<td><span style="font-size: 14px;">ANR</span></td>
</tr>
<tr>
<td class="thead" colspan="2"><span style="font-size: 14px;">Network</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Protocols</span></td>
<td><span style="font-size: 14px;">IPv4,&nbsp;IGMP,ICMP,&nbsp;ARP,&nbsp;TCP,&nbsp;UDP,&nbsp;DHCP,&nbsp;PPPoE,&nbsp;RTP,&nbsp;RTSP,&nbsp;RTCP, DNS,&nbsp;DDNS,&nbsp;NTP,&nbsp;FTP,&nbsp;UPnP,&nbsp;HTTP,&nbsp;HTTPS,&nbsp;SMTP,&nbsp;802.1x, SNMP, QoS</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Compatible Integration</span></td>
<td><span style="font-size: 14px;">ONVIF (Profile S, Profile G), API</span></td>
</tr>
<tr>
<td class="thead" colspan="2"><span style="font-size: 14px;">Interface</span></td>
</tr>
<tr>
<td rowspan="3"><span style="font-size: 14px;">Audio I/O</span></td>
<td><span style="font-size: 14px;">3.5mm audio interface</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Input: impedance 35kΩ; amplitude 2V [p-p]</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Output: impedance 600Ω; amplitude 2V [p-p]</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Alarm I/O</span></td>
<td><span style="font-size: 14px;">2/1</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Zoom/focus</span></td>
<td><span style="font-size: 14px;">N/A</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Serial Port</span></td>
<td><span style="font-size: 14px;">1 RS485 (support Pelco-D/P)</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Network</span></td>
<td><span style="font-size: 14px;">1 RJ45 10M/100M Base-TX Ethernet</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Video Output</span></td>
<td><span style="font-size: 14px;">1 BNC, impedance 75Ω; amplitude 1V [p-p]</span></td>
</tr>
<tr>
<td class="thead" colspan="2"><span style="font-size: 14px;">General</span></td>
</tr>
<tr>
<td rowspan="2"><span style="font-size: 14px;">Power</span></td>
<td><span style="font-size: 14px;">AC 24V±10%, DC 12V±10%, PoE (IEEE 802.3af)</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Power consumption: Max 6.8W </span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Dimensions (L × W × H)</span></td>
<td><span style="font-size: 14px;">151.5 x 71 x 65mm (6.0“ x 2.8“ x 2.6”) (excluding the lens)</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Weight</span></td>
<td><span style="font-size: 14px;">0.48kg (1.1lb)</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Working Environment</span></td>
<td><span style="font-size: 14px;">-20°C ~ 60°C (-4°F ~ 140°F), Humidity: ≤95% RH (non-condensing)</span></td>
</tr>
<tr>
<td><span style="font-size: 14px;">Reset Button</span></td>
<td><span style="font-size: 14px;">Supported</span></td>
</tr>
</tbody>
</table>

Характеристики

Дальность ИК-подсветки: Нет
Тип объектива: Нет
Объектив: Нет
Исполнение: Уличное
Разрешение: 2 мп
Рабочая температура: -20°C до +60°C
Наличие MicroSD: Да
Наличие микрофона: Нет
Бренд: Uniview
