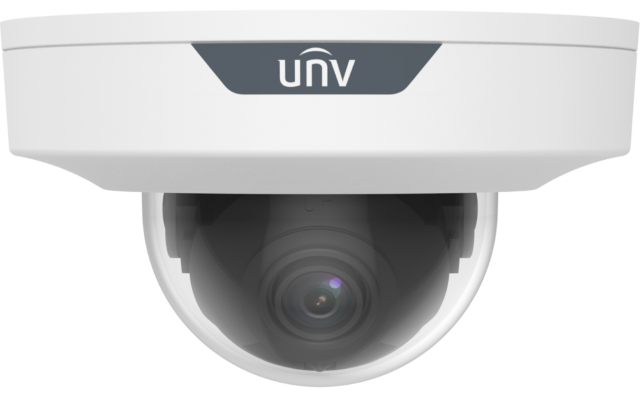

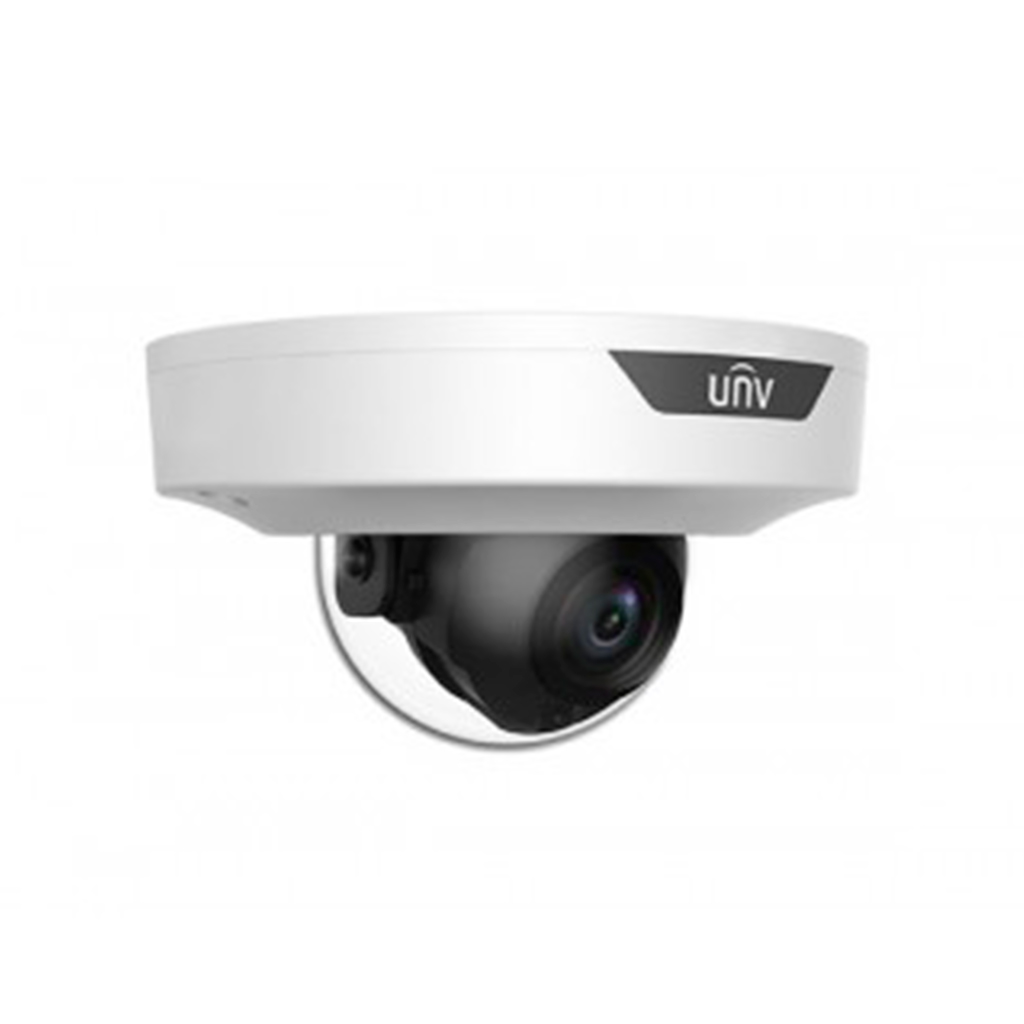

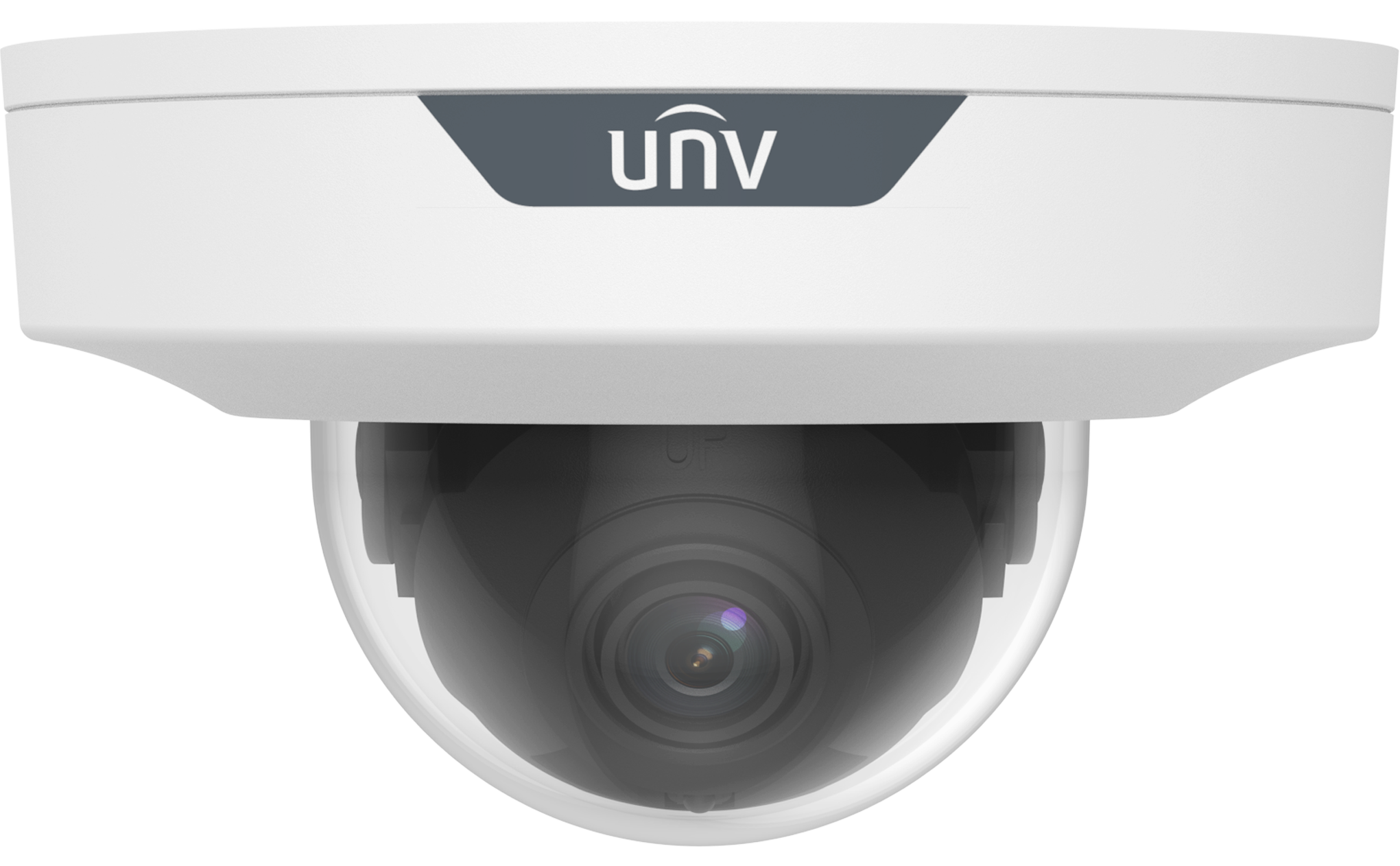

IPC354SB-ADNF28K-I0 Купольная IP видеокамера

<table width="100%">
<tbody>
<tr>
<td>
</td><td colspan="7" width="70%">IPC354SB-ADNF28K-I0</td>
</tr>
<tr>
<td colspan="8">Camera</td>
</tr>
<tr>
<td>Sensor</td>
<td colspan="7">1/2.7", 4.0 megapixel, progressive scan, CMOS</td>
</tr>
<tr>
<td>Minimum Illumination</td>
<td colspan="7">Colour: 0.003Lux (F1.6, AGC ON)<br>0Lux with IR</td>
</tr>
<tr>
<td>Day/Night</td>
<td colspan="7">IR-cut filter with auto switch (ICR)</td>
</tr>
<tr>
<td>Shutter</td>
<td colspan="7">Auto/Manual, 1 ~ 1/100000s</td>
</tr>
<tr>
<td>Angle Adjustment</td>
<td colspan="2">Pan: 0° ~ 348°</td>
<td colspan="3">Tilt: -66° ~ 66°</td>
<td colspan="2">Rotate: 0° ~ 346°</td>
</tr>
<tr>
<td>WDR</td>
<td colspan="7">120dB</td>
</tr>
<tr>
<td>S/N</td>
<td colspan="7">&gt;52dB</td>
</tr>
<tr>
<td colspan="8">Lens</td>
</tr>
<tr>
<td>Lens type</td>
<td colspan="7">2.8mm@F1.6，</td>
</tr>
<tr>
<td>Angle of View (H)</td>
<td colspan="7">101.1°</td>
</tr>
<tr>
<td>Angle of View (V)</td>
<td colspan="7">55.3°</td>
</tr>
<tr>
<td>Angle of View (O)</td>
<td colspan="7">111.1°</td>
</tr>
<tr>
<td colspan="8">DORI</td>
</tr>
<tr>
<td rowspan="2">DORI Distance</td>
<td>Lens (mm)</td>
<td colspan="2">Detect (m)</td>
<td>Observe (m)</td>
<td colspan="2">Recognize (m)</td>
<td>Identify (m)</td>
</tr>
<tr>
<td>2.8</td>
<td colspan="2">63.0</td>
<td>25.2</td>
<td colspan="2">12.6</td>
<td>6.3</td>
</tr>
<tr>
<td colspan="8">Illuminator</td>
</tr>
<tr>
<td>IR Range</td>
<td colspan="7">Up to 30m (98ft) IR range</td>
</tr>
<tr>
<td>Wavelength</td>
<td colspan="7">850nm</td>
</tr>
<tr>
<td>IR On/Off Control</td>
<td colspan="7">Auto/Manual</td>
</tr>
<tr>
<td colspan="8">Video</td>
</tr>
<tr>
<td>Video Compression</td>
<td colspan="7">Ultra 265, H.265, H.264, MJPEG</td>
</tr>
<tr>
<td>H.264 code profile</td>
<td colspan="7">Baseline profile, Main Profile</td>
</tr>
<tr>
<td>Frame Rate</td>
<td colspan="7">Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps<br>Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;<br>Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;</td>
</tr>
<tr>
<td>Video Bit Rate</td>
<td colspan="7">128 Kbps~16 Mbps</td>
</tr>
<tr>
<td>U-code</td>
<td colspan="7">Support</td>
</tr>
<tr>
<td>ROI</td>
<td colspan="7">Up to 8 areas</td>
</tr>
<tr>
<td>Video Stream</td>
<td colspan="7">Triple streams</td>
</tr>
<tr>
<td>OSD</td>
<td colspan="7">Up to 8 OSDs</td>
</tr>
<tr>
<td>Privacy Mask</td>
<td colspan="7">Up to 4 areas</td>
</tr>
<tr>
<td colspan="8">Image</td>
</tr>
<tr>
<td>White Balance</td>
<td colspan="7">Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2</td>
</tr>
<tr>
<td>Image Setting</td>
<td colspan="7">Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser</td>
</tr>
<tr>
<td>Digital noise reduction</td>
<td colspan="7">2D/3D DNR</td>
</tr>
<tr>
<td>Smart IR</td>
<td colspan="7">Support</td>
</tr>
<tr>
<td>Flip</td>
<td colspan="7">Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise</td>
</tr>
<tr>
<td>Dewarping</td>
<td colspan="7">N/A</td>
</tr>
<tr>
<td>HLC</td>
<td colspan="7">Supported</td>
</tr>
<tr>
<td>BLC</td>
<td colspan="7">Supported</td>
</tr>
<tr>
<td>Defog</td>
<td colspan="7">Digital Defog</td>
</tr>
<tr>
<td colspan="8">Audio</td>
</tr>
<tr>
<td>Audio Compression</td>
<td colspan="7">G.711U, G.711A</td>
</tr>
<tr>
<td>Audio Bitrate</td>
<td colspan="7">64 Kbps</td>
</tr>
<tr>
<td>Two-way audio</td>
<td colspan="7">Supported</td>
</tr>
<tr>
<td>Suppression</td>
<td colspan="7">Supported</td>
</tr>
<tr>
<td>Sampling Rate</td>
<td colspan="7">8KHZ</td>
</tr>
<tr>
<td colspan="8">Storage</td>
</tr>
<tr>
<td>Edge Storage</td>
<td colspan="7">Micro SD, up to 256GB</td>
</tr>
<tr>
<td>Network Storage</td>
<td colspan="7">ANR, NAS(NFS)</td>
</tr>
<tr>
<td colspan="8">Network</td>
</tr>
<tr>
<td>Protocols</td>
<td colspan="7">IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS</td>
</tr>
<tr>
<td>Compatible Integration</td>
<td colspan="7">ONVIF (Profile S, Profile G, Profile T), API,SDK</td>
</tr>
<tr>
<td>User/Host</td>
<td colspan="7">Up to 32 users. 2 user levels: administrator and common user</td>
</tr>
<tr>
<td>Security</td>
<td colspan="7">Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF</td>
</tr>
<tr>
<td>Client</td>
<td colspan="7">EZStation<br>EZView<br>EZLive</td>
</tr>
<tr>
<td rowspan="2">Web Browser</td>
<td colspan="7">Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below</td>
</tr>
<tr>
<td colspan="7">Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+</td>
</tr>
<tr>
<td colspan="8">Interface</td>
</tr>
<tr>
<td rowspan="2">Audio I/O</td>
<td colspan="7">Input: impedance 35kΩ; amplitude 2V [p-p]</td>
</tr>
<tr>
<td colspan="7">Output: impedance 600Ω; amplitude 2V [p-p]</td>
</tr>
<tr>
<td>Alarm I/O</td>
<td colspan="7">1/1</td>
</tr>
<tr>
<td>RS485</td>
<td colspan="7">N/A</td>
</tr>
<tr>
<td>Built-in Mic</td>
<td colspan="7">Support</td>
</tr>
<tr>
<td>Built-in Speaker</td>
<td colspan="7">N/A</td>
</tr>
<tr>
<td>WIFI</td>
<td colspan="7">N/A</td>
</tr>
<tr>
<td>Network</td>
<td colspan="7">10M/100M Base-TX Ethernet</td>
</tr>
<tr>
<td>Video Output</td>
<td colspan="7">N/A</td>
</tr>
</tbody>
</table>

Характеристики

Наличие MicroSD: Да
Разрешение: 4 мп
Рабочая температура: -30°C до +55°C
Материал корпуса: Металл+пластик
Исполнение: Внутреннее
Объектив: 2.8 мм
Наличие микрофона: Да
Бренд: Uniview
Тип объектива: Фиксированный
Дальность ИК-подсветки: 30 м
Тип корпуса: Купол
