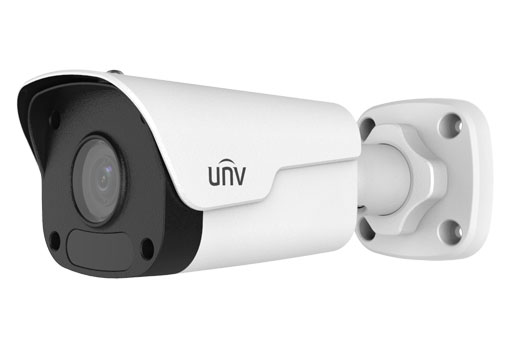

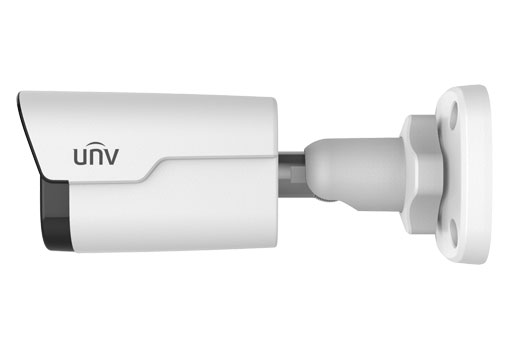

IPC2122SR3-APF40-C Уличная IP видеокамера

<table width="100%">
<tbody>
<tr>
<td>
</td><td colspan="4" width="40%">IPC2122SR3-APF40-C</td>
<td colspan="4" width="40%">IPC2122SR3-APF60-C</td>
</tr>
<tr>
<td colspan="9">Camera</td>
</tr>
<tr>
<td>Sensor</td>
<td colspan="8">1/2.7", 2.0 megapixel, progressive scan, CMOS</td>
</tr>
<tr>
<td>Lens</td>
<td colspan="4">4.0mm@F1.6</td>
<td colspan="4">6.0mm@F1.6</td>
</tr>
<tr>
<td rowspan="3">DORI Distance</td>
<td>Lens (mm)</td>
<td colspan="2">Detect (m)</td>
<td colspan="2">Observe (m)</td>
<td colspan="2">Recognize (m)</td>
<td>Identify (m)</td>
</tr>
<tr>
<td>4</td>
<td colspan="2">60</td>
<td colspan="2">24</td>
<td colspan="2">12</td>
<td>6</td>
</tr>
<tr>
<td>6</td>
<td colspan="2">90</td>
<td colspan="2">36</td>
<td colspan="2">18</td>
<td>9</td>
</tr>
<tr>
<td>Angle of View (H)</td>
<td colspan="4">80.8°</td>
<td colspan="4">54.9°</td>
</tr>
<tr>
<td>Angle of View (V)</td>
<td colspan="4">44.1°</td>
<td colspan="4">30.2°</td>
</tr>
<tr>
<td>Angle of View (O)</td>
<td colspan="4">99.4°</td>
<td colspan="4">67.5°</td>
</tr>
<tr>
<td>Adjustment angle</td>
<td colspan="2">Pan: 0° ~ 360°</td>
<td colspan="4">Tilt: 0° ~ 90°</td>
<td colspan="2">Rotate: 0° ~ 360°</td>
</tr>
<tr>
<td>Shutter</td>
<td colspan="8">Auto/Manual, 1 ~ 1/100000s</td>
</tr>
<tr>
<td>Minimum Illumination</td>
<td colspan="8">Colour: 0.005Lux (F1.6, AGC ON)<br>0Lux with IR on</td>
</tr>
<tr>
<td>Day/Night</td>
<td colspan="8">IR-cut filter with auto switch (ICR)</td>
</tr>
<tr>
<td>Digital noise reduction</td>
<td colspan="8">2D/3D DNR</td>
</tr>
<tr>
<td>S/N</td>
<td colspan="8">&gt;52dB</td>
</tr>
<tr>
<td>IR Range</td>
<td colspan="8">Up to 30m (98ft) IR range</td>
</tr>
<tr>
<td>Defog</td>
<td colspan="8">Digital Defog</td>
</tr>
<tr>
<td>WDR</td>
<td colspan="8">DWDR</td>
</tr>
<tr>
<td colspan="9">Video</td>
</tr>
<tr>
<td>Video Compression</td>
<td colspan="8">Ultra 265, H.265, H.264, MJPEG</td>
</tr>
<tr>
<td>H.264 code profile</td>
<td colspan="8">Baseline profile, Main Profile, High Profile</td>
</tr>
<tr>
<td>Frame Rate</td>
<td colspan="8">Main Stream: 2MP (1920*1080), Max 30fps; <br>Sub Stream: 2MP (1920*1080), Max 30fps;<br>Third Stream: D1 (720*576), Max 30fps<br><br></td>
</tr>
<tr>
<td>9:16 Corridor Mode</td>
<td colspan="8">Supported</td>
</tr>
<tr>
<td>HLC</td>
<td colspan="8">Supported</td>
</tr>
<tr>
<td>BLC</td>
<td colspan="8">Supported</td>
</tr>
<tr>
<td>OSD</td>
<td colspan="8">Up to 8 OSDs</td>
</tr>
<tr>
<td>Privacy Mask</td>
<td colspan="8">Up to 8 areas</td>
</tr>
<tr>
<td>ROI</td>
<td colspan="8">Up to 8 areas</td>
</tr>
<tr>
<td>Motion Detection</td>
<td colspan="8">Up to 4 areas</td>
</tr>
<tr>
<td colspan="9">Audio</td>
</tr>
<tr>
<td>Audio Compression</td>
<td colspan="8">G.711</td>
</tr>
<tr>
<td>Suppression</td>
<td colspan="8">Supported</td>
</tr>
<tr>
<td>Sampling Rate</td>
<td colspan="8">8KHZ</td>
</tr>
<tr>
<td colspan="9">Network</td>
</tr>
<tr>
<td>Protocols</td>
<td colspan="8">IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS</td>
</tr>
<tr>
<td>Compatible Integration</td>
<td colspan="8">ONVIF (Profile S, Profile T), API</td>
</tr>
<tr>
<td colspan="9">Interface</td>
</tr>
<tr>
<td>Alarm I/O</td>
<td colspan="8">1/1</td>
</tr>
<tr>
<td>Built-in Mic</td>
<td colspan="8">Supported</td>
</tr>
<tr>
<td>Network</td>
<td colspan="8">1 RJ45 10M/100M Base-TX Ethernet</td>
</tr>
<tr>
<td colspan="9">General</td>
</tr>
<tr>
<td rowspan="2">Power</td>
<td colspan="8">DC 12V±25%, PoE (IEEE 802.3af)</td>
</tr>
<tr>
<td colspan="8">Power consumption: Max 6.0W</td>
</tr>
<tr>
<td>Dimensions (L × W × H)</td>
<td colspan="8">157.3 × 62.4 × 63mm (6.2” × 2.5” × 2.5”)</td>
</tr>
<tr>
<td>Weight</td>
<td colspan="8">0.45kg (0.99lb)</td>
</tr>
<tr>
<td>Working Environment</td>
<td colspan="8">-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)</td>
</tr>
<tr>
<td>Ingress Protection</td>
<td colspan="8">IP67</td>
</tr>
<tr>
<td>Reset Button</td>
<td colspan="8">Supported</td>
</tr>
</tbody>
</table>

Характеристики

Дальность ИК-подсветки: 30 м
Тип объектива: Фиксированный
Объектив: 4.0 мм
Исполнение: Уличное
Материал корпуса: Металл
Рабочая температура: -40°C до +60°C
Разрешение: 2 мп
Наличие микрофона: Да
Бренд: Uniview
