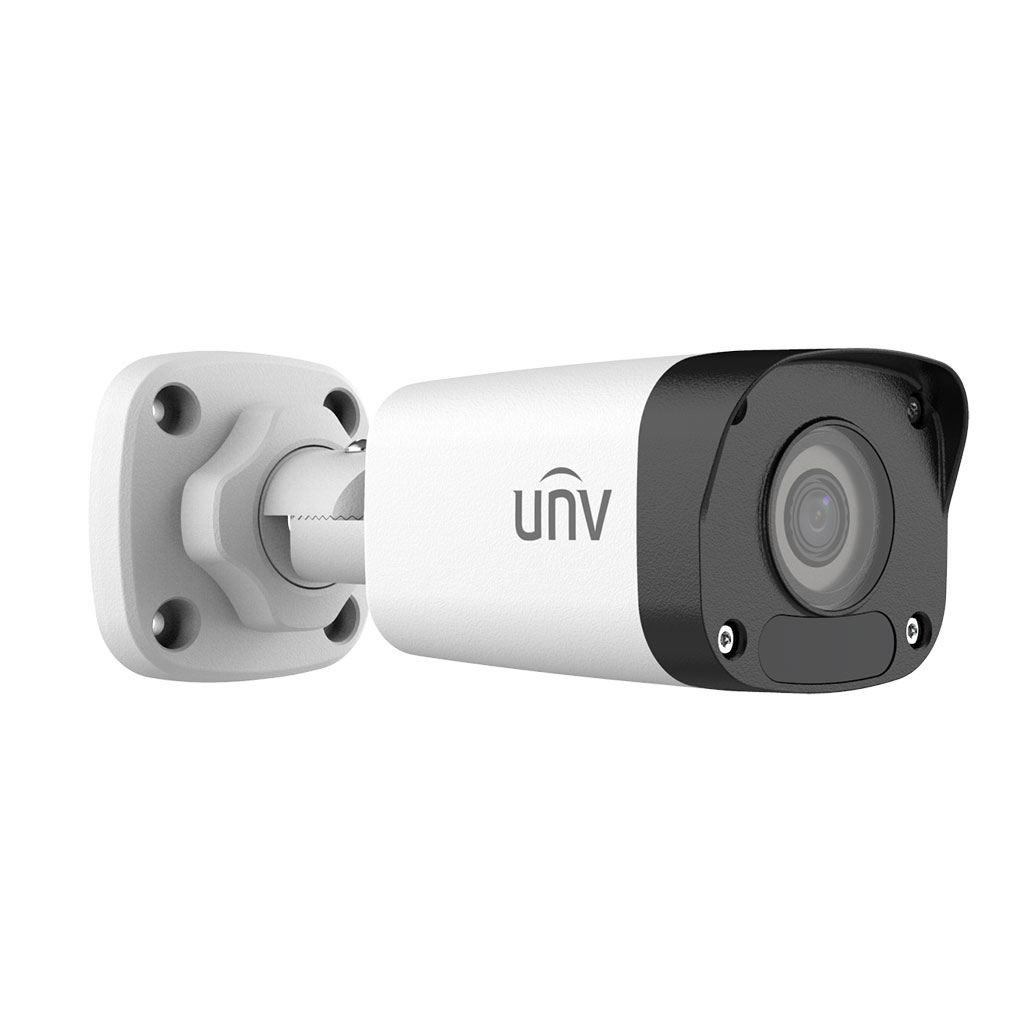

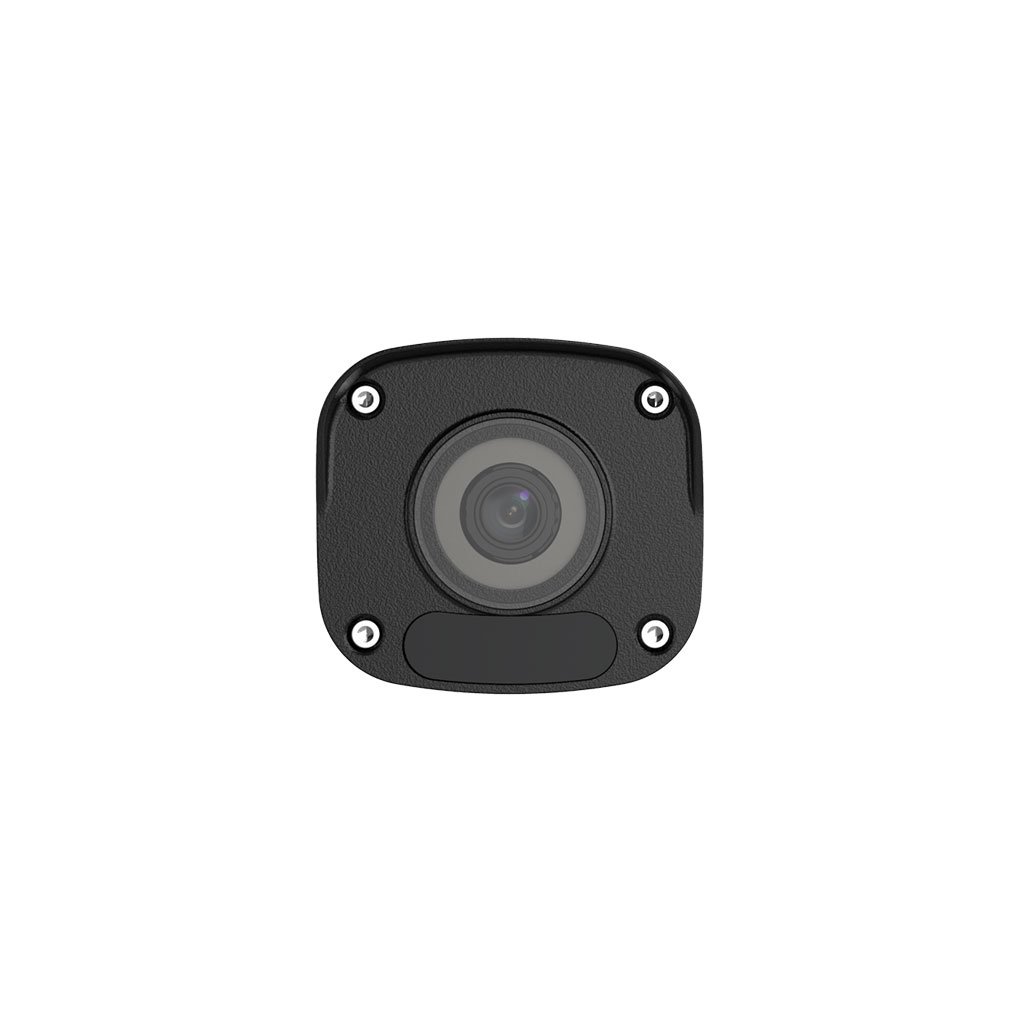

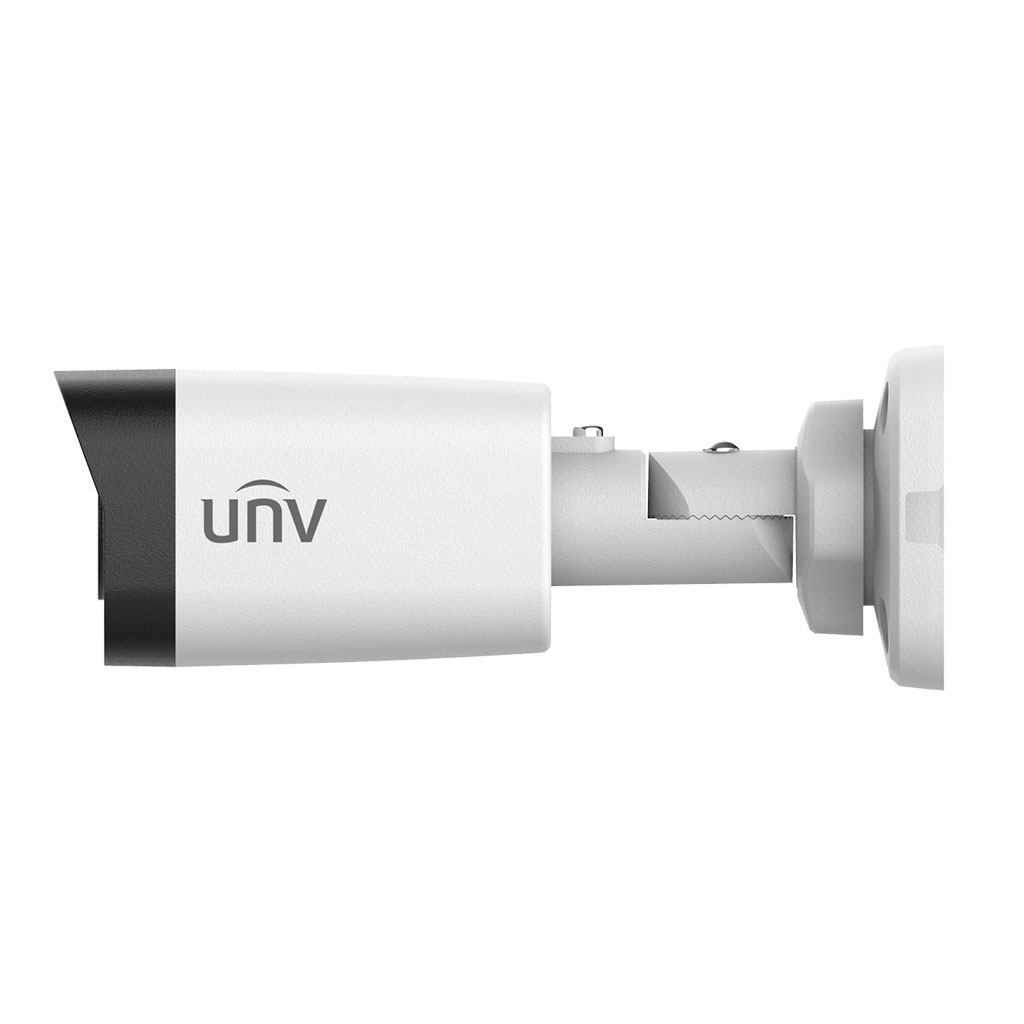

IPC2122LB-SF28-A Уличная IP видеокамера

<table>
<tbody>
<tr>
<td colspan="3">IPC2122LB-SF28-A</td>
<td colspan="6">IPC2122LB-SF40-A</td>
</tr>
<tr>
<td colspan="9">Camera</td>
</tr>
<tr>
<td>Sensor</td>
<td colspan="8">1/2.7", 2.0 megapixel, progressive scan, CMOS</td>
</tr>
<tr>
<td>Lens</td>
<td colspan="4">2.8mm@F2.0</td>
<td colspan="4">4.0mm@F2.0</td>
</tr>
<tr>
<td rowspan="3">DORI Distance</td>
<td>Lens (mm)</td>
<td colspan="2">Detect (m)</td>
<td colspan="2">Observe (m)</td>
<td colspan="2">Recognize (m)</td>
<td>Identify (m)</td>
</tr>
<tr>
<td>2.8</td>
<td colspan="2">42.0</td>
<td colspan="2">16.8</td>
<td colspan="2">8.4</td>
<td>4.2</td>
</tr>
<tr>
<td>4.0</td>
<td colspan="2">60.0</td>
<td colspan="2">24.0</td>
<td colspan="2">12.0</td>
<td>6.0</td>
</tr>
<tr>
<td>Angle of View (H)</td>
<td colspan="4">112.9°</td>
<td colspan="4">91.2°</td>
</tr>
<tr>
<td>Angle of View (V)</td>
<td colspan="4">59.1°</td>
<td colspan="4">47.9°</td>
</tr>
<tr>
<td>Angle of View (O)</td>
<td colspan="4">121.2°</td>
<td colspan="4">95.9°</td>
</tr>
<tr>
<td>Adjustment Angle</td>
<td colspan="2">Pan: 0° ~ 360°</td>
<td colspan="4">Tilt: 0° ~ 90°</td>
<td colspan="2">Rotate: 0° ~ 360°</td>
</tr>
<tr>
<td>Shutter</td>
<td colspan="8">Auto/Manual, 1 ~ 1/100000s</td>
</tr>
<tr>
<td>Minimum Illumination</td>
<td colspan="8">Colour: 0.01Lux ( F2.0, AGC ON)&nbsp;<br>0Lux with IR</td>
</tr>
<tr>
<td>Day/Night</td>
<td colspan="8">IR-cut filter with auto switch (ICR)</td>
</tr>
<tr>
<td>Digital Noise Reduction</td>
<td colspan="8">2D/3D DNR</td>
</tr>
<tr>
<td>S/N</td>
<td colspan="8">&gt;52dB</td>
</tr>
<tr>
<td>IR Range</td>
<td colspan="8">Up to 30m (98ft) IR range</td>
</tr>
<tr>
<td>Wavelength</td>
<td colspan="8">850nm</td>
</tr>
<tr>
<td>IR On/Off Control</td>
<td colspan="8">Auto/Manual</td>
</tr>
<tr>
<td>Defog</td>
<td colspan="8">Digital Defog</td>
</tr>
<tr>
<td>WDR</td>
<td colspan="8">120dB</td>
</tr>
<tr>
<td colspan="9">Video</td>
</tr>
<tr>
<td>Video Compression</td>
<td colspan="8">Ultra 265, H.265, H.264, MJPEG</td>
</tr>
<tr>
<td>H.264 code profile</td>
<td colspan="8">Baseline profile, Main profile, High profile</td>
</tr>
<tr>
<td>Frame Rate</td>
<td colspan="8">Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps<br>Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;</td>
</tr>
<tr>
<td>Video Bit Rate</td>
<td colspan="8">128 Kbps~6144 kbps</td>
</tr>
<tr>
<td>9:16 Corridor Mode</td>
<td colspan="8">Supported</td>
</tr>
<tr>
<td>OSD</td>
<td colspan="8">Up to 4 OSDs</td>
</tr>
<tr>
<td>Privacy Mask</td>
<td colspan="8">Up to 4 areas</td>
</tr>
<tr>
<td>ROI</td>
<td colspan="8">Up to 8 areas</td>
</tr>
<tr>
<td>Motion Detection</td>
<td colspan="8">Up to 4 areas</td>
</tr>
<tr>
<td colspan="9">Image</td>
</tr>
<tr>
<td>White Balance</td>
<td colspan="8">Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2</td>
</tr>
<tr>
<td>Digital Noise Reduction</td>
<td colspan="8">2D/3D DNR</td>
</tr>
<tr>
<td>Smart IR</td>
<td colspan="8">Supported</td>
</tr>
<tr>
<td>Flip</td>
<td colspan="8">Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise</td>
</tr>
<tr>
<td>Dewarping</td>
<td colspan="8">N/A</td>
</tr>
<tr>
<td>HLC</td>
<td colspan="8">Supported</td>
</tr>
<tr>
<td>BLC</td>
<td colspan="8">Supported</td>
</tr>
<tr>
<td colspan="9">Network</td>
</tr>
<tr>
<td>Protocols</td>
<td colspan="8">IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL, SNMP</td>
</tr>
<tr>
<td>Compatible Integration</td>
<td colspan="8">ONVIF (Profile S, Profile G, Profile T), API</td>
</tr>
<tr>
<td>Client</td>
<td colspan="8">EZStation<br>EZView<br>EZLive</td>
</tr>
<tr>
<td rowspan="2">Web Browser</td>
<td colspan="8">Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below</td>
</tr>
<tr>
<td colspan="8">Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+</td>
</tr>
</tbody>
</table>

Характеристики

Бренд: Uniview
Наличие микрофона: Нет
Наличие MicroSD: Нет
Разрешение: 2 мп
Рабочая температура: -30°C до +60°C
Материал корпуса: Металл+пластик
Исполнение: Уличное
Объектив: 2.8 мм
Тип объектива: Фиксированный
Дальность ИК-подсветки: 30 м
