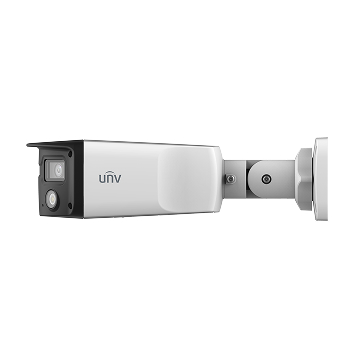

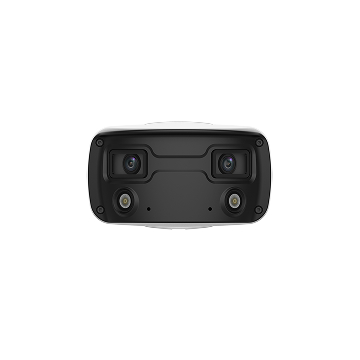

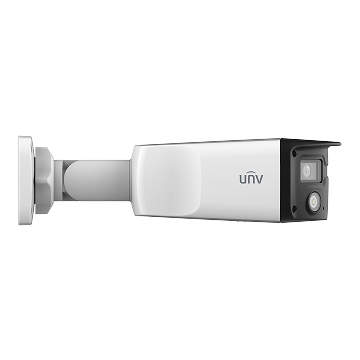

IPC2K24SE-ADF40KMC-WL-I0 UNIVIEW Сетевая камера

<table width="100%">
<tbody>
<tr>
<td class="thead" width="30%">&nbsp;</td>
<td class="thead" colspan="7" width="70%">IPC2K24SE-ADF40KMC-WL-I0</td>
</tr>
<tr>
<td class="thead" colspan="8">Camera</td>
</tr>
<tr>
<td>Sensor</td>
<td colspan="7">1/2.9″, 4.0 megapixel, progressive scan, CMOS</td>
</tr>
<tr>
<td>Minimum Illumination</td>
<td colspan="7">Colour: 0.0005 lux (F1.0, AGC ON)</td>
</tr>
<tr>
<td>Shutter</td>
<td colspan="7">Auto/Manual, 1 ~ 1/100000s</td>
</tr>
<tr>
<td>Adjustment angle</td>
<td colspan="2">Pan: 0° ~ 360°</td>
<td colspan="3">Tilt: 0° ~ 90°</td>
<td colspan="2">Rotate: 0° ~ 360°</td>
</tr>
<tr>
<td>WDR</td>
<td colspan="7">DWDR</td>
</tr>
<tr>
<td>S/N</td>
<td colspan="7">&gt;56dB</td>
</tr>
<tr>
<td class="thead" colspan="8">Lens</td>
</tr>
<tr>
<td>Lens</td>
<td colspan="7">2 * 4.0mm@F1.0</td>
</tr>
<tr>
<td>Iris</td>
<td colspan="7">Fixed</td>
</tr>
<tr>
<td>Field of View (H)</td>
<td colspan="7">160.00°±10°</td>
</tr>
<tr>
<td>Field of View (V)</td>
<td colspan="7">43.22°</td>
</tr>
<tr>
<td>Field of View (D)</td>
<td colspan="7">180.13°±10°</td>
</tr>
<tr>
<td class="thead" colspan="8">DORI</td>
</tr>
<tr>
<td rowspan="2">DORI Distance</td>
<td>Lens (mm)</td>
<td colspan="2">Detect（m）</td>
<td>Observe（m）</td>
<td colspan="2">Recognize（m）</td>
<td>Identify（m）</td>
</tr>
<tr>
<td>4.0</td>
<td colspan="2">64.3</td>
<td>25.7</td>
<td colspan="2">12.9</td>
<td>6.4</td>
</tr>
<tr>
<td class="thead" colspan="8">Illuminator</td>
</tr>
<tr>
<td>LED Distance</td>
<td colspan="7">Up to 30m (98ft)</td>
</tr>
<tr>
<td valign="top">LEDs Number</td>
<td colspan="7" valign="top">2</td>
</tr>
<tr>
<td>LED On/Off Control</td>
<td colspan="7">Auto/Manual</td>
</tr>
<tr>
<td class="thead" colspan="8">Video</td>
</tr>
<tr>
<td>Video Compression</td>
<td colspan="7">Ultra265, H.265, H.264, MJPEG</td>
</tr>
<tr>
<td>H.264 code profile</td>
<td colspan="7">Baseline profile, Main profile, High profile</td>
</tr>
<tr>
<td>Frame Rate</td>
<td colspan="7">Main Stream: 4MP (3840*1080), Max 25fps（Human Body Detection off）<br>Sub Stream: 1920*540, Max 25fps</td>
</tr>
<tr>
<td>Video Bit Rate</td>
<td colspan="7">128 Kbps~16 Mbps</td>
</tr>
<tr>
<td valign="top">U-code</td>
<td colspan="7" valign="top">Support</td>
</tr>
<tr>
<td>OSD</td>
<td colspan="7">Up to 8 OSDs</td>
</tr>
<tr>
<td>Privacy Mask</td>
<td colspan="7">Up to 4 areas</td>
</tr>
<tr>
<td>ROI</td>
<td colspan="7">Up to 8 areas</td>
</tr>
<tr>
<td>Video Stream</td>
<td colspan="7">Double streams</td>
</tr>
<tr>
<td class="thead" colspan="8">Image</td>
</tr>
<tr>
<td>White Balance</td>
<td colspan="7">Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2</td>
</tr>
<tr>
<td>Digital noise reduction</td>
<td colspan="7">2D/3D DNR</td>
</tr>
<tr>
<td>Smart Illumination</td>
<td colspan="7">Support</td>
</tr>
<tr>
<td>Flip</td>
<td colspan="7">N/A</td>
</tr>
<tr>
<td>Dewarping</td>
<td colspan="7">N/A</td>
</tr>
<tr>
<td>HLC</td>
<td colspan="7" valign="top">Support</td>
</tr>
<tr>
<td>BLC</td>
<td colspan="7" valign="top">Support</td>
</tr>
<tr>
<td>Defog</td>
<td colspan="7">Digital Defog</td>
</tr>
<tr>
<td class="thead" colspan="8">Events</td>
</tr>
<tr>
<td>Basic Detection</td>
<td colspan="7">Human Body Detection ,motion detection, tampering alarm, audio detection</td>
</tr>
<tr>
<td>General Function</td>
<td colspan="7">Watermark, IP address filtering, Alarm input, Alarm output, access policy, ARP protection, RTSP authentication, user authentication</td>
</tr>
<tr>
<td class="thead" colspan="8">Audio</td>
</tr>
<tr>
<td>Audio Compression</td>
<td colspan="7">G.711</td>
</tr>
<tr>
<td valign="top">Audio Bitrate</td>
<td colspan="7" valign="top">64 Kbps</td>
</tr>
<tr>
<td>Two-way audio</td>
<td colspan="7">Support</td>
</tr>
<tr>
<td>Suppression</td>
<td colspan="7">Support</td>
</tr>
<tr>
<td>Sampling Rate</td>
<td colspan="7">8KHZ</td>
</tr>
<tr>
<td class="thead" colspan="8">Storage</td>
</tr>
<tr>
<td>Edge Storage</td>
<td colspan="7">Micro SD, up to 256GB</td>
</tr>
<tr>
<td>Network Storage</td>
<td colspan="7">ANR, NAS(NFS)</td>
</tr>
<tr>
<td class="thead" colspan="8">Network</td>
</tr>
<tr>
<td>Protocols</td>
<td colspan="7">IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH</td>
</tr>
<tr>
<td>Compatible Integration</td>
<td colspan="7">ONVIF (Profile S, Profile G, Profile T), API,SDK</td>
</tr>
<tr>
<td valign="top">User/Host</td>
<td colspan="7" valign="top">Up to 32 users. 2 user levels: administrator and common user</td>
</tr>
<tr>
<td valign="top">Security</td>
<td colspan="7" valign="top">Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF</td>
</tr>
<tr>
<td>Client</td>
<td colspan="7">EZStation <br>EZView<br>EZLive</td>
</tr>
<tr>
<td rowspan="2">Web Browser</td>
<td colspan="7">Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below</td>
</tr>
<tr>
<td colspan="7">Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+</td>
</tr>
<tr>
<td class="thead" colspan="8">Interface</td>
</tr>
<tr>
<td rowspan="2">Audio I/O</td>
<td colspan="7">Input: impedance 35kΩ; amplitude 2V [p-p]</td>
</tr>
<tr>
<td colspan="7">Output: impedance 600Ω; amplitude 2V [p-p]</td>
</tr>
<tr>
<td>Alarm I/O</td>
<td colspan="7">1/1</td>
</tr>
<tr>
<td valign="top">RS485</td>
<td colspan="7" valign="top">N/A</td>
</tr>
<tr>
<td>Built-in Mic</td>
<td colspan="7">Built-in two mics</td>
</tr>
<tr>
<td>Built-in Speaker</td>
<td colspan="7">Support</td>
</tr>
<tr>
<td valign="top">WIFI</td>
<td colspan="7" valign="top">N/A</td>
</tr>
<tr>
<td>Network</td>
<td colspan="7">1 * RJ45 10M/100M Base-TX Ethernet</td>
</tr>
<tr>
<td>Video Output</td>
<td colspan="7">N/A</td>
</tr>
<tr>
<td class="thead" colspan="8">Certifications</td>
</tr>
<tr>
<td>EMC</td>
<td colspan="7">CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)<br>FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)</td>
</tr>
<tr>
<td>Safety</td>
<td colspan="7">CE LVD (EN 62368-1:2014+A11:2017)<br>CB (IEC 62368-1:2014)<br>UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)</td>
</tr>
<tr>
<td>Environment</td>
<td colspan="7">CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)</td>
</tr>
<tr>
<td>Protection</td>
<td colspan="7">IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)<br>IK10 (IEC 62262:2002)</td>
</tr>
<tr>
<td class="thead" colspan="8">General</td>
</tr>
<tr>
<td rowspan="2">Power</td>
<td colspan="7">DC 12V±25%, PoE (IEEE 802.3af)</td>
</tr>
<tr>
<td colspan="7">Power consumption: Max 6.5W</td>
</tr>
<tr>
<td valign="top">Power Interface</td>
<td colspan="7" valign="top">Ø 5.5mm coaxial power plug</td>
</tr>
<tr>
<td>Dimensions (L × W × H)</td>
<td colspan="7">273× 130 × 76mm (10.7” × 5.1” × 3.0”)</td>
</tr>
<tr>
<td>Weight</td>
<td colspan="7">0.95kg (2.09lb)</td>
</tr>
<tr>
<td>Material</td>
<td colspan="7">Metal</td>
</tr>
<tr>
<td>Working Environment</td>
<td colspan="7">-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)</td>
</tr>
<tr>
<td>Strorage Environment</td>
<td colspan="7">-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)</td>
</tr>
<tr>
<td>surge protection</td>
<td colspan="7">4KV</td>
</tr>
<tr>
<td>Reset Button</td>
<td colspan="7">Support</td>
</tr>
</tbody>
</table>

Характеристики

Бренд: Uniview
LED подсветка: 30 м
Наличие микрофона: Да
Наличие MicroSD: Да
Рабочая температура: -30°C до +60°C
Разрешение: 4 мп
Материал корпуса: Металл
Исполнение: Уличное
Объектив: 4.0 мм
Тип объектива: Фиксированный
