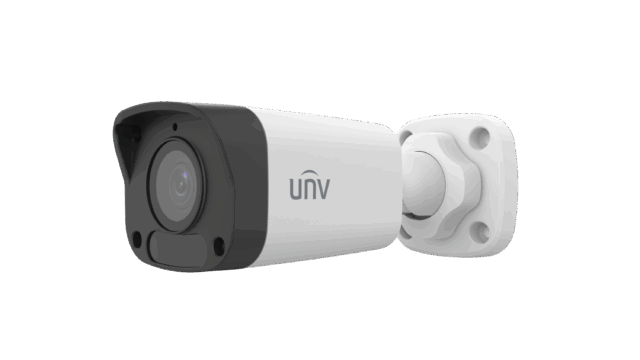

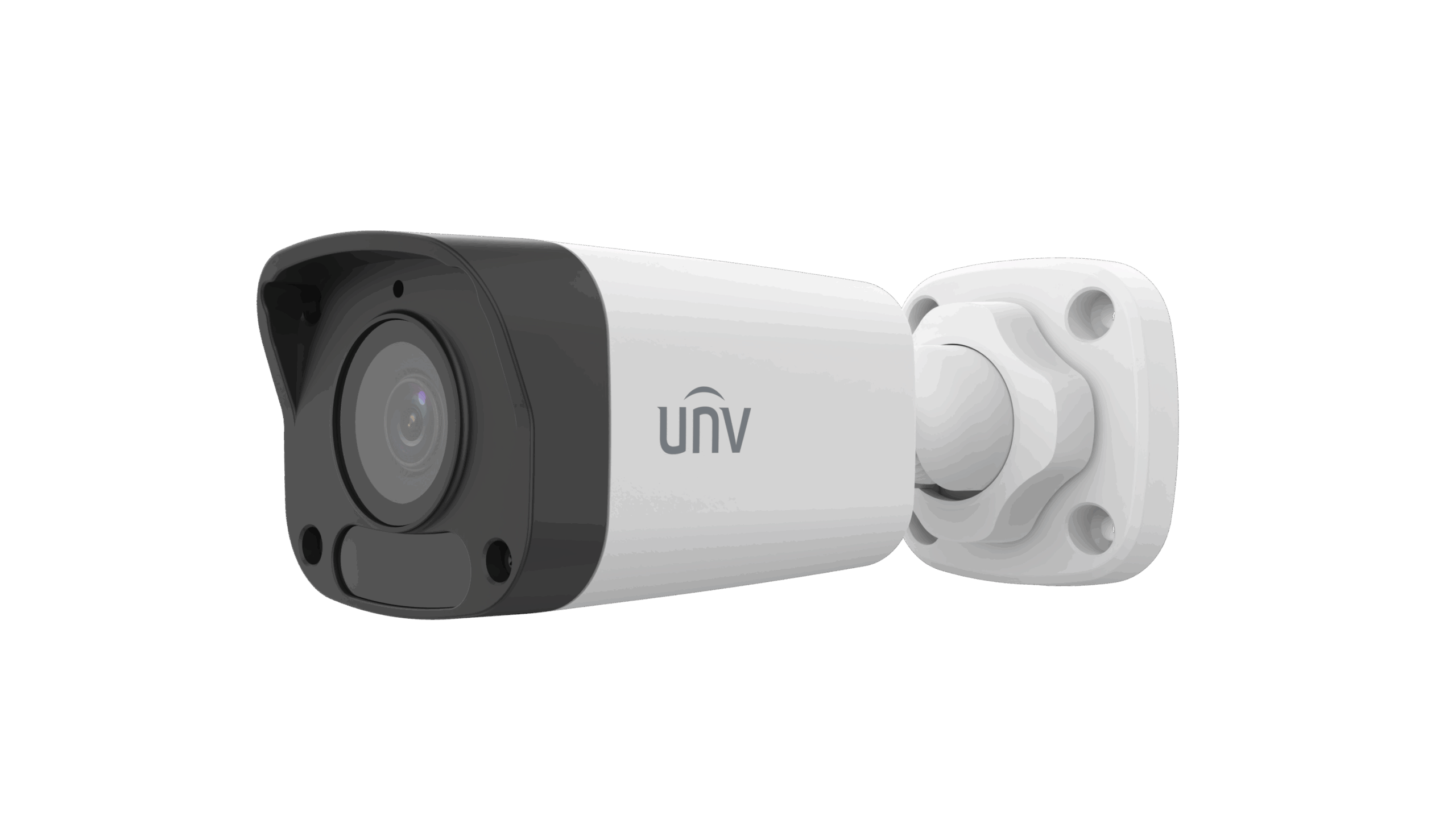

IPC2122LB-AF28-A2 Уличная IP видеокамера

<table width="100%"><tbody><tr><td class="thead" width="20%">&nbsp;</td><td class="thead" width="40%" colspan="4">IPC2122LB-AF28-A2</td><td class="thead" width="40%" colspan="4">IPC2122LB-AF40-A2</td></tr><tr><td class="thead" colspan="9">Camera<b></b></td></tr><tr><td>Max Resolution</td><td colspan="8">2 MP</td></tr><tr><td>Sensor</td><td colspan="8">1/3.0" CMOS</td></tr><tr><td>Min. Illumination</td><td colspan="8">Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on</td></tr><tr><td>Day/Night</td><td colspan="8">IR-cut filter with auto switch (ICR)</td></tr><tr><td>Shutter</td><td colspan="8">Auto/Manual, 1 ~ 1/100000s</td></tr><tr><td>Adjustment Angle</td><td colspan="8">Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°</td></tr><tr><td>S/N</td><td colspan="8">&gt;52 dB</td></tr><tr><td>WDR</td><td colspan="8">DWDR</td></tr><tr><td class="thead" colspan="9">Lens<b></b></td></tr><tr><td>Focal Length</td><td colspan="4">2.8 mm</td><td colspan="4">4.0 mm</td></tr><tr><td>Iris Type</td><td colspan="8">Fixed</td></tr><tr><td>Iris</td><td colspan="8">F2.0</td></tr><tr><td>Field of View (H)</td><td colspan="4">99.5°</td><td colspan="4">77.1°</td></tr><tr><td>Field of View (V)</td><td colspan="4">56.5°</td><td colspan="4">42.8°</td></tr><tr><td>Field of View (D)</td><td colspan="4">114.4°</td><td colspan="4">88.2°</td></tr><tr><td>Lens Type</td><td colspan="8">Fixed</td></tr><tr><td class="thead" colspan="9">DORI<b></b></td></tr><tr><td>DORI Distance (Lens)</td><td colspan="4">2.8 mm</td><td colspan="4">4 mm</td></tr><tr><td>DORI Distance (Detect)</td><td colspan="4">46.7 m (153.1 ft.)</td><td colspan="4">66.7 m (218.8 ft.)</td></tr><tr><td>DORI Distance (Observe)</td><td colspan="4">18.7 m (61.4 ft.)</td><td colspan="4">26.7 m (87.6 ft.)</td></tr><tr><td>DORI Distance (Recognize)</td><td colspan="4">9.3 m (30.6 ft.)</td><td colspan="4">13.3 m (43.7 ft.)</td></tr><tr><td>DORI Distance (Identify)</td><td colspan="4">4.7 m (15.4 ft.)</td><td colspan="4">6.7 m (22.0 ft.)</td></tr><tr><td class="thead" colspan="9">Illuminator<b></b></td></tr><tr><td>Supplemental Light</td><td colspan="8">IR</td></tr><tr><td>Illumination Distance (IR)</td><td colspan="8">30 m (98.4 ft)</td></tr><tr><td>Wavelength</td><td colspan="8">850 nm</td></tr><tr><td>IR On/Off Control</td><td colspan="8">Auto/Manual</td></tr><tr><td class="thead" colspan="9">Video<b></b></td></tr><tr><td>Video Compression</td><td colspan="8">Ultra 265, H.265, H.264</td></tr><tr><td>H.264 Code Profile</td><td colspan="8">Baseline profile, Main profile, High profile</td></tr><tr><td>Frame Rate</td><td colspan="8">Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps<br>Sub Stream: 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps</td></tr><tr><td>Video Bit Rate</td><td colspan="8">128 Kbps to 6144 Kbps</td></tr><tr><td>U-code</td><td colspan="8">Support</td></tr><tr><td>OSD</td><td colspan="8">Up to 4 OSDs</td></tr><tr><td>Privacy Mask</td><td colspan="8">Up to 4 areas</td></tr><tr><td>ROI</td><td colspan="8">Support</td></tr><tr><td>Video Stream</td><td colspan="8">Dual streams</td></tr><tr><td class="thead" colspan="9">Image<b></b></td></tr><tr><td>White Balance</td><td colspan="8">Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance</td></tr><tr><td>Digital Noise Reduction</td><td colspan="8">2D/3D DNR</td></tr><tr><td>Smart IR</td><td colspan="8">Support</td></tr><tr><td>Flip</td><td colspan="8">Normal, Flip vertical, Flip horizontal, 180°</td></tr><tr><td>Dewarping</td><td colspan="8">N/A</td></tr><tr><td>HLC</td><td colspan="8">Support</td></tr><tr><td>BLC</td><td colspan="8">Support</td></tr><tr><td>Defog</td><td colspan="8">Digital defog</td></tr><tr><td>Image Stabilization</td><td colspan="8">N/A</td></tr><tr><td class="thead" colspan="9">Events<b></b></td></tr><tr><td>Basic Detection</td><td colspan="8">Human body detection 2.0, Motion detection, Audio detection</td></tr><tr><td>General Function</td><td colspan="8">Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication</td></tr><tr><td class="thead" colspan="9">Audio<b></b></td></tr><tr><td>Audio Compression</td><td colspan="8">G.711U，G.711A</td></tr><tr><td>Audio Bitrate</td><td colspan="8">64 Kbps</td></tr><tr><td>Two-way Audio</td><td colspan="8">N/A</td></tr><tr><td>Suppression</td><td colspan="8">Support</td></tr><tr><td>Sampling Rate</td><td colspan="8">8 kHz</td></tr><tr><td class="thead" colspan="9">Storage<b></b></td></tr><tr><td>Edge Storage</td><td colspan="8">N/A</td></tr><tr><td class="thead" colspan="9">Network<b></b></td></tr><tr><td>Protocols</td><td colspan="8">IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, QoS</td></tr><tr><td>Compatible Integration</td><td colspan="8">ONVIF (Profile S, Profile T) , <br>API, SDK</td></tr><tr><td>User/Host</td><td colspan="8">Up to 32 users, 2 user levels: administrator and common user</td></tr><tr><td>Security</td><td colspan="8">Password Protection, Strong Password, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF</td></tr><tr><td>Client</td><td colspan="8">UNV-Link, UNV-Link Pro, EZStation</td></tr><tr><td>Web Browser</td><td colspan="8">Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+</td></tr><tr><td class="thead" colspan="9">Interface<b></b></td></tr><tr><td>Audio I/O</td><td colspan="8">N/A</td></tr><tr><td>Alarm I/O</td><td colspan="8">N/A</td></tr><tr><td>Serial Port</td><td colspan="8">N/A</td></tr><tr><td>Built-in Mic</td><td colspan="8">Support</td></tr><tr><td>Built-in Speaker</td><td colspan="8">N/A</td></tr><tr><td>WIFI</td><td colspan="8">N/A</td></tr><tr><td>Network</td><td colspan="8">1 × RJ45 10 M/100 M Base-TX Ethernet</td></tr><tr><td>Video Output</td><td colspan="8">N/A</td></tr><tr><td class="thead" colspan="9">Certification<b></b></td></tr><tr><td>EMC</td><td colspan="8">CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)<br>FCC (FCC 47 CFR part15 B)</td></tr><tr><td>Safety</td><td colspan="8">CE LVD (EN 62368-1)</td></tr><tr><td>Environment</td><td colspan="8">CE-RoHS (2011/65/EU; (EU) 2015/863) ; WEEE (2012/19/EU)</td></tr><tr><td>Protection</td><td colspan="8">IP67 (IEC 60529)</td></tr><tr><td class="thead" colspan="9">General<b></b></td></tr><tr><td>Power</td><td colspan="8">DC 12 V±25%, PoE (IEEE 802.3af)</td></tr><tr><td>Power Consumption</td><td colspan="8">Max. 3.9 W</td></tr><tr><td>Power Interface</td><td colspan="8">Ø5.5 mm coaxial power plug</td></tr><tr><td>Dimensions</td><td colspan="8">157.5 mm × 62.5 mm × 62.7 mm (6.2" × 2.5" × 2.5") (L × W × H)</td></tr><tr><td>Weight</td><td colspan="8">0.19 kg (0.42 lb)</td></tr><tr><td>Material</td><td colspan="8">Graphene + Plastic</td></tr><tr><td>Working Environment</td><td colspan="8">-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)</td></tr><tr><td>Storage Environment</td><td colspan="8">-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)</td></tr><tr><td>Surge Protection</td><td colspan="8">4 KV</td></tr><tr><td>Reset Button</td><td colspan="8">N/A</td></tr><tr><td>Web Client Language</td><td colspan="8">1 Language: English</td></tr></tbody></table>

Характеристики

Наличие микрофона: Да
Наличие MicroSD: Нет
Разрешение: 2 мп
Рабочая температура: -30°C до +60°C
Материал корпуса: Графен+пластик
Исполнение: Уличное
Объектив: 2.8 мм
Тип объектива: Фиксированный
Дальность ИК-подсветки: 30 м
Бренд: Uniview
