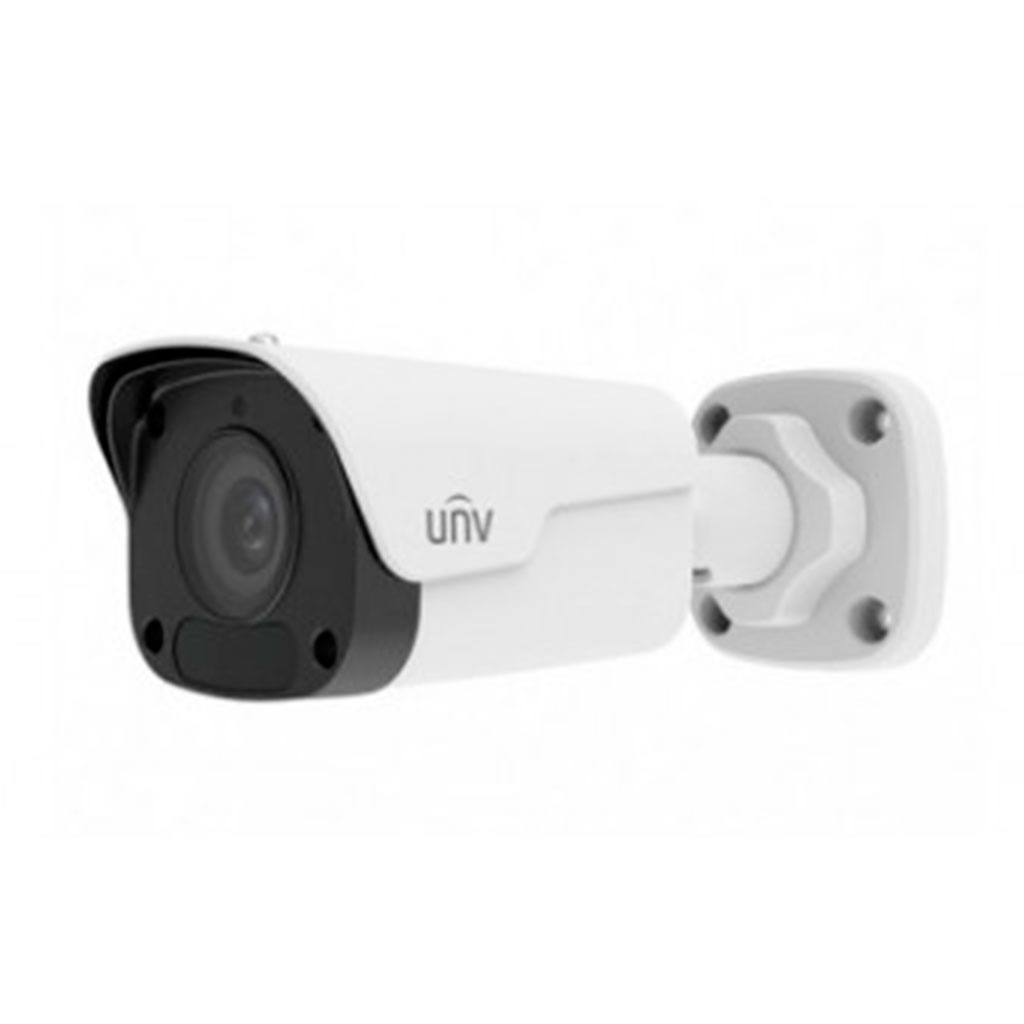

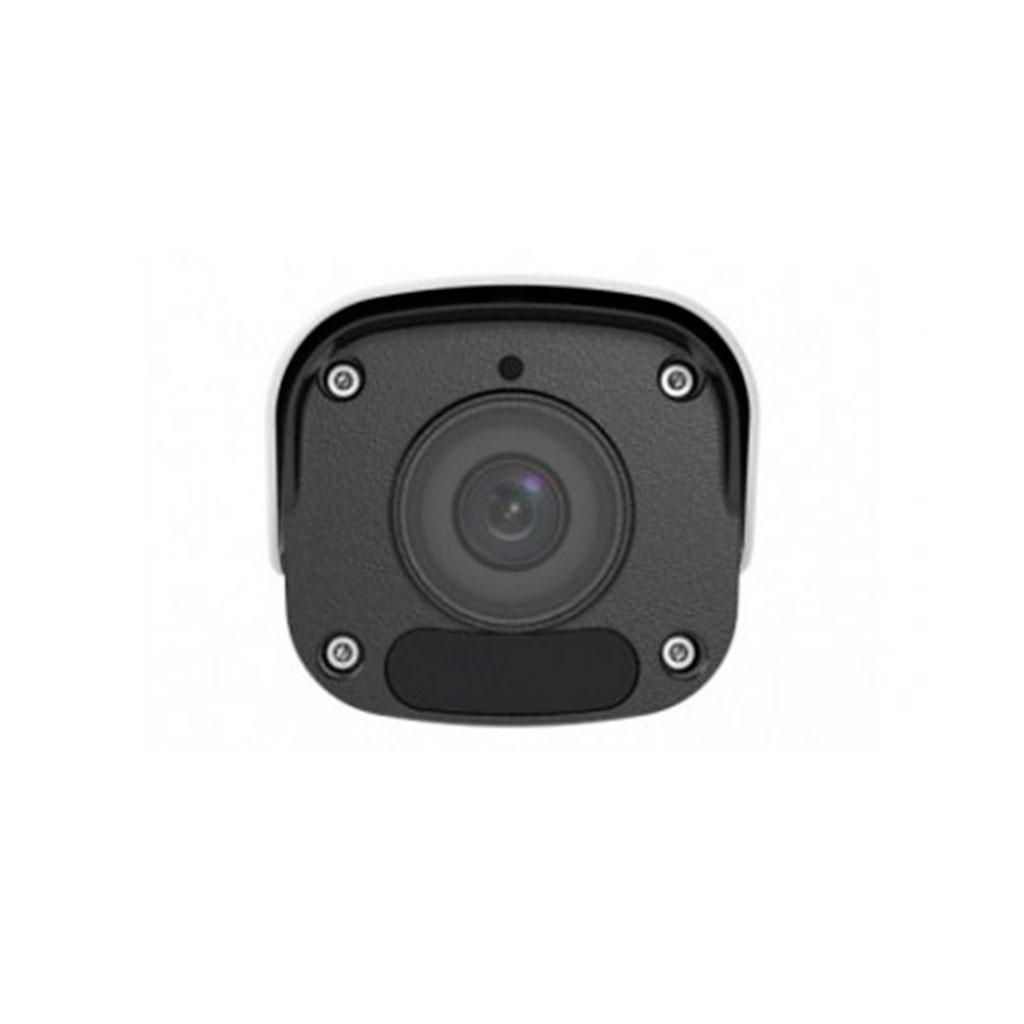

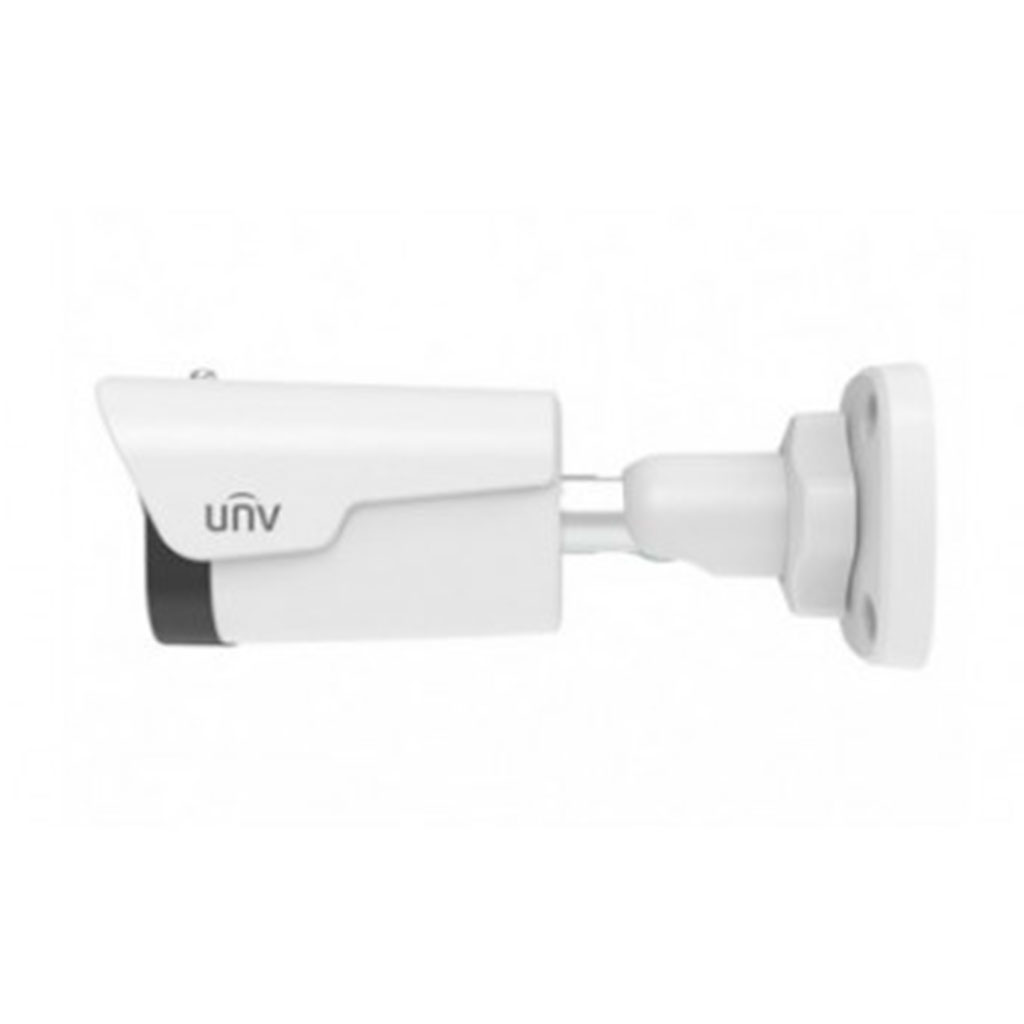

IPC2122LB-ADF28KM-G Уличная IP видеокамера

<table width="100%">
<tbody>
<tr>
</tr>
<tr>
<td rowspan="3">DORI Distance</td>
<td>Lens (mm)</td>
<td>Detect (m)</td>
<td colspan="2">Observe (m)</td>
<td>Recognize (m)</td>
<td>Identify (m)</td>
</tr>
<tr>
<td>2.8</td>
<td>42.0</td>
<td colspan="2">16.8</td>
<td>8.4</td>
<td>4.2</td>
</tr>
<tr>
<td>4.0</td>
<td>60.0</td>
<td colspan="2">24.0</td>
<td>12.0</td>
<td>6.0</td>
</tr>
<tr>
<td colspan="7">Illuminator</td>
</tr>
<tr>
<td>IR Range</td>
<td colspan="6">Up to 30m (98ft) IR range</td>
</tr>
<tr>
<td>Wavelength</td>
<td colspan="6">850nm</td>
</tr>
<tr>
<td>IR On/Off Control</td>
<td colspan="6">Auto/Manual</td>
</tr>
<tr>
<td colspan="7">Video</td>
</tr>
<tr>
<td>Video Compression</td>
<td colspan="6">Ultra 265, H.265, H.264, MJPEG</td>
</tr>
<tr>
<td>H.264 code profile</td>
<td colspan="6">Baseline profile, Main profile, High profile</td>
</tr>
<tr>
<td>Frame Rate</td>
<td colspan="6">Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps<br>Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;</td>
</tr>
<tr>
<td>Video Bit Rate</td>
<td colspan="6">128 Kbps~6144 kbps</td>
</tr>
<tr>
<td>U-code</td>
<td colspan="6">Supported</td>
</tr>
<tr>
<td>9:16 Corridor Mode</td>
<td colspan="6">Supported</td>
</tr>
<tr>
<td>OSD</td>
<td colspan="6">Up to 4 OSDs</td>
</tr>
<tr>
<td>Privacy Mask</td>
<td colspan="6">Up to 4 areas</td>
</tr>
<tr>
<td>ROI</td>
<td colspan="6">Up to 8 areas</td>
</tr>
<tr>
<td>Motion Detection</td>
<td colspan="6">Up to 4 areas</td>
</tr>
<tr>
<td colspan="7">Image</td>
</tr>
<tr>
<td>White Balance</td>
<td colspan="6">Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2</td>
</tr>
<tr>
<td>Image Setting</td>
<td colspan="6">Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser</td>
</tr>
<tr>
<td>Digital Noise Reduction</td>
<td colspan="6">2D/3D DNR</td>
</tr>
<tr>
<td>Smart IR</td>
<td colspan="6">Supported</td>
</tr>
<tr>
<td>Flip</td>
<td colspan="6">Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise</td>
</tr>
<tr>
<td>Dewarping</td>
<td colspan="6">N/A</td>
</tr>
<tr>
<td>HLC</td>
<td colspan="6">Supported</td>
</tr>
<tr>
<td>BLC</td>
<td colspan="6">Supported</td>
</tr>
<tr>
<td>Defog</td>
<td colspan="6">Digital Defog</td>
</tr>
<tr>
<td colspan="7">Audio</td>
</tr>
<tr>
<td>Audio Compression</td>
<td colspan="6">G.711</td>
</tr>
<tr>
<td>Suppression</td>
<td colspan="6">Supported</td>
</tr>
<tr>
<td>Sampling Rate</td>
<td colspan="6">8KHZ</td>
</tr>
<tr>
<td colspan="7">Storage</td>
</tr>
<tr>
<td>Edge Storage</td>
<td colspan="6">Micro SD, up to 128GB</td>
</tr>
<tr>
<td>Network Storage</td>
<td colspan="6">ANR,NAS(NFS)</td>
</tr>
<tr>
<td colspan="7">Network</td>
</tr>
<tr>
<td>Protocols</td>
<td colspan="6">IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP</td>
</tr>
<tr>
<td>Compatible Integration</td>
<td colspan="6">ONVIF (Profile S, Profile G, Profile T), API , SDK</td>
</tr>
<tr>
<td>User/Host</td>
<td colspan="6">Up to 32 users. 2 user levels: administrator and common user</td>
</tr>
<tr>
<td>Security</td>
<td colspan="6">Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF</td>
</tr>
<tr>
<td>Client</td>
<td colspan="6">EZStation <br>EZView<br>EZLive</td>
</tr>
<tr>
<td rowspan="2">Web Browser</td>
<td colspan="6">Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below</td>
</tr>
<tr>
<td colspan="6">Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+</td>
</tr>
<tr>
<td colspan="7">Interface</td>
</tr>
<tr>
<td>Network</td>
<td colspan="6">1 * RJ45 10M/100M Base-TX Ethernet</td>
</tr>
<tr>
<td>Built-in Mic</td>
<td colspan="6">Supported</td>
</tr>
<tr>
<td colspan="7">Certifications</td>
</tr>
<tr>
<td>EMC</td>
<td colspan="6">FCC: FCC Part 15</td>
</tr>
<tr>
<td>Safety</td>
<td colspan="6">CE: EN 60950-1<br>UL: UL60950-1<br>IEC 60950-1</td>
</tr>
<tr>
<td colspan="7">General</td>
</tr>
<tr>
<td rowspan="2">Power</td>
<td colspan="6">DC 12V±25%, PoE (IEEE 802.3af)</td>
</tr>
<tr>
<td colspan="6">Power consumption: Max 7.0W</td>
</tr>
<tr>
<td>Power Interface </td>
<td colspan="6">Ø 5.5mm coaxial power plug</td>
</tr>
<tr>
<td>Dimensions (L × W × H)</td>
<td colspan="6">165 × 63 × 62mm (6.5” × 2.5” × 2.5”)</td>
</tr>
<tr>
<td>Weight</td>
<td colspan="6">0.39kg (0.86lb)</td>
</tr>
<tr>
<td>Material</td>
<td colspan="6">Metal + plastic</td>
</tr>
<tr>
<td>Working Environment</td>
<td colspan="6">-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)</td>
</tr>
<tr>
<td>Strorage Environment</td>
<td colspan="6">-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)</td>
</tr>
<tr>
<td>Surge Protection</td>
<td colspan="6">4KV</td>
</tr>
<tr>
<td>Reset Button</td>
<td colspan="6">N/A</td>
</tr>
<tr>
<td>Ingress Protection</td>
<td colspan="6">Ingression protection: IP67</td>
</tr>
</tbody>
</table>

Характеристики

Дальность ИК-подсветки: 30 м
Бренд: Uniview
Наличие микрофона: Да
Объектив: 2.8 мм
Наличие MicroSD: Да
Исполнение: Уличное
Материал корпуса: Металл+пластик
Разрешение: 2 мп
Рабочая температура: -30°C до +60°C
