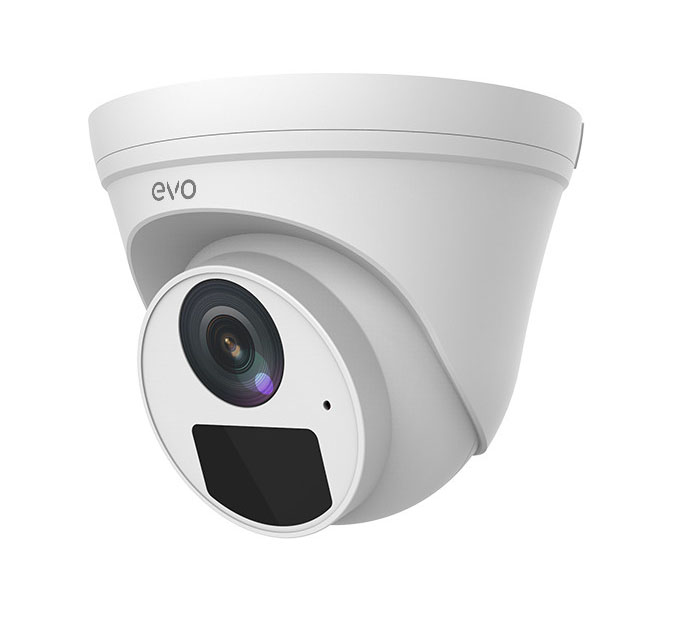

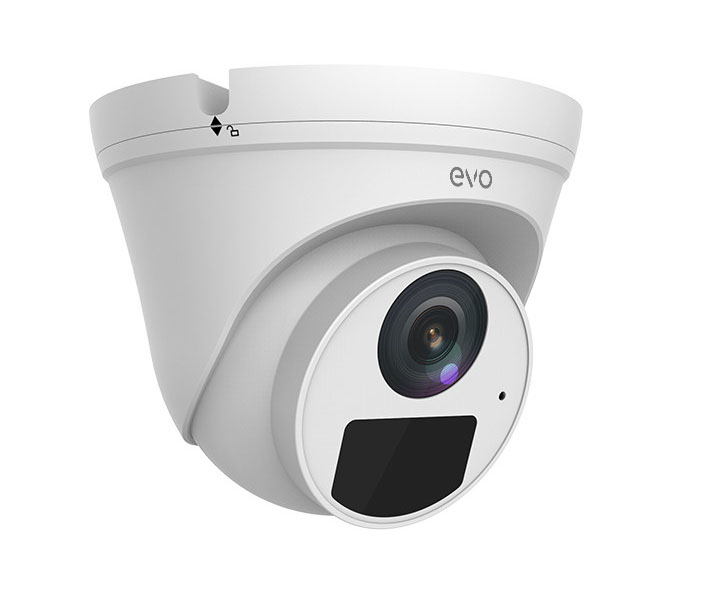

IPC-3614-APF28-NB купольная IP видеокамера

<table width="100%">
<tbody>
<tr>
<td colspan="4" width="40%">IPC-3614-APF28-NB</td>
<td colspan="4" width="40%">IPC-3614-APF40-NB</td>
</tr>
<tr>
<td colspan="9">Camera</td>
</tr>
<tr>
<td>Sensor</td>
<td colspan="8">1/3", 4.0 megapixel, progressive scan, CMOS</td>
</tr>
<tr>
<td>Minimum Illumination</td>
<td colspan="8">Colour: 0.02Lux (F2.1, AGC ON)<br>0Lux with IR on</td>
</tr>
<tr>
<td>Day/Night</td>
<td colspan="8">IR-cut filter with auto switch (ICR)</td>
</tr>
<tr>
<td>Shutter</td>
<td colspan="8">Auto/Manual, 1 ~ 1/100000s</td>
</tr>
<tr>
<td>Adjustment angle</td>
<td colspan="2">Pan: 0° ~ 360°</td>
<td colspan="4">Tilt: 0° ~ 80°</td>
<td colspan="2">Rotate: 0° ~ 360°</td>
</tr>
<tr>
<td>WDR</td>
<td colspan="8">DWDR</td>
</tr>
<tr>
<td>S/N</td>
<td colspan="8">&gt;52dB</td>
</tr>
<tr>
<td colspan="9">Lens</td>
</tr>
<tr>
<td>Lens Type</td>
<td colspan="4">2.8mm@F2.1</td>
<td colspan="4">4.0mm@F2.1</td>
</tr>
<tr>
<td>Iris</td>
<td colspan="8">Fixed</td>
</tr>
<tr>
<td>Angle of View (H)</td>
<td colspan="4">97.0°</td>
<td colspan="4">79.0°</td>
</tr>
<tr>
<td>Angle of View (V)</td>
<td colspan="4">52.2°</td>
<td colspan="4">42.3°</td>
</tr>
<tr>
<td>Angle of View (O)</td>
<td colspan="4">107.5</td>
<td colspan="4">85.1°</td>
</tr>
<tr>
<td colspan="9">DORI</td>
</tr>
<tr>
<td rowspan="3">DORI Distance</td>
<td>Lens (mm)</td>
<td colspan="2">Detect (m)</td>
<td colspan="2">Observe (m)</td>
<td colspan="2">Recognize (m)</td>
<td>Identify (m)</td>
</tr>
<tr>
<td>2.8</td>
<td colspan="2">63.0</td>
<td colspan="2">25.2</td>
<td colspan="2">12.6</td>
<td>6.3</td>
</tr>
<tr>
<td>4.0</td>
<td colspan="2">90.0</td>
<td colspan="2">36.0</td>
<td colspan="2">18.0</td>
<td>9.0</td>
</tr>
<tr>
<td colspan="9">Illuminator</td>
</tr>
<tr>
<td>IR Range</td>
<td colspan="8">Up to 30m (98ft) IR range</td>
</tr>
<tr>
<td>Wavelength</td>
<td colspan="8">850nm</td>
</tr>
<tr>
<td>IR On/Off Control</td>
<td colspan="8">Auto/Manual</td>
</tr>
<tr>
<td colspan="9">Video</td>
</tr>
<tr>
<td>Video Compression</td>
<td colspan="8">Ultra 265, H.265, H.264</td>
</tr>
<tr>
<td>H.264 code profile</td>
<td colspan="8">Baseline profile, Main profile, High profile</td>
</tr>
<tr>
<td>Frame Rate</td>
<td colspan="8">Main Stream: 4MP (2560*1440), Max 20fps; 3MP (2304*1296), Max 20fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;<br>Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;</td>
</tr>
<tr>
<td>Video Bit Rate</td>
<td colspan="8">128 Kbps~6 Mbps</td>
</tr>
<tr>
<td>U-code</td>
<td colspan="8">Support</td>
</tr>
<tr>
<td>OSD</td>
<td colspan="8">Up to 4 OSDs</td>
</tr>
<tr>
<td>Privacy Mask</td>
<td colspan="8">Up to 4 areas</td>
</tr>
<tr>
<td>ROI</td>
<td colspan="8">Up to 8 areas</td>
</tr>
<tr>
<td>Motion Detection</td>
<td colspan="8">Up to 4 areas</td>
</tr>
<tr>
<td>Video stream</td>
<td colspan="8">Dual streams</td>
</tr>
<tr>
<td colspan="9">Image</td>
</tr>
<tr>
<td>White Balance</td>
<td colspan="8">Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2</td>
</tr>
<tr>
<td>Digital Noise Reduction</td>
<td colspan="8">2D/3D DNR</td>
</tr>
<tr>
<td>Smart IR</td>
<td colspan="8">Support</td>
</tr>
<tr>
<td>Flip</td>
<td colspan="8">Normal/Vertical/Horizontal/180°</td>
</tr>
<tr>
<td>Dewarping</td>
<td colspan="8">N/A</td>
</tr>
<tr>
<td>HLC</td>
<td colspan="8">Support</td>
</tr>
<tr>
<td>BLC</td>
<td colspan="8">Support</td>
</tr>
<tr>
<td>Defog</td>
<td colspan="8">Digital Defog</td>
</tr>
<tr>
<td colspan="9">Events</td>
</tr>
<tr>
<td>Basic Detection</td>
<td colspan="8">Motion detection, Audio detection</td>
</tr>
<tr>
<td>General Function</td>
<td colspan="8">Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication</td>
</tr>
<tr>
<td colspan="9">Audio</td>
</tr>
<tr>
<td>Audio Compression</td>
<td colspan="8">G.711U, G.711A</td>
</tr>
<tr>
<td>Audio Bitrate</td>
<td colspan="8">64 Kbps</td>
</tr>
<tr>
<td>Two-way Audio</td>
<td colspan="8">N/A</td>
</tr>
<tr>
<td>Suppression</td>
<td colspan="8">Support</td>
</tr>
<tr>
<td>Sampling Rate</td>
<td colspan="8">8KHZ</td>
</tr>
<tr>
<td colspan="9">Network</td>
</tr>
<tr>
<td>Protocols</td>
<td colspan="8">IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SSL, QoS , RTMP</td>
</tr>
<tr>
<td>Compatible Integration</td>
<td colspan="8">ONVIF (Profile S, Profile T), API</td>
</tr>
<tr>
<td>User/Host</td>
<td colspan="8">Up to 32 users. 2 user levels: administrator and common user</td>
</tr>
<tr>
<td>Client</td>
<td colspan="8">Uniarch Client<br>Uniarch APP</td>
</tr>
<tr>
<td rowspan="2">Web Browser</td>
<td colspan="8">Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above</td>
</tr>
<tr>
<td colspan="8">Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above</td>
</tr>
<tr>
<td colspan="9">Interface</td>
</tr>
<tr>
<td>Audio I/O</td>
<td colspan="8">N/A</td>
</tr>
<tr>
<td>Alarm I/O</td>
<td colspan="8">N/A</td>
</tr>
<tr>
<td>Built-in Mic</td>
<td colspan="8">Support</td>
</tr>
<tr>
<td>Built-in Speaker</td>
<td colspan="8">N/A</td>
</tr>
<tr>
<td>WIFI</td>
<td colspan="8">N/A</td>
</tr>
<tr>
<td>Network</td>
<td colspan="8">1 * RJ45 10M/100M Base-TX Ethernet</td>
</tr>
<tr>
<td>Video Output</td>
<td colspan="8">N/A</td>
</tr>
<tr>
<td colspan="9">Certifications</td>
</tr>
<tr>
<td>EMC</td>
<td colspan="8">CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)<br>FCC (FCC 47 CFR part15 B)</td>
</tr>
<tr>
<td>Safety</td>
<td colspan="8">CE LVD (EN 62368-1)<br>CB (IEC 62368-1)</td>
</tr>
<tr>
<td>Environment</td>
<td colspan="8">CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)</td>
</tr>
<tr>
<td>Protection</td>
<td colspan="8">IP67 (IEC 60529)</td>
</tr>
<tr>
<td colspan="9">General</td>
</tr>
<tr>
<td rowspan="2">Power</td>
<td colspan="8">DC 12V±25%, PoE (IEEE 802.3af)</td>
</tr>
<tr>
<td colspan="8">Power consumption: Max 3.5W</td>
</tr>
<tr>
<td>Dimensions (Ø x H)</td>
<td colspan="8">Ø118 x 97mm (Ø4.6” x 3.8”)</td>
</tr>
<tr>
<td>Weight</td>
<td colspan="8">0.27kg (0.60lb)</td>
</tr>
<tr>
<td>Working Environment</td>
<td colspan="8">-30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing)</td>
</tr>
<tr>
<td>Storage Environment</td>
<td colspan="8">-30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing)</td>
</tr>
<tr>
<td>Surge Protection</td>
<td colspan="8">4KV</td>
</tr>
<tr>
<td>Reset Button</td>
<td colspan="8">N/A</td>
</tr>
</tbody>
</table>

Характеристики

Бренд: EVO
Наличие микрофона: Да
Наличие MicroSD: Нет
Тип объектива: Фиксированный
Объектив: 2.8 мм
Исполнение: Внутреннее
Рабочая температура: -30°C ~ 60°C
Разрешение: 4 мп
Дальность ИК-подсветки: 30 м
