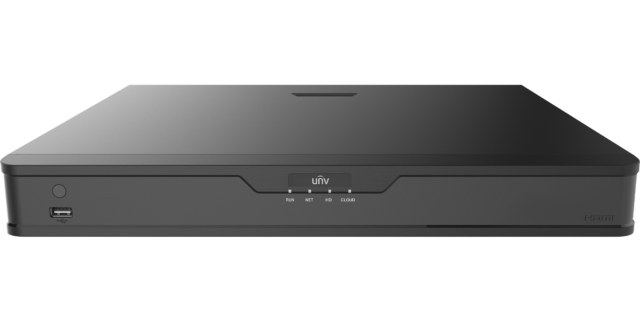

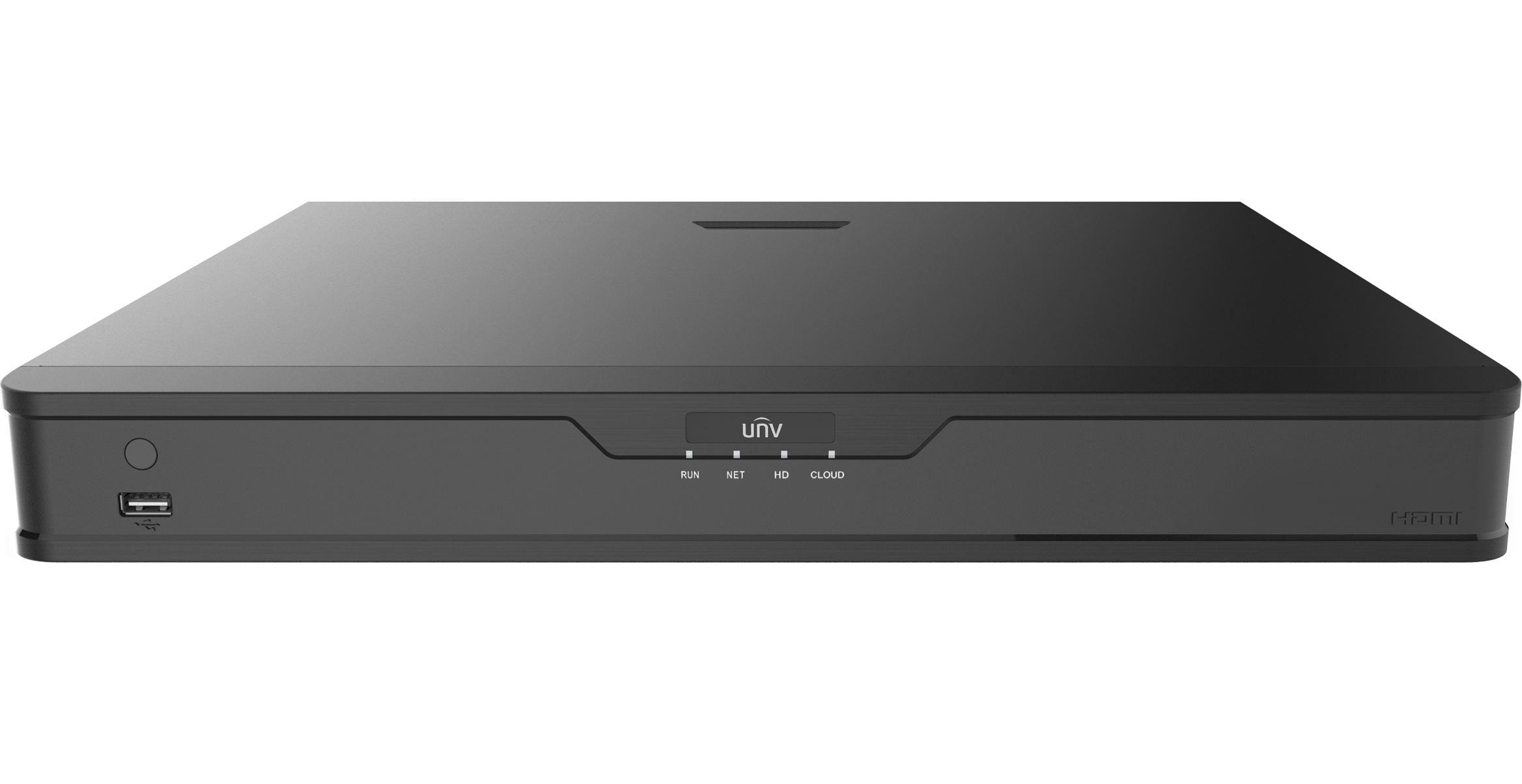

XVR302-16Q3 16-ти канальный гибридный видеорегистратор

<table>
<tbody>
<tr>
<td><strong>Model</strong></td>
<td><strong>XVR302-16Q3</strong></td>
</tr>
<tr>
<td colspan="2"><strong>Video/Audio Input</strong></td>
</tr>
<tr>
<td>Analog Video Input</td>
<td>16-ch, BNC</td>
</tr>
<tr>
<td>IP Video Input</td>
<td>8-ch(only IP up to 24ch), each channel up to 4K</td>
</tr>
<tr>
<td>Supported Analog Camera Types</td>
<td><strong>Support AHD input: </strong>8MP@15fps<br>5MP@20fps<br>4MP@30fps<br>1080P@30fps<br>720P@60fps<br><strong>Support TVI input:</strong> 8MP@15fps<br>5MP@20fps<br>4MP@30fps<br>1080P@30fps<br>720P@60fps<br><strong>Support CVI input:</strong> 8MP@15fps<br>5MP@25fps<br>4MP@30fps<br>1080P@30fps<br>720P@30fps<br><strong>Support CVBS input</strong></td>
</tr>
<tr>
<td>Audio Input</td>
<td>1-ch, RCA</td>
</tr>
<tr>
<td>Audio Compression</td>
<td>G.711U</td>
</tr>
<tr>
<td>Two-Way Audio</td>
<td>1-ch, RCA</td>
</tr>
<tr>
<td colspan="2"><strong>Network</strong></td>
</tr>
<tr>
<td>Incoming Bandwidth</td>
<td>80Mbps (Up to 112Mbps after all analog channel conve</td>
</tr>
<tr>
<td>Outgoing Bandwidth</td>
<td>160Mbps</td>
</tr>
<tr>
<td>Remote Users</td>
<td>128</td>
</tr>
<tr>
<td>Protocols</td>
<td>TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP</td>
</tr>
<tr>
<td>Browser</td>
<td>IE(IE10/11) for Windows<br>Firefox (version 52.0 and above) for Windows<br>Chrome(version 45 and above) for Windows<br>Edge(version 79 and above) for Wind</td>
</tr>
<tr>
<td colspan="2"><strong>Video/Audio Output</strong></td>
</tr>
<tr>
<td>CVBS Output</td>
<td>1-ch, BNC</td>
</tr>
<tr>
<td>VGA Output</td>
<td>1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz</td>
</tr>
<tr>
<td>HDMI Output</td>
<td>3840 x 2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz</td>
</tr>
<tr>
<td>Audio Output</td>
<td>1-ch, RCA</td>
</tr>
<tr>
<td>Synchronous Playback</td>
<td>16-ch</td>
</tr>
<tr>
<td>Live View Display</td>
<td>HDMI/VGA: 1/4/6/8/9/16/25</td>
</tr>
<tr>
<td colspan="2"><strong>Encoding</strong></td>
</tr>
<tr>
<td>Recording Resolution</td>
<td>8MP Lite/5MP Lite/4MP Lite /1080P/960P/720P/960H/D1/4CIF/CIF</td>
</tr>
<tr>
<td>Recording<br>Frame Rate</td>
<td><strong>Main stream:</strong> 8MP Lite@8fps<br>5MP Lite@12fps&nbsp;<br>4MP Lite@15fps<br>1080P@15fps<br>720P@30fps<br><strong>Sub stream:</strong> D1@ 8-12fps(Max)</td>
</tr>
<tr>
<td colspan="2"><strong>Decoding</strong></td>
</tr>
<tr>
<td>Capability</td>
<td><strong>Analog</strong>: 16 x 8MP Lite@8, 16x 5MP Lite@12, 16x 4MP Lite@15, 16 x 1080P@15, 16 x 720@30<br><strong>IP</strong>: 24 x D1@30, 16 x 720P@30, 8 x 1080P@30</td>
</tr>
<tr>
<td colspan="2"><strong>Hard Disk</strong></td>
</tr>
<tr>
<td>SATA</td>
<td>2 SATA interface</td>
</tr>
<tr>
<td>Capacity</td>
<td>Up to 8TB for each disk<br>(The maximum HDD capacity varies with environment temperature)</td>
</tr>
<tr>
<td colspan="2"><strong>General Alarm</strong></td>
</tr>
<tr>
<td>General&nbsp;Alarm </td>
<td>Motion detection</td>
</tr>
<tr>
<td>Alert Alarm</td>
<td>IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk<br>Full, Recording/Snapshot Abnormal</td>
</tr>
<tr>
<td colspan="2"><strong>External Interface</strong></td>
</tr>
<tr>
<td>Network Interface</td>
<td>1 RJ45 10M/100/1000M self-adaptive Ethernet Interface</td>
</tr>
<tr>
<td>USB Interface</td>
<td>Rear panel: 1 x USB3.0, Front panel: 1 x USB2.0</td>
</tr>
<tr>
<td>Serial Interface</td>
<td>1 x RS485</td>
</tr>
<tr>
<td>Alarm In</td>
<td>4</td>
</tr>
<tr>
<td>Alarm Out</td>
<td>1</td>
</tr>
<tr>
<td colspan="2"><strong>General</strong></td>
</tr>
<tr>
<td>Power Supply</td>
<td>12V DC<br>Power Consumption: ≤ 12 W( without HDD )</td>
</tr>
<tr>
<td>Working Environment</td>
<td>-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)</td>
</tr>
<tr>
<td>Dimensions(W×D×H)</td>
<td>380mm ×326mm× 53mm (15.0" × 12.8"×2.</td>
</tr>
<tr>
<td>Weight ( without HDD )</td>
<td>≤2.0 Kg ( 4.4lb )</td>
</tr>
</tbody>
</table>

Характеристики

Количество SATA: 2
Бренд: Uniview
Количество каналов: 16
Запись с разрешением до: 8 Мп
Максимальная емкость одного HDD: 24 ТБ
Количество IP каналов: 8
