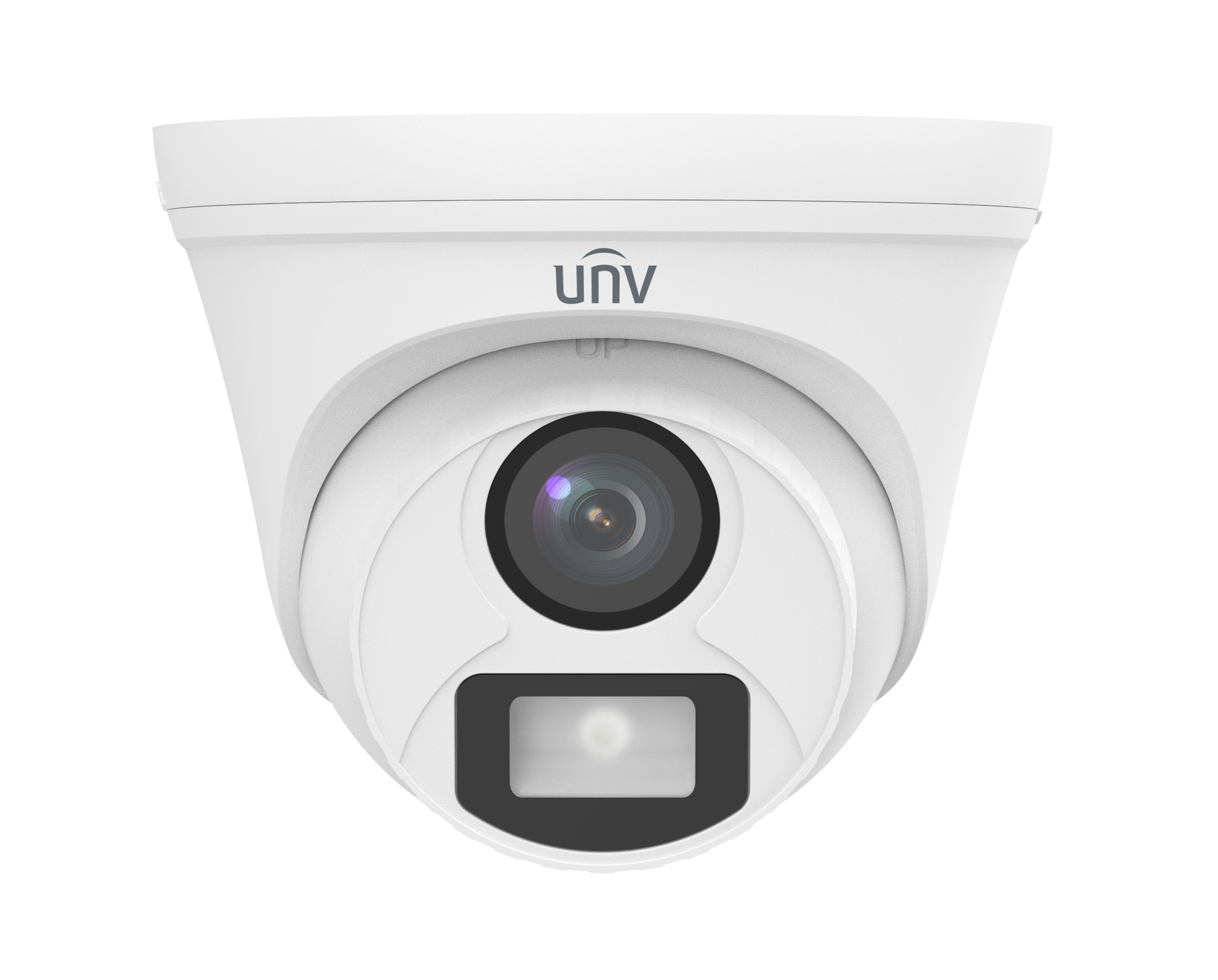

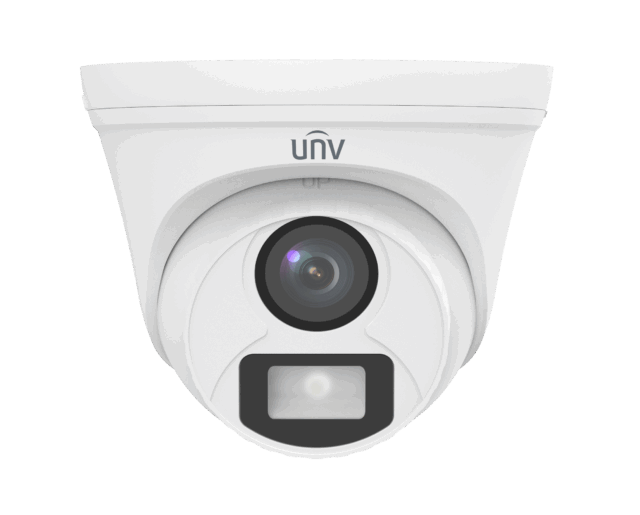

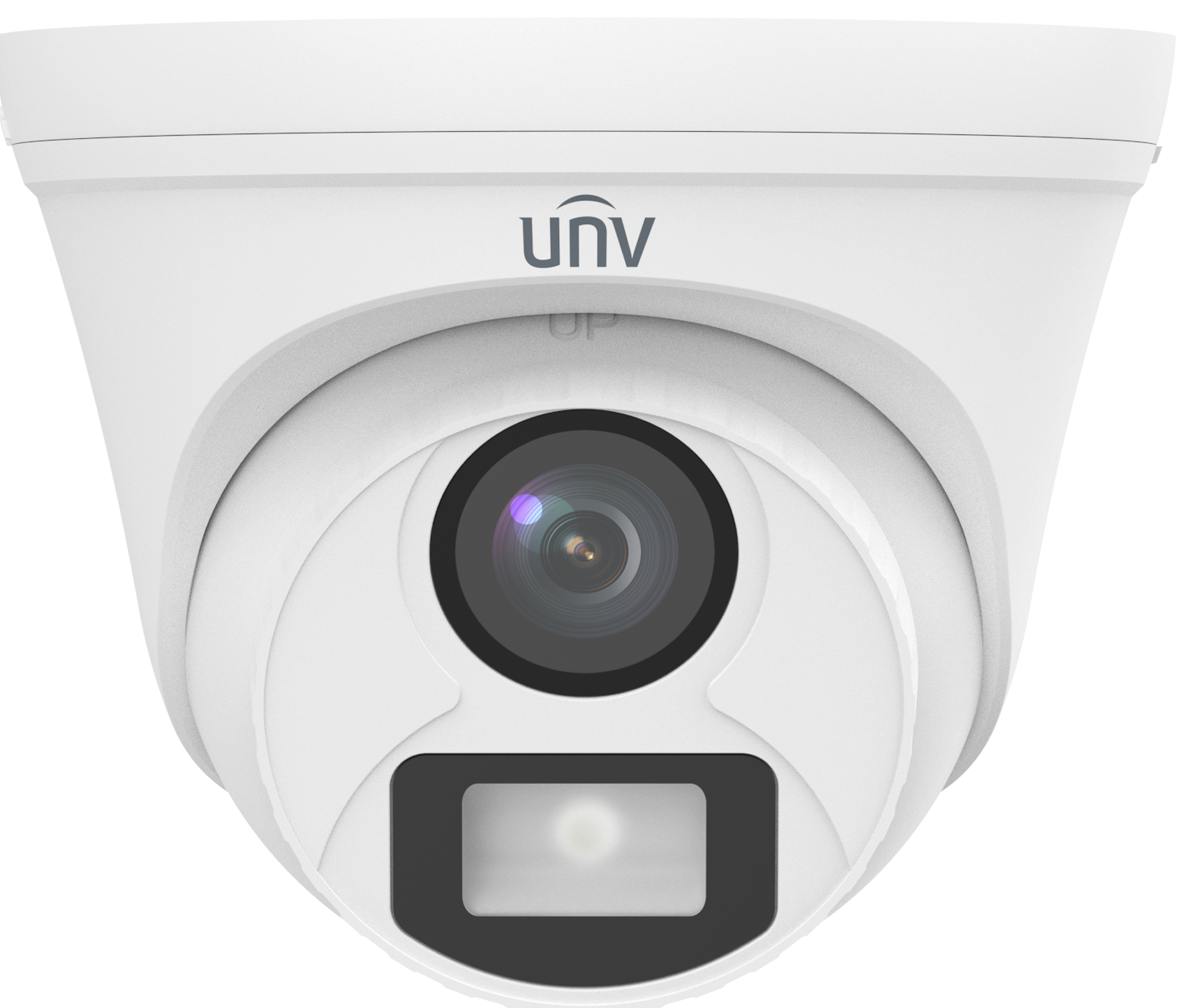

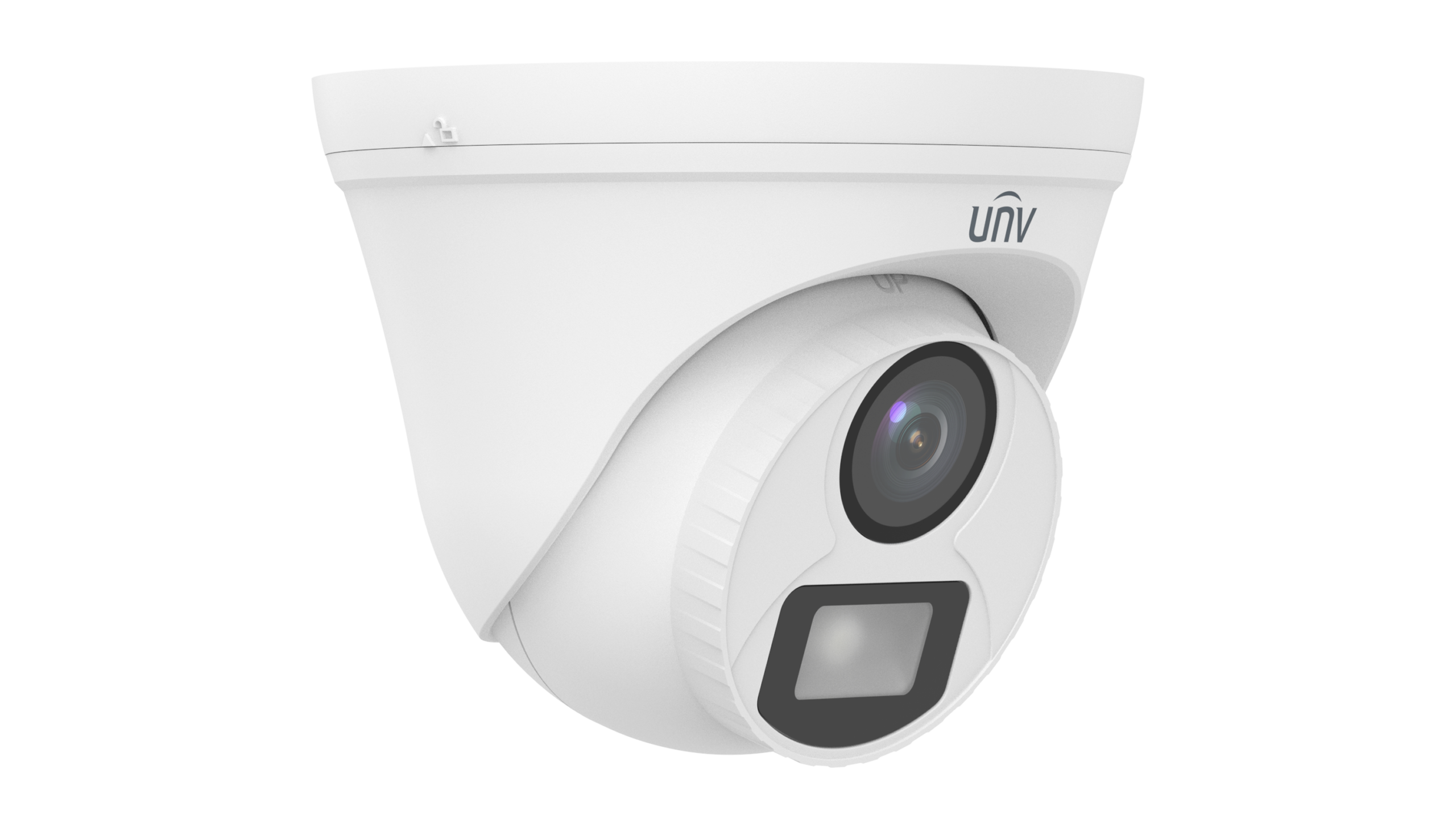

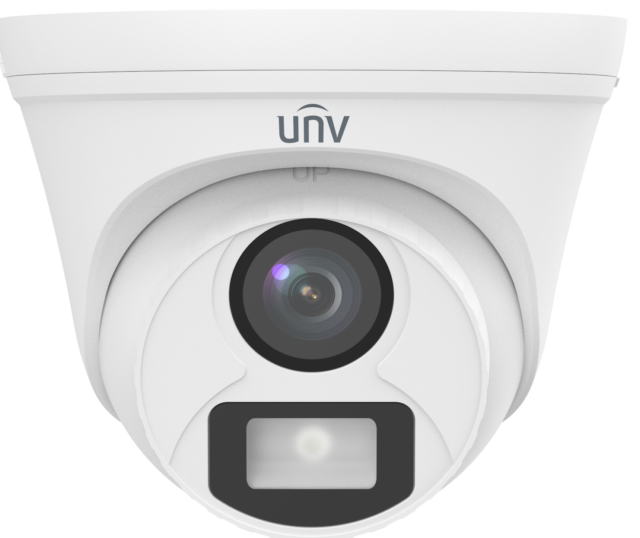

UAC-T112-F28-W аналоговая видеокамера

<table>
<tbody>
<tr>
<td>Model</td>
<td>UAC-T112-F28-W</td>
<td>UAC-T112-F40-W</td>
</tr>
<tr>
<td colspan="3">Sensor</td>
</tr>
<tr>
<td>Pixel</td>
<td colspan="2">2MP</td>
</tr>
<tr>
<td>Size</td>
<td colspan="2">1/3"</td>
</tr>
<tr>
<td>Minimum illumination</td>
<td colspan="2">0.02lux(F1.6, AGC ON)<br>0.00 lux (white light on)</td>
</tr>
<tr>
<td colspan="3">Lens</td>
</tr>
<tr>
<td>Lens</td>
<td>2.8mm</td>
<td>4.0mm</td>
</tr>
<tr>
<td>Lens mount</td>
<td colspan="2">M12</td>
</tr>
<tr>
<td>Angle of view</td>
<td>H: 100.9° V: 56.5° D: 121.8°</td>
<td>H: 82.5° V: 42.1° D: 98.6°</td>
</tr>
<tr>
<td colspan="3">Illuminator</td>
</tr>
<tr>
<td>Illuminator</td>
<td colspan="2">One white-light illuminator</td>
</tr>
<tr>
<td>Illumination distance</td>
<td colspan="2">20m</td>
</tr>
<tr>
<td>Lifetime</td>
<td colspan="2">≥60,000 hours</td>
</tr>
<tr>
<td colspan="3">Video</td>
</tr>
<tr>
<td>Resolution</td>
<td colspan="2">1080P: 1920(H)×1080(V)<br>720P: 1280(H) ×720(V)</td>
</tr>
<tr>
<td>Frame rate</td>
<td colspan="2">TVI/AHD/CVI: 1080P@30fps, 1080P@25fps; 720P@30fps, 720P@25fps<br>CVBS: PAL, NTSC</td>
</tr>
<tr>
<td>Shutter time</td>
<td colspan="2">PAL: 1/25s-1/50000s<br>NTSC: 1/30s–1/50000s</td>
</tr>
<tr>
<td colspan="3">Image</td>
</tr>
<tr>
<td>Exposure mode</td>
<td colspan="2">4 modes: Global (default), BLC, HLC, DWDR</td>
</tr>
<tr>
<td>Day/Night</td>
<td colspan="2">24/7 full-color imaging</td>
</tr>
<tr>
<td>Digital noise reduction</td>
<td colspan="2">2D/3D</td>
</tr>
<tr>
<td>White balance</td>
<td colspan="2">Two modes: Auto (default), Manual</td>
</tr>
<tr>
<td>WDR</td>
<td colspan="2">DWDR</td>
</tr>
<tr>
<td>Flip</td>
<td colspan="2">Supports 180° horizontal flip, 180° vertical flip</td>
</tr>
<tr>
<td colspan="3">Interface</td>
</tr>
<tr>
<td>Power</td>
<td colspan="2">5.5mm power interface</td>
</tr>
<tr>
<td>Video output</td>
<td colspan="2">BNC, supports TVI/AHD/CVI/CVBS</td>
</tr>
<tr>
<td colspan="3">Operating environment</td>
</tr>
<tr>
<td>Temperature</td>
<td colspan="2">-30℃ to 60℃(-22℉ to 140℉)</td>
</tr>
<tr>
<td>Humidity</td>
<td colspan="2">≤95% (RH, non-condensing)</td>
</tr>
<tr>
<td>Surge protection</td>
<td colspan="2">4KV</td>
</tr>
<tr>
<td>Ingress protection</td>
<td colspan="2">IP67</td>
</tr>
<tr>
<td colspan="3">General</td>
</tr>
<tr>
<td>Power</td>
<td colspan="2">DC 12V(±25%), with reverse polarity protection and surge protection, Max 2.4W</td>
</tr>
<tr>
<td>Mount</td>
<td colspan="2">Surface mount (default), optional backbox, wall mount bracket</td>
</tr>
<tr>
<td>Dimensions</td>
<td colspan="2">Φ118mm*96mm (diameter*height)</td>
</tr>
<tr>
<td>Material</td>
<td colspan="2">Plastic</td>
</tr>
<tr>
<td>Weight</td>
<td colspan="2">205g(0.452lb)</td>
</tr>
<tr>
<td>Certification</td>
<td colspan="2">CB, CE, FCC</td>
</tr>
</tbody>
</table>

Характеристики

Тип объектива: Фиксированный
Дальность ИК-подсветки: Нет
Объектив: 2.8 мм
Исполнение: Внутреннее
Материал корпуса: Пластик
Рабочая температура: -30°C до +60°C
Разрешение: 2 мп
Наличие MicroSD: Нет
Наличие микрофона: Нет
LED подсветка: 20 м
Бренд: Uniview
