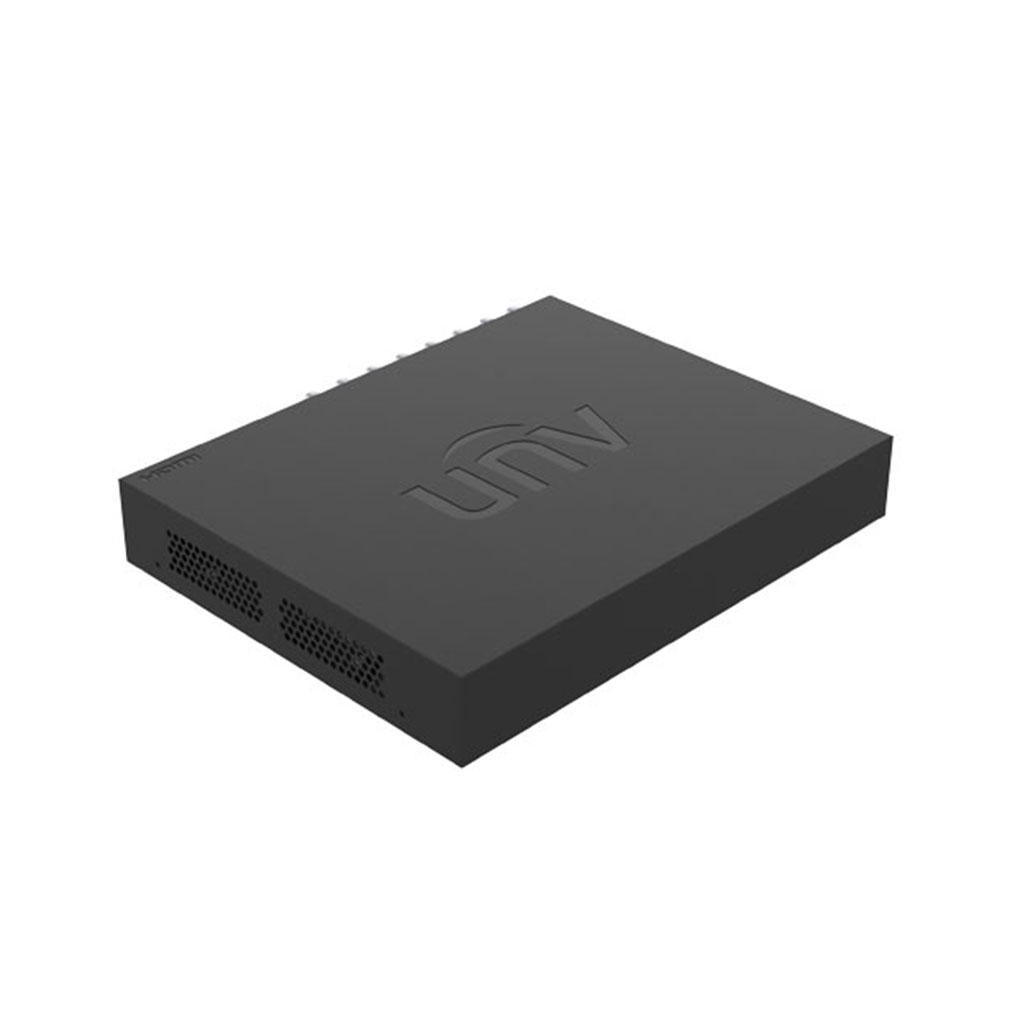

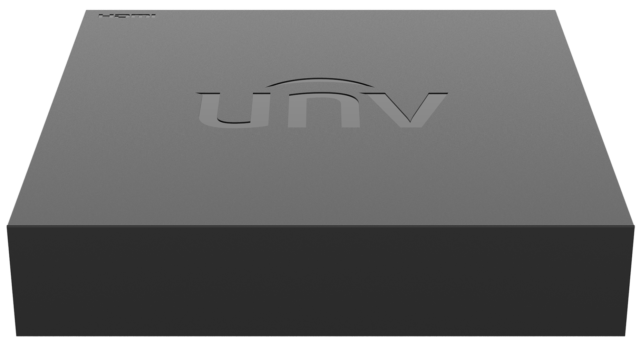

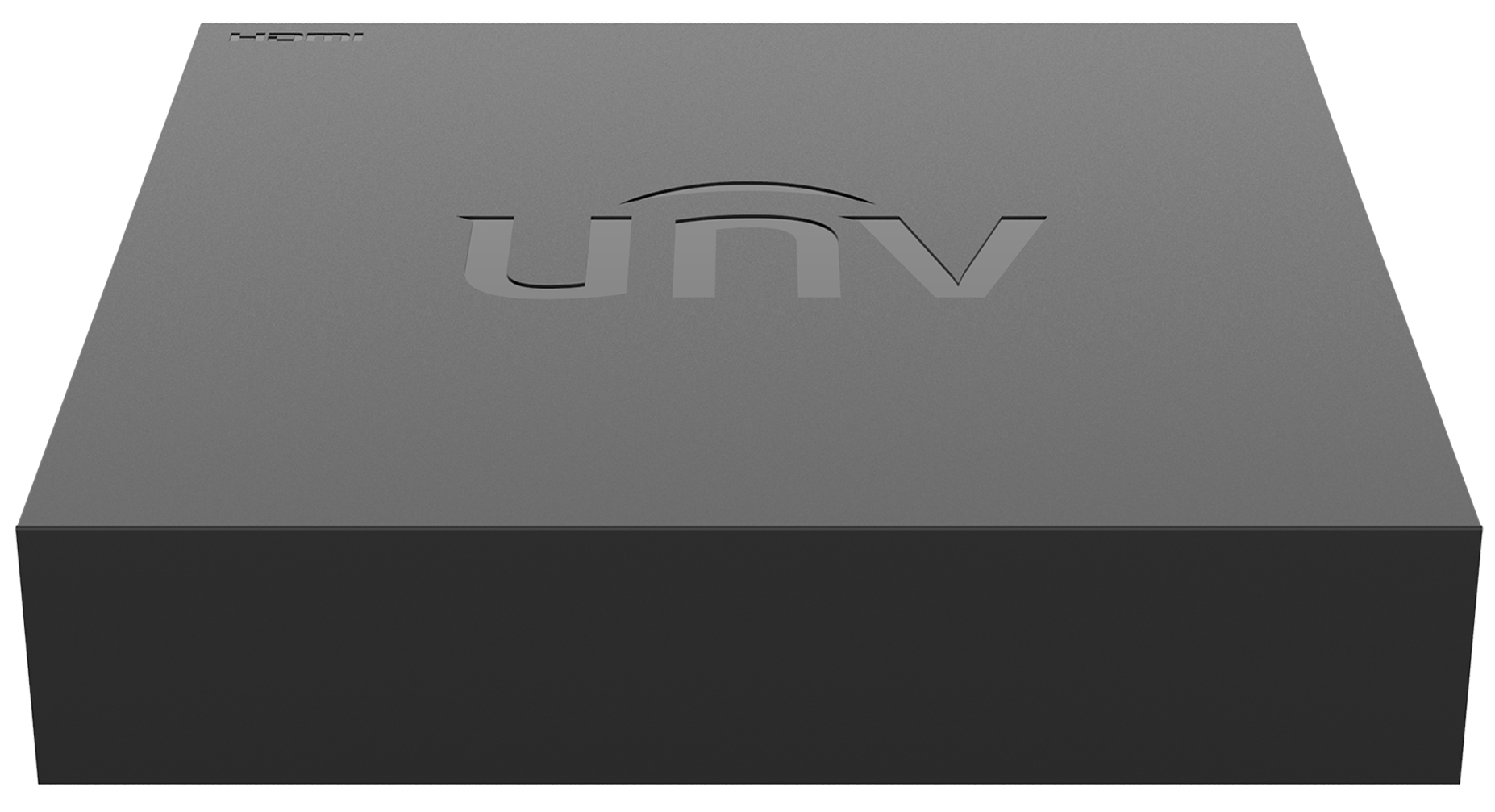

XVR301-16F 16 канальный видеорегистратор

<table width="100%">
<tbody>
<tr>
<td width="30%"><strong>Model</strong></td>
<td colspan="2" width="70%"><strong>XVR301-16F</strong></td>
</tr>
<tr>
<td colspan="3">Video/Audio Input</td>
</tr>
<tr>
<td>Analog Video Input</td>
<td colspan="2">16-ch, BNC</td>
</tr>
<tr>
<td>IP Video Input</td>
<td colspan="2">2-ch(only IP up to 18ch), each channel up to 8MP</td>
</tr>
<tr>
<td>Supported Analog Camera Types</td>
<td colspan="2"><strong>Support AHD input: </strong>1080P@30fps<br>720P@30fps<br><strong>Support TVI input:</strong> 1080P@30fps<br>720P@30fps<br><strong>Support CVI input:</strong> 1080P@30fps<br>720P@30fps<br><strong>Support CVBS input</strong></td>
</tr>
<tr>
<td>Audio Compression</td>
<td colspan="2">G.711U</td>
</tr>
<tr>
<td colspan="3">Video/Audio Output</td>
</tr>
<tr>
<td>VGA Output</td>
<td colspan="2">1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz</td>
</tr>
<tr>
<td>HDMI Output</td>
<td colspan="2">1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz</td>
</tr>
<tr>
<td>Synchronous Playback</td>
<td colspan="2">HD:16-ch<br>SD:16-ch</td>
</tr>
<tr>
<td>Live view display</td>
<td colspan="2">HDMI/VGA: 1/4/6/8/9/16/25</td>
</tr>
<tr>
<td colspan="3">Snapshot</td>
</tr>
<tr>
<td>FTP/Schedule/Event Snapshot</td>
<td colspan="2">Schedule snapshot is not supported<br>16-ch snapshot, up to 704*576 resolution</td>
</tr>
<tr>
<td colspan="3">Network</td>
</tr>
<tr>
<td>Incoming Bandwidth</td>
<td colspan="2">24Mbps (Up to 56Mbps after all analog channel conversion)</td>
</tr>
<tr>
<td>Outgoing Bandwidth</td>
<td colspan="2">64Mbps</td>
</tr>
<tr>
<td>Remote Users</td>
<td colspan="2">128</td>
</tr>
<tr>
<td>Protocols</td>
<td colspan="2">TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP</td>
</tr>
<tr>
<td>Browser</td>
<td colspan="2">IE(IE10/11) for Windows<br>Firefox (version 52.0 and above) for Windows<br>Chrome(version 45 and above) for Windows<br>Edge(version 79 and above) for Windows</td>
</tr>
<tr>
<td colspan="3">Encoding</td>
</tr>
<tr>
<td>Recording Resolution</td>
<td colspan="2">1080P Lite/720P/D1</td>
</tr>
<tr>
<td rowspan="3">Recording<br>Frame Rate</td>
<td><strong>Main stream</strong></td>
<td><strong>Sub stream</strong></td>
</tr>
<tr>
<td>1080P Lite@12fps</td>
<td>D1@12fps</td>
</tr>
<tr>
<td>720P@15fps</td>
<td>D1@15fps</td>
</tr>
<tr>
<td>Audio Sample Rate</td>
<td colspan="2">8KHz,16 bit per channel</td>
</tr>
<tr>
<td>Audio Bit Rate</td>
<td colspan="2">64Kbps per channel</td>
</tr>
<tr>
<td colspan="3">Decoding</td>
</tr>
<tr>
<td>Capability</td>
<td colspan="2">Analog:16x 1080P Lite@12, 16x 720P@15<br>IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30, 8 x 720P@30,16 x D1@30</td>
</tr>
<tr>
<td colspan="3">Hard Disk</td>
</tr>
<tr>
<td>SATA</td>
<td colspan="2">1 SATA interface</td>
</tr>
<tr>
<td>Capacity</td>
<td colspan="2">Up to 6TB for each HDD</td>
</tr>
<tr>
<td colspan="3">Smart Alarm</td>
</tr>
<tr>
<td>VCA Detection</td>
<td colspan="2">Ultra Motion Detection(UMD) for analog:8-ch</td>
</tr>
<tr>
<td>VCA Search</td>
<td colspan="2">Behavior Search</td>
</tr>
<tr>
<td colspan="3">General Alarm</td>
</tr>
<tr>
<td>General Alarm</td>
<td colspan="2">Motion detection</td>
</tr>
<tr>
<td>Alert Alarm</td>
<td colspan="2">IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal</td>
</tr>
<tr>
<td colspan="3">External Interface</td>
</tr>
<tr>
<td>Network Interface</td>
<td colspan="2">1 RJ45 10M/100M self-adaptive Ethernet Interface</td>
</tr>
<tr>
<td>USB Interface</td>
<td colspan="2">Rear panel: 2 x USB2.0</td>
</tr>
<tr>
<td colspan="3">General</td>
</tr>
<tr>
<td>Power Supply</td>
<td colspan="2">12V DC<br>Power Consumption: ≤ 10 W( without HDD )</td>
</tr>
<tr>
<td>Working Environment</td>
<td colspan="2">-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)</td>
</tr>
<tr>
<td>Dimensions(W×D×H)</td>
<td colspan="2">253mm × 212mm × 42mm (10.0" × 8.4" × 1.7")</td>
</tr>
<tr>
<td>Weight ( without HDD )</td>
<td colspan="2">≤0.85 Kg ( 1.87lb )</td>
</tr>
<tr>
<td colspan="3">Certification</td>
</tr>
<tr>
<td>Certification</td>
<td colspan="2">UL/CE/FCC /RoHS /WEEE</td>
</tr>
</tbody>
</table>

Характеристики

Количество IP каналов: 2
Максимальная емкость одного HDD: 6 ТБ
Запись с разрешением до: 2 Мп
Бренд: Uniview
Количество SATA: 1
Количество каналов: 16
