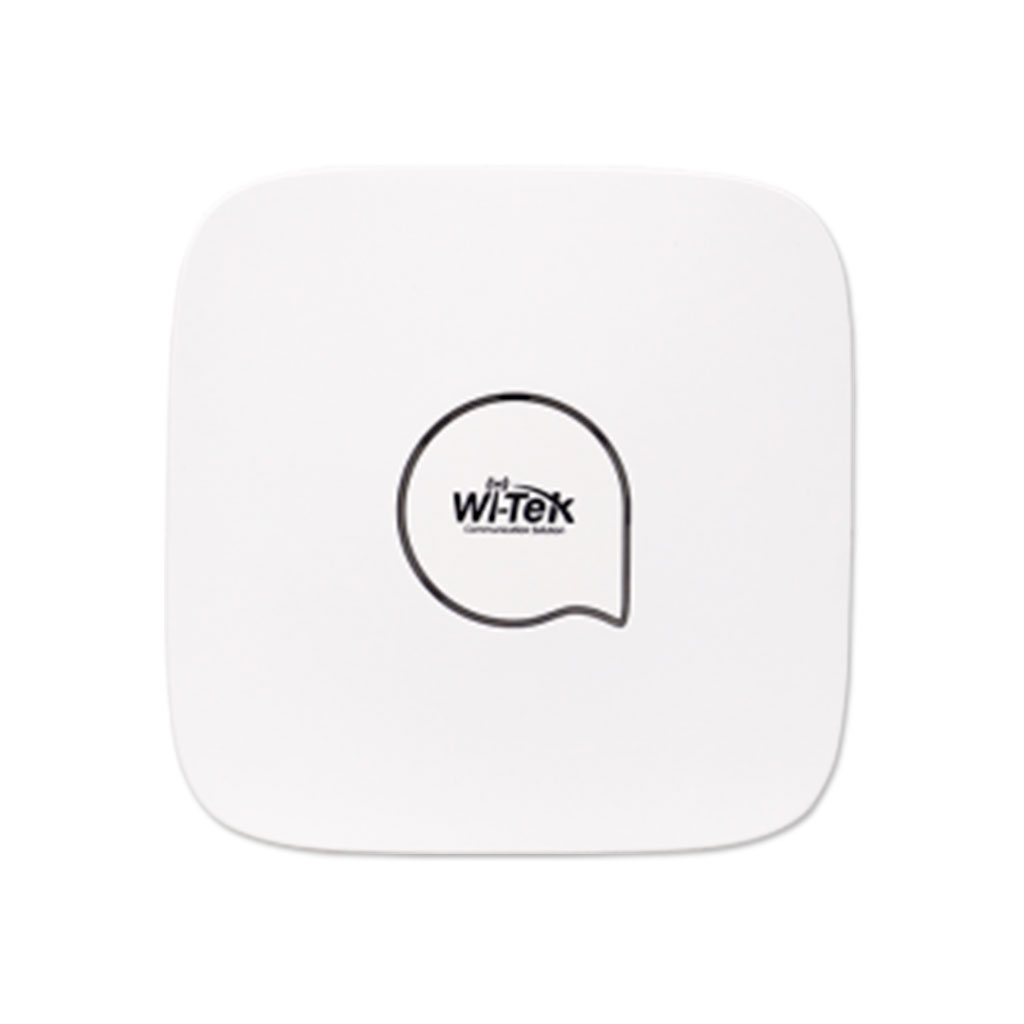

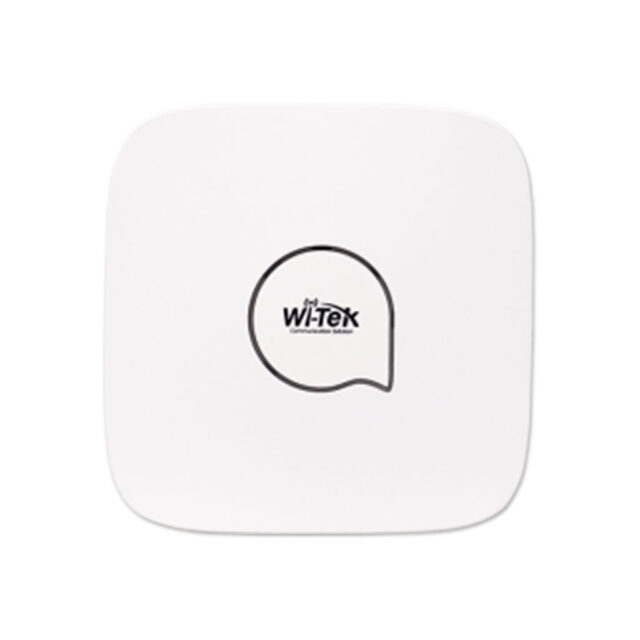

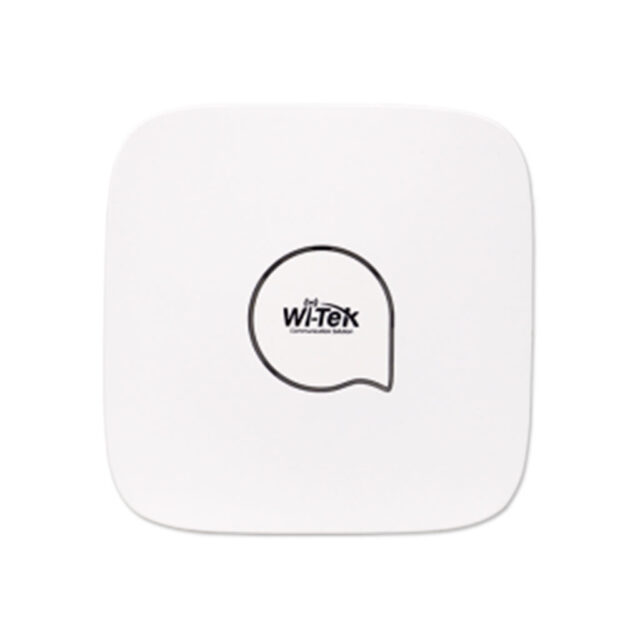

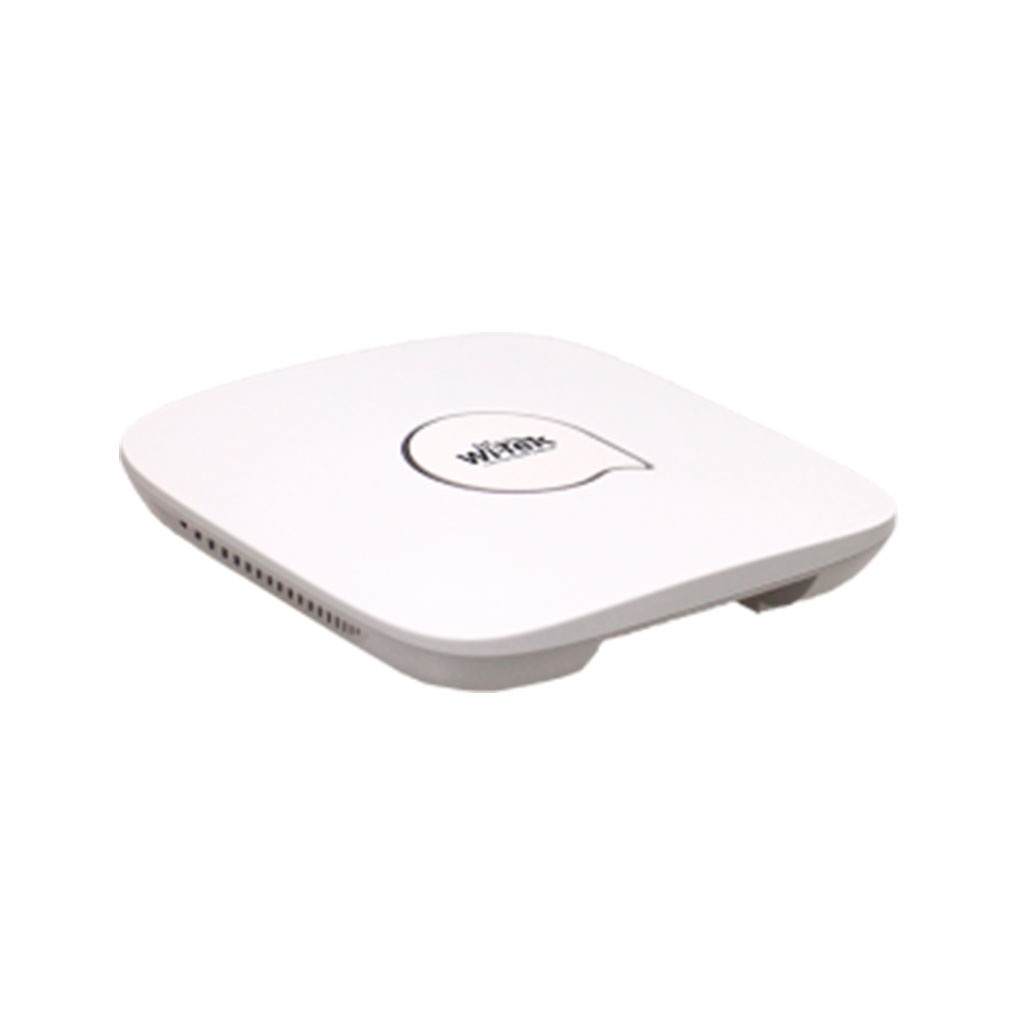

Wi-Tek WI-AP217 Точка доступа

<table>
<tbody>
<tr>
<td>
<p>Model</p>
</td>
<td>
<p>WI-AP217</p>
</td>
</tr>
<tr>
<td colspan="2">
<p>Hardware Specifications</p>
</td>
</tr>
<tr>
<td>
<p>Wireless Standards</p>
</td>
<td>
<p>802.11ac Wave2<br>802.11n/b/g/a</p>
</td>
</tr>
<tr>
<td>
<p>Operating Bands</p>
</td>
<td>
<p>2.4GHz &amp; 5GHz</p>
</td>
</tr>
<tr>
<td>
<p>Antenna</p>
</td>
<td>
<p>2.4Ghz:5dBi, 5GHz: 5dBi</p>
</td>
</tr>
<tr>
<td>
<p>Spatial Steams</p>
</td>
<td>
<p>2.4GHz: 2×2 MIMO 5GHz: 2×2 MIMO</p>
</td>
</tr>
<tr>
<td>
<p>Signal Rate</p>
</td>
<td>
<p>Up to 300Mbps at 2.4G<br>Up to 867Mbps at 5G</p>
</td>
</tr>
<tr>
<td>
<p>Receiver Sensitivity</p>
</td>
<td>
<p>2.4GHz<br>802. 11b: -85dBm@11Mbps -94dBm@1Mbps <br>802. 11g: -72dBm@54Mbps -90dBm@6Mbps <br>802.11n HT20: -70dBm@MCS7 -88dBm@MCS0<br>802.11n HT40: -68dBm@MCS7 -86dBm@MCS0<br>5GHz<br>802. 11a: -72dBm@54Mbps -90dBm@6Mbps<br>802.11n HT20: -70dBm@MCS7 -88dBm@MCS0<br>802.11n HT40: -68dBm@MCS7 -86dBm@MCS0<br>802.11ac HT80: -58dBm@MCS9 -80dBm@MCS0</p>
</td>
</tr>
<tr>
<td>
<p>Maximum Transmit Power</p>
</td>
<td>
<p>&lt;27dbm</p>
</td>
</tr>
<tr>
<td>
<p>Interface</p>
</td>
<td>

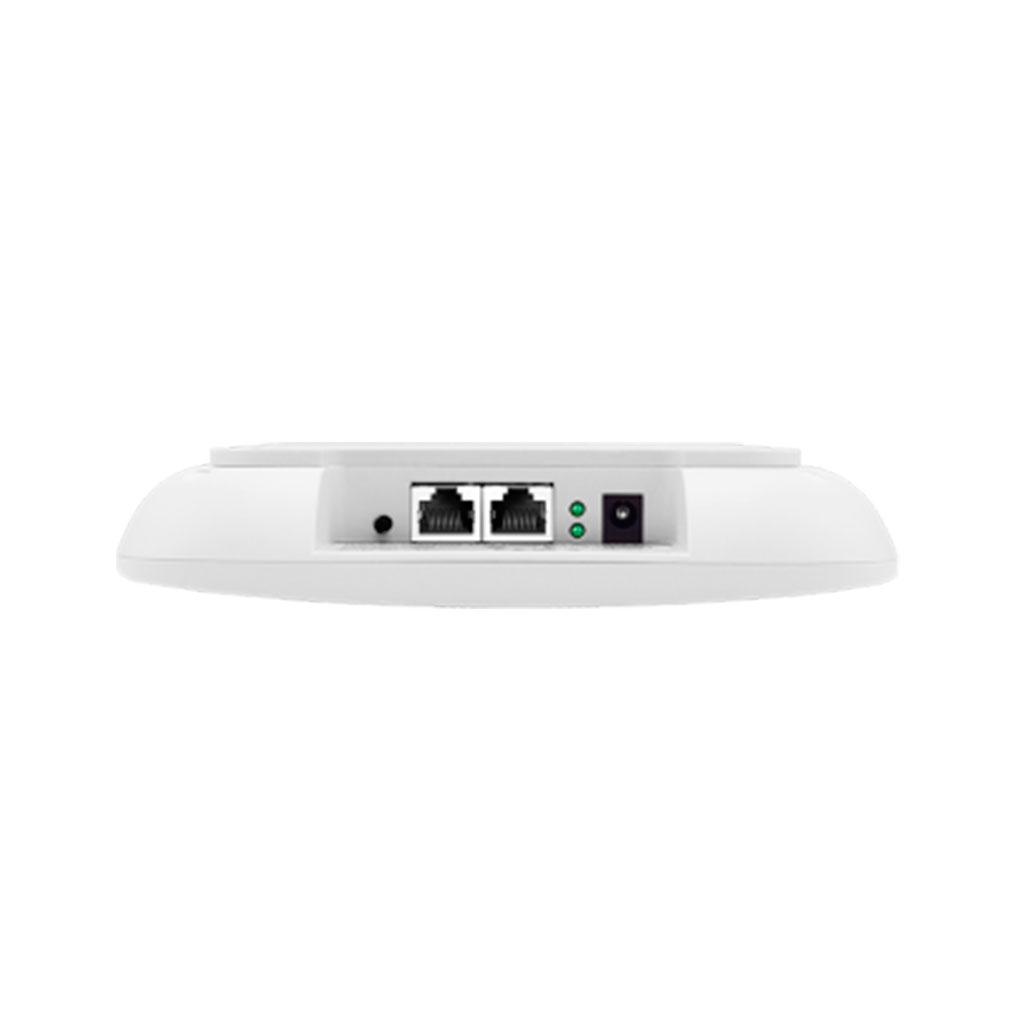

<p>(2)10/100/1000M Base-T Ethernet ports</p>
</td>
</tr>
<tr>
<td>
<p>Power Supply</p>
</td>
<td>
<p>DC 12V/1A (Not Included)<br>802.3af PoE Supported</p>
</td>
</tr>
<tr>
<td>
<p>Power Consumption</p>
</td>
<td>
<p>&lt; 12W</p>
</td>
</tr>
<tr>
<td>
<p>Installation</p>
</td>
<td>
<p>Wall/Ceiling Mounting</p>
</td>
</tr>
<tr>
<td>
<p>External buttons</p>
</td>
<td>
<p>reset button (long press for 8 seconds to restore the factory default configuration)</p>
</td>
</tr>
<tr>
<td>
<p>Dimensions</p>
</td>
<td>
<p>188mm * 188mm * 35mm</p>
</td>
</tr>
<tr>
<td>
<p>Environment</p>
</td>
<td>
<p>Operating Temperature:-30°C ～ 55°C<br>Storage Temperature:-40°C ～ 70°C;<br>Operating Humidity: 5% ～ 95% (non-condensing)<br>Storage Humidity: 5% ～ 95% (non-condensing)</p>
</td>
</tr>
<tr>
<td colspan="2">
<p>Software Features</p>
</td>
</tr>
<tr>
<td>
<p>Operating Mode</p>
</td>
<td>
<p>Fit AP, Fat AP, Repeater, WISP mode</p>
</td>
</tr>
<tr>
<td rowspan="3">
<p>Wireless Function</p>
</td>
<td>
<p>Up to 16 SSIDs</p>
</td>
</tr>
<tr>
<td>
<p>Support SSID hiding, Enable/Disable Wireless Radio</p>
</td>
</tr>
<tr>
<td>
<p>RF Parameter setting</p>
</td>
</tr>
<tr>
<td>
<p>Roaming</p>
</td>
<td>
<p>Support Layer 2 roaming&nbsp;</p>
</td>
</tr>
<tr>
<td>
<p>Wireless Security</p>
</td>
<td>
<p>Captive Portal Authentication<br>Static blacklist and whitelist<br>Wireless Isolation Between Clients<br>SSID to VLAN Mapping<br>Support 802.1X<br>WPA/WPA2/PSK/WPA/WPA2-Enterprise</p>
</td>
</tr>
<tr>
<td>
<p>Routing</p>
</td>
<td>
<p>Support static IP, DHCP, PPPoE Dial Up</p>
</td>
</tr>
<tr>
<td>
<p>Management</p>
</td>
<td>
<p>Support local management with web Support remote management with Wi-Tek Cloud platform</p>
</td>
</tr>
<tr>
<td>
<p>Platform management features</p>
</td>
<td>
<div>Automatic RF adjustment via the platform Unified configuration via the platform Unified monitoring via the platform</div>
</td>
</tr>
</tbody>
</table>

Характеристики

Бренд: Wi-Tek
Рабочая частота: 2,44 ГГц и 5 ГГц
Рабочая среда: Помещение
