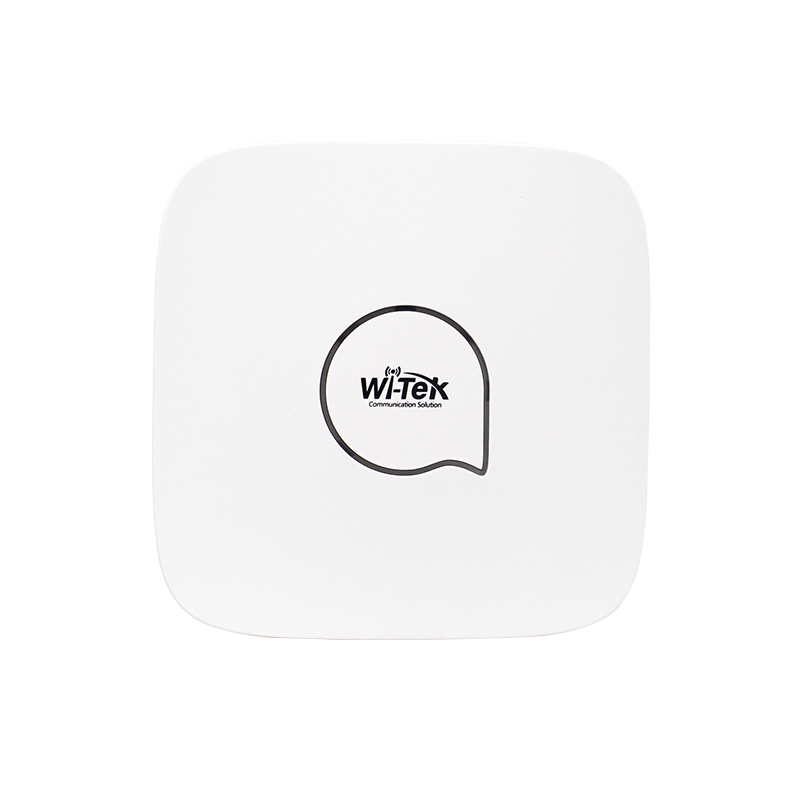

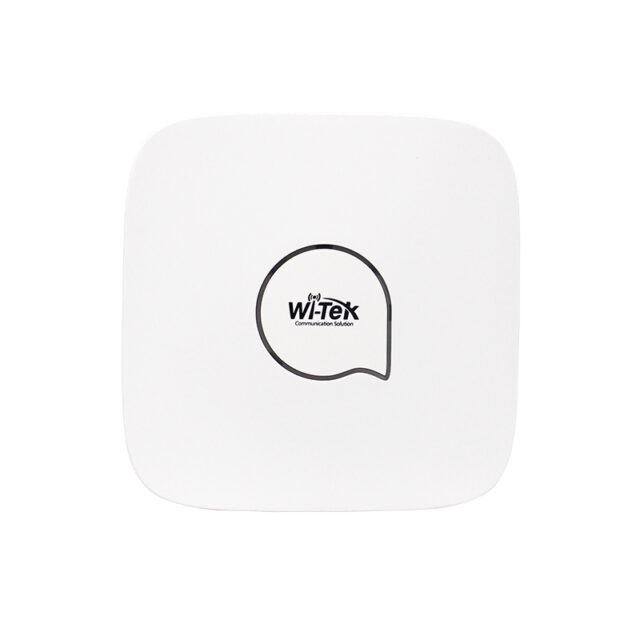

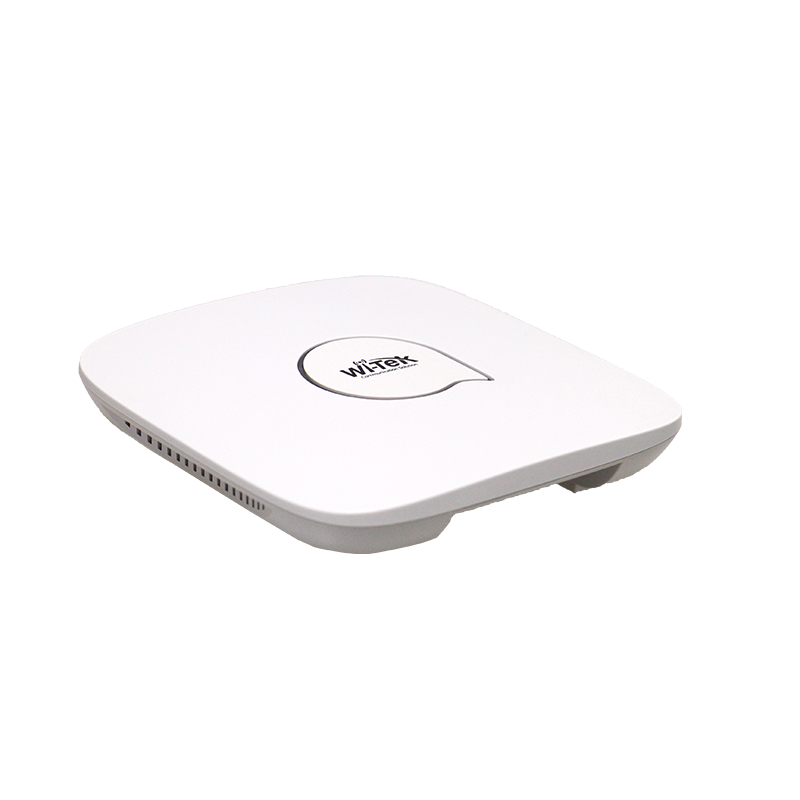

WI-AP217-LITE Точка доступа

<table>
<tbody>
<tr>
<td>
<p>Model</p>
</td>
<td>
<p>WI-AP217-Lite</p>
</td>
</tr>
<tr>
<td colspan="2">
<p>Hardware Specifications</p>
</td>
</tr>
<tr>
<td>
<p>Wireless Standards</p>
</td>
<td>
<p>802.11ac Wave2</p>
<p>802.11n/b/g/a</p>
</td>
</tr>
<tr>
<td>
<p>Operating Bands</p>
</td>
<td>
<p>2.4GHz &amp; 5GHz</p>
</td>
</tr>
<tr>
<td>
<p>Antenna</p>
</td>
<td>
<p>2.4Ghz:4.6dBi, 5GHz: 4dBi</p>
</td>
</tr>
<tr>
<td>
<p>Spatial Steams</p>
</td>
<td>
<p>2.4GHz：2×2 MIMO&nbsp;5GHz：2×2 MIMO</p>
</td>
</tr>
<tr>
<td>
<p>Signal Rate</p>
</td>
<td>
<p>Up to 300Mbps at 2.4G</p>
<p>Up to 867Mbps at 5G</p>
</td>
</tr>
<tr>
<td>
<p>Receiver Sensitivity</p>
</td>
<td>
<p>2.4GHz</p>
<p>802.11b: -85dBm@11Mbps -94dBm@1Mbps</p>
<p>802.11g: -72dBm@54Mbps -90dBm@6Mbps</p>
<p>802.11n HT20:&nbsp;-70dBm@MCS7 -88dBm@MCS0</p>
<p>802.11n HT40:&nbsp;-68dBmMCS7 -86dBm@MCS0</p>
<p>5GHz</p>
<p>802.11a: -72dBm@54Mbps -90dBm@6Mbps</p>
<p>802.11n&nbsp;HT20: -70dBm@MCS7 -88dBm@MCS0&nbsp;</p>
<p>802.11n&nbsp;HT40: -68dBm@MCS7 -86dBm@MCS0&nbsp;</p>
<p>802.11ac HT80: -58dBm@MCS9 -85dBm@MCS0</p>
</td>
</tr>
<tr>
<td>
<p>Maximum Transmit Power</p>
</td>
<td>
<p>&lt;24dbm</p>
</td>
</tr>
<tr>
<td>
<p>Interface</p>
</td>
<td>

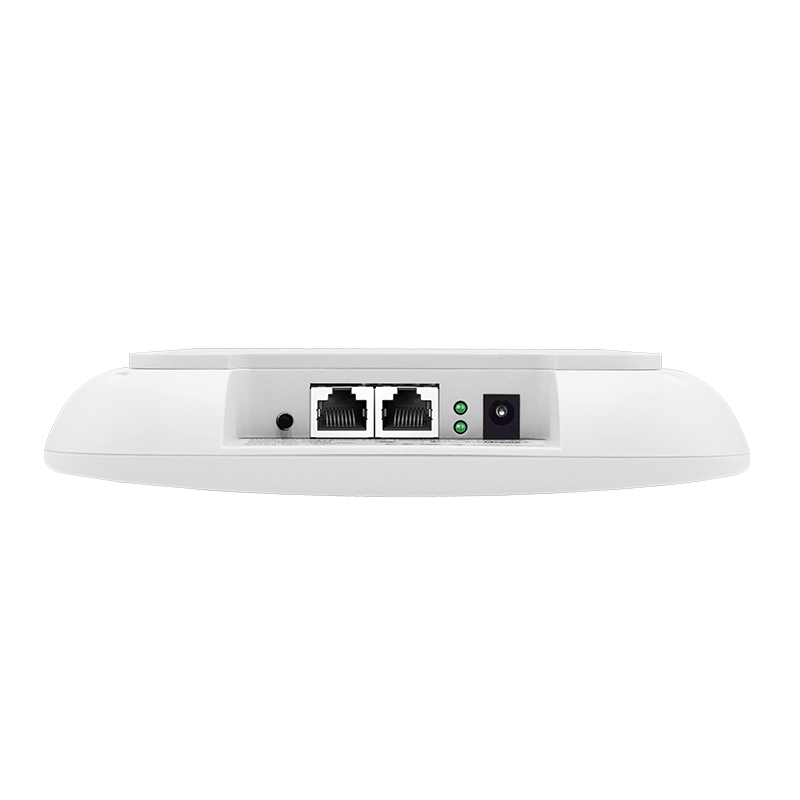

<p>(2)10/100/1000M Base-T Ethernet ports</p>
</td>
</tr>
<tr>
<td>
<p>Power Supply</p>
</td>
<td>
<p>DC 12V/1A (Not Included)</p>
<p>802.3af PoE Supported</p>
</td>
</tr>
<tr>
<td>
<p>Power Consumption</p>
</td>
<td>
<p>&lt; 10W</p>
</td>
</tr>
<tr>
<td>
<p>Installation</p>
</td>
<td>
<p>Wall/Ceiling Mounting</p>
</td>
</tr>
<tr>
<td>
<p>External buttons</p>
</td>
<td>
<p>reset button (long press for 8 seconds to</p>
<p>restore the factory default configuration)</p>
</td>
</tr>
<tr>
<td>
<p>Dimensions</p>
</td>
<td>
<p>188mm * 188mm * 50mm</p>
</td>
</tr>
<tr>
<td>
<p>Environment</p>
</td>
<td>
<p>Operating Temperature:-20°C ～ 45°C</p>
<p>Storage Temperature:-40°C ～ 70°C;</p>
<p>Operating Humidity: 5% ～ 95% (non-condensing)</p>
<p>Storage Humidity: 5% ～ 95% (non-condensing)</p>
</td>
</tr>
<tr>
<td colspan="2">
<p>Software Features</p>
</td>
</tr>
<tr>
<td>
<p>Operating Mode</p>
</td>
<td>
<p>Fit AP, Fat AP</p>
</td>
</tr>
<tr>
<td rowspan="3">
<p>Wireless Function</p>
</td>
<td>
<p>Up to 16 SSIDs</p>
</td>
</tr>
<tr>
<td>
<p>Support SSID hiding, Enable/Disable Wireless Radio</p>
</td>
</tr>
<tr>
<td>
<p>RF Parameter setting</p>
</td>
</tr>
<tr>
<td>
<p>Roaming</p>
</td>
<td>
<p>Support Layer 2 roaming&nbsp;</p>
</td>
</tr>
<tr>
<td>
<p>Wireless Security</p>
</td>
<td>
<p>Captive Portal Authentication</p>
<p>Static blacklist and whitelist</p>
<p>Wireless Isolation Between Clients</p>
<p>SSID to VLAN Mapping</p>
<p>Support 802.1X</p>
<p>WPA/WPA2/PSK/WPA/WPA2-Enterprise</p>
</td>
</tr>
<tr>
<td>
<p>Routing</p>
</td>
<td>
<p>Support static IP, DHCP, PPPoE Dial Up</p>
</td>
</tr>
</tbody>
</table>

Характеристики

Бренд: Wi-Tek
Рабочая среда: Помещение
Рабочая частота: 2,44 ГГц и 5 ГГц
