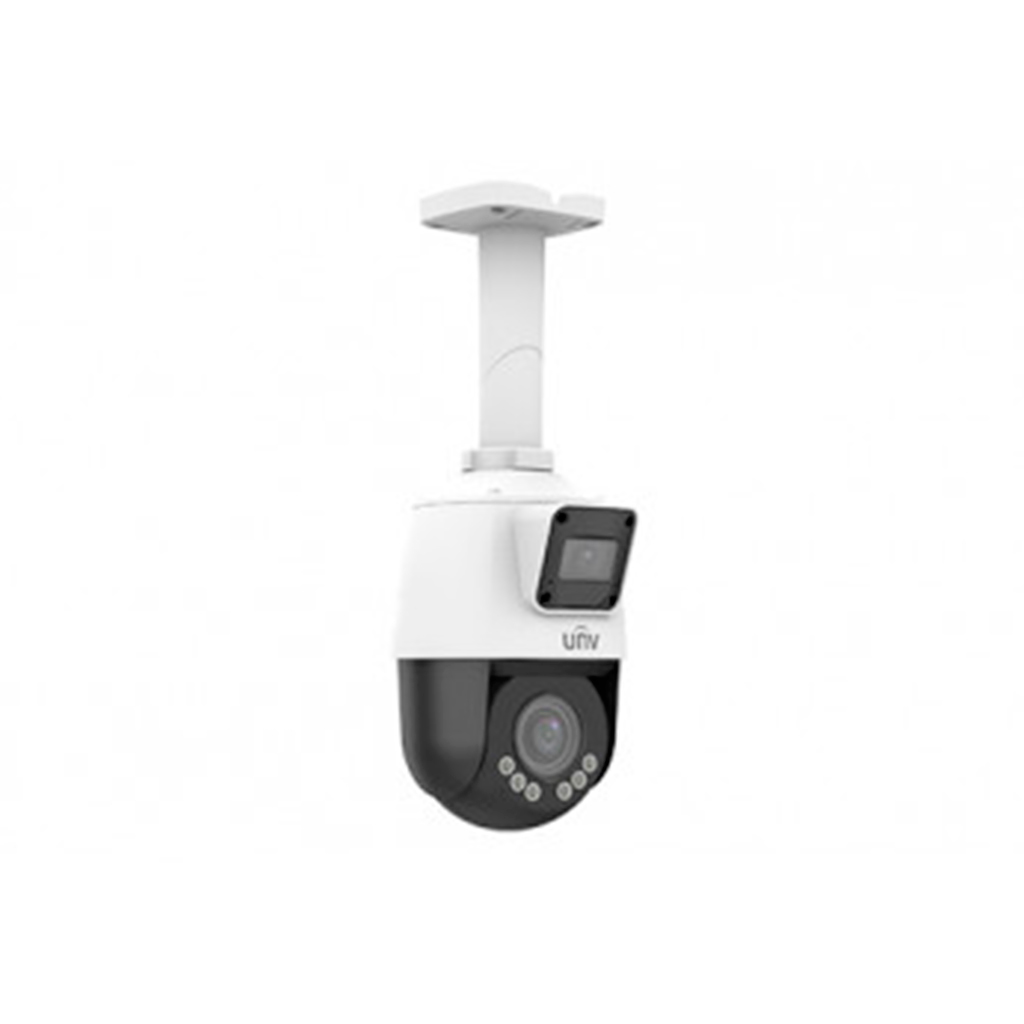

IPC9312LFW-AF28-2X4 Сетевая двухматричная 2 Мп поворотная видеокамера

<table width="100%">
<tbody>
<tr>
<td>
</td><td colspan="6" width="70%">IPC9312LFW-AF28-2X4</td>
</tr>
<tr>
<td>Camera</td>
<td colspan="3">Panorama</td>
<td colspan="3">Detail</td>
</tr>
<tr>
<td>Sensor</td>
<td colspan="6">1/2.8", 2MP, CMOS</td>
</tr>
<tr>
<td>Min. Illumination</td>
<td colspan="3">Color:0.002 lux (F1.6, AGC ON)<br>0 lux with IR</td>
<td colspan="3">Color:0.002 lux (F1.6, AGC ON)<br>0 lux with IR/Warm light</td>
</tr>
<tr>
<td>Day/Night</td>
<td colspan="6">IR-cut filter with auto switch (ICR)</td>
</tr>
<tr>
<td>Shutter</td>
<td colspan="6">Auto/Manual, 1 ~ 1/100000s</td>
</tr>
<tr>
<td>WDR</td>
<td colspan="3">120dB</td>
<td colspan="3">DWDR</td>
</tr>
<tr>
<td>S/N</td>
<td colspan="6">＞52dB</td>
</tr>
<tr>
<td colspan="7">Lens</td>
</tr>
<tr>
<td>Lens type</td>
<td colspan="3">2.8mm@F1.6</td>
<td colspan="3">2.8~12mm@F1.6,<br>AF automatic focusing and motorized zoom lens</td>
</tr>
<tr>
<td>Optical Zoom</td>
<td colspan="3">N/A</td>
<td colspan="3">4X</td>
</tr>
<tr>
<td>Iris</td>
<td colspan="6">Fixed aperture</td>
</tr>
<tr>
<td>Angle of View (H)</td>
<td colspan="3">102.4°</td>
<td colspan="3">106.6° ~ 30.6°</td>
</tr>
<tr>
<td>Angle of View (V)</td>
<td colspan="3">54.9°</td>
<td colspan="3">56.5° ~ 17.4°</td>
</tr>
<tr>
<td>Angle of View (O)</td>
<td colspan="3">133.1°</td>
<td colspan="3">138.6° ~ 37.6°</td>
</tr>
<tr>
<td colspan="7">DORI</td>
</tr>
<tr>
<td rowspan="4">DORI Distance</td>
<td>Lens (mm)</td>
<td>Detect (m)</td>
<td colspan="2">Observe (m)</td>
<td>Recognize (m)</td>
<td>Identify (m)</td>
</tr>
<tr>
<td>2.8(Panorama)</td>
<td>43.4(142.5ft)</td>
<td colspan="2">17.4(57.0ft)</td>
<td>8.7(28.5ft)</td>
<td>4.3(14.3ft)</td>
</tr>
<tr>
<td>2.8(Detail)</td>
<td>43.4(142.5ft)</td>
<td colspan="2">17.4(57.0ft)</td>
<td>8.7(28.5ft)</td>
<td>4.3(14.3ft)</td>
</tr>
<tr>
<td>12(Detail)</td>
<td>162.9(534.6ft)</td>
<td colspan="2">65.2(213.8ft)</td>
<td>32.6(106.9ft)</td>
<td>16.3(53.5ft)</td>
</tr>
<tr>
<td colspan="7">Illuminator</td>
</tr>
<tr>
<td>IR Range</td>
<td colspan="3">Up to 10m (32.8 ft)</td>
<td colspan="3">Up to 50m (164.0 ft)</td>
</tr>
<tr>
<td>Warm Light Range</td>
<td colspan="3">N/A</td>
<td colspan="3">Up to 10m (32.8 ft)</td>
</tr>
<tr>
<td>Wavelength</td>
<td colspan="6">850nm (IR)</td>
</tr>
<tr>
<td>Light On/Off Control</td>
<td colspan="6">Auto/Manual</td>
</tr>
<tr>
<td colspan="7">Video</td>
</tr>
<tr>
<td>Video Compression</td>
<td colspan="6">Ultra 265, H.265, H.264, MJPEG</td>
</tr>
<tr>
<td>Frame Rate</td>
<td colspan="6">Main Stream: 1080P (1920*1080),Max 25fps<br>Sub Stream: 720P (1280*720), Max 25fps</td>
</tr>
<tr>
<td>Video Bit Rate</td>
<td colspan="6">128 Kbps~16 Mbps</td>
</tr>
<tr>
<td>U-code</td>
<td colspan="6">Support (Main stream)</td>
</tr>
<tr>
<td>ROI</td>
<td colspan="6">Up to 8 areas</td>
</tr>
<tr>
<td>Video stream</td>
<td colspan="6">Dual streams</td>
</tr>
<tr>
<td>OSD</td>
<td colspan="6">Up to 4 OSDs</td>
</tr>
<tr>
<td>Privacy Mask</td>
<td colspan="6">24 areas, up to 4 areas per scene</td>
</tr>
<tr>
<td colspan="7">Image</td>
</tr>
<tr>
<td>White Balance</td>
<td colspan="6">Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2</td>
</tr>
<tr>
<td>Digital noise reduction</td>
<td colspan="6">2D/3D DNR</td>
</tr>
<tr>
<td>Smart IR</td>
<td colspan="6">Support</td>
</tr>
<tr>
<td>Flip</td>
<td colspan="6">Normal/Flip Vertical/Flip Horizontal/180°</td>
</tr>
<tr>
<td>HLC</td>
<td colspan="6">Support</td>
</tr>
<tr>
<td>BLC</td>
<td colspan="6">Support</td>
</tr>
<tr>
<td>Defog</td>
<td colspan="6">Digital defog</td>
</tr>
<tr>
<td colspan="7">Events</td>
</tr>
<tr>
<td>Basic Detection</td>
<td colspan="6">Audio detection</td>
</tr>
<tr>
<td>General Function</td>
<td colspan="6">Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication</td>
</tr>
<tr>
<td colspan="7">Audio</td>
</tr>
<tr>
<td>Audio Compression</td>
<td colspan="6">G.711U, G.711A</td>
</tr>
<tr>
<td>Audio Bitrate</td>
<td colspan="6">64 Kbps</td>
</tr>
<tr>
<td>Two-way Audio</td>
<td colspan="6">Support</td>
</tr>
<tr>
<td>Suppression</td>
<td colspan="6">Support</td>
</tr>
<tr>
<td>Sampling Rate</td>
<td colspan="6">8 kHz</td>
</tr>
<tr>
<td colspan="7">Storage</td>
</tr>
<tr>
<td>Edge Storage</td>
<td colspan="6">Micro SD, up to 256 GB</td>
</tr>
<tr>
<td>Network Storage</td>
<td colspan="6">ANR,NAS(NFS)</td>
</tr>
<tr>
<td colspan="7">Network</td>
</tr>
<tr>
<td>Protocols</td>
<td colspan="6">IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS</td>
</tr>
<tr>
<td>Compatible Integration</td>
<td colspan="6">ONVIF (Profile S, Profile G), API, SDK</td>
</tr>
</tbody>
</table>

Характеристики

Наличие микрофона: Да
Исполнение: Внутреннее
Наличие MicroSD: Да
Разрешение: 2 мп
Рабочая температура: -20°C до +60°C
Объектив: Зум
Тип объектива: Зум
Дальность ИК-подсветки: 50 м
Кратность: 4x
LED подсветка: 10 м
Бренд: Uniview
