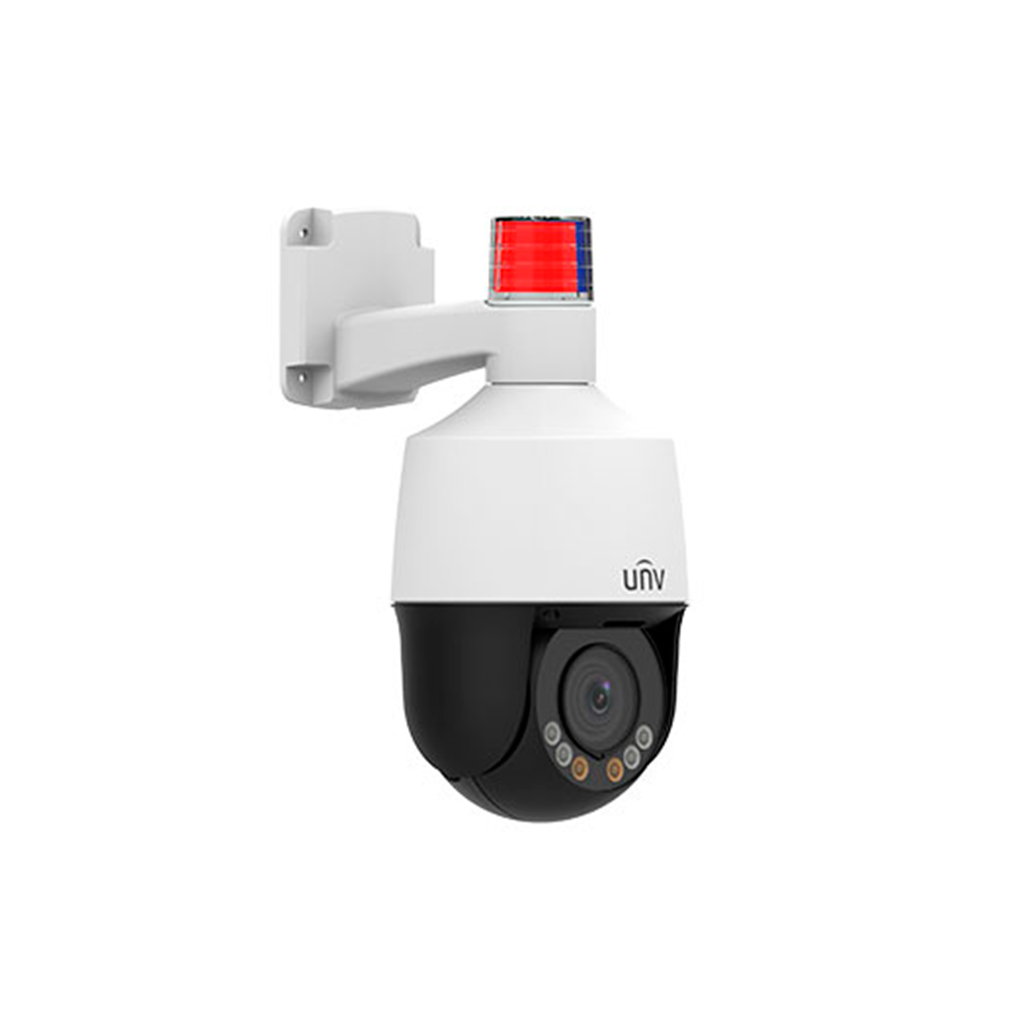

IPC675LFW-AX4DUPKC-VG Поворотная PTZ видеокамера

<table width="100%">
<tbody>
<tr>
<td>
</td><td colspan="5" width="70%">IPC675LFW-AX4DUPKC-VG</td>
</tr>
<tr>
<td colspan="6">Camera</td>
</tr>
<tr>
<td>Sensor</td>
<td colspan="5">1/2.7" progressive scan, 5.0 megapixel, CMOS</td>
</tr>
<tr>
<td>Lens</td>
<td colspan="5">2.8~12mm，AF&nbsp;automatic&nbsp;focusing&nbsp;and&nbsp;motorized&nbsp;zoom&nbsp;lens</td>
</tr>
<tr>
<td rowspan="3">DORI Distance</td>
<td>Lens</td>
<td>Detect(m)</td>
<td>Observe(m)</td>
<td>Recognize(m)</td>
<td>Identify(m)</td>
</tr>
<tr>
<td>2.8mm</td>
<td>63.0</td>
<td>25.2</td>
<td>12.6</td>
<td>6.3</td>
</tr>
<tr>
<td>12mm</td>
<td>270.0</td>
<td>108.0</td>
<td>54.0</td>
<td>27.0</td>
</tr>
<tr>
<td>Angle of View (H)</td>
<td colspan="5">30.6°~104.1°</td>
</tr>
<tr>
<td>Angle of View (V)</td>
<td colspan="5">17.4°~54.9°</td>
</tr>
<tr>
<td>Angle of View (O)</td>
<td colspan="5">34.4°~108.3°</td>
</tr>
<tr>
<td>Shutter</td>
<td colspan="5">Auto/Manual, shutter time: 1 s ~ 1/100000 s</td>
</tr>
<tr>
<td>Minimum Illumination</td>
<td colspan="5">Colour:0.003 lux (F1.6,AGC ON)<br>0 lux with IR</td>
</tr>
<tr>
<td>Day/Night</td>
<td colspan="5">IR-cut filter with auto switch (ICR)</td>
</tr>
<tr>
<td>Digital noise reduction</td>
<td colspan="5">2D/3D DNR</td>
</tr>
<tr>
<td>S/N</td>
<td colspan="5">&gt;52 dB</td>
</tr>
<tr>
<td>IR Range</td>
<td colspan="5">UP to 50m (164ft)</td>
</tr>
<tr>
<td>Wavelength</td>
<td colspan="5">850nm</td>
</tr>
<tr>
<td>IR On/Off Control</td>
<td colspan="5">Auto/Manual</td>
</tr>
<tr>
<td>Warm Light Range</td>
<td colspan="5">UP to 10m (33ft)</td>
</tr>
<tr>
<td>WDR</td>
<td colspan="5">120dB</td>
</tr>
<tr>
<td colspan="6">Video</td>
</tr>
<tr>
<td>Video Compression</td>
<td colspan="5">Ultra 265,H.265, H.264, MJPEG</td>
</tr>
<tr>
<td>H.264 code profile</td>
<td colspan="5">Baseline profile, Main Profile</td>
</tr>
<tr>
<td>Frame Rate</td>
<td colspan="5">Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 25fps;3MP (2304*1296), Max 25fps; 2MP (1920*1080), Max 30fps;<br>Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;<br>Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;</td>
</tr>
<tr>
<td>&nbsp;<br>Video Bit Rate</td>
<td colspan="5">128 Kbps~16 Mbps</td>
</tr>
<tr>
<td>OSD</td>
<td colspan="5">Up to 8 OSDs</td>
</tr>
<tr>
<td>Privacy Mask</td>
<td colspan="5">Up to 8 areas</td>
</tr>
<tr>
<td>ROI</td>
<td colspan="5">Up to 8 areas</td>
</tr>
<tr>
<td>Motion Detection</td>
<td colspan="5">Up to 4 areas</td>
</tr>
<tr>
<td colspan="6">Image</td>
</tr>
<tr>
<td>White Balance</td>
<td colspan="5">Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2</td>
</tr>
<tr>
<td>Digital noise reduction</td>
<td colspan="5">2D/3D DNR</td>
</tr>
<tr>
<td>Smart IR</td>
<td colspan="5">Support</td>
</tr>
<tr>
<td>Flip</td>
<td colspan="5">Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise</td>
</tr>
<tr>
<td>Dewarping</td>
<td colspan="5">N/A</td>
</tr>
<tr>
<td>HLC</td>
<td colspan="5">Supported</td>
</tr>
<tr>
<td>BLC</td>
<td colspan="5">Supported</td>
</tr>
<tr>
<td colspan="6">Intelligent</td>
</tr>
<tr>
<td>Smart intrusion Prevention</td>
<td colspan="5">Cross Line, Intrusion, Enter Area, Leave Area detection;Motion detection ;</td>
</tr>
<tr>
<td>Events</td>
</tr>
<tr>
<td>Basic Detection</td>
<td colspan="5">Motion detection, Tampering alarm, Audio Detection</td>
</tr>
<tr>
<td>General Function</td>
<td colspan="5">Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication</td>
</tr>
<tr>
<td colspan="6">Audio</td>
</tr>
<tr>
<td>Audio Compression</td>
<td colspan="5">G.711U, G.711A</td>
</tr>
<tr>
<td>Two-way Audio</td>
<td colspan="5">Supported</td>
</tr>
</tbody>
</table>

Характеристики

Бренд: Uniview
Кратность: 4x
Наличие микрофона: Да
Наличие MicroSD: Да
Разрешение: 2 мп
Рабочая температура: -20°C до +60°C
Исполнение: Внутреннее
Объектив: 2.8-12 мм
Тип объектива: Зум
Дальность ИК-подсветки: 50 м
Wi-Fi: Да
