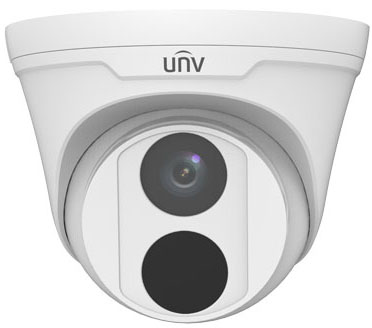

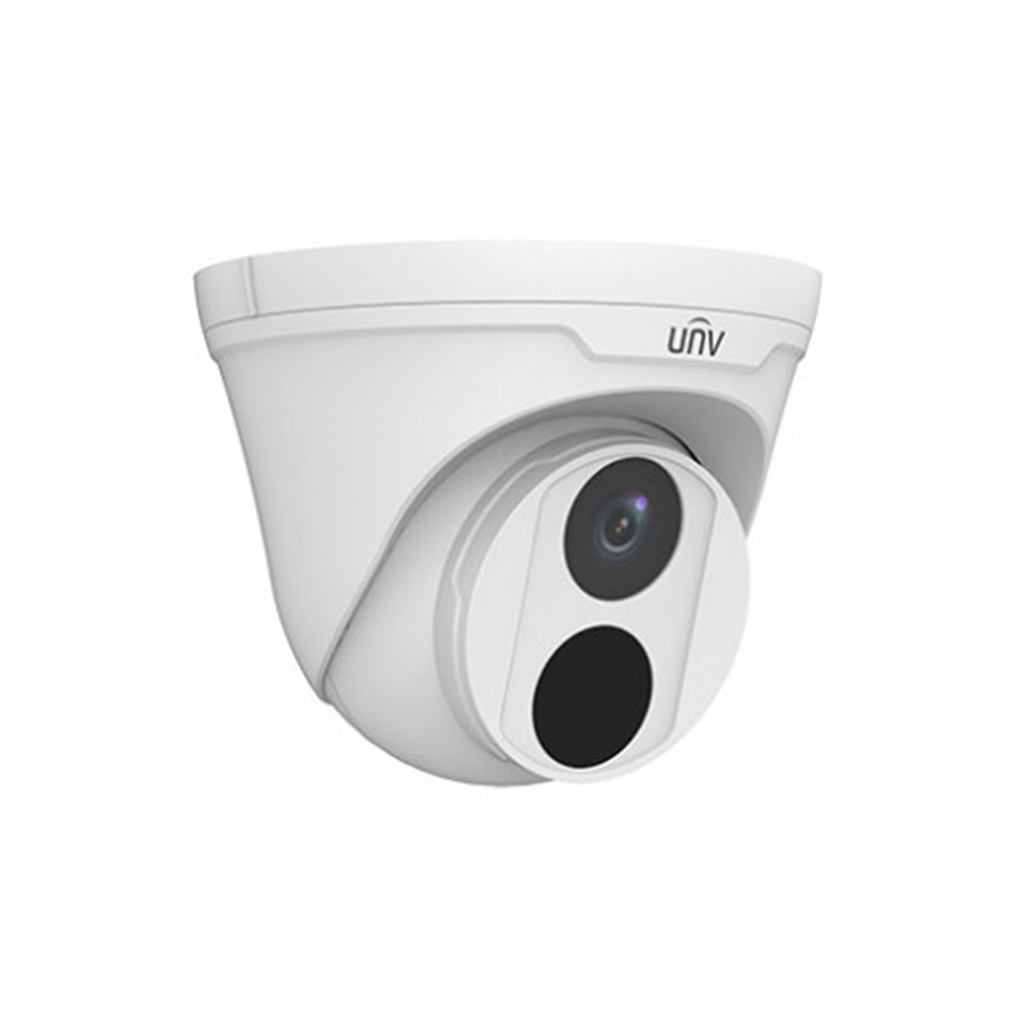

IPC3614LB-SF28-A купольная IP видеокамера

<table>
<tbody>
<tr>
<td>
</td><td colspan="3">IPC3614LB-SF28-A</td>
<td colspan="3">IPC3614LB-SF40-A</td>
</tr>
<tr>
<td colspan="7">Camera</td>
</tr>
<tr>
<td>Sensor</td>
<td colspan="6">1/3", 4.0 megapixel, progressive scan, CMOS</td>
</tr>
<tr>
<td>Min. Illumination</td>
<td colspan="6">Colour: 0.01Lux (F2.0, AGC ON)<br>0Lux with IR</td>
</tr>
<tr>
<td>Day/Night</td>
<td colspan="6">IR-cut filter with auto switch (ICR)</td>
</tr>
<tr>
<td>Shutter</td>
<td colspan="6">Auto/Manual, 1 ~ 1/100000s</td>
</tr>
<tr>
<td>Adjustment angle</td>
<td colspan="6">Pan: 0° ~ 360° , Tilt: 0° ~ 75°, Rotate: 0° ~ 360°</td>
</tr>
<tr>
<td>S/N</td>
<td colspan="6">&gt;56dB</td>
</tr>
<tr>
<td>WDR</td>
<td colspan="6">DWDR</td>
</tr>
<tr>
<td colspan="7">Lens</td>
</tr>
<tr>
<td>Lens Type</td>
<td colspan="6">2.8mm and 4.0mm @2.0, Fixed-focal</td>
</tr>
<tr>
<td>Lens Mount</td>
<td colspan="6">M12</td>
</tr>
<tr>
<td>Angle of View (H)</td>
<td colspan="3">97.0°</td>
<td colspan="3">79.0°</td>
</tr>
<tr>
<td>Angle of View (V)</td>
<td colspan="3">52.2°</td>
<td colspan="3">42.3°</td>
</tr>
<tr>
<td>Angle of View (O)</td>
<td colspan="3">107.5°</td>
<td colspan="3">85.1°</td>
</tr>
<tr>
<td colspan="7">DORI</td>
</tr>
<tr>
<td rowspan="3">DORI Distance</td>
<td>Lens (mm)</td>
<td>Detect (m)</td>
<td colspan="2">Observe (m)</td>
<td>Recognize (m)</td>
<td>Identify (m)</td>
</tr>
<tr>
<td>2.8</td>
<td>63.0</td>
<td colspan="2">25.2</td>
<td>12.6</td>
<td>6.3</td>
</tr>
<tr>
<td>4.0</td>
<td>90.0</td>
<td colspan="2">36.0</td>
<td>18.0</td>
<td>9.0</td>
</tr>
<tr>
<td colspan="7">Illuminator</td>
</tr>
<tr>
<td>IR Range</td>
<td colspan="6">Up to 30m (98ft) IR range</td>
</tr>
<tr>
<td>Wavelength</td>
<td colspan="6">850nm</td>
</tr>
<tr>
<td>IR On/Off Control</td>
<td colspan="6">Auto/Manual</td>
</tr>
<tr>
<td colspan="7">Video</td>
</tr>
<tr>
<td>Video Compression</td>
<td colspan="6">Ultra 265, H.265, H.264, MJPEG</td>
</tr>
<tr>
<td>H.264 code profile</td>
<td colspan="6">Baseline profile, Main profile, High profile</td>
</tr>
<tr>
<td>Frame Rate</td>
<td colspan="6">Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps<br>Sub Stream:4CIF (704*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;</td>
</tr>
<tr>
<td>Video Bit Rate</td>
<td colspan="6">128 Kbps~6144 kbps</td>
</tr>
<tr>
<td>U-code</td>
<td colspan="6">Supported</td>
</tr>
<tr>
<td>OSD</td>
<td colspan="6">Up to 4 OSDs</td>
</tr>
<tr>
<td>Privacy Mask</td>
<td colspan="6">Up to 4 areas</td>
</tr>
<tr>
<td>ROI</td>
<td colspan="6">Up to 8 areas</td>
</tr>
<tr>
<td>Motion Detection</td>
<td colspan="6">Up to 4 areas</td>
</tr>
<tr>
<td colspan="7">Image</td>
</tr>
<tr>
<td>White Balance</td>
<td colspan="6">Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2</td>
</tr>
<tr>
<td>Image Setting</td>
<td colspan="6">Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser</td>
</tr>
<tr>
<td>Digital noise reduction</td>
<td colspan="6">2D/3D DNR</td>
</tr>
<tr>
<td>Smart IR</td>
<td colspan="6">Support</td>
</tr>
<tr>
<td>Flip</td>
<td colspan="6">Normal/Vertical/Horizontal/180°</td>
</tr>
<tr>
<td>Dewarping</td>
<td colspan="6">N/A</td>
</tr>
<tr>
<td>HLC</td>
<td colspan="6">Supported</td>
</tr>
<tr>
<td>BLC</td>
<td colspan="6">Supported</td>
</tr>
<tr>
<td>Defog</td>
<td colspan="6">Digital Defog</td>
</tr>
<tr>
<td colspan="7">Storage</td>
</tr>
<tr>
<td>Edge Storage</td>
<td colspan="6">Micro SD, up to 128GB</td>
</tr>
<tr>
<td>Network Storage</td>
<td colspan="6">ANR, NAS(NFS)</td>
</tr>
<tr>
<td colspan="7">Network</td>
</tr>
<tr>
<td>Protocols</td>
<td colspan="6">IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP</td>
</tr>
<tr>
<td>Compatible Integration</td>
<td colspan="6">ONVIF (Profile S, Profile G, Profile T), API , SDK</td>
</tr>
<tr>
<td>User/Host</td>
<td colspan="6">Up to 32 users. 2 user levels: administrator and common user</td>
</tr>
<tr>
<td>Security</td>
<td colspan="6">Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF</td>
</tr>
<tr>
<td>Client</td>
<td colspan="6">EZStation<br>EZView<br>EZLive</td>
</tr>
<tr>
<td rowspan="2">Web Browser</td>
<td colspan="6">Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below</td>
</tr>
<tr>
<td colspan="6">Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+</td>
</tr>
<tr>
<td colspan="7">Interface</td>
</tr>
<tr>
<td>Network</td>
<td colspan="6">1 * RJ45 10M/100M Base-TX Ethernet</td>
</tr>
<tr>
<td colspan="7">Certification</td>
</tr>
<tr>
<td>EMC</td>
<td colspan="6">FCC: FCC Part 15</td>
</tr>
<tr>
<td>Safety</td>
<td colspan="6">CE: EN 60950-1<br>UL: UL60950-1<br>IEC 60950-1</td>
</tr>
<tr>
<td colspan="7">General</td>
</tr>
<tr>
<td rowspan="2">Power</td>
<td colspan="6">DC 12V±25%, PoE (IEEE 802.3af)</td>
</tr>
<tr>
<td colspan="6">Power consumption: Max 4.0W</td>
</tr>
<tr>
<td>Power Interface</td>
<td colspan="6">Ø 5.5mm coaxial power plug</td>
</tr>
</tbody>
</table>

Характеристики

Наличие MicroSD: Да
Разрешение: 4 мп
Рабочая температура: -30°C до +60°C
Материал корпуса: Металл+пластик
Объектив: 2.8 мм
Исполнение: Внутреннее
Тип объектива: Фиксированный
Дальность ИК-подсветки: 30 м
Наличие микрофона: Нет
Бренд: Uniview
