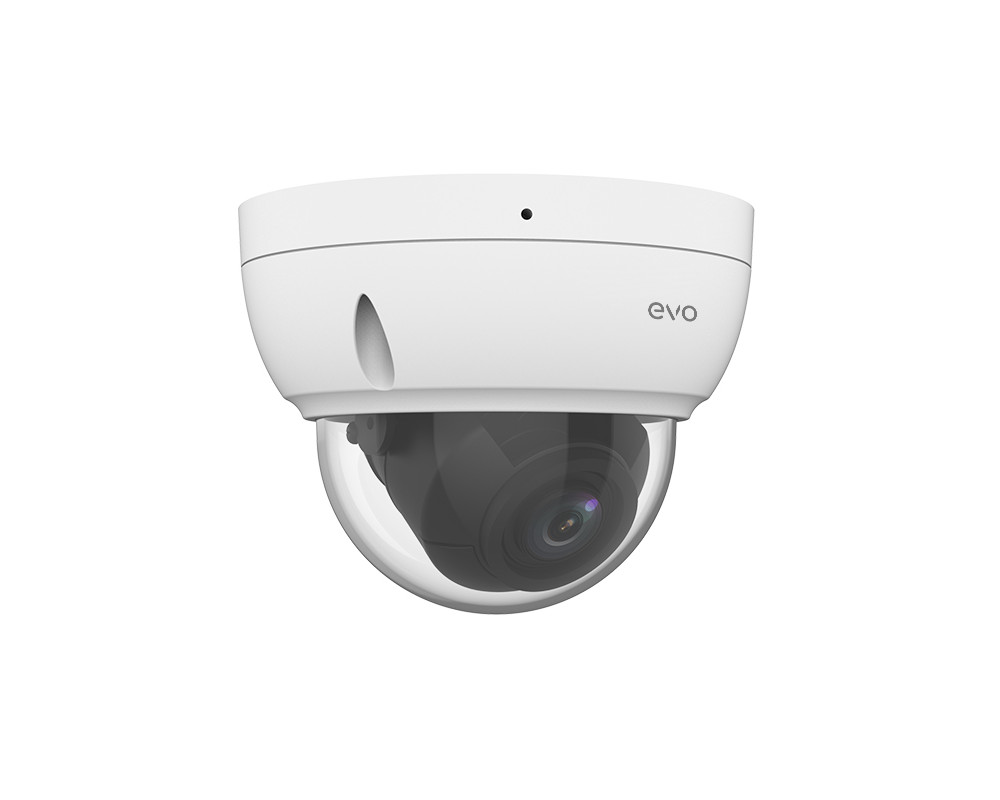

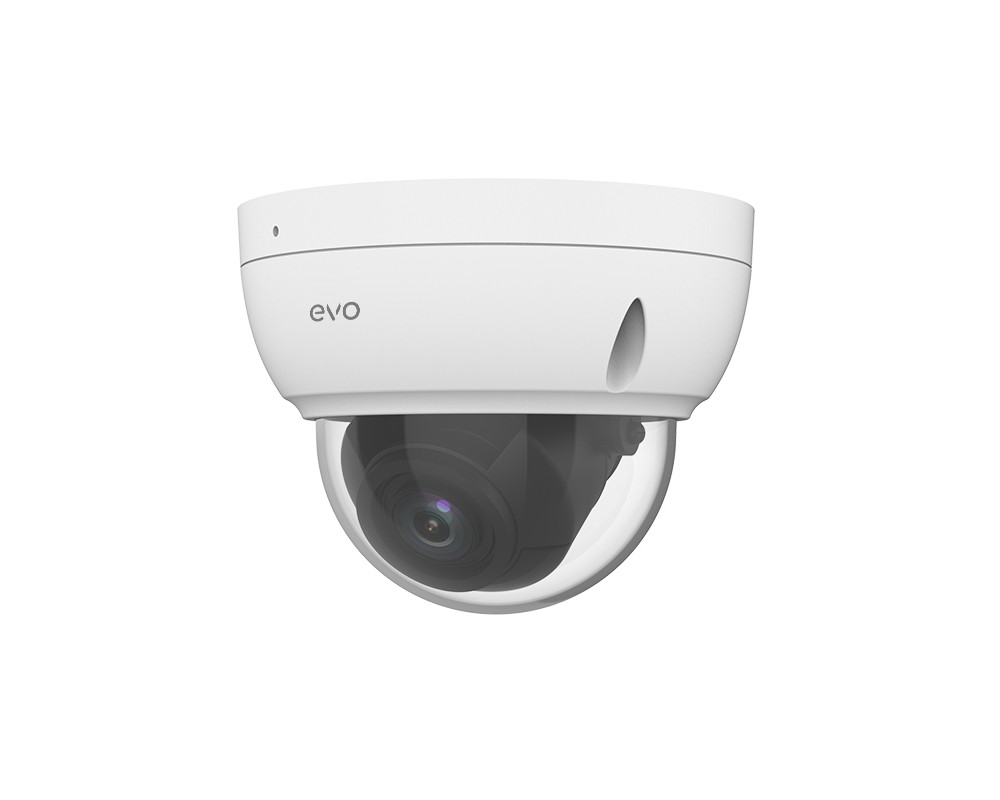

IPC-3534-APKZ Купольная IP видеокамера

<table width="100%"><tbody><tr><td class="thead" width="30%">&nbsp;</td><td class="thead" width="70%" colspan="7">IPC-3534-APKZ</td></tr><tr><td class="thead" colspan="8">Camera</td></tr><tr><td>Sensor</td><td colspan="7">1/2.7", progressive scan, CMOS</td></tr><tr><td>Lens</td><td colspan="7">2.8 ~ 12mm, AF&nbsp;automatic&nbsp;focusing&nbsp;and&nbsp;motorized&nbsp;zoom&nbsp;lens</td></tr><tr><td rowspan="3">DORI Distance</td><td>Lens (mm)</td><td colspan="2">Detect (m)</td><td>Observe (m)</td><td colspan="2">Recognize (m)</td><td>Identify (m)</td></tr><tr><td>2.8</td><td colspan="2">63.0</td><td>25.2</td><td colspan="2">12.6</td><td>6.3</td></tr><tr><td>12</td><td colspan="2">270.0</td><td>108.0</td><td colspan="2">54.0</td><td>27.0</td></tr><tr><td>Angle of View (H)</td><td colspan="7">102.79°~ 30.86°</td></tr><tr><td>Angle of View (V)</td><td colspan="7">54.50°~ 17.49°</td></tr><tr><td>Angle of View (O)</td><td colspan="7">106.94°~35.49°</td></tr><tr><td>Adjustment angle</td><td colspan="2">Pan: 3° ~ 360°</td><td colspan="3">Tilt: 0° ~ 70°</td><td colspan="2">Rotate: 3° ~ 360°</td></tr><tr><td>Shutter</td><td colspan="7">Auto/Manual, 1 ~ 1/100000s</td></tr><tr><td>Minimum Illumination</td><td colspan="7">Colour: 0.005Lux (F1.8, AGC ON) <br>0Lux with IR on</td></tr><tr><td>Day/Night</td><td colspan="7">IR-cut filter with auto switch (ICR)</td></tr><tr><td>Digital noise reduction</td><td colspan="7">2D/3D DNR</td></tr><tr><td>S/N</td><td colspan="7">&gt;56dB</td></tr><tr><td>IR Range</td><td colspan="7">Up to 30m (98ft) IR range</td></tr><tr><td>Defog</td><td colspan="7">Digital Defog</td></tr><tr><td valign="top">WDR</td><td valign="top" colspan="7">120dB</td></tr><tr><td class="thead" colspan="8">Audio</td></tr><tr><td>Audio Compression</td><td colspan="7">G.711</td></tr><tr><td>Suppression</td><td colspan="7">Supported</td></tr><tr><td>Sampling Rate</td><td colspan="7">8KHZ</td></tr><tr><td class="thead" colspan="8">Storage</td></tr><tr><td>Edge Storage</td><td colspan="7">Micro SD, up to 256GB</td></tr><tr><td>Network Storage</td><td colspan="7">ANR,NAS(NFS)</td></tr><tr><td class="thead" colspan="8">Video</td></tr><tr><td>Video Compression</td><td colspan="7">Ultra 265, H.265, H.264, MJPEG</td></tr><tr><td>H.264 code profile</td><td colspan="7">Baseline profile, Main profile, High profile</td></tr><tr><td>Frame Rate</td><td colspan="7">Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;<br>Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;</td></tr><tr><td>HLC</td><td colspan="7">Supported</td></tr><tr><td>BLC</td><td colspan="7">Supported</td></tr><tr><td>OSD</td><td colspan="7">Up to 4 OSDs</td></tr><tr><td>Privacy Mask</td><td colspan="7">Up to 4 areas</td></tr><tr><td>ROI</td><td colspan="7">Up to 8 areas</td></tr><tr><td>Motion Detection</td><td colspan="7">Up to 4 areas</td></tr><tr><td class="thead" colspan="8">Smart</td></tr><tr><td rowspan="2">Behavior Detection</td><td colspan="7">intrusion(based on human body detection)</td></tr><tr><td colspan="7">motion detection, tampering alarm, audio detection</td></tr><tr><td class="thead" colspan="8">Network</td></tr><tr><td>Protocols</td><td colspan="7">IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, RTMP</td></tr><tr><td>Compatible Integration</td><td colspan="7">ONVIF (Profile S, Profile T, Profile G), API</td></tr><tr><td rowspan="2">Web Browser</td><td colspan="7">Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above</td></tr><tr><td colspan="7">Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above</td></tr><tr><td class="thead" colspan="8">Interface</td></tr><tr><td>Network</td><td colspan="7">10/100M Base-TX Ethernet</td></tr><tr><td>Built-in Mic</td><td colspan="7">Supported</td></tr><tr><td class="thead" colspan="8">General</td></tr><tr><td rowspan="2">Power</td><td colspan="7">DC 12V±25%, PoE (IEEE 802.3af)</td></tr><tr><td colspan="7">Power consumption: Max 6.0W</td></tr><tr><td>Dimensions (Ø x H)</td><td colspan="7">Ø128 x 100mm (Ø5.0” x 3.9”)</td></tr><tr><td>Weight</td><td colspan="7">0.56kg (1.23lb)</td></tr><tr><td>Working Environment</td><td colspan="7">-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)</td></tr><tr><td>Surge Protection</td><td colspan="7">6KV</td></tr><tr><td>Ingress Protection</td><td colspan="7">IP67</td></tr><tr><td>Vandal Resistant</td><td colspan="7">IK10</td></tr><tr><td>Reset Button</td><td colspan="7">Supported</td></tr></tbody></table>

Характеристики

Наличие микрофона: Да
Наличие MicroSD: Да
Разрешение: 4 мп
Рабочая температура: -30°C до +60°C
Исполнение: Внутреннее
Объектив: 2.8 мм — 12 мм
Дальность ИК-подсветки: 30 м
Бренд: Evo
Тип объектива: Моторизованный вариофокальный
