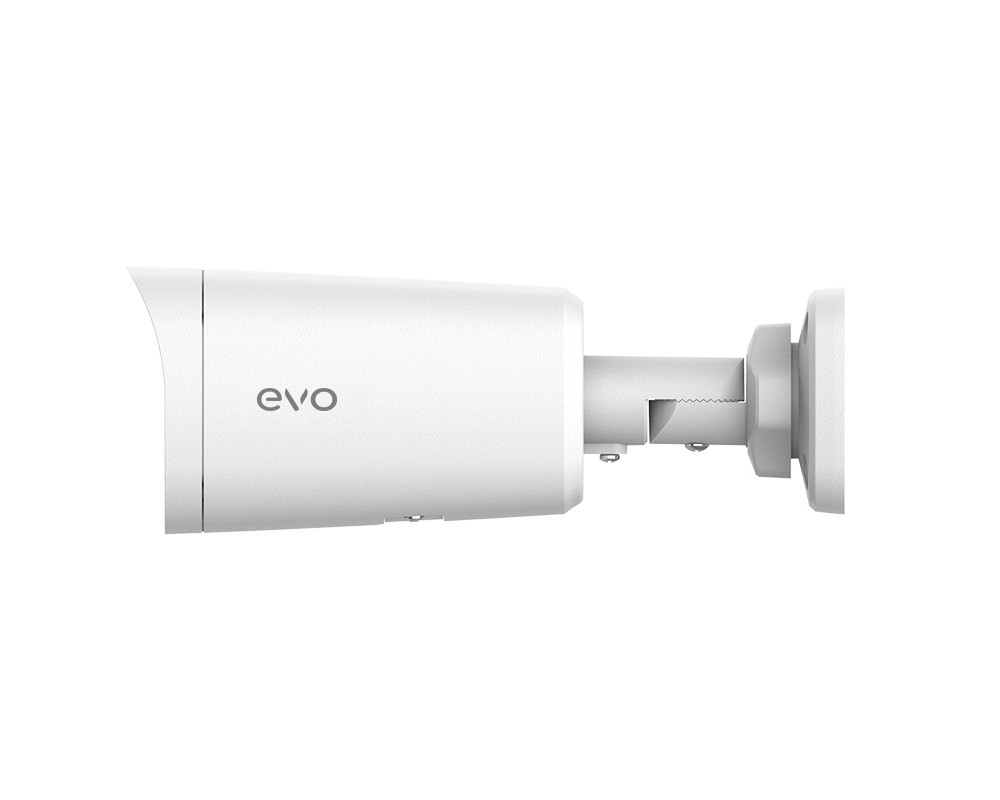

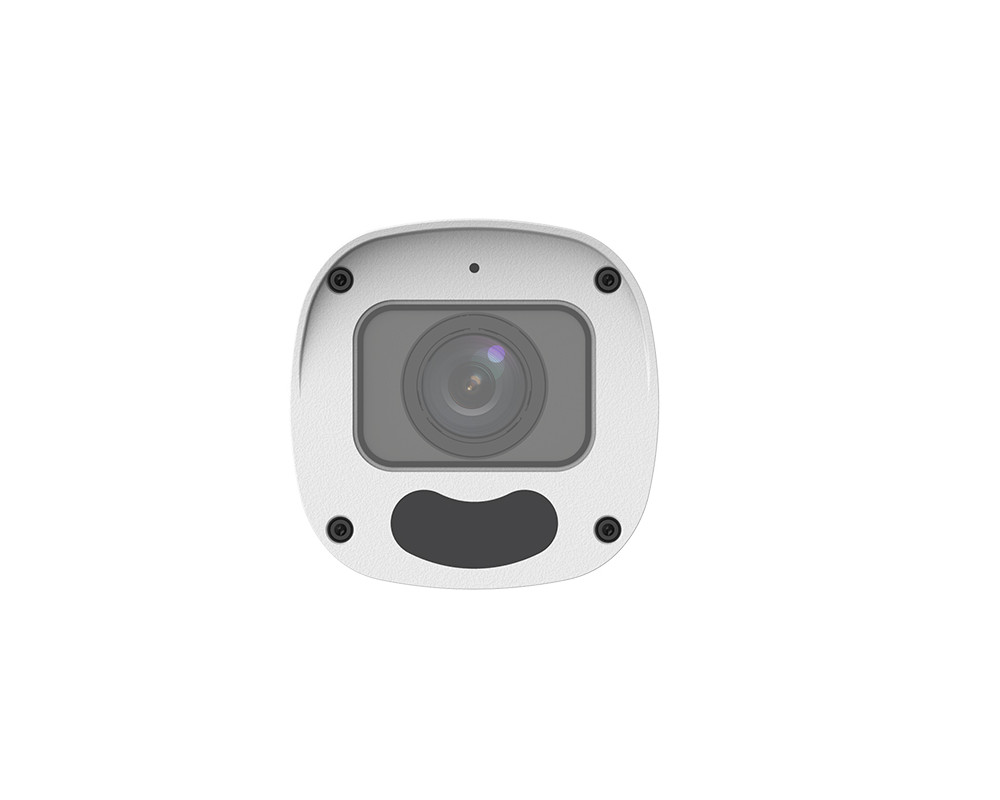

IPC-2322-APKZ Уличная IP видеокамера

<table width="100%"><tbody><tr><td class="thead" width="30%">&nbsp;</td><td class="thead" width="70%" colspan="7">IPC-2322-APKZ</td></tr><tr><td class="thead" colspan="8">Camera</td></tr><tr><td>Sensor</td><td colspan="7">1/2.7", 2.0 megapixel, progressive scan, CMOS</td></tr><tr><td>Minimum Illumination</td><td colspan="7">Colour: 0.005Lux (F1.8, AGC ON)<br>0Lux with IR on</td></tr><tr><td>Day/Night</td><td colspan="7">IR-cut filter with auto switch (ICR)</td></tr><tr><td>Shutter</td><td colspan="7">Auto/Manual, 1 ~ 1/100000s</td></tr><tr><td>Adjustment angle</td><td colspan="2">Pan: 0° ~ 360°</td><td colspan="3">Tilt: 0° ~ 90°</td><td colspan="2">Rotate: 0° ~ 360°</td></tr><tr><td>WDR</td><td colspan="7">120dB</td></tr><tr><td>S/N</td><td colspan="7">&gt;52dB</td></tr><tr><td class="thead" colspan="8">Lens</td></tr><tr><td>Lens Type</td><td colspan="7">2.8 ~ 12mm, AF&nbsp;automatic&nbsp;focusing&nbsp;and&nbsp;motorized&nbsp;zoom&nbsp;lens</td></tr><tr><td>Iris</td><td colspan="7">Fixed</td></tr><tr><td>Angle of View (H)</td><td colspan="7">108.05°~ 32.59°</td></tr><tr><td>Angle of View (V)</td><td colspan="7">56.81°~ 18.36°</td></tr><tr><td>Angle of View (O)</td><td colspan="7">111.91°~36.53°</td></tr><tr><td class="thead" colspan="8">DORI</td></tr><tr><td rowspan="3">DORI Distance</td><td>Lens (mm)</td><td colspan="2">Detect (m)</td><td>Observe (m)</td><td colspan="2">Recognize (m)</td><td>Identify (m)</td></tr><tr><td>2.8</td><td colspan="2">42</td><td>16.8</td><td colspan="2">8.4</td><td>4.2</td></tr><tr><td>12</td><td colspan="2">180</td><td>72</td><td colspan="2">36</td><td>18</td></tr><tr><td class="thead" colspan="8">Illuminator</td></tr><tr><td>IR Range</td><td colspan="7">Up to 50m (164ft) IR range</td></tr><tr><td>Wavelength</td><td colspan="7">850nm</td></tr><tr><td>IR On/Off Control</td><td colspan="7">Auto/Manual</td></tr><tr><td class="thead" colspan="8">Video</td></tr><tr><td>Video Compression</td><td colspan="7">Ultra 265, H.265, H.264, MJPEG</td></tr><tr><td>H.264 code profile</td><td colspan="7">Baseline profile, Main profile, High profile</td></tr><tr><td>Frame Rate</td><td colspan="7">Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps<br>Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;</td></tr><tr><td>Video Bit Rate</td><td colspan="7">128 Kbps~6 Mbps</td></tr><tr><td>U-code</td><td colspan="7">Support</td></tr><tr><td>OSD</td><td colspan="7">Up to 4 OSDs</td></tr><tr><td>Privacy Mask</td><td colspan="7">Up to 4 areas</td></tr><tr><td>ROI</td><td colspan="7">Up to 8 areas</td></tr><tr><td>Motion Detection</td><td colspan="7">Up to 4 areas</td></tr><tr><td>Video stream</td><td colspan="7">Dual streams</td></tr><tr><td class="thead" colspan="8">Image</td></tr><tr><td>White Balance</td><td colspan="7">Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2</td></tr><tr><td>Digital Noise Reduction</td><td colspan="7">2D/3D DNR</td></tr><tr><td>Smart IR</td><td colspan="7">Support</td></tr><tr><td>Flip</td><td colspan="7">Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise</td></tr><tr><td>Dewarping</td><td colspan="7">N/A</td></tr><tr><td>HLC</td><td colspan="7">Support</td></tr><tr><td>BLC</td><td colspan="7">Support</td></tr><tr><td>Defog</td><td colspan="7">Digital Defog</td></tr><tr><td class="thead" colspan="8">Events</td></tr><tr><td>Basic Detection</td><td colspan="7">Motion detection, Tampering alarm, Audio detection</td></tr><tr><td>General Function</td><td colspan="7">Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication</td></tr><tr><td class="thead" colspan="8">Audio</td></tr><tr><td>Audio Compression</td><td colspan="7">G.711U, G.711A</td></tr><tr><td>Audio Bitrate</td><td colspan="7">64 Kbps</td></tr><tr><td>Two-way Audio</td><td colspan="7">N/A</td></tr><tr><td>Suppression</td><td colspan="7">Support</td></tr><tr><td>Sampling Rate</td><td colspan="7">8KHZ</td></tr><tr><td class="thead" colspan="8">Storage</td></tr><tr><td>Edge Storage</td><td colspan="7">Micro SD, up to 256 GB</td></tr><tr><td>Network Storage</td><td colspan="7">ANR,NAS(NFS)</td></tr><tr><td class="thead" colspan="8">Network</td></tr><tr><td>Protocols</td><td colspan="7">IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS , RTMP, SNMP</td></tr><tr><td>Compatible Integration</td><td colspan="7">ONVIF (Profile S, Profile T, Profile G), API</td></tr><tr><td valign="top">User/Host</td><td valign="top" colspan="7">Up to 32 users. 2 user levels: administrator and common user</td></tr><tr><td>Client</td><td colspan="7">Uniarch Client<br>Uniarch APP</td></tr><tr><td rowspan="2">Web Browser</td><td colspan="7">Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above</td></tr><tr><td colspan="7">Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above</td></tr><tr><td class="thead" colspan="8">Interface</td></tr><tr><td>Audio I/O</td><td colspan="7">N/A</td></tr><tr><td>Alarm I/O</td><td colspan="7">N/A</td></tr><tr><td>Built-in Mic</td><td colspan="7">Support</td></tr><tr><td>Built-in Speaker</td><td colspan="7">N/A</td></tr><tr><td>WIFI</td><td colspan="7">N/A</td></tr><tr><td>Network</td><td colspan="7">1 * RJ45 10M/100M Base-TX Ethernet</td></tr><tr><td>Video Output</td><td colspan="7">N/A</td></tr><tr><td class="thead" colspan="8">Certifications</td></tr><tr><td>EMC</td><td colspan="7">CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)<br>FCC (FCC 47 CFR part15 B)</td></tr><tr><td>Safety</td><td colspan="7">CE LVD (EN 62368-1)<br>CB (IEC 62368-1)</td></tr><tr><td>Environment</td><td colspan="7">CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)</td></tr><tr><td>Protection</td><td colspan="7">Ingression protection: IP67<br>Vandal resistant: IK10</td></tr><tr><td class="thead" colspan="8">General</td></tr><tr><td rowspan="2">Power</td><td colspan="7">DC 12V±25%, PoE (IEEE 802.3af)</td></tr><tr><td colspan="7">Power consumption: Max 7.5W</td></tr><tr><td>Dimensions (L × W × H)</td><td colspan="7">198 × 74 × 74mm (7.8” × 2.9” × 2.9”)</td></tr><tr><td>Weight</td><td colspan="7">0.51kg (1.12lb)</td></tr><tr><td>Working Environment</td><td colspan="7">-40℃~60℃(-40°F ~ 140°F)，Humidity: ≤95% RH (non-condensing)</td></tr><tr><td>Storage Environment</td><td colspan="7">-40℃~60℃(-40°F ~ 140°F)，Humidity: ≤95% RH (non-condensing)</td></tr><tr><td>Surge Protection</td><td colspan="7">6KV</td></tr><tr><td>Reset Button</td><td colspan="7">Support</td></tr></tbody></table>

Характеристики

Наличие микрофона: Да
Наличие MicroSD: Да
Разрешение: 2 мп
Исполнение: Уличное
Бренд: Evo
Тип объектива: Моторизованный вариофокальный
Дальность ИК-подсветки: 50 м
Объектив: 2.8 мм — 12 мм
