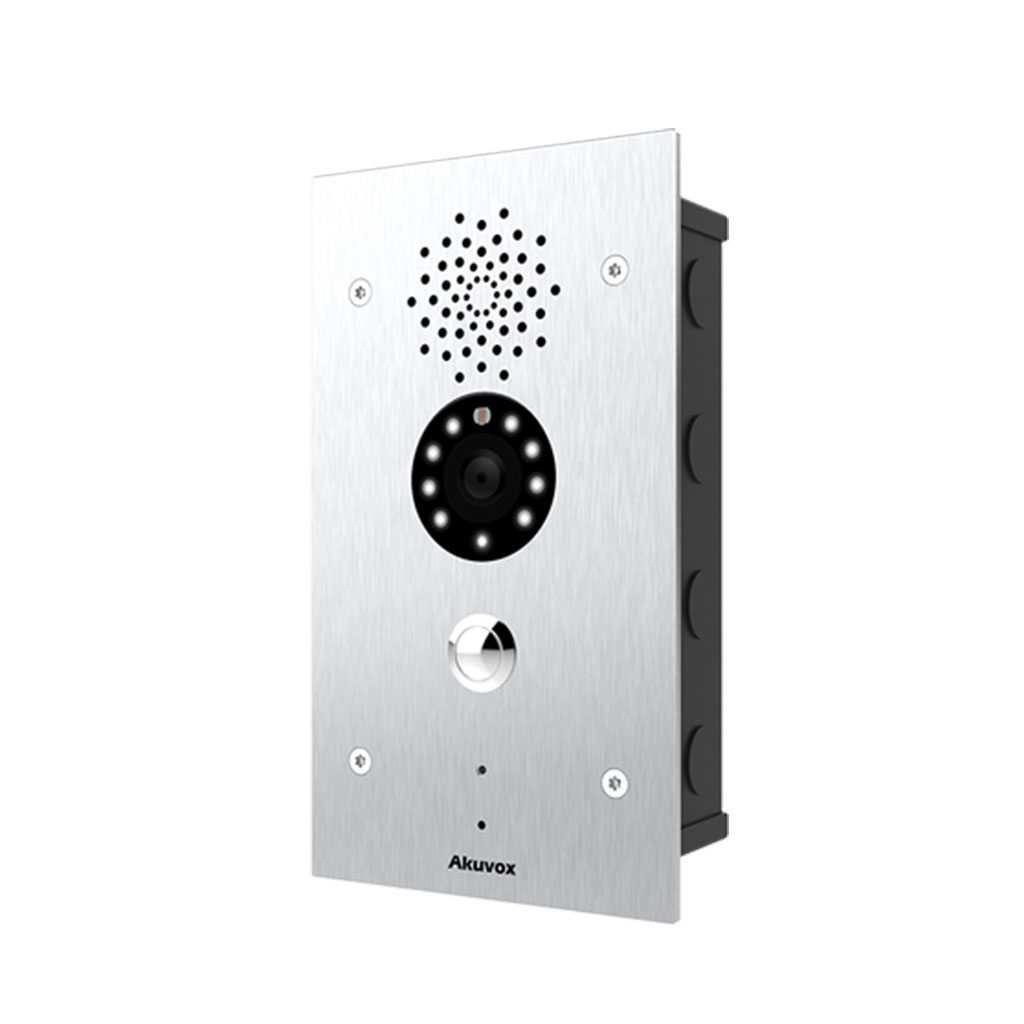

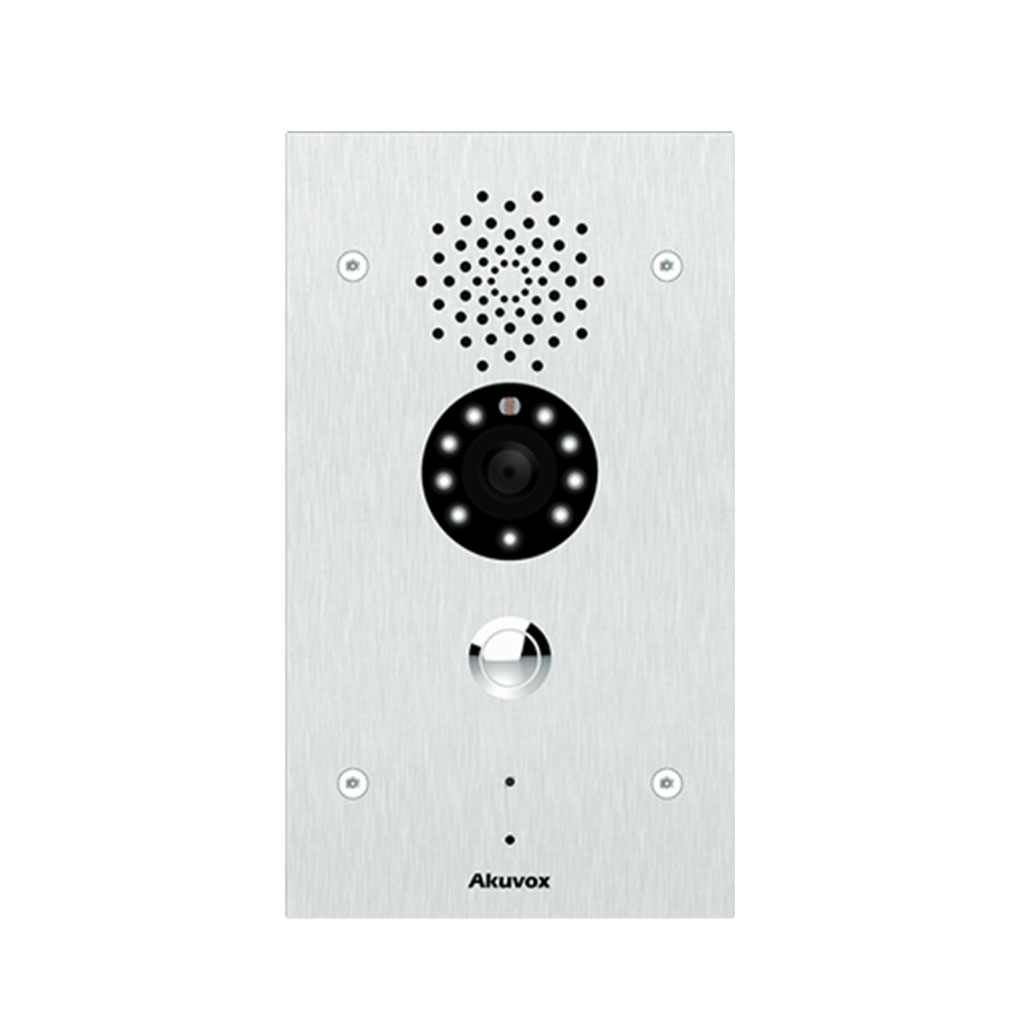

E21V Akuvox IP вызывная панель

<ul>
<li>
<h4>At a Glance</h4>
<div>
<dl>
<dd>Vandal resistant body, with a panic button;</dd>
<dd>Wide-angle camera: 116° (H), 60° (V);</dd>
<dd>PoE (IEEE802.3af, Power-over-Ethernet);</dd>
<dd>Two-way audio communication over IP networks with Echo Cancel feature;</dd>
<dd>Complies with SIP standard for easy integration in every SIP capable PBXes;</dd>
<dd>Complies with ONVIF standard for easy integration with any network surveillance system;</dd>
</dl>
</div>
</li>
<li>
<h4>Physical &amp; Power</h4>
<div>
<dl>
<dd>Front panel: 316 grade stainless steel</dd>
<dd>Camera: 2M pixels, automatic lighting</dd>
<dd>Button: 1 panic button</dd>
<dd>Reset: 1 reset button (on board)</dd>
<dd>Light sensor: Support</dd>
<dd>Infrared sensor: Support</dd>
<dd>Relays out: 2</dd>
<dd>Inputs: 2</dd>
<dd>Microphone: 1</dd>
<dd>Speaker: 1</dd>
<dd>Ethernet port: RJ45, 10/100Mbps adaptive</dd>
<dd>802.3af Power-over-Ethernet</dd>
<dd>12 ~ 48V DC input (if not using PoE)</dd>
<dd>Water-proof &amp; Dust-proof: IP65</dd>
<dd>Installation: Flush-mounted</dd>
<dd>Flush-mounted DIM: 210x120x61mm</dd>
<dd>Working Humidity: 10~90%</dd>
<dd>Working Temperature: -20°C ~ +55°C</dd>
<dd>Storage Temperature: -40°C ~ +70°C</dd>
</dl>
</div>
</li>
<li>
<h4>Audio</h4>
<div>
<dl>
<dd>SIP v1 (RFC2543), SIP v2 (RFC3261)</dd>
<dd>Narrowband audio codec: G.711a, G.711μ</dd>
<dd>Wideband audio codec: G.722</dd>
<dd>DTMF: In-band, out-of-band DTMF (RFC2833),SIP Info</dd>
<dd>Echo Cancellation</dd>
<dd>Voice Activation Detection</dd>
<dd>Comfort Noise Generator</dd>
</dl>
</div>
</li>
<li>
<h4>Video</h4>
<div>
<dl>
<dd>Sensor: 1/2.7”, CMOS</dd>
<dd>Pixels: CIF, QCIF, VGA, 4CIF, 720p</dd>
<dd>Video codec: H.264</dd>
<dd>Video resolution: up to 1920×1080</dd>
<dd>Max. image transfer rate: 1080p – 30fps</dd>
<dd>Viewing angle: 116°(H) / 60°(V)</dd>
<dd>High intensity IR LEDs for picture lighting during dark hours with internal light sensor</dd>
<dd>Compatible to 3rd-Party-Video components,e.g. NVRs</dd>
</dl>
</div>
</li>
<li>
<h4>Door Entry Feature</h4>
<div>
<dl>
<dd>Relays controlled individually by DTMF tones</dd>
<dd>Camera permanently operational</dd>
<dd>Auto-night mode with LED illumination</dd>
<dd>White balance: auto</dd>
<dd>Minimum illumination: 0.1LUX</dd>
</dl>
</div>
</li>
<li>
<h4>Networking &amp; Protocol</h4>
<div>
<dl>
<dd>Protocols support: IPv4, HTTP, HTTPS, FTP,SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP,DHCP, ARP</dd>
</dl>
</div>
</li>
<li>
<h4>Deployment &amp; Maintenance</h4>
<div>
<dl>
<dd>Auto-Provisioning</dd>
<dd>Web management portal</dd>
<dd>Web-based packet dump</dd>
<dd>Configuration backup / restore</dd>
<dd>Entry log export</dd>
<dd>Access table export / import</dd>
<dd>Firmware upgrade</dd>
<dd>System logs (include door access logs)</dd>
</dl>
</div>
</li>
<li>
<h4>Target Groups</h4>
<div>
<dl>
<dd>Education: universities, campuses, schools</dd>
<dd>Logistics &amp; Transportation: airports, parking lots</dd>
<dd>Healthcare: hospitals, laboratories</dd>
</dl>
</div>
</li>
</ul>

Характеристики

Бренд: Akuvox
