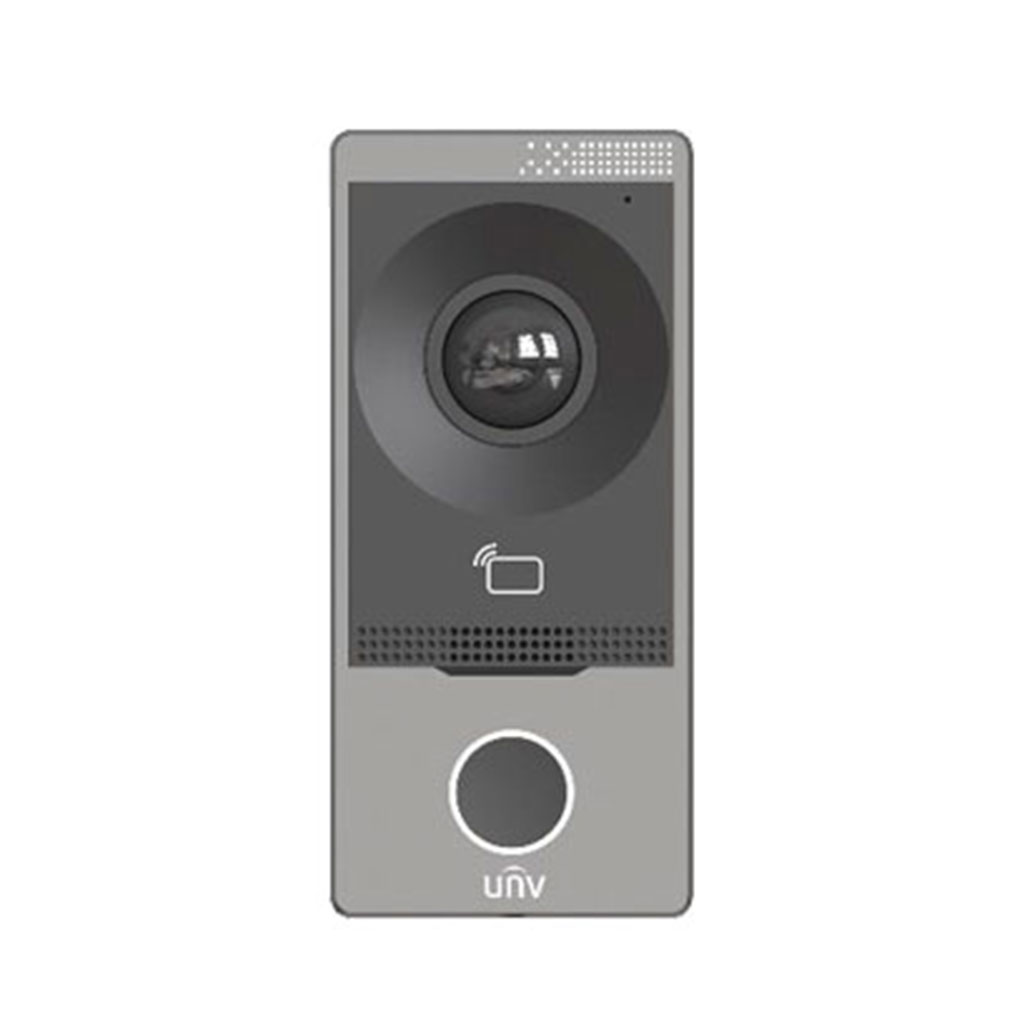

OEU-201B-HMK-W Uniview Вызывная панель

<table width="100%">
<tbody>
<tr>
<td width="30%">Parameter</td>
<td width="70%">Description</td>
</tr>
<tr>
<td>Power</td>
<td>DC 12V±25% input</td>
</tr>
<tr>
<td>Card capacity</td>
<td>2000</td>
</tr>
<tr>
<td>Operation system</td>
<td>Linux</td>
</tr>
<tr>
<td>Supplement light</td>
<td>IR light(Adaptive infrared compensation)</td>
</tr>
<tr>
<td>WDR</td>
<td>Support</td>
</tr>
<tr>
<td>FOV</td>
<td>Horizontal:124.3° <br>Vertical:67.5°<br>Diagonal:147.2°</td>
</tr>
<tr>
<td>Power consumption</td>
<td>＜10W</td>
</tr>
<tr>
<td>Volume adjustment</td>
<td>Adjustable</td>
</tr>
<tr>
<td>Audio quality</td>
<td>Noise suppression,echo cancellation and AGC</td>
</tr>
<tr>
<td>Audio input</td>
<td>1 built-in omnidirectional microphone</td>
</tr>
<tr>
<td>Audio output</td>
<td>1 built-in speaker</td>
</tr>
<tr>
<td>Audio compression standard</td>
<td>PCM,G711,MP3</td>
</tr>
<tr>
<td>Audio compression bitrate</td>
<td>128Kbps</td>
</tr>
<tr>
<td>Protocol</td>
<td>UNV private protocol</td>
</tr>
<tr>
<td>Button</td>
<td>1 physical button</td>
</tr>
<tr>
<td>Protection level</td>
<td>IP65 (Apply waterproof glue to the gap between the device and the wall. For more information, see the quick guide.)<br>IK08</td>
</tr>
<tr>
<td>Weight</td>
<td>0.261Kg</td>
</tr>
<tr>
<td>Linked indoor station capacity</td>
<td>20</td>
</tr>
<tr>
<td>Mount method</td>
<td>Wall mounted, flush installation</td>
</tr>
<tr>
<td>Interface</td>
<td>Power *1, network port *1, WIFI, RS485, door lock interface *2, IO input *4</td>
</tr>
<tr>
<td>Network</td>
<td>100Mbps network port, supports IEEE802.3af PoE power supply</td>
</tr>
<tr>
<td>Dimensions (L×H×W)</td>
<td>78mm×170mm×34mm</td>
</tr>
<tr>
<td>Operating environment</td>
<td>﹣30℃~﹢60℃,10%～90%, non-condensing, outdoor</td>
</tr>
</tbody>
</table>

Характеристики

Размер: (Д×В×Ш) 78×170×34 мм
Рабочая температура: 30℃~﹢60℃
Наличие микрофона: Да
Бренд: Uniview
Диагональ: 147,2°
Угол обзора (O): 124,3°
