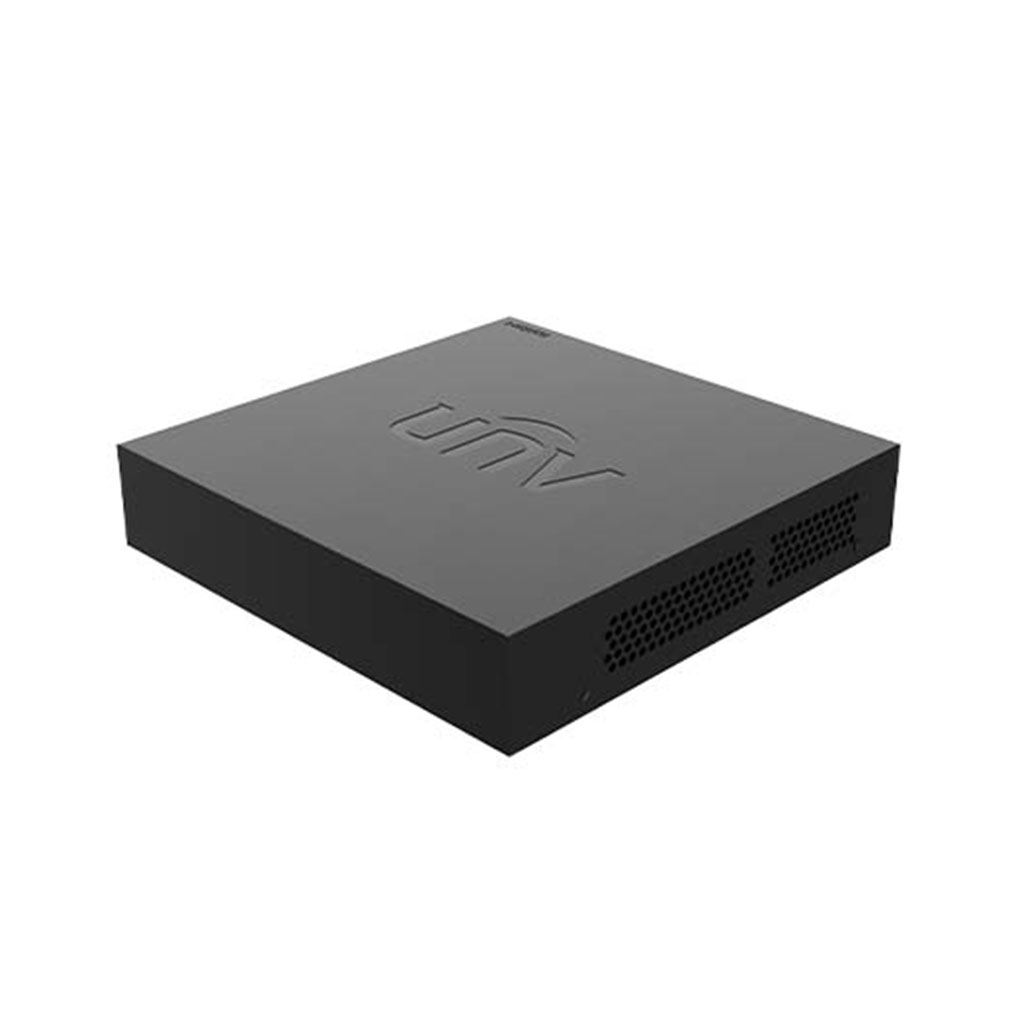

XVR301-04F Видеорегистратор аналоговый 4-х канальный

<table width="100%">
<tbody>
<tr>
<td colspan="2" width="25%"><strong>Model</strong></td>
<td colspan="3" width="25%"><strong>XVR301-04F</strong></td>
<td colspan="2" width="25%"><strong>XVR301-08F</strong></td>
</tr>
<tr>
<td colspan="7">Video/Audio Input</td>
</tr>
<tr>
<td colspan="2">Analog Video Input</td>
<td colspan="3">4-ch, BNC</td>
<td colspan="2">8-ch, BNC</td>
</tr>
<tr>
<td colspan="2">IP Video Input</td>
<td colspan="3">2-ch(only IP up to 6ch), each channel up to 6MP</td>
<td colspan="2">2-ch(only IP up to 10ch), each channel up to 6MP</td>
</tr>
<tr>
<td colspan="2">Supported Analog Camera Types</td>
<td colspan="3"><strong>Support AHD input: </strong>1080P@30fps <br>720P@30fps <br><strong>Support TVI input: </strong>1080P@30fps <br>720P@30fps <br><strong>Support CVI input: </strong>1080P@30fps <br>720P@30fps <br><strong>Support CVBS input</strong></td>
<td colspan="2"><strong>Support AHD input: </strong>1080P@30fps <br>720P@30fps <br><strong>Support TVI input:</strong> 1080P@30fps <br>720P@30fps <br><strong>Support CVI input:</strong> 1080P@30fps <br>720P@30fps <br><strong>Support CVBS input</strong></td>
</tr>
<tr>
<td colspan="2">Audio Compression</td>
<td colspan="5">G.711U</td>
</tr>
<tr>
<td colspan="7">Video/Audio Output</td>
</tr>
<tr>
<td colspan="2">VGA Output</td>
<td colspan="5">1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz</td>
</tr>
<tr>
<td colspan="2">HDMI Output</td>
<td colspan="5">1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz</td>
</tr>
<tr>
<td colspan="2">Synchronous Playback</td>
<td colspan="3">HD:4-ch<br>SD:4-ch</td>
<td colspan="2">HD:8-ch<br>SD:8-ch</td>
</tr>
<tr>
<td colspan="2">Live view display</td>
<td colspan="3">HDMI/VGA: 1/4/6/8/9</td>
<td colspan="2">HDMI/VGA: 1/4/6/8/9/16</td>
</tr>
<tr>
<td colspan="7">Network</td>
</tr>
<tr>
<td colspan="2">Incoming Bandwidth</td>
<td colspan="3">24Mbps (Up to 32Mbps after all analog channel conversion)</td>
<td colspan="2">24Mbps (Up to 40Mbps after all analog channel conversion)</td>
</tr>
<tr>
<td colspan="2">Outgoing Bandwidth</td>
<td colspan="3">48Mbps</td>
<td colspan="2">64Mbps</td>
</tr>
<tr>
<td colspan="2">Remote Users</td>
<td colspan="5">128</td>
</tr>
<tr>
<td colspan="2">Protocols</td>
<td colspan="5">TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP</td>
</tr>
<tr>
<td colspan="2">Browser</td>
<td colspan="5">IE(IE10/11) for Windows<br>Firefox (version 52.0 and above) for Windows<br>Chrome(version 45 and above) for Windows<br>Edge(version 79 and above) for Windows</td>
</tr>
<tr>
<td colspan="7">Encoding</td>
</tr>
<tr>
<td colspan="2">Recording Resolution</td>
<td colspan="2">1080P Lite/720P/D1</td>
<td colspan="3">1080P Lite/720P/D1</td>
</tr>
<tr>
<td colspan="2" rowspan="3">Recording<br>Frame Rate</td>
<td><strong>Main stream</strong></td>
<td><strong>Sub stream</strong></td>
<td colspan="2"><strong>Main stream</strong></td>
<td><strong>Sub stream</strong></td>
</tr>
<tr>
<td>1080P Lite@25fps</td>
<td>D1@25fps</td>
<td colspan="2">1080P Lite@15fps</td>
<td>D1@12fps</td>
</tr>
<tr>
<td>720P@30fps</td>
<td>D1@30fps</td>
<td colspan="2">720P@15fps</td>
<td>D1@15fps</td>
</tr>
<tr>
<td colspan="2">Audio Sample Rate</td>
<td colspan="5">8KHz,16 bit per channel</td>
</tr>
<tr>
<td colspan="2">Audio Bit Rate</td>
<td colspan="5">64Kbps per channel</td>
</tr>
<tr>
<td colspan="7">Decoding</td>
</tr>
<tr>
<td colspan="2">Capability</td>
<td colspan="2">Analog:4 x 1080P Lite@25, 4 x 720P@30<br>IP: 1 x 6MP@20, 2 x 1080P@30</td>
<td colspan="3">Analog:8x 1080P Lite @15, 8x 720P @15<br>IP: 1 x 6MP@20, 2 x 1080P@30</td>
</tr>
<tr>
<td colspan="7">Hard Disk</td>
</tr>
<tr>
<td colspan="2">SATA</td>
<td colspan="5">1 SATA interface</td>
</tr>
<tr>
<td colspan="2">Capacity</td>
<td colspan="5">Up to 6TB for each HDD</td>
</tr>
<tr>
<td colspan="7">General Alarm</td>
</tr>
<tr>
<td colspan="2">General Alarm</td>
<td colspan="5">Motion detection</td>
</tr>
<tr>
<td colspan="2">Alert Alarm</td>
<td colspan="5">IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal</td>
</tr>
<tr>
<td colspan="7">External Interface</td>
</tr>
<tr>
<td colspan="2">Network Interface</td>
<td colspan="5">1 RJ45 10M/100M self-adaptive Ethernet Interface</td>
</tr>
<tr>
<td colspan="2">USB Interface</td>
<td colspan="5">Rear panel: 2 x USB2.0</td>
</tr>
<tr>
<td colspan="7">General</td>
</tr>
<tr>
<td colspan="2">Power Supply</td>
<td colspan="5">12V DC<br>Power Consumption: ≤ 10 W( without HDD )</td>
</tr>
<tr>
<td colspan="2">Working Environment</td>
<td colspan="5">-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)</td>
</tr>
<tr>
<td colspan="2">Dimensions(W×D×H)</td>
<td colspan="5">190mm × 202mm × 42mm (7.5" × 7.9" × 1.6")</td>
</tr>
<tr>
<td colspan="2">Weight ( without HDD )</td>
<td colspan="5">≤0.6 Kg ( 1.32lb )</td>
</tr>
<tr>
<td colspan="7">Certification</td>
</tr>
<tr>
<td colspan="2">Certification</td>
<td colspan="5">UL/CE/FCC /RoHS /WEEE</td>
</tr>
</tbody>
</table>

Характеристики

Запись с разрешением до: 2 Мп
Количество IP каналов: 2
Максимальная емкость одного HDD: 6 ТБ
Бренд: Uniview
Количество SATA: 1
Количество каналов: 4
