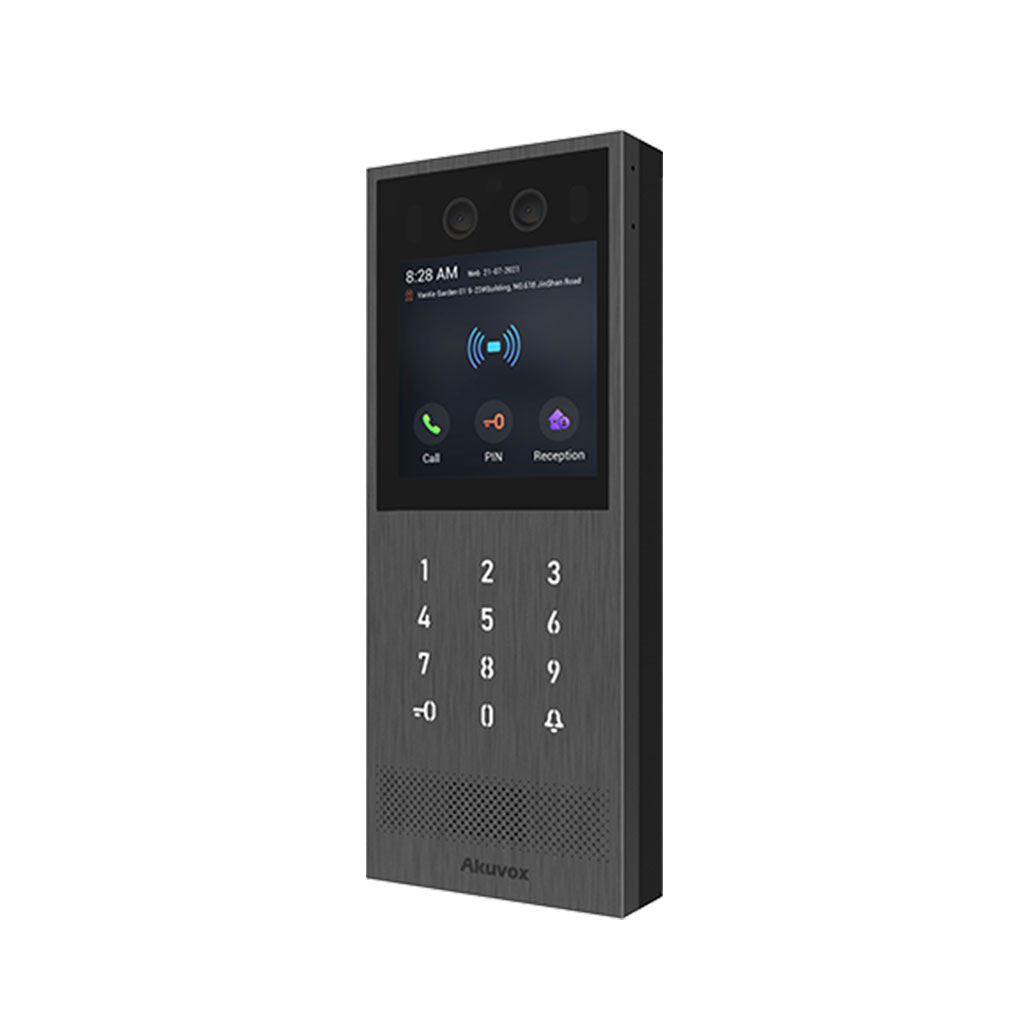

X912S Akuvox IP вызывная панель

<ul>
<li>
<h4>Physical &amp; Power</h4>
<div>
<dl>
<dd>Front panel: Stainless steel</dd>
<dd>Display: 4 Inch, color TFT LCD, touchable</dd>
<dd>Camera: 2M pixels</dd>
<dd>Numeric keypad</dd>
<dd>Gesture detection sensor: Support</dd>
<dd>Wiegand port: Support</dd>
<dd>RS485 port: Support</dd>
<dd>RF card reader: 13.56MHz &amp; 125kHz, NFC</dd>
<dd>Relays out: 2</dd>
<dd>Inputs: 3</dd>
<dd>BLE：Support</dd>
<dd>Line out: 1</dd>
<dd>Microphone: 1</dd>
<dd>Speaker: 1</dd>
<dd>Power out: 12V/1A（Max.）</dd>
<dd>Ethernet port: RJ45, 10/100Mbps adaptive</dd>
<dd>802.3at Power-over-Ethernet</dd>
<dd>12V DC connector (if not using PoE+)</dd>
<dd>IP &amp; IK rate: IP65 &amp; IK10</dd>
<dd>Installation: Wall-mounted</dd>
<dd>Dimension: 234×94.5x34mm</dd>
<dd>Working Humidity: 10~90%</dd>
<dd>Working Temperature: -20°C ~ +60°C</dd>
<dd>Storage Temperature: -40°C ~ +70°C</dd>
</dl>
</div>
</li>
<li>
<h4>Audio</h4>
<div>
<dl>
<dd>SIP v1 (RFC2543), SIP v2 (RFC3261)</dd>
<dd>Narrowband audio codec: G.711a, G.711μ</dd>
<dd>Wideband audio codec: G.722</dd>
<dd>DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info</dd>
<dd>Echo Cancellation</dd>
<dd>Voice Activation Detection</dd>
<dd>Comfort Noise Generator</dd>
</dl>
</div>
</li>
<li>
<h4>Video</h4>
<div>
<dl>
<dd>Sensor: 1/2.8”, CMOS for main camera</dd>
<dd>Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p</dd>
<dd>Video codec: H.264</dd>
<dd>Video technology: HDR</dd>
<dd>Video resolution: up to 1920×1080</dd>
<dd>Max. image transfer rate: 1080p – 30fps</dd>
<dd>Viewing angle: 125°(H) / 65°(V)</dd>
<dd>Compatible to 3rd-Party-Video components, e.g. NVRs</dd>
</dl>
</div>
</li>
<li>
<h4>Networking and Protocol</h4>
<div>
<dl>
<dd>Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP</dd>
</dl>
</div>
</li>
<li>
<h4>Door Entry Feature</h4>
<div>
<dl>
<dd>Relays controlled individually by DTMF tones</dd>
<dd>Multi-way Unlock: Face, IC/ID Card, PIN and BLE</dd>
<dd>Camera permanently operational</dd>
<dd>White balance: auto</dd>
<dd>Minimum illumination: 0.1LUX</dd>
</dl>
</div>
</li>
<li>
<h4>Deployment &amp; Maintenance</h4>
<div>
<dl>
<dd>Auto-Provisioning</dd>
<dd>Web management portal</dd>
<dd>Web-based packet dump</dd>
<dd>Configuration backup / restore</dd>
<dd>Entry log export</dd>
<dd>Access table export / import</dd>
<dd>Firmware upgrade</dd>
<dd>System logs (include door access logs)</dd>
</dl>
</div>
</li>
<li>
<h4>Application Scenario</h4>
<div>
<dl>
<dd>Provides resident / visitor access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings</dd>
</dl>
</div>
</li>
</ul>

Характеристики

Бренд: Akuvox
