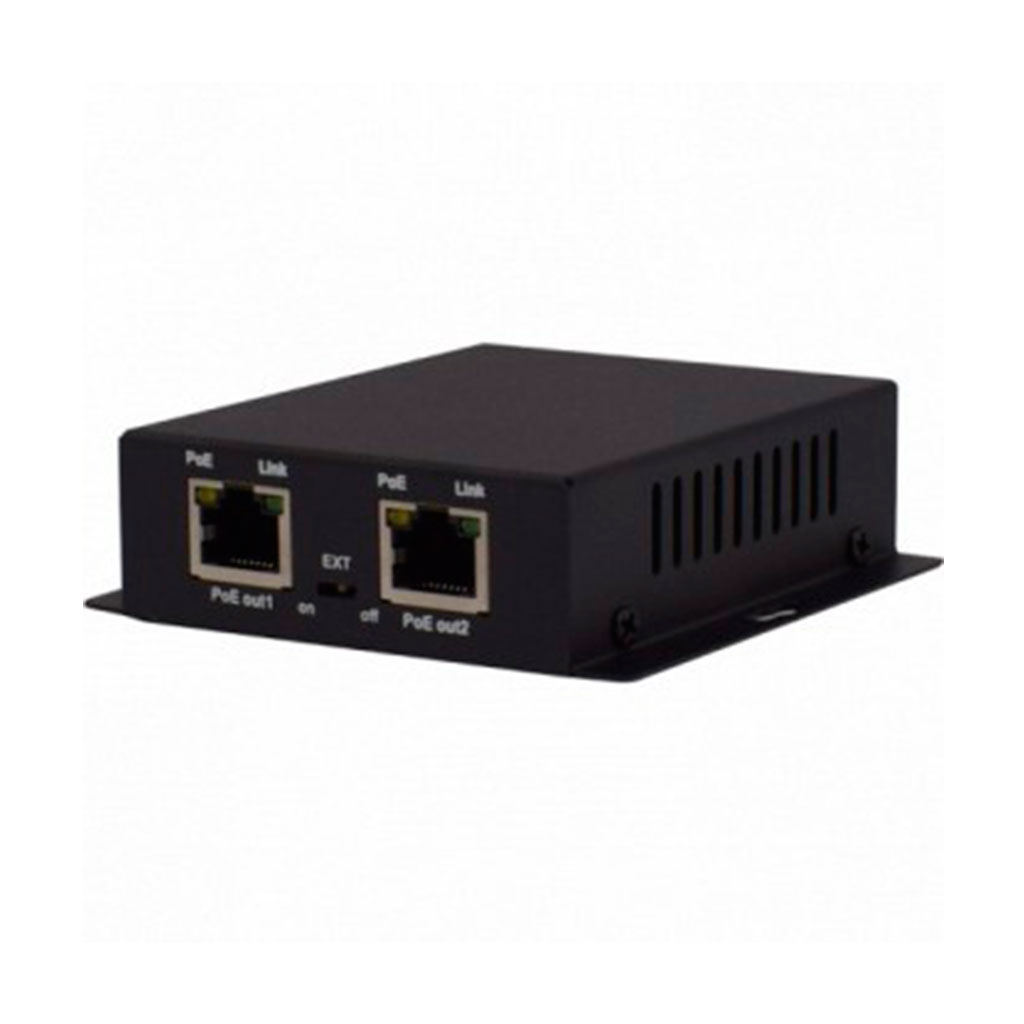

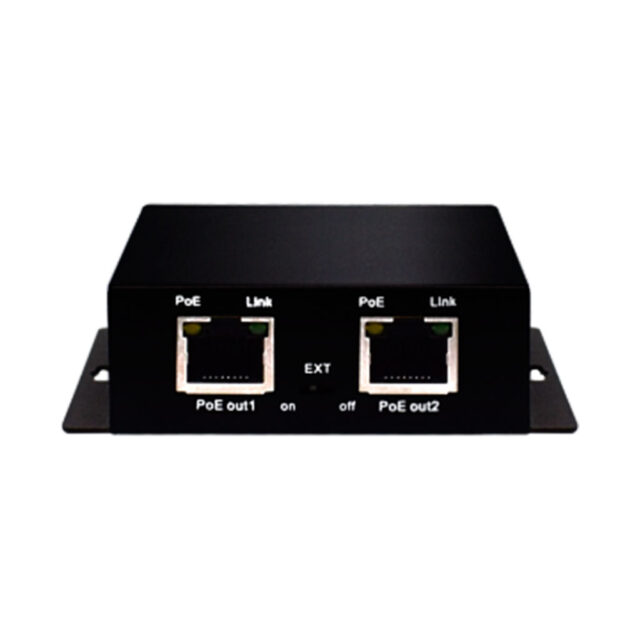

WI-PE31E Wi-Tek Повторитель PoE

<table>
<tbody>
<tr>
<td>HARDWARE FEATURES&nbsp;</td>
<td>WI-PE31E</td>
</tr>
<tr>
<td>Interface</td>
<td>PoE in port： 1 x 100Mbps PoE port with 802.3af/at 30W DC input port: 48-55V PoE output port: 2 x 100Mbps PoE port with 802.3at/at 30W</td>
</tr>
<tr>
<td>&nbsp;Network Media</td>
<td>10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m)EIA/TIA-568 100Ω STP (Max 100m)</td>
</tr>
<tr>
<td>Fan Quantity</td>
<td>Fanless</td>
</tr>
<tr>
<td>PoE PIN</td>
<td>PoE IN: 4/5(+)&nbsp;7/8(-)or 1/2(+)&nbsp;3/6(-) PoE OUT: 4/5(+)&nbsp;7/8(-)or 1/2(+)3/6(-)</td>
</tr>
<tr>
<td>LED Indicator</td>
<td>PWR, Link</td>
</tr>
<tr>
<td>DIP Switch</td>
<td>Extend</td>
</tr>
<tr>
<td>250m Long Distance</td>
<td>Yes</td>
</tr>
<tr>
<td>Transmission Method</td>
<td>Store-And-Forward</td>
</tr>
<tr>
<td>Advanced Functions</td>
<td>Mac Address Auto-Learning And Auto-Aging Store and forward IEEE 802.3x flow control for Full-duplex Mode Backpressure for Half-duplex Mode</td>
</tr>
<tr>
<td colspan="2">OTHERS</td>
</tr>
<tr>
<td>Certification</td>
<td>CE, FCC, RoHS</td>
</tr>
<tr>
<td>Package Dimension</td>
<td>125×97×40mm</td>
</tr>
<tr>
<td>Switch Dimension</td>
<td>86×84×25mm</td>
</tr>
<tr>
<td>Gross Weight</td>
<td>0.17kg</td>
</tr>
<tr>
<td>Net Weight</td>
<td>0.14kg</td>
</tr>
<tr>
<td>Operating Temperature</td>
<td>&nbsp;0°C~40°C</td>
</tr>
<tr>
<td>Package Contents</td>
<td>1 x PoE Extender 1*Installation Guide</td>
</tr>
</tbody>
</table>

Характеристики

Размер: 86×84×25мм
Рабочая температура: 0°C~40°C
Количество PoE портов: 2
Количество портов 100Mbps: 2
Бренд: Wi-Tek
