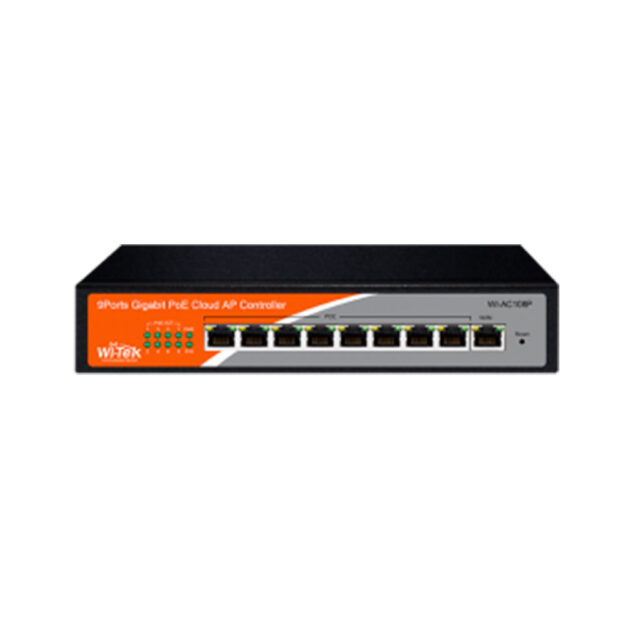

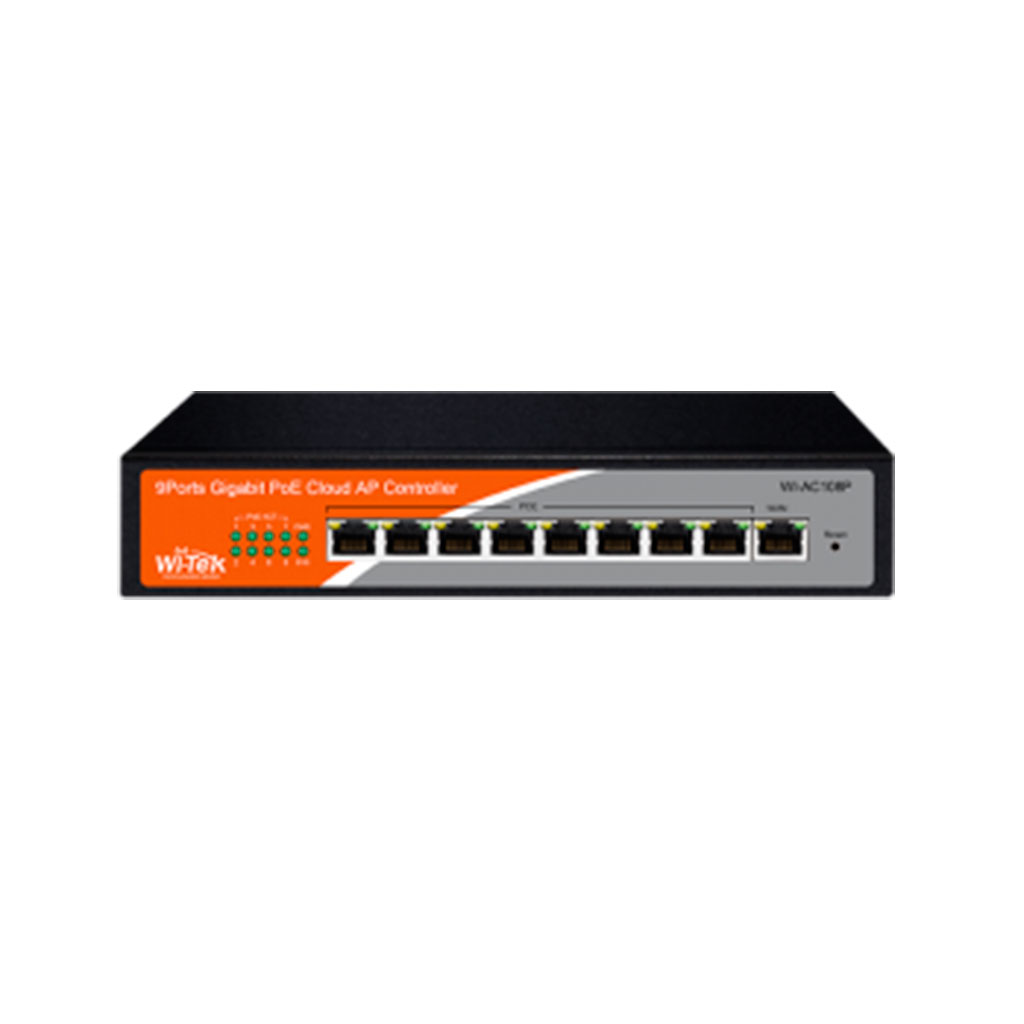

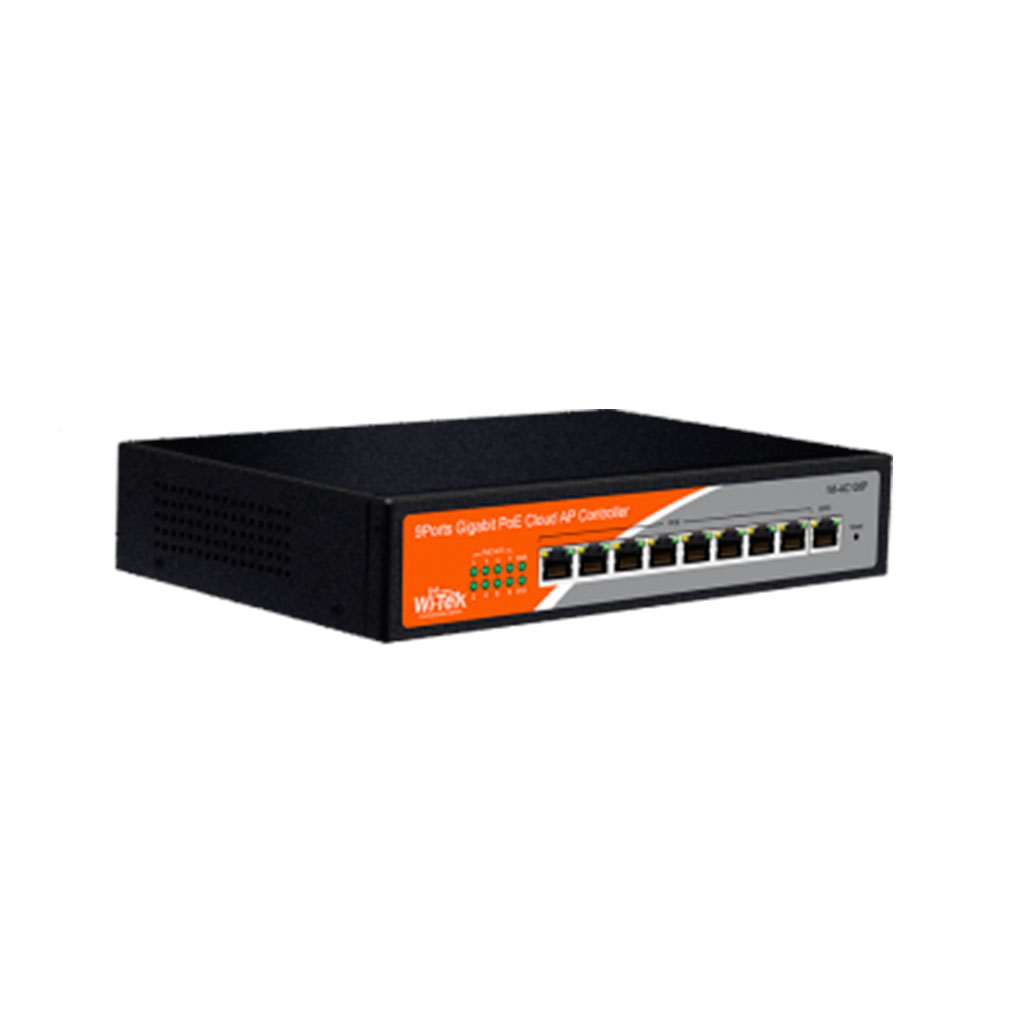

WI-AC108P Wi-Tek Аппаратный контроллер

<table>
<tbody>
<tr>
<td colspan="2">
<p><strong>Hardware Specifications</strong></p>
</td>
</tr>
<tr>
<td>
<p>Interface</p>
</td>
<td>
<p>9*10/100/1000M Base-T Ethernet ports,<br>(Default: 1 WAN port, 8 LAN ports)</p>
</td>
</tr>
<tr>
<td>
<p>PoE Out</p>
</td>
<td>
<p>802.3af/at*8</p>
</td>
</tr>
<tr>
<td>
<p>RAM</p>
</td>
<td>
<p>256MB</p>
</td>
</tr>
<tr>
<td>
<p>Flash</p>
</td>
<td>
<p>16MB</p>
</td>
</tr>
<tr>
<td>
<p>AP Unified Configuration</p>
</td>
<td>
<p>64APs</p>
</td>
</tr>
<tr>
<td>
<p>Recommended bandwidth</p>
</td>
<td>
<p>Up to 500M</p>
</td>
</tr>
<tr>
<td>
<p>Power supply</p>
</td>
<td>
<p>AC:100-240V</p>
</td>
</tr>
<tr>
<td>
<p>Power consumption</p>
</td>
<td>
<p>150W (With PoE load)</p>
</td>
</tr>
<tr>
<td>
<p>Dimensions</p>
</td>
<td>
<p>230mm * 150mm * 45mm</p>
</td>
</tr>
<tr>
<td>
<p>Environment</p>
</td>
<td>
<p>Temperature: -20°C ~ +50°C (working), -40°C ~ +70°C (storage) Humidity (non-condensing): 5% to 90% (working), 5% to 95% (storage)</p>
</td>
</tr>
<tr>
<td colspan="2">
<p><strong>Software Features</strong></p>
</td>
</tr>
<tr>
<td>
<p>Network Access</p>
</td>
<td>
<p>PPPoE dial-up, DHCP client, static IP</p>
</td>
</tr>
<tr>
<td>
<p>Routing</p>
</td>
<td>
<p>Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams</p>
</td>
</tr>
<tr>
<td>
<p>Security</p>
</td>
<td>
<p>ACL, DHCP static assignment, MAC address filtering dynamic ARP, static ARP binding, NAT, port mapping</p>
</td>
</tr>
<tr>
<td>
<p>Other protocols</p>
</td>
<td>
<p>DHCP Server, DHCP Client, DHCP Option43/138, DNS Server, DDNS</p>
</td>
</tr>
<tr>
<td>
<p>Application recognition</p>
</td>
<td>
<p>Support WAN Load Balancing<br>Supports the Onvif protocol<br>Support 802.1Q VLAN TAG<br>Support SD-LAN</p>
</td>
</tr>
<tr>
<td>
<p>Flow control</p>
</td>
<td>
<p>Support custom flow control polices, IP-based automatic bandwidth assignment</p>
</td>
</tr>
<tr>
<td>
<p>Traffic audit</p>
</td>
<td>
<p>Real-time traffic audit, IP Traffic visualization</p>
</td>
</tr>
<tr>
<td>
<p>Authentication</p>
</td>
<td>
<p>Captive portal: One Key Auth,Pre-Shared Password Local User Auth,Voucher,Facebook,SMS Auth,RADIUS Auth, Summary for Captive Portal</p>
</td>
</tr>
<tr>
<td>
<p>VPN</p>
</td>
<td>
<p>Open VPN /PPTP/L2TP / IPsec</p>
</td>
</tr>
<tr>
<td>
<p>Behavior management</p>
</td>
<td>
<p>Time-based and IP policy-based access control, website filtering</p>
</td>
</tr>
<tr>
<td>
<p>AP management</p>
</td>
<td>
<p>Support Auto AP Discovery, RF optimization, Batch configuration, Overview View, Multi-SSID configuration, SSID hiding, channel setting, Tx power setting, AP online upgrade, STA blacklist and whitelist</p>
</td>
</tr>
<tr>
<td>
<p>Management</p>
</td>
<td>
<p>Support local management with web Support remote management with Wi-Tek Cloud platform</p>
</td>
</tr>
</tbody>
</table>

Характеристики

Бренд: Wi-Tek
Количество портов 1000Mbps: 9
Количество PoE портов: 8
