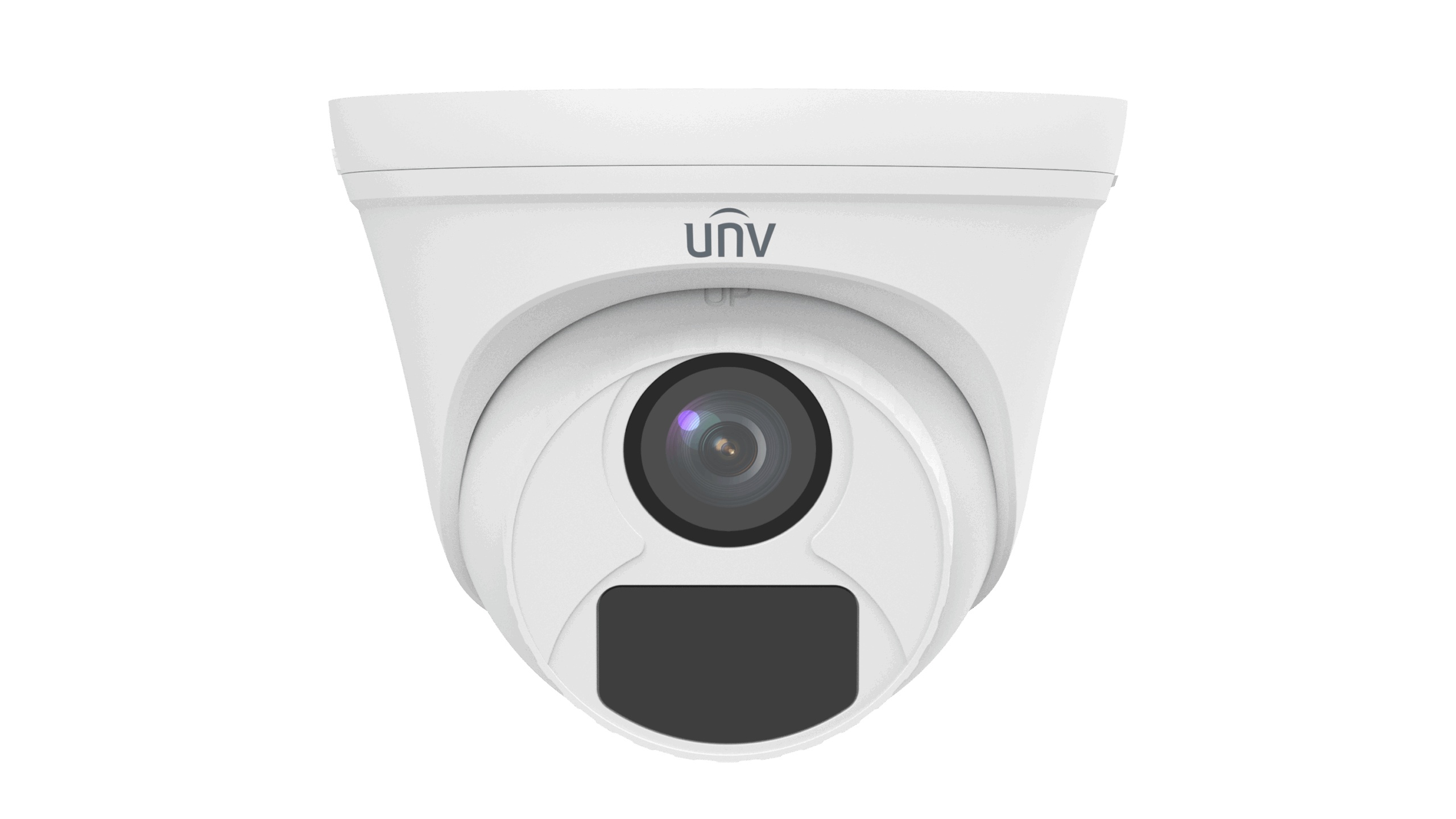

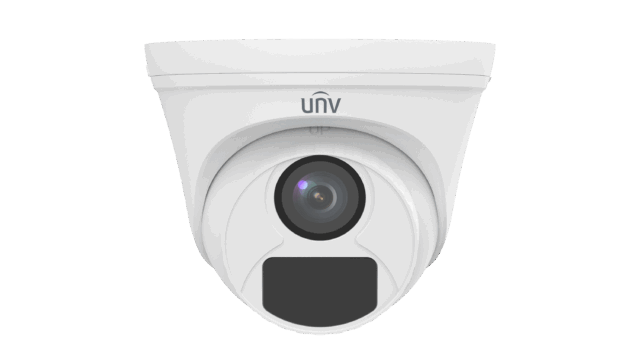

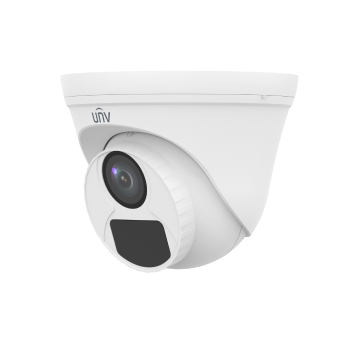

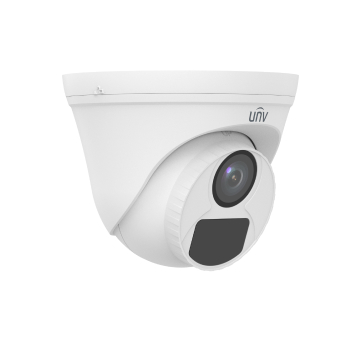

UAC-T112-F28-X Купольная IP видеокамера

  UAC-T112-F28-X UAC-T112-F40-X Camera Max Resolution 2 MP Sensor Size 1/3.0″ CMOS Min. Illumination 0.02 lux (F2.0, AGC ON)0 lux (IR on) Lens Focus 2.8 mm 4.0 mm Lens Mount M12 Angle of View (H) 90.5° 80.2° Angle of View (V) 49.6° 40.7° Angle of View (D) 109.5° 90.5° Illuminator Illuminator Number One IR illuminator Illumination Distance 20m Lifetime ≥ 60000 hours Video Resolution 1080P: 1920(H)×1080(V)720P: 1280(H) ×720(V) Frame Rate TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fpsAHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fpsCVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fpsCVBS: PAL, NTSC Shutter Time PAL: 1/25 s-1/50000 s, NTSC: 1/30 s-1/50000 s Image Exposure Mode Four modes: Global (default), BLC, HLC, DWDR Day/Night Three modes: Auto (default), Day, Night Digital Noise Reduction 2D/3D White Balance Two modes: Auto (default), Manual WDR DWDR Smart IR Support Flip Supports 180°horizontal flip, 180°vertical flip Interface Power Interface 5.5 mm Power Interface Video Output BNC, supports TVI/AHD/CVI/CVBS Operating Environment Temperature -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) Humidity ≤ 95% RH (non-condensing) Surge Protection 4 KV for power, 4 KV for video output interfaces General Power DC 12 V±25% Power Consumption MAX 2.0W Mount Wall Mount, Pole Mount, Corner Mount, Pendant Mount Dimensions Φ118mm*96mm (diameter*height) Material Plastic Weight 182g(0.40lb) OSD Menu Language 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish Certification EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) Safety CE-LVD (EN 62368-1) Environment CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) Protection IP67 (IEC 60529)
