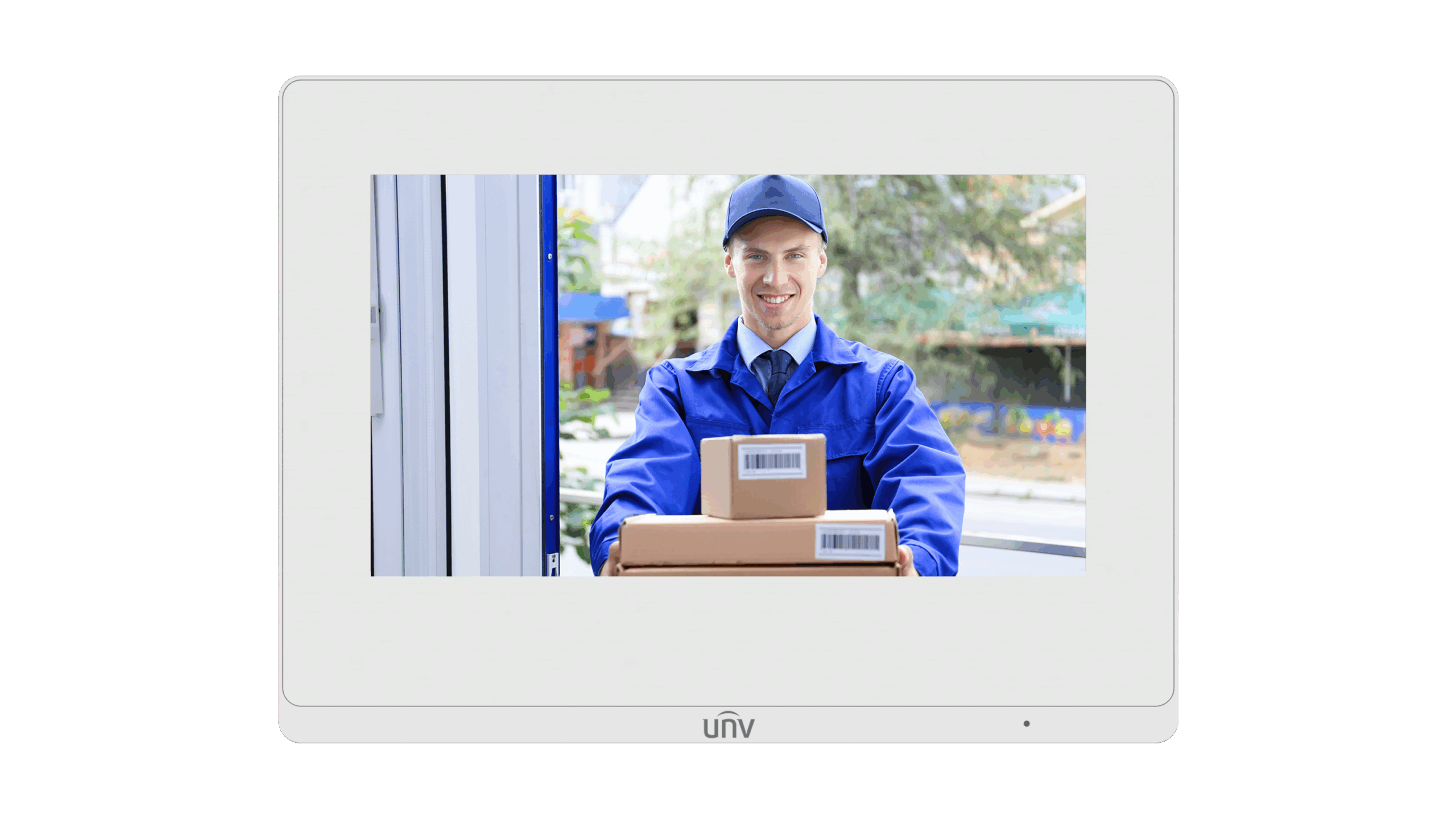

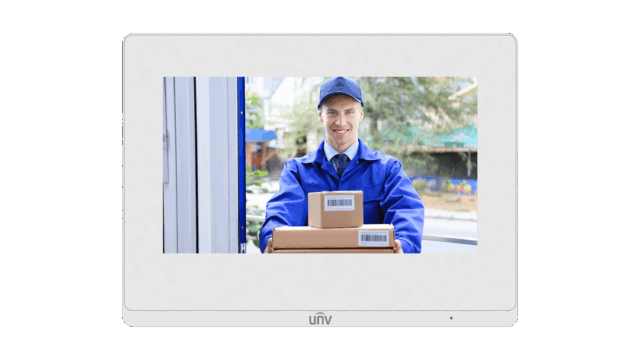

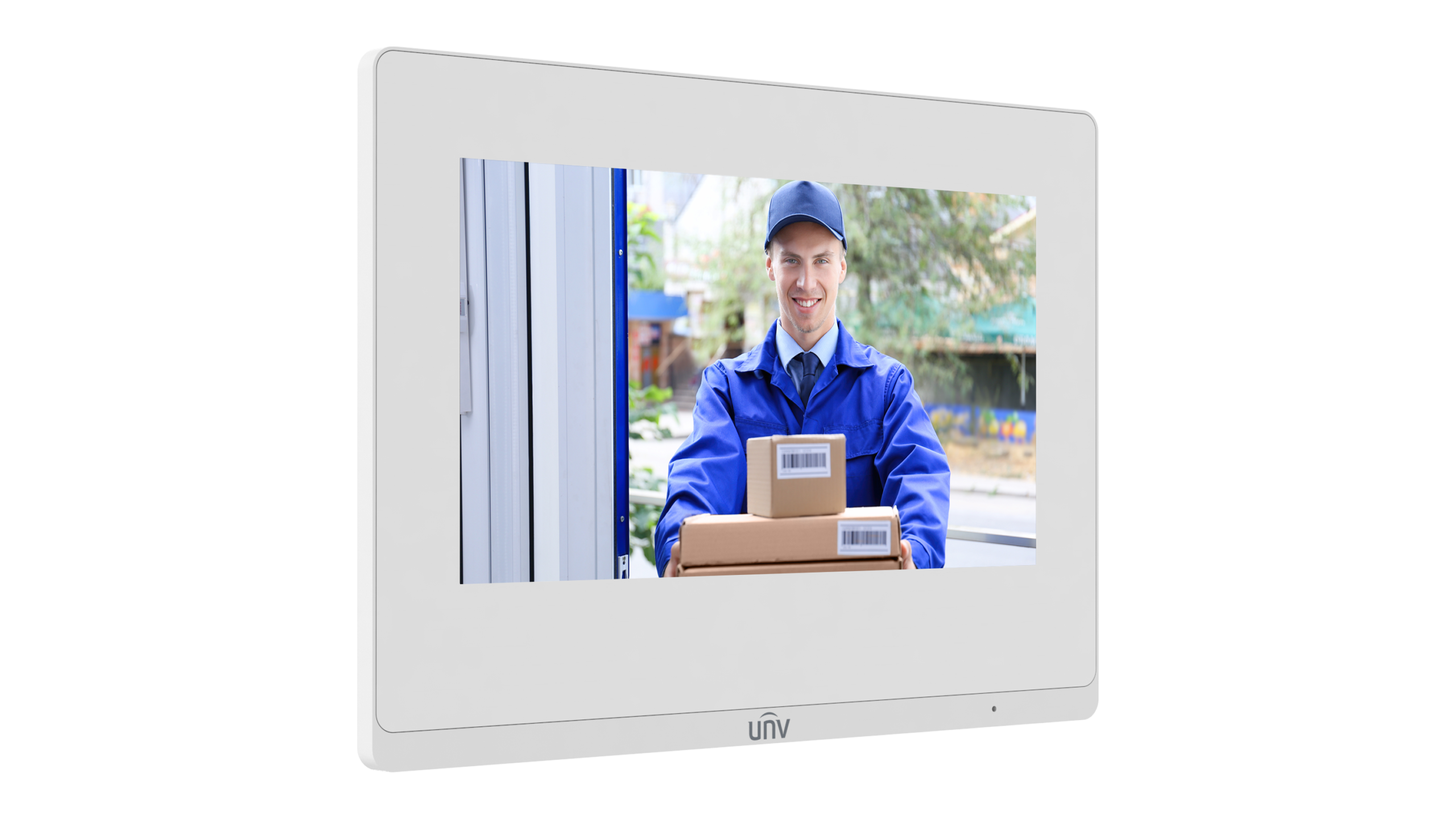

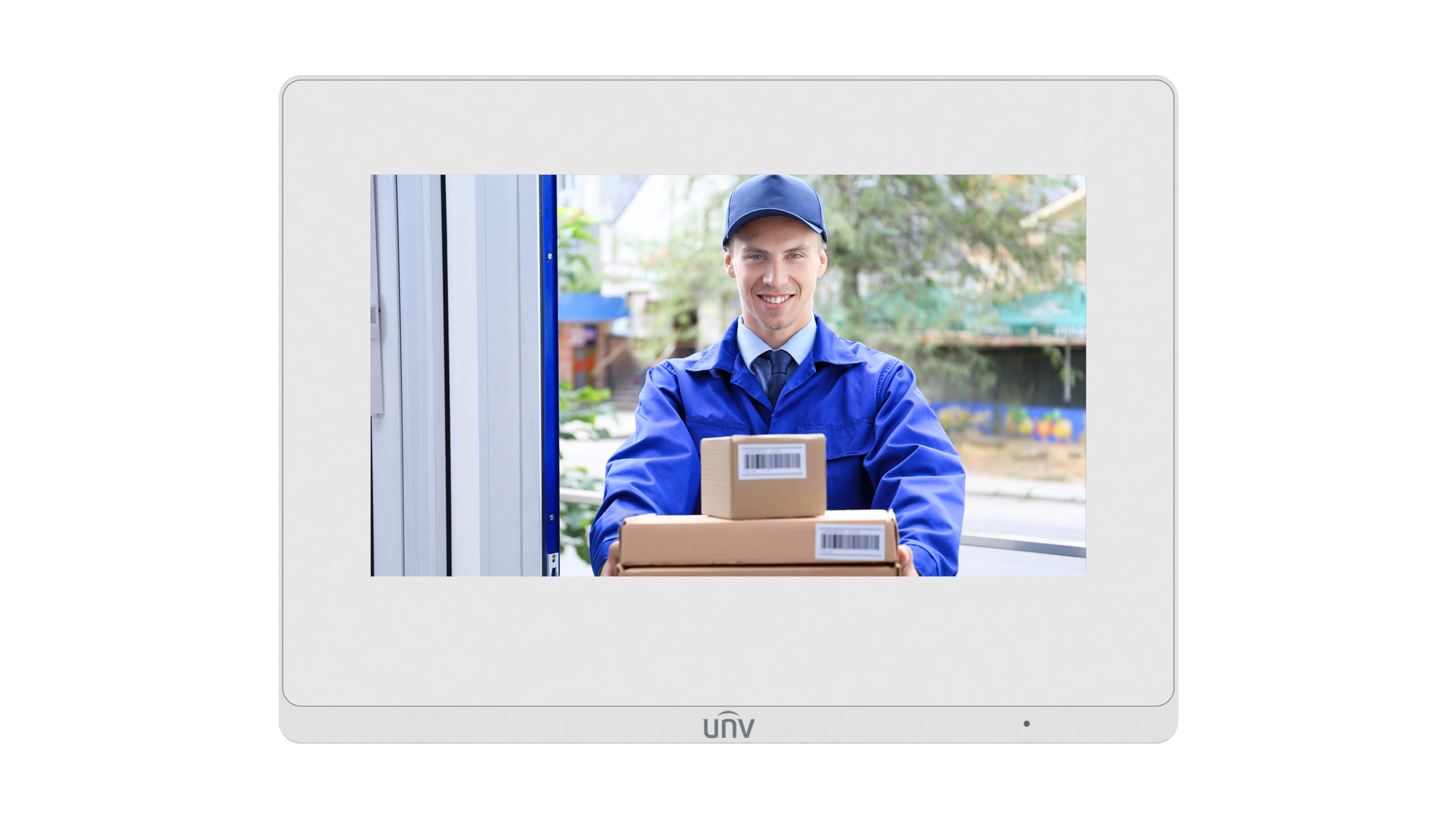

OEI-372S-H-W-Z Настенная 7-дюймовая внутренняя станция (белая, Wi-Fi)

<table width="100%"><tbody><tr><td class="thead" width="30%">&nbsp;</td><td class="thead" width="70%" colspan="8">OEI-372S-H-W-Z</td></tr><tr><td class="thead" colspan="9">Hardware Specification<b></b></td></tr><tr><td>Power Supply</td><td colspan="8">DC12V±25%,IEEE802.3af, Standard PoE</td></tr><tr><td>Power Consumption</td><td colspan="8">＜10W</td></tr><tr><td>Screen</td><td colspan="8">7-inch ultra-thin TFT LCD screen</td></tr><tr><td>Screen Resolution</td><td colspan="8">1024×600</td></tr><tr><td>Operation System</td><td colspan="8">Linux</td></tr><tr><td>Audio Quality</td><td colspan="8">Noise suppression,echo cancellation and AGC</td></tr><tr><td>Audio Input</td><td colspan="8">1 built-in omnidirectional microphone</td></tr><tr><td>Audio Output</td><td colspan="8">1 built-in speaker</td></tr><tr><td>Audio Compression Standard</td><td colspan="8">MP3 G711</td></tr><tr><td>Audio Compression Bitrate</td><td colspan="8">128Kbps</td></tr><tr><td>Interface</td><td colspan="8">Power*1, network*1, WiFi*1,RS485*1, IO output*2, IO input*8, TF card slot*1</td></tr><tr><td>Network</td><td colspan="8">100Mbps network port, supports IEEE802.3af PoE power supply,WIFI4、2.4GHZ</td></tr><tr><td>Weight</td><td colspan="8">360g</td></tr><tr><td>Dimensions (L x W x H)</td><td colspan="8">193mm×143mm×25mm</td></tr><tr><td>Operating Environment</td><td colspan="8">-10°C to +55°C, 10% to 90%, non-condensing, indoor</td></tr><tr><td class="thead" colspan="9">Basic Business<b></b></td></tr><tr><td>Protocol</td><td colspan="8">UNV private protocol</td></tr><tr><td>Network protocol</td><td colspan="8">TCP/IP, IPv4, HTTP, RTP, RTSP, NTP</td></tr><tr><td class="thead" colspan="9">Specification Index<b></b></td></tr><tr><td>Capacity</td><td colspan="8">200 ScreenShots<br>200 Zone Alarms<br>A total of 20 connected devices, including IPCs, entrance stations, NVRs (up to 2), and Doorbells</td></tr><tr><td>Linked Indoor Station Capacity</td><td colspan="8">19 extensions</td></tr></tbody></table>

Характеристики

Бренд: Uniview
