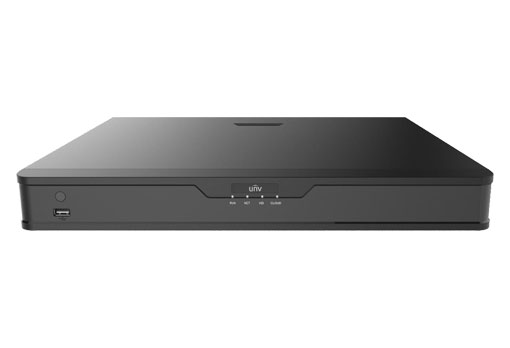

NVR302-16S2 16-ти канальный видеорегистратор

<table width="100%">
<tbody>
<tr>
<td width="20%">Model</td>
<td width="40%">NVR302-09S2</td>
<td width="40%">NVR302-16S2</td>
</tr>
<tr>
<td colspan="3">Video/Audio Input</td>
</tr>
<tr>
<td>IP Video Input</td>
<td>9-ch</td>
<td>16-ch</td>
</tr>
<tr>
<td>Two-way Audio Input</td>
<td colspan="2">1-ch, RCA</td>
</tr>
<tr>
<td colspan="3">Network</td>
</tr>
<tr>
<td>Incoming bandwidth</td>
<td colspan="2">160Mbps</td>
</tr>
<tr>
<td>Outgoing bandwidth</td>
<td colspan="2">64Mbps</td>
</tr>
<tr>
<td>Remote Users</td>
<td colspan="2">128</td>
</tr>
<tr>
<td>Protocols</td>
<td colspan="2">P2P, UPnP, NTP, DHCP, PPPoE</td>
</tr>
<tr>
<td colspan="3">Video/Audio Output</td>
</tr>
<tr>
<td>HDMI/VGA Output</td>
<td colspan="2">HDMI:<br>4K (3840×2160)@30, 1920x1080p@60, 1920x1080p@50, 1600×1200@60, 1280×1024@60, 1280×720@60, 1024×768@60<br>VGA:<br>1920x1080p@60, 1920x1080p@50, 1280×1024@60, 1280×720@60, 1024×768@60</td>
</tr>
<tr>
<td>Audio Output</td>
<td colspan="2">1-ch, RCA</td>
</tr>
<tr>
<td>Recording Resolution</td>
<td colspan="2">8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF</td>
</tr>
<tr>
<td>Synchronous Playback</td>
<td>9-ch</td>
<td>16-ch</td>
</tr>
<tr>
<td>Corridor Mode Screen</td>
<td>3/4/5/7/9</td>
<td>3/4/5/7/9/10/12/16</td>
</tr>
<tr>
<td colspan="3">Decoding</td>
</tr>
<tr>
<td>Decoding format</td>
<td colspan="2">Ultra265/H.265/H.264</td>
</tr>
<tr>
<td>Live view/Playback</td>
<td colspan="2">8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF</td>
</tr>
<tr>
<td>Capability</td>
<td>2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 9 x 1080p@25</td>
<td>2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30</td>
</tr>
<tr>
<td colspan="3">Hard Disk</td>
</tr>
<tr>
<td>SATA</td>
<td colspan="2">2 SATA interfaces</td>
</tr>
<tr>
<td>Capacity</td>
<td colspan="2">up to 6TB for each disk</td>
</tr>
<tr>
<td colspan="3">External Interface</td>
</tr>
<tr>
<td>Network Interface</td>
<td colspan="2">2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface</td>
</tr>
<tr>
<td>USB Interface</td>
<td colspan="2">Rear panel: 1 x USB2.0, 1 x USB3.0 Front panel: 1 x USB2.0</td>
</tr>
<tr>
<td colspan="3">General</td>
</tr>
<tr>
<td>Power Supply</td>
<td colspan="2">12V DC<br>Power Consumption: ≤ 15 W (without HDD)</td>
</tr>
<tr>
<td>Working Environment</td>
<td colspan="2">-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)</td>
</tr>
<tr>
<td>Dimensions (W×D×H)</td>
<td colspan="2">380mm × 315mm ×53mm (15.0" × 12.4" ×2.1")</td>
</tr>
<tr>
<td>Weight (without HDD)</td>
<td colspan="2">≤ 0.98Kg (2.16lb)</td>
</tr>
</tbody>
</table>

Характеристики

Бренд: Uniview
Количество SATA: 2
Количество каналов: 16
