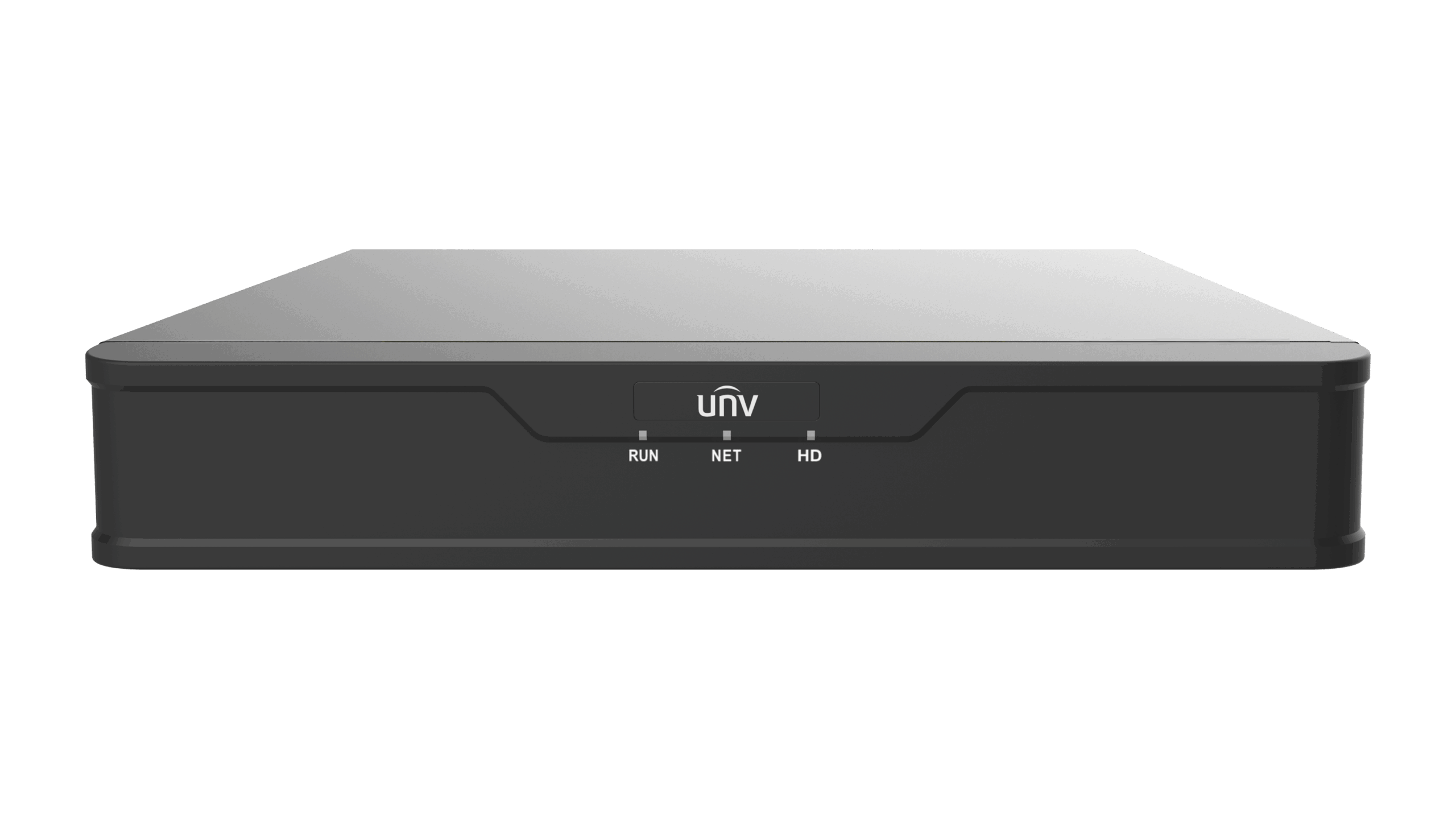

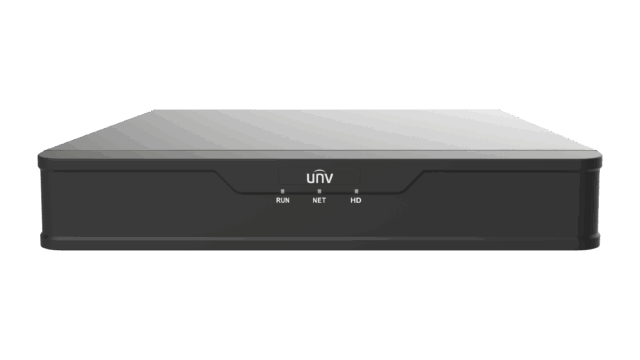

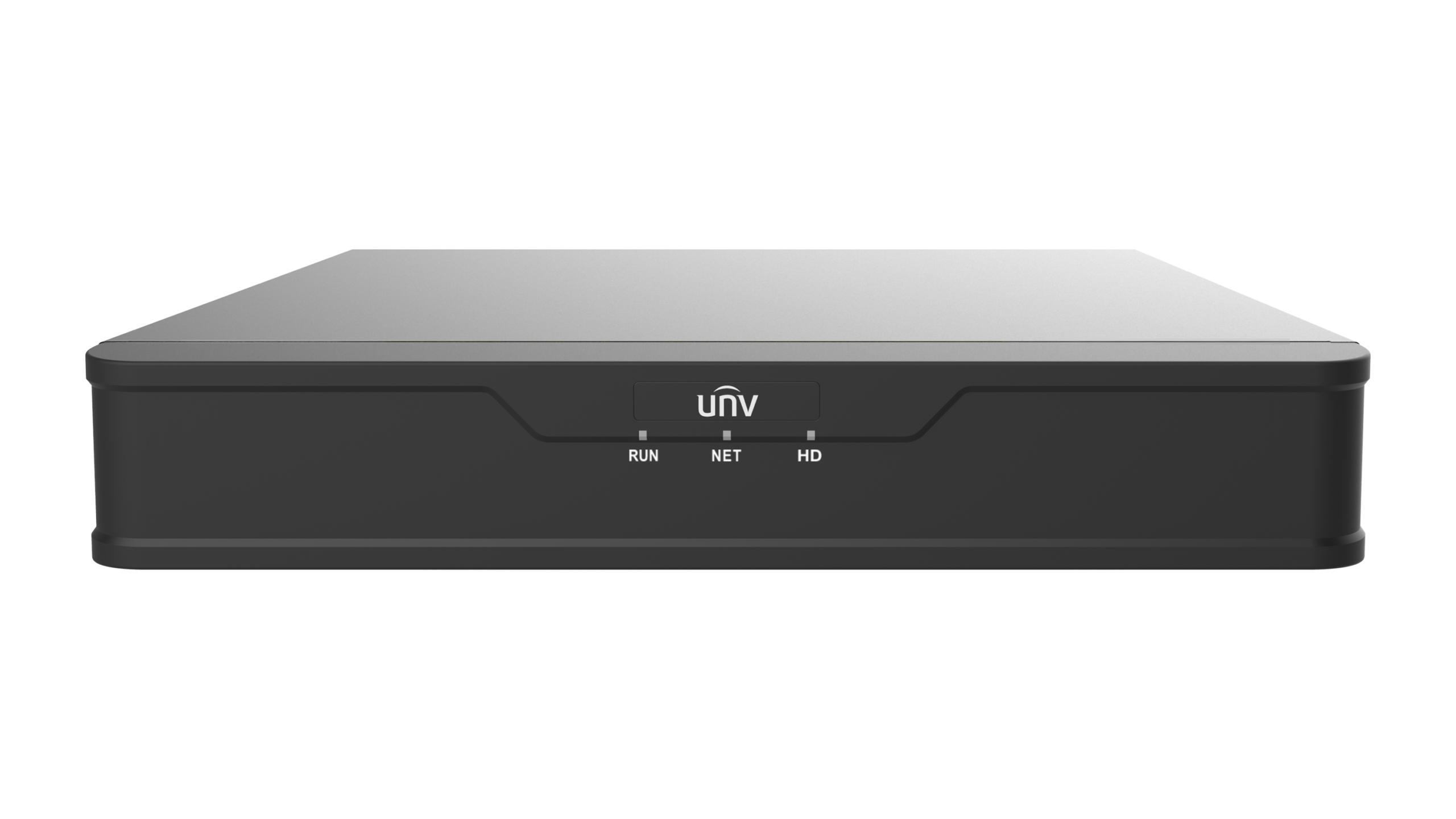

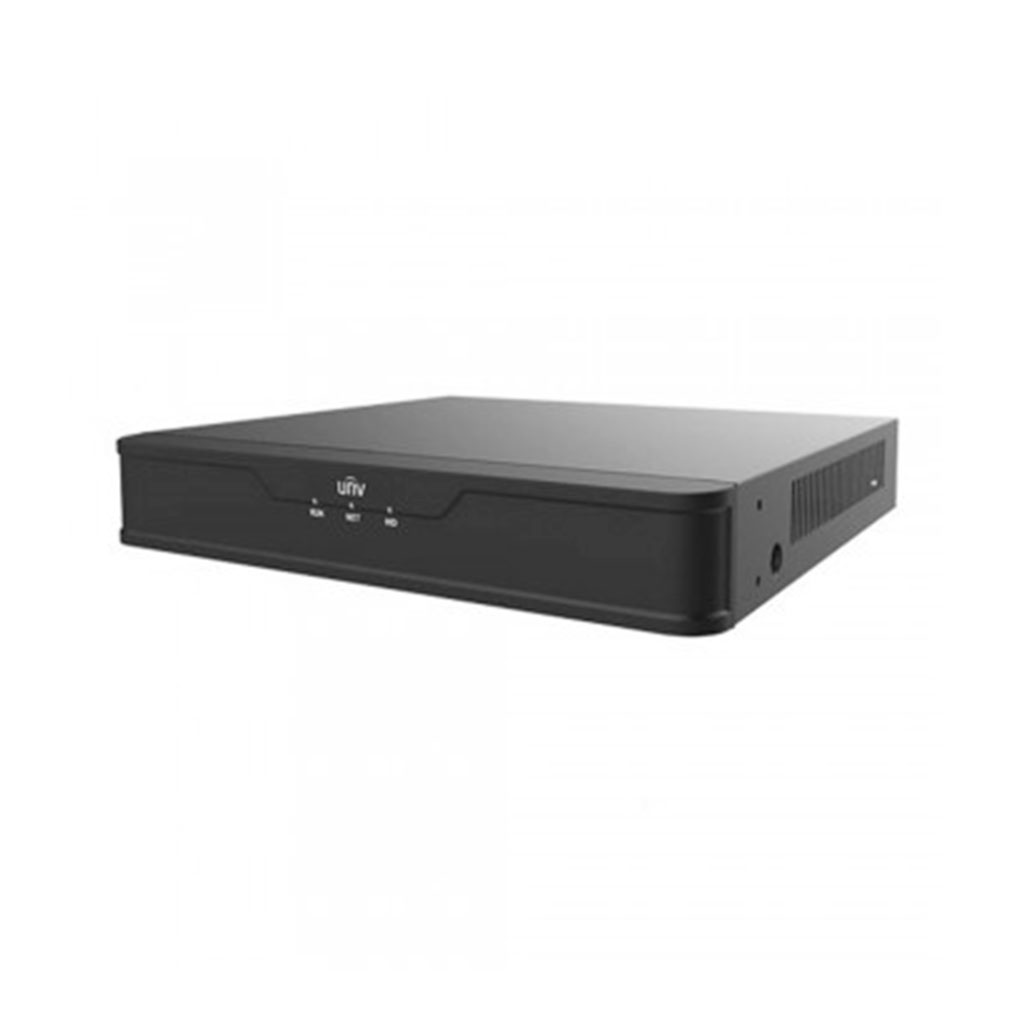

NVR301-04S3 4-х канальный IP видеорегистратор

<table width="100%">
<tbody>
<tr>
<td width="25%">Model</td>
<td width="25%">NVR301-04S3</td>
<td width="25%">NVR301-08S3</td>
<td width="25%">NVR301-16S3</td>
</tr>
<tr>
<td colspan="4">Video/Audio Input</td>
</tr>
<tr>
<td>IP Video Input</td>
<td>4-ch(up to 6 after channel expansion)</td>
<td>8-ch(up to 10 after channel expansion)</td>
<td>16-ch</td>
</tr>
<tr>
<td colspan="4">Network</td>
</tr>
<tr>
<td>Incoming Bandwidth</td>
<td colspan="3">64Mbps</td>
</tr>
<tr>
<td>Outgoing Bandwidth</td>
<td colspan="3">48Mbps</td>
</tr>
<tr>
<td>Remote Users</td>
<td colspan="3">128</td>
</tr>
<tr>
<td>Protocols</td>
<td colspan="3">P2P, UPnP, NTP, DHCP, PPPoE</td>
</tr>
<tr>
<td colspan="4">Video/Audio Output</td>
</tr>
<tr>
<td>HDMI/VGA Output</td>
<td colspan="3">HDMI:<br>3840×2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz<br>VGA:<br>1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz</td>
</tr>
<tr>
<td>Recording Resolution</td>
<td colspan="3">4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF</td>
</tr>
<tr>
<td>Audio Output</td>
<td colspan="3">1-ch, 3.5mm</td>
</tr>
<tr>
<td>Synchronous Playback</td>
<td>4-ch</td>
<td>8-ch</td>
<td>16-ch</td>
</tr>
<tr>
<td>Corridor Mode Screen</td>
<td>3/4</td>
<td>3/4/5/7/9</td>
<td>3/4/5/7/9/10/12/16</td>
</tr>
<tr>
<td colspan="4">Decoding</td>
</tr>
<tr>
<td>Decoding format</td>
<td colspan="3">Ultra 265/H.265/H.264</td>
</tr>
<tr>
<td>Liveview/Playback</td>
<td colspan="3">4K/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF</td>
</tr>
<tr>
<td>Capability</td>
<td>1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4 x 1080p@30</td>
<td>1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4x 1080p@30, 8 x 720p@30</td>
<td>1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4x 1080p@30, 8 x 720p@30, 16 x D1@25</td>
</tr>
<tr>
<td colspan="4">Hard Disk</td>
</tr>
<tr>
<td>SATA</td>
<td colspan="3">1 SATA interface</td>
</tr>
<tr>
<td>Capacity</td>
<td colspan="3">up to 6TB for each disk</td>
</tr>
<tr>
<td colspan="4">External Interface</td>
</tr>
<tr>
<td>Network Interface</td>
<td colspan="3">1 RJ45 10M/100M self-adaptive Ethernet Interface</td>
</tr>
<tr>
<td>USB Interface</td>
<td colspan="3">Rear panel: 2 x USB2.0</td>
</tr>
<tr>
<td colspan="4">General</td>
</tr>
<tr>
<td>Power Supply</td>
<td colspan="3">12V DC<br>Power Consumption: ≤5 W (without HDD)</td>
</tr>
<tr>
<td>Working Environment</td>
<td colspan="3">-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)</td>
</tr>
<tr>
<td>Dimensions (W×D×H)</td>
<td colspan="3">260mm × 240mm × 46mm (10.2"×9.4"×1.8 ")</td>
</tr>
<tr>
<td>Weight (without HDD)</td>
<td colspan="3">≤0.98kg (2.16 lb)</td>
</tr>
</tbody>
</table>

Характеристики

Бренд: Uniview
Количество SATA: 1
Количество каналов: 4
