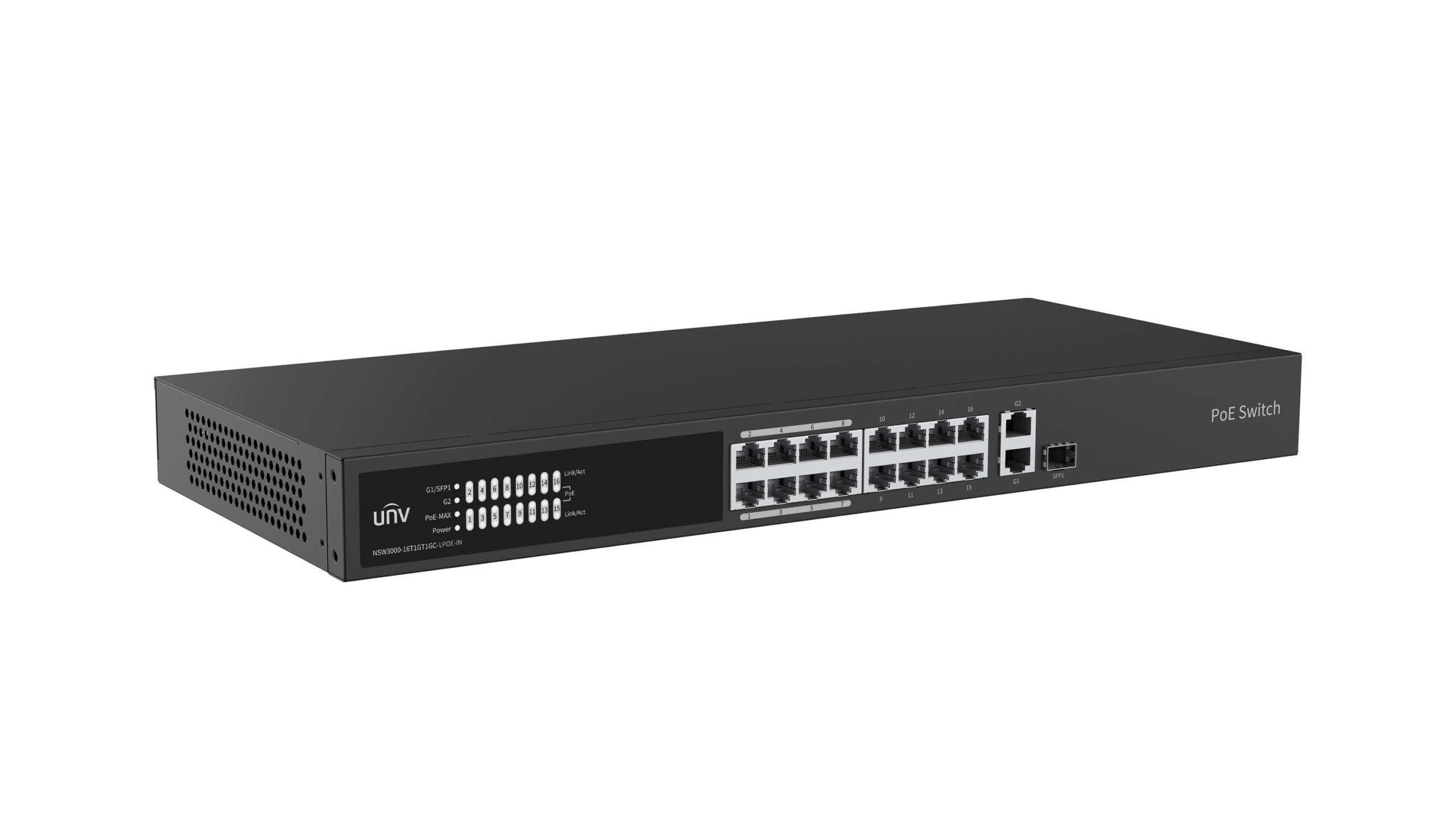

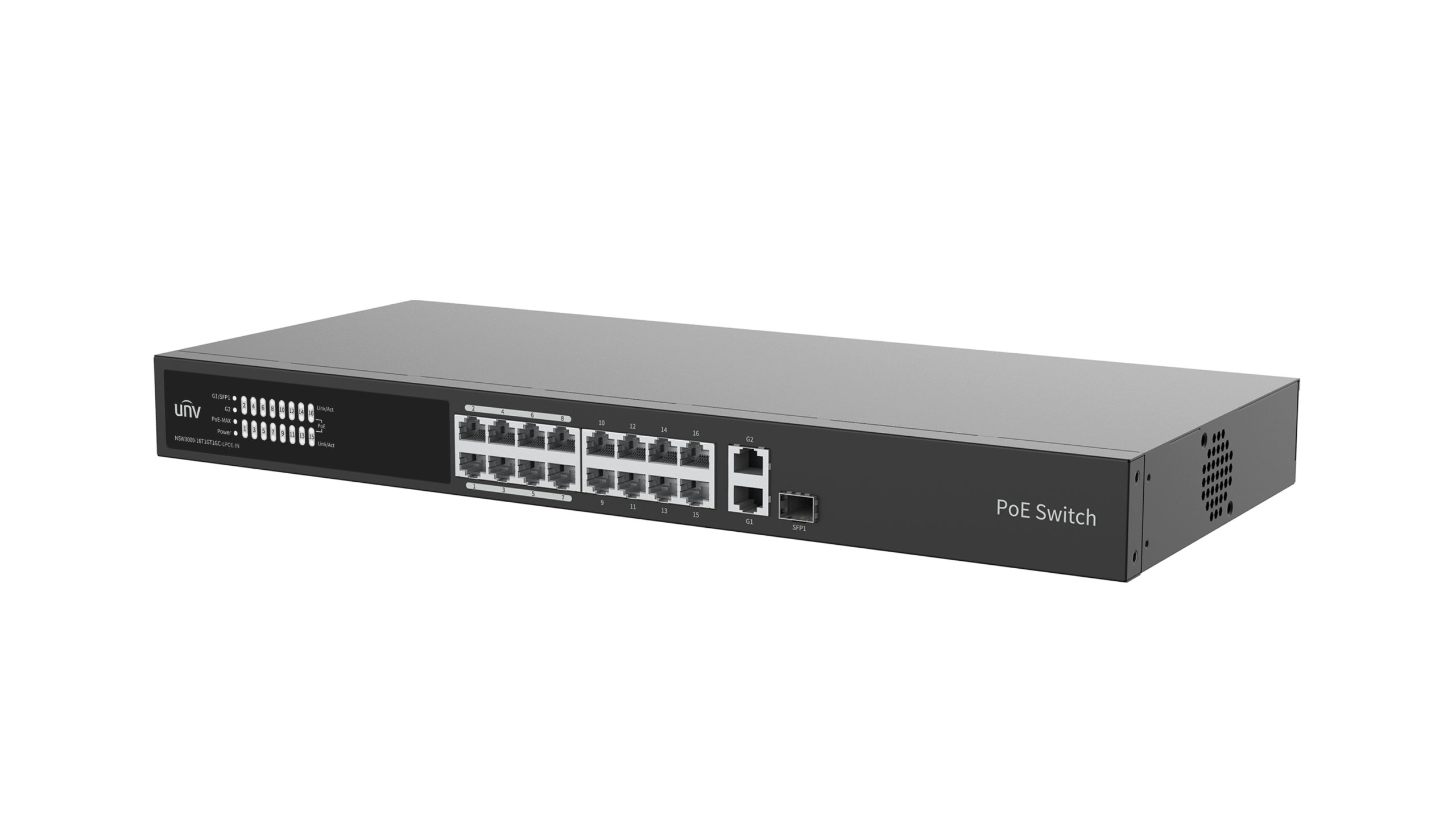

NSW3000-16T1GT1GC-LPOE-IN PoE коммутатор с облачным управлением

<table width="100%"><tbody><tr><td class="thead" width="30%">&nbsp;</td><td class="thead" width="70%" colspan="8">NSW3000-16T1GT1GC-LPOE-IN</td></tr><tr><td class="thead" colspan="9">Hardware Specification<b></b></td></tr><tr><td>Ports Type</td><td colspan="8">16 x 10/100Mbps POE port (RJ45) + 1 x Gigabit port (RJ45)+ 1 x Gigabit Combo</td></tr><tr><td>Standards</td><td colspan="8">IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az</td></tr><tr><td>Switching capacity</td><td colspan="8">7.2 Gbps</td></tr><tr><td>Forwarding performance</td><td colspan="8">5.36Mpps</td></tr><tr><td>Packet Buffer</td><td colspan="8">4 M bit</td></tr><tr><td>MAC</td><td colspan="8">16K</td></tr><tr><td>Weight</td><td colspan="8">2.1kg</td></tr><tr><td>Dimensions (W×D×H)</td><td colspan="8">440mm x 189.8mm x 44mm</td></tr><tr><td>Power Supply</td><td colspan="8">AC 100V to 240V, 50/60Hz</td></tr><tr><td>Max.Power</td><td colspan="8">165W</td></tr><tr><td>Max.PoE Power</td><td colspan="8">Maximum total power: 150W<br>Maximum PoE power for single port: 30W<br>Mode A, 1/2+, 3/6- <br>Mode B, 4/5+, 7/8-</td></tr><tr><td>Prior Ports</td><td colspan="8">1 to 8</td></tr><tr><td>Cooling Fans</td><td colspan="8">0</td></tr><tr><td>Operating temperature</td><td colspan="8">0 ℃ to 40 ℃ (32 ℉ to 104 ℉)</td></tr><tr><td>Operating humidity</td><td colspan="8">10%～90% (non-condensing)</td></tr><tr><td>Storage Temperature</td><td colspan="8">-40 ℃ to 70 ℃</td></tr><tr><td>Storage Humidity</td><td colspan="8">5% to 90% RH, noncondensing</td></tr><tr><td>Indicator</td><td colspan="8">POWER Steady on: AC input is normal, POWER Off: No AC input, PoE Off: No PoE power supply, PoE Steady on: PoE power supply is normal, PoE-MAX off: The POE power supply power of the whole machine is less than 80% of the specification, PoE-MAX Steady on : The POE power supply power of the whole machine is greater than 85% of the specification, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data</td></tr><tr><td class="thead" colspan="9">Software Specification<b></b></td></tr><tr><td>Ethernet</td><td colspan="8">Supports full duplex, half duplex, and auto-negotiation working modes<br>Supports enabling/disabling ports<br>Supports port auto-negotiation rate<br>Supports port priority flow control. <br>Supports port flow statistics<br>Supports a link aggregation group (consist of two uplink ports)</td></tr><tr><td>VLAN</td><td colspan="8">Supports both access and trunk modes; allows up to 32 VLANs with IDs from 1 to 4095</td></tr><tr><td>MAC</td><td colspan="8">Support (up to 16K).<br>Supports clearing the dynamic MAC address</td></tr><tr><td>POE</td><td colspan="8">Allows to view PoE status and power.<br>Allows to enable/disable PoE power supply.</td></tr><tr><td>Loop Detection</td><td colspan="8">Loop Detection</td></tr><tr><td>QoS</td><td colspan="8">Supports port rate limitation.<br>Supports broadcast storm control.</td></tr><tr><td>Security</td><td colspan="8">Supports port isolation (only for the downlink ports).<br>Supports locking login IP address, up to 64 addresses can be locked</td></tr><tr><td>Maintenance</td><td colspan="8">Supports N:1 port mirroring.<br>Supports unified software configuration, management, and search.<br>Supports discovering the connected video devices and generating a network topology on the software.<br>Supports device upgrade, factory settings restoration, configuration import, configuration export, logs export, and device restart on the software.</td></tr><tr><td>System</td><td colspan="8">Allows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, operation time, etc.<br>Allows to edit and manage the IP address and device name.<br>Supports single-user management, user authentication, and password modification.<br>Supports manual time configuration and NTP .<br>Allows to view other switches information on the same network, up to 32 switches.<br>Allows to view the connected video devices information, up to 64 devices .</td></tr></tbody></table>

Характеристики

Количество PoE портов: 16
Бренд: Uniview
