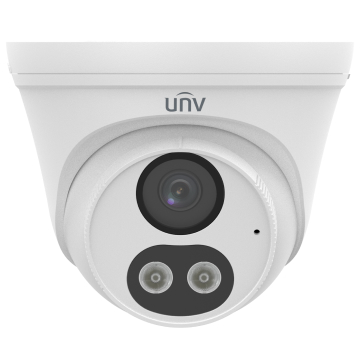

IPC3614LB-AF28K-DL купольная IP видеокамера

Camera Description Resolution 4MP Sensor 1/3.0″ CMOS Min. Illumination Colour: 0.01 lux ( F1.6, AGC ON)0 lux with IR Day/Night IR‑cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s Adjustment angle Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360° S/N >52dB WDR DWDR Lens Description Lens type 2.8mm Iris Type Fixed Iris F1.6 Field of View (H) 97.0° Field of View (V) 52.2° Field of View (D) 107.5° DORI Description DORI Distance（Lens） 2.8mm DORI Distance（Detect） 63.0m(206.7t) DORI Distance（Observe） 25.2m(82.7ft) DORI Distance（Recognize） 12.6m(41.3ft) DORI Distance（Identify） 6.3m(20.7ft) Illuminator Description Illumination Distance(IR) 30m Illumination Distance(Warm Light) 30m Wavelength 850nm IR On/Off Control Auto/Manual Video Description Video Compression Ultra 265; H.265; H.264; MJPEG H.264 code profile Baseline profile, Main profile, High profile Frame Rate Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fpsSub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Video Bit Rate 128 Kbps~6144 Kbps U-code Support OSD Up to 4 OSDs Privacy Mask Up to 4 areas ROI Up to 8 areas Video stream Dual streams Image Description White Balance Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 Digital noise reduction 2D/3D DNR Smart IR Support Flip Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwise Dewarping N/A HLC Support BLC Support Defog Digital Defog Events Description Basic Detection Motion detection; Tampering alarm; Audio detection General Function Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP authentication Audio Description Audio Compression G.711U; G.711A Audio Bitrate 64 Kbps Two-way Audio N/A Suppression Support Sampling Rate 8KHZ Storage Description Edge Storage Micro SD，up to 128 GB Network Storage ANR; NAS(NFS) Network Description Protocols IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; SNMP Compatible Integration ONVIF (Profile S, Profile G, Profile T); API; SDK User/Host Up to 32 users, 2 user levels: administrator and common user Security Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF Client UNV‑Link; UNV‑Link Pro; EZStation Web Browser Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above Interface Description Audio I/O N/A Alarm I/O N/A Serial Port N/A Built-in Mic Support Built-in Speaker N/A WIFI N/A Network 1 * RJ45 10M/100M Base‑TX Ethernet Video Output N/A Certification Description EMC CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 50130)FCC (FCC 47 CFR part15 B) Safety CE LVD (EN 62368‑1)UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1) Environment CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Protection IP67 (IEC 60529) General Description Power DC 12V±25%, PoE (IEEE 802.3af)Power consumption: Max 2.8W Power Interface Ø 5.5mm coaxial power plug Dimensions Φ126 x 93.6mm (Φ5.0” x 3.7”) Weight 0.29kg (0.64lb) Material Metal + Plastic Working Environment ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing) Storage Environment ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing) Surge protection 4KV Reset button N/A
