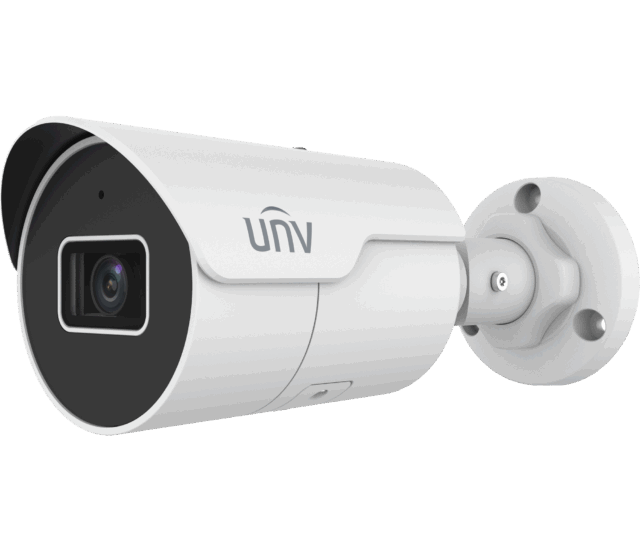

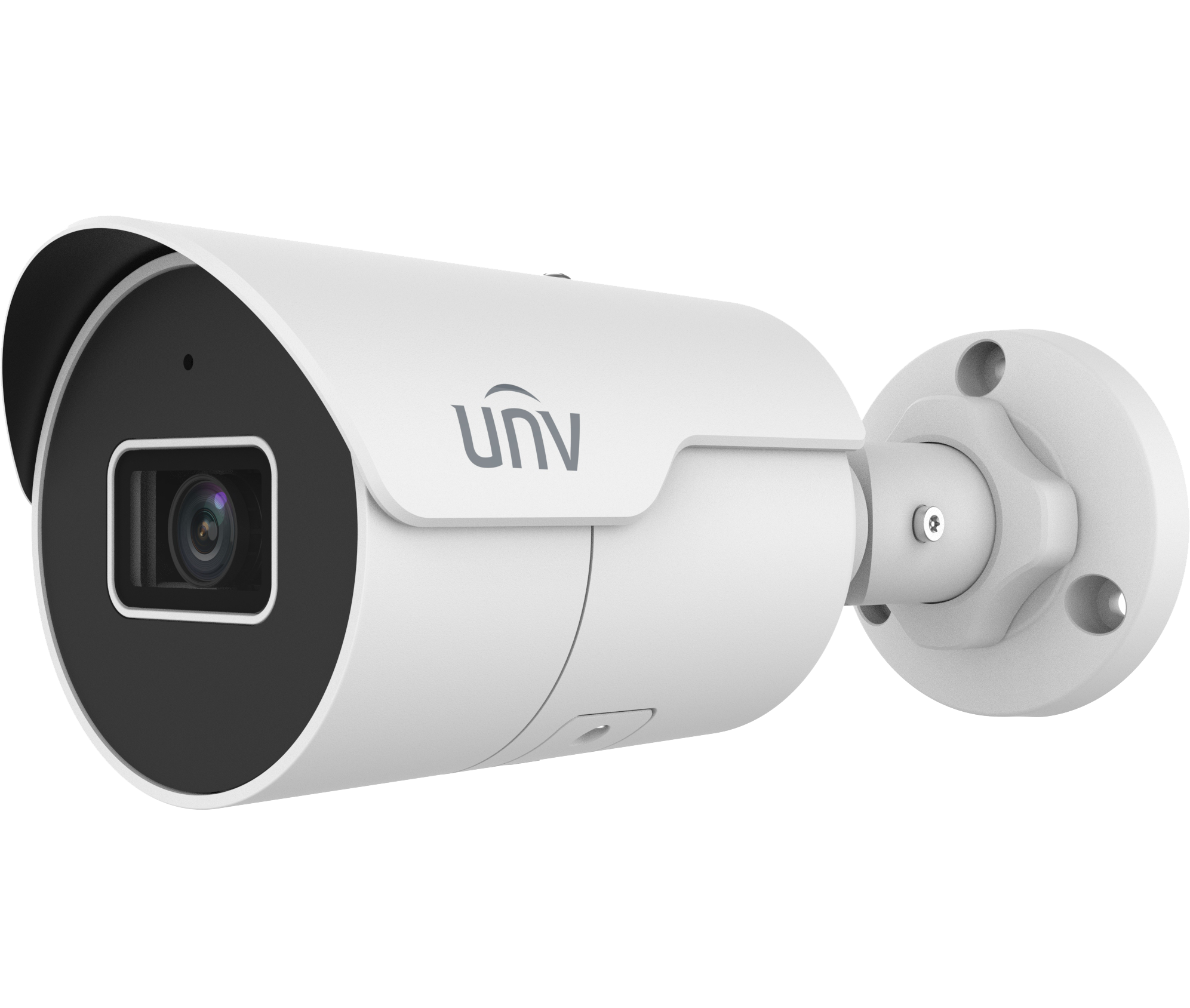

IPC2124LE-ADF28KM-H Уличная IP видеокамера

<table width="100%">
<tbody>
<tr>
<td>&nbsp;</td>
<td colspan="4" width="40%">IPC2124LE-ADF28KM-H</td>
<td colspan="4" width="40%">IPC2124LE-ADF40KM-H</td>
</tr>
<tr>
<td colspan="9">Camera</td>
</tr>
<tr>
<td>Max Resolution</td>
<td colspan="8">4MP</td>
</tr>
<tr>
<td>Sensor</td>
<td colspan="8">1/3.0" CMOS</td>
</tr>
<tr>
<td>Min. Illumination</td>
<td colspan="8">Colour: 0.003 lux ( F1.6, AGC ON)<br>0 Lux with IR on</td>
</tr>
<tr>
<td>Day/Night</td>
<td colspan="8">IR-cut filter with auto switch (ICR)</td>
</tr>
<tr>
<td>Shutter</td>
<td colspan="8">Auto/Manual, 1 ~ 1/100000s</td>
</tr>
<tr>
<td>Adjustment Angle</td>
<td colspan="8">Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°</td>
</tr>
<tr>
<td>S/N</td>
<td colspan="8">&gt;52dB</td>
</tr>
<tr>
<td>WDR</td>
<td colspan="8">120dB</td>
</tr>
<tr>
<td colspan="9">Lens</td>
</tr>
<tr>
<td>Focal Length</td>
<td colspan="4">2.8 mm</td>
<td colspan="4">4.0 mm</td>
</tr>
<tr>
<td>Iris Type</td>
<td colspan="8">Fixed</td>
</tr>
<tr>
<td>Iris</td>
<td colspan="8">F1.6</td>
</tr>
<tr>
<td>Field of View (H)</td>
<td colspan="4">97.0°</td>
<td colspan="4">79.0°</td>
</tr>
<tr>
<td>Field of View (V)</td>
<td colspan="4">52.2°</td>
<td colspan="4">42.3°</td>
</tr>
<tr>
<td>Field of View (D)</td>
<td colspan="4">107.5°</td>
<td colspan="4">85.1°</td>
</tr>
<tr>
<td colspan="9">DORI</td>
</tr>
<tr>
<td>DORI Distance (Lens)</td>
<td colspan="4">2.8mm</td>
<td colspan="4">4.0mm</td>
</tr>
<tr>
<td>DORI Distance (Detect)</td>
<td colspan="4">63.0m(206.7t)</td>
<td colspan="4">90.0m(295.3ft)</td>
</tr>
<tr>
<td>DORI Distance (Observe)</td>
<td colspan="4">25.2m(82.7ft)</td>
<td colspan="4">36.0m(118.1ft)</td>
</tr>
<tr>
<td>DORI Distance (Recognize)</td>
<td colspan="4">12.6m(41.3ft)</td>
<td colspan="4">18.0m(59.1ft)</td>
</tr>
<tr>
<td>DORI Distance (Identify)</td>
<td colspan="4">6.3m(20.7ft)</td>
<td colspan="4">9.0m(29.5ft)</td>
</tr>
<tr>
<td colspan="9">Illuminator</td>
</tr>
<tr>
<td>Supplemental Light</td>
<td colspan="8">IR</td>
</tr>
<tr>
<td>Illumination Distance (IR)</td>
<td colspan="8">50 m (164.0 ft)</td>
</tr>
<tr>
<td>Wavelength</td>
<td colspan="8">850 nm</td>
</tr>
<tr>
<td>IR On/Off Control</td>
<td colspan="8">Auto/Manual</td>
</tr>
<tr>
<td colspan="9">Video</td>
</tr>
<tr>
<td>Video Compression</td>
<td colspan="8">Ultra 265, H.265, H.264, MJPEG</td>
</tr>
<tr>
<td>H.264 Code Profile</td>
<td colspan="8">Baseline profile, Main profile, High profile</td>
</tr>
<tr>
<td>Frame Rate</td>
<td colspan="8">Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;<br>Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps</td>
</tr>
<tr>
<td>Video Bit Rate</td>
<td colspan="8">128 Kbps ~ 6144 Kbps</td>
</tr>
<tr>
<td>U-code</td>
<td colspan="8">Support</td>
</tr>
<tr>
<td>OSD</td>
<td colspan="8">Up to 4 OSDs</td>
</tr>
<tr>
<td>Privacy Mask</td>
<td colspan="8">Up to 4 areas</td>
</tr>
<tr>
<td>ROI</td>
<td colspan="8">Support</td>
</tr>
<tr>
<td>Video Stream</td>
<td colspan="8">Dual Streams</td>
</tr>
<tr>
<td colspan="9">Image</td>
</tr>
<tr>
<td>White Balance</td>
<td colspan="8">Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2</td>
</tr>
<tr>
<td>Digital Noise Reduction</td>
<td colspan="8">2D/3D DNR</td>
</tr>
<tr>
<td>Smart IR</td>
<td colspan="8">Support</td>
</tr>
<tr>
<td>Flip</td>
<td colspan="8">Normal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise</td>
</tr>
<tr>
<td>Dewarping</td>
<td colspan="8">N/A</td>
</tr>
<tr>
<td>HLC</td>
<td colspan="8">Support</td>
</tr>
<tr>
<td>BLC</td>
<td colspan="8">Support</td>
</tr>
<tr>
<td>Defog</td>
<td colspan="8">Digital Defog</td>
</tr>
<tr>
<td colspan="9">Events</td>
</tr>
<tr>
<td>Basic Detection</td>
<td colspan="8">Cross Line (based on Human Body Detection), Intrusion (based on Human Body Detection), Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection</td>
</tr>
<tr>
<td>General Function</td>
<td colspan="8">Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication</td>
</tr>
<tr>
<td colspan="9">Audio</td>
</tr>
<tr>
<td>Audio Compression</td>
<td colspan="8">G.711U, G.711A</td>
</tr>
<tr>
<td>Audio Bitrate</td>
<td colspan="8">64 Kbps</td>
</tr>
<tr>
<td>Two-way Audio</td>
<td colspan="8">N/A</td>
</tr>
<tr>
<td>Suppression</td>
<td colspan="8">Support</td>
</tr>
<tr>
<td>Sampling Rate</td>
<td colspan="8">8 KHz</td>
</tr>
<tr>
<td colspan="9">Storage</td>
</tr>
<tr>
<td>Edge Storage</td>
<td colspan="8">Micro SD, up to 512 GB</td>
</tr>
<tr>
<td>Network Storage</td>
<td colspan="8">ANR, NAS (NFS)</td>
</tr>
<tr>
<td colspan="9">Network</td>
</tr>
<tr>
<td>Protocols</td>
<td colspan="8">IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, 802.1x, SNMP</td>
</tr>
<tr>
<td>Compatible Integration</td>
<td colspan="8">ONVIF (Profile S, Profile G, Profile T), <br>API, SDK</td>
</tr>
<tr>
<td>User/Host</td>
<td colspan="8">Up to 32 users. 3 user levels: administrator, common user and operator</td>
</tr>
<tr>
<td>Security</td>
<td colspan="8">Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF</td>
</tr>
<tr>
<td>Client</td>
<td colspan="8">UNV-Link, UNV-Link Pro, EZStation</td>
</tr>
<tr>
<td>Web Browser</td>
<td colspan="8">Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above</td>
</tr>
<tr>
<td colspan="9">Interface</td>
</tr>
<tr>
<td>Audio I/O</td>
<td colspan="8">N/A</td>
</tr>
<tr>
<td>Alarm I/O</td>
<td colspan="8">N/A</td>
</tr>
<tr>
<td>Serial Port</td>
<td colspan="8">N/A</td>
</tr>
<tr>
<td>Built-in Mic</td>
<td colspan="8">Support</td>
</tr>
<tr>
<td>Built-in Speaker</td>
<td colspan="8">N/A</td>
</tr>
<tr>
<td>WIFI</td>
<td colspan="8">N/A</td>
</tr>
<tr>
<td>Network</td>
<td colspan="8">1 x RJ45 10M/100M Base-TX Ethernet</td>
</tr>
<tr>
<td>Video Output</td>
<td colspan="8">N/A</td>
</tr>
<tr>
<td colspan="9">Certification</td>
</tr>
<tr>
<td>EMC</td>
<td colspan="8">CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)<br>FCC (FCC 47 CFR part15 B)</td>
</tr>
<tr>
<td>Safety</td>
<td colspan="8">CE LVD (EN 62368-1)<br>UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)</td>
</tr>
<tr>
<td>Environment</td>
<td colspan="8">CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)</td>
</tr>
<tr>
<td>Protection</td>
<td colspan="8">IP67 (IEC 60529)</td>
</tr>
<tr>
<td colspan="9">General</td>
</tr>
<tr>
<td>Power</td>
<td colspan="8">DC 12V±25%, PoE (IEEE 802.3af)</td>
</tr>
<tr>
<td>Power Consumption</td>
<td colspan="8">Max 5.6W</td>
</tr>
<tr>
<td>Power Interface</td>
<td colspan="8">Ø 5.5 mm coaxial power plug</td>
</tr>
<tr>
<td>Dimensions</td>
<td colspan="8">190×73×71mm (7.5”×2.9”×2.8”) (L x W x H)</td>
</tr>
<tr>
<td>Weight</td>
<td colspan="8">0.40kg (0.88lb)</td>
</tr>
<tr>
<td>Material</td>
<td colspan="8">Graphene + Metal</td>
</tr>
<tr>
<td>Working Environment</td>
<td colspan="8">-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)</td>
</tr>
<tr>
<td>Storage Environment</td>
<td colspan="8">-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)</td>
</tr>
<tr>
<td>Surge Protection</td>
<td colspan="8">4KV</td>
</tr>
<tr>
<td>Reset Button</td>
<td colspan="8">Support</td>
</tr>
<tr>
<td>Web Client Language</td>
<td colspan="8">13 Languages<br>English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian</td>
</tr>
</tbody>
</table>

Характеристики

Дальность ИК-подсветки: 50 м
Тип объектива: Фиксированный
Объектив: 2.8 мм
Исполнение: Уличное
Материал корпуса: Металл+пластик
Рабочая температура: -30°C до +60°C
Разрешение: 4 мп
Наличие MicroSD: Да
Наличие микрофона: Да
Бренд: Uniview
