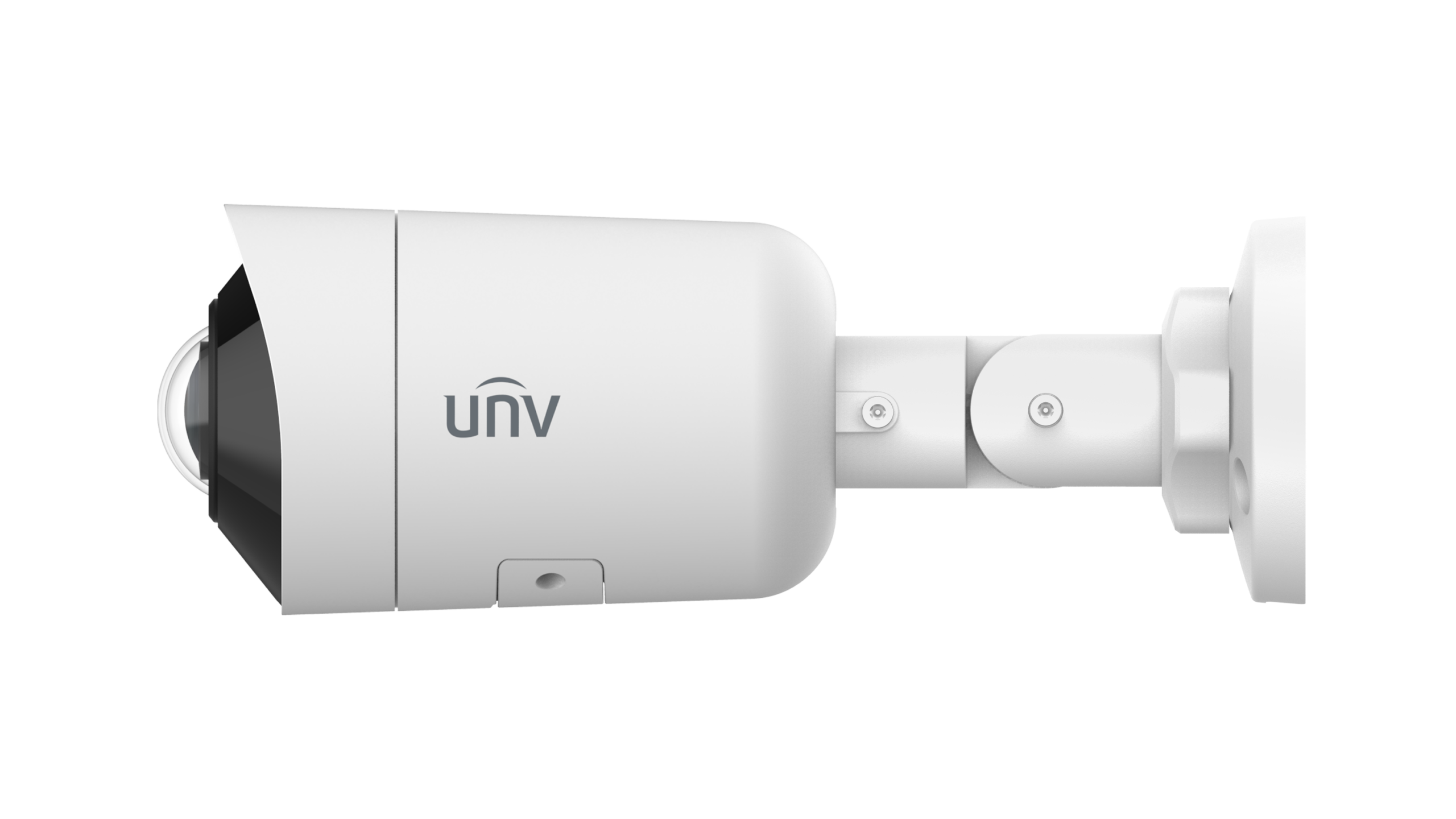

IPC2108SB-ADF16KM-I0 уличная IP видеокамера

<table width="100%"><tbody><tr><td class="thead" width="30%">&nbsp;</td><td class="thead" width="70%" colspan="8">IPC2108SB-ADF16KM-I0</td></tr><tr><td class="thead" colspan="9">Camera<b></b></td></tr><tr><td>Max Resolution</td><td colspan="8">8 MP</td></tr><tr><td>Sensor</td><td colspan="8">1/2.7" CMOS</td></tr><tr><td>Min. Illumination</td><td colspan="8">Colour: 0.01 lux (F2.0, AGC ON)<br>0 lux with IR on</td></tr><tr><td>Day/Night</td><td colspan="8">IR-cut filter with auto switch (ICR)</td></tr><tr><td>Shutter</td><td colspan="8">Auto/Manual, 1 ~ 1/100000s</td></tr><tr><td>Adjustment Angle</td><td colspan="8">Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°</td></tr><tr><td>S/N</td><td colspan="8">&gt;52 dB</td></tr><tr><td>WDR</td><td colspan="8">120 dB</td></tr><tr><td class="thead" colspan="9">Lens<b></b></td></tr><tr><td>Focal Length</td><td colspan="8">1.68 mm</td></tr><tr><td>Iris Type</td><td colspan="8">Fixed</td></tr><tr><td>Iris</td><td colspan="8">F2.0</td></tr><tr><td>Field of View (H)</td><td colspan="8">180°</td></tr><tr><td>Field of View (V)</td><td colspan="8">100°</td></tr><tr><td>Field of View (D)</td><td colspan="8">180°</td></tr><tr><td>Lens Type</td><td colspan="8">Fixed</td></tr><tr><td class="thead" colspan="9">DORI<b></b></td></tr><tr><td>DORI Distance (Lens)</td><td colspan="8">1.68mm</td></tr><tr><td>DORI Distance (Detect)</td><td colspan="8">37.8(124.0ft)</td></tr><tr><td>DORI Distance (Observe)</td><td colspan="8">15.1(49.6ft)</td></tr><tr><td>DORI Distance (Recognize)</td><td colspan="8">7.6(24.8ft)</td></tr><tr><td>DORI Distance (Identify)</td><td colspan="8">3.8(12.4ft)</td></tr><tr><td class="thead" colspan="9">Illuminator<b></b></td></tr><tr><td>Supplemental Light</td><td colspan="8">IR</td></tr><tr><td>Illumination Distance (IR)</td><td colspan="8">20 m (65.6 ft)</td></tr><tr><td>IR On/Off Control</td><td colspan="8">Auto/Manual</td></tr><tr><td>Wavelength</td><td colspan="8">850 nm</td></tr><tr><td class="thead" colspan="9">Video<b></b></td></tr><tr><td>Video Compression</td><td colspan="8">Ultra 265, H.265, H.264, MJPEG</td></tr><tr><td>H.264 Code Profile</td><td colspan="8">Baseline profile, Main profile, High profile</td></tr><tr><td>Frame Rate</td><td colspan="8">Main Stream: 8MP (3840*2160), Max 30fps;5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; <br>Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; <br>Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps</td></tr><tr><td>Video Bit Rate</td><td colspan="8">128 Kbps to 16 Mbps</td></tr><tr><td>U-code</td><td colspan="8">Support</td></tr><tr><td>OSD</td><td colspan="8">Up to 8 OSDs</td></tr><tr><td>Privacy Mask</td><td colspan="8">Up to 4 areas</td></tr><tr><td>ROI</td><td colspan="8">Support</td></tr><tr><td>Video Stream</td><td colspan="8">Triple Streams</td></tr><tr><td class="thead" colspan="9">Image<b></b></td></tr><tr><td>White Balance</td><td colspan="8">Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2</td></tr><tr><td>Digital Noise Reduction</td><td colspan="8">2D/3D DNR</td></tr><tr><td>Smart IR</td><td colspan="8">Support</td></tr><tr><td>Auto Scene Match (ASM)</td><td colspan="8">Support (Only WDR)</td></tr><tr><td>Flip</td><td colspan="8">Normal, Flip Vertical, Flip Horizontal, 180°</td></tr><tr><td>Dewarping</td><td colspan="8">Support</td></tr><tr><td>HLC</td><td colspan="8">Support</td></tr><tr><td>BLC</td><td colspan="8">Support</td></tr><tr><td>Defog</td><td colspan="8">Digital Defog</td></tr><tr><td>Image Stabilization</td><td colspan="8">N/A</td></tr><tr><td>Low Illumination Characteristics</td><td colspan="8">Low-light</td></tr><tr><td class="thead" colspan="9">Intelligent<b></b></td></tr><tr><td>Smart Intrusion Prevention</td><td colspan="8">Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)</td></tr><tr><td>Attribute Collection</td><td colspan="8">SIP with color retrieval</td></tr><tr><td class="thead" colspan="9">Events<b></b></td></tr><tr><td>Basic Detection</td><td colspan="8">Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind</td></tr><tr><td>General Function</td><td colspan="8">Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication</td></tr><tr><td class="thead" colspan="9">Audio<b></b></td></tr><tr><td>Audio Compression</td><td colspan="8">G.711U, G.711A</td></tr><tr><td>Audio Bitrate</td><td colspan="8">64 Kbps</td></tr><tr><td>Two-way Audio</td><td colspan="8">N/A</td></tr><tr><td>Suppression</td><td colspan="8">Support</td></tr><tr><td>Sampling Rate</td><td colspan="8">8 kHz</td></tr><tr><td class="thead" colspan="9">Storage<b></b></td></tr><tr><td>Edge Storage</td><td colspan="8">Micro SD, up to 512 GB</td></tr><tr><td>Network Storage</td><td colspan="8">ANR, NAS (NFS)</td></tr><tr><td class="thead" colspan="9">Network<b></b></td></tr><tr><td>Protocols</td><td colspan="8">IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS</td></tr><tr><td>Compatible Integration</td><td colspan="8">ONVIF (Profile S, Profile G, Profile T), <br>API, SDK</td></tr><tr><td>User/Host</td><td colspan="8">Up to 32 users. 3 user levels: administrator, common user and operator</td></tr><tr><td>Security</td><td colspan="8">Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF</td></tr><tr><td>Client</td><td colspan="8">UNV-Link, UNV-Link Pro, EZStation</td></tr><tr><td>Web Browser</td><td colspan="8">Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+</td></tr><tr><td class="thead" colspan="9">Interface<b></b></td></tr><tr><td>Audio I/O</td><td colspan="8">N/A</td></tr><tr><td>Alarm I/O</td><td colspan="8">N/A</td></tr><tr><td>Serial Port</td><td colspan="8">N/A</td></tr><tr><td>Built-in Mic</td><td colspan="8">Support</td></tr><tr><td>Built-in Speaker</td><td colspan="8">N/A</td></tr><tr><td>WIFI</td><td colspan="8">N/A</td></tr><tr><td>Network</td><td colspan="8">1 × RJ45 10 M/100 M Base-TX Ethernet</td></tr><tr><td>Video Output</td><td colspan="8">N/A</td></tr><tr><td class="thead" colspan="9">Certification<b></b></td></tr><tr><td>EMC</td><td colspan="8">CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)<br>FCC (FCC 47 CFR part15 B)</td></tr><tr><td>Safety</td><td colspan="8">CE LVD (EN 62368-1)<br>UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)</td></tr><tr><td>Environment</td><td colspan="8">CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)</td></tr><tr><td>Protection</td><td colspan="8">IP67 (IEC 60529)</td></tr><tr><td class="thead" colspan="9">General<b></b></td></tr><tr><td>Power</td><td colspan="8">DC 12V±25%, PoE (IEEE 802.3af)</td></tr><tr><td>Power Consumption</td><td colspan="8">Max 5.5W</td></tr><tr><td>Power Interface</td><td colspan="8">Ø5.5 mm coaxial power plug</td></tr><tr><td>Dimensions</td><td colspan="8">198× 71 × 71mm (7.8” × 2.8” × 2.8”) (L x W x H)</td></tr><tr><td>Weight</td><td colspan="8">0.42kg (0.93lb)</td></tr><tr><td>Material</td><td colspan="8">Metal</td></tr><tr><td>Working Environment</td><td colspan="8">-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)</td></tr><tr><td>Storage Environment</td><td colspan="8">-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)</td></tr><tr><td>Surge Protection</td><td colspan="8">4 KV</td></tr><tr><td>Reset Button</td><td colspan="8">Support</td></tr><tr><td>Web Client Language</td><td colspan="8">20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese</td></tr></tbody></table>

Характеристики

Бренд: Uniview
Наличие микрофона: Да
Наличие MicroSD: Да
Разрешение: 8 мп
Рабочая температура: -30°C до +60°C
Исполнение: Уличное
Объектив: 1.68 мм
Тип объектива: Фиксированный
Дальность ИК-подсветки: 20 м
