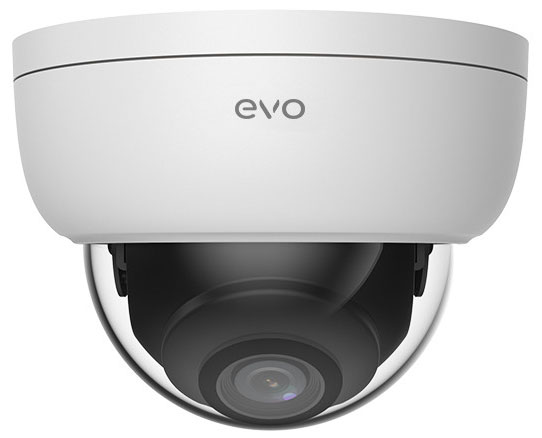

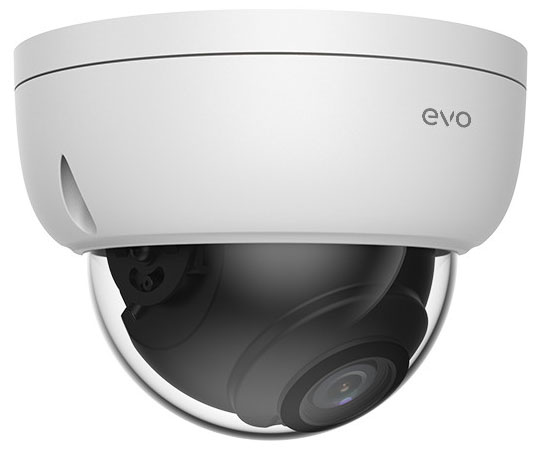

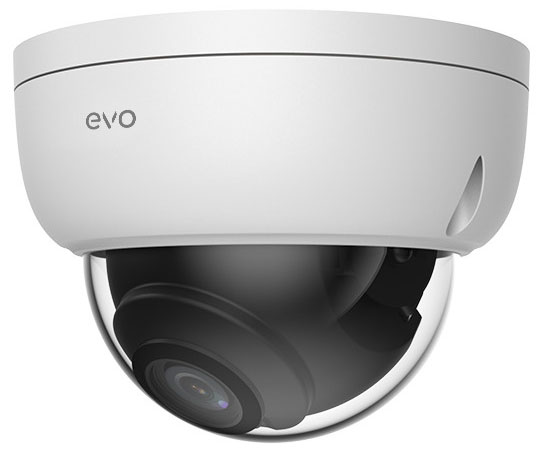

IPC-324-PF28 Купольная IP видеокамера

<table border="1" width="100%" cellspacing="0" cellpadding="5">
<thead>
<tr>
<th width="20%">Model</th>
<th width="40%">IPC-324-PF28</th>
<th width="40%">IPC-324-PF40</th>
</tr>
</thead>
<tbody>
<tr>
<td colspan="3"><strong>Camera</strong></td>
</tr>
<tr>
<td>Sensor</td>
<td colspan="2">1/3.0" CMOS</td>
</tr>
<tr>
<td>Min. Illumination</td>
<td colspan="2">
Colour: 0.02Lux (F2.1, AGC ON) <br>
0 Lux with IR on
</td>
</tr>
<tr>
<td>Day/Night</td>
<td colspan="2">IR-cut filter with auto switch (ICR)</td>
</tr>
<tr>
<td>Shutter</td>
<td colspan="2">Auto/Manual, 1 ~ 1/100000s</td>
</tr>
<tr>
<td>Adjustment Angle</td>
<td colspan="2">Pan: 3° ~ 360°, Tilt: 0° ~ 75°</td>
</tr>
<tr>
<td>S/N</td>
<td colspan="2">&gt;52 dB</td>
</tr>
<tr>
<td>WDR</td>
<td colspan="2">DWDR</td>
</tr>
<tr>
<td colspan="3"><strong>Lens</strong></td>
</tr>
<tr>
<td>Focal Length</td>
<td>2.8 mm</td>
<td>4.0 mm</td>
</tr>
<tr>
<td>Iris</td>
<td colspan="2">F2.1</td>
</tr>
<tr>
<td>Field of View (H)</td>
<td>89.1°</td>
<td>75.0°</td>
</tr>
<tr>
<td>Field of View (V)</td>
<td>47.3°</td>
<td>41.6°</td>
</tr>
<tr>
<td>Field of View (D)</td>
<td>94.3°</td>
<td>81.1°</td>
</tr>
<tr>
<td colspan="3"><strong>DORI</strong></td>
</tr>
<tr>
<td>DORI Distance (Lens)</td>
<td>2.8mm</td>
<td>4.0mm</td>
</tr>
<tr>
<td>DORI Distance (Detect)</td>
<td>63.0m (206.7ft)</td>
<td>90.0m (295.3ft)</td>
</tr>
<tr>
<td>DORI Distance (Observe)</td>
<td>25.2m (82.7ft)</td>
<td>36.0m (118.1ft)</td>
</tr>
<tr>
<td>DORI Distance (Recognize)</td>
<td>12.6m (41.3ft)</td>
<td>18.0m (59.1ft)</td>
</tr>
<tr>
<td>DORI Distance (Identify)</td>
<td>6.3m (20.7ft)</td>
<td>9.0m (29.5ft)</td>
</tr>
<tr>
<td colspan="3"><strong>Illuminator</strong></td>
</tr>
<tr>
<td>Supplemental Light</td>
<td colspan="2">IR</td>
</tr>
<tr>
<td>Illumination Distance (IR)</td>
<td colspan="2">Up to 30m (98ft)</td>
</tr>
<tr>
<td>Wavelength</td>
<td colspan="2">850 nm</td>
</tr>
<tr>
<td>IR On/Off Control</td>
<td colspan="2">Auto/Manual</td>
</tr>
<tr>
<td colspan="3"><strong>Video</strong></td>
</tr>
<tr>
<td>Video Compression</td>
<td colspan="2">Ultra 265, H.265, H.264, MJPEG</td>
</tr>
<tr>
<td>H.264 Code Profile</td>
<td colspan="2">Baseline profile, Main profile, High profile</td>
</tr>
<tr>
<td>Frame Rate</td>
<td colspan="2">
Main Stream: 5MP (2592*1944), Max 20fps; 4MP (2560*1440), Max 20fps; 3MP (2304*1296), Max 20fps; <br>
1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps;<br>
Sub Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;
</td>
</tr>
<tr>
<td>Video Bit Rate</td>
<td colspan="2">128 Kbps to 6144 Kbps</td>
</tr>
<tr>
<td>U-code</td>
<td colspan="2">Support</td>
</tr>
<tr>
<td>OSD</td>
<td colspan="2">Up to 4 OSDs</td>
</tr>
<tr>
<td>Privacy Mask</td>
<td colspan="2">Up to 4 areas</td>
</tr>
<tr>
<td>ROI</td>
<td colspan="2">Up to 8 areas</td>
</tr>
<tr>
<td>Video Stream</td>
<td colspan="2">Dual Streams</td>
</tr>
<tr>
<td colspan="3"><strong>Network</strong></td>
</tr>
<tr>
<td>Protocols</td>
<td colspan="2">IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, QoS</td>
</tr>
<tr>
<td>Compatible Integration</td>
<td colspan="2">ONVIF (Profile S, Profile T), API</td>
</tr>
<tr>
<td>User/Host</td>
<td colspan="2">Up to 32 users, 2 user levels: administrator and common user</td>
</tr>
<tr>
<td colspan="3"><strong>General</strong></td>
</tr>
<tr>
<td>Power</td>
<td colspan="2">DC 12V±25%, PoE (IEEE 802.3af)</td>
</tr>
<tr>
<td>Power Consumption</td>
<td colspan="2">Max 3.5W</td>
</tr>
<tr>
<td>Dimensions</td>
<td colspan="2">Ø109 x 81mm (Ø4.3” x 3.2”)</td>
</tr>
<tr>
<td>Weight</td>
<td colspan="2">0.33kg (0.73lb)</td>
</tr>
<tr>
<td>Material</td>
<td colspan="2">Metal + Plastic</td>
</tr>
<tr>
<td>Storage Environment</td>
<td colspan="2">-40 ℃ to 60 ℃</td>
</tr>
<tr>
<td>Working Environment</td>
<td colspan="2">-40 ℃ to 60 ℃</td>
</tr>
<tr>
<td>Surge Protection</td>
<td colspan="2">4 KV</td>
</tr>
<tr>
<td>Reset Button</td>
<td colspan="2">N/A</td>
</tr>
</tbody>
</table>

Характеристики

Наличие микрофона: Нет
Наличие MicroSD: Нет
Разрешение: 4 мп
Рабочая температура: -40℃ ~ 60℃
Исполнение: Внутреннее
Объектив: 2.8 мм
Тип объектива: Фиксированный
Дальность ИК-подсветки: 30 м
