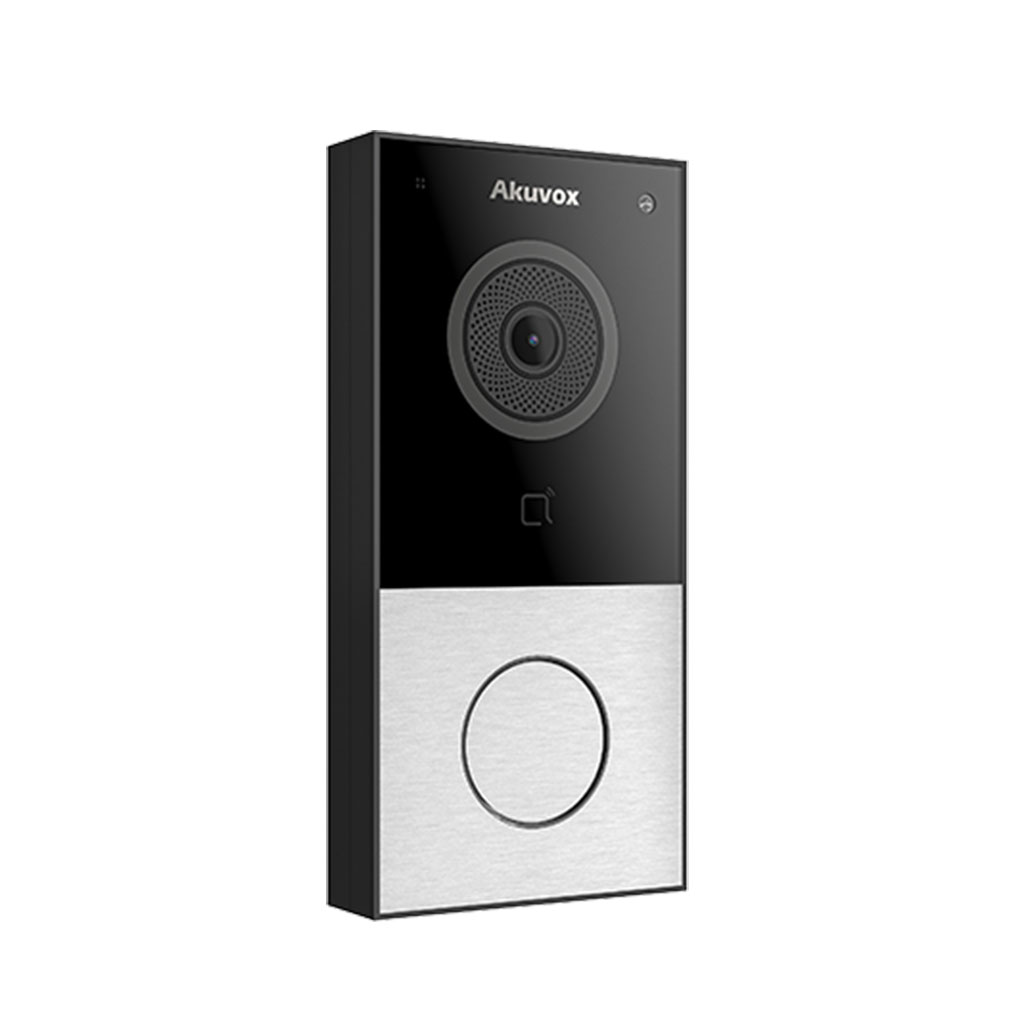

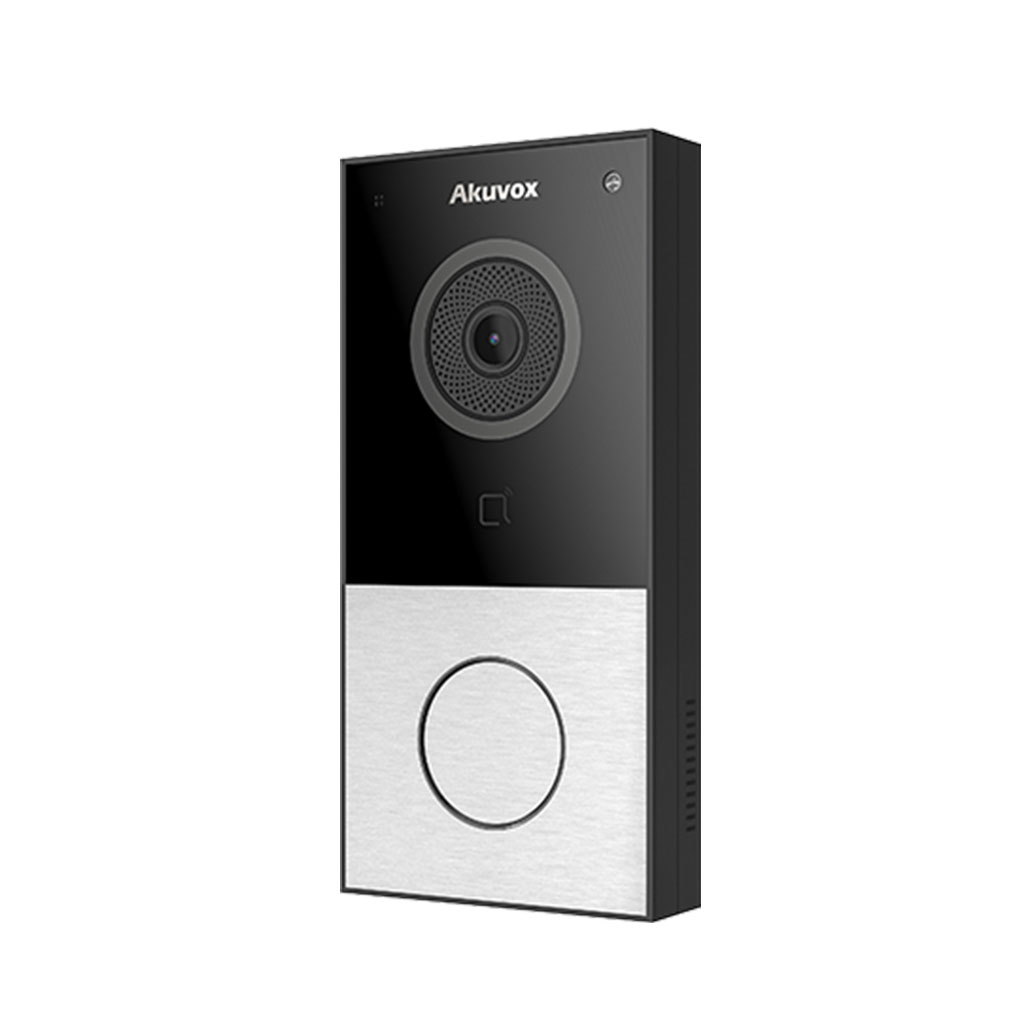

E12S Akuvox IP вызывная панель

<h4>Physical &amp; Power Specifications</h4>
<table>
<tbody>
<tr>
<th>Category</th>
<th>Details</th>
</tr>
<tr>
<td>Body Material</td>
<td>Plastic</td>
</tr>
<tr>
<td>Camera</td>
<td>2M pixels, automatic lighting</td>
</tr>
<tr>
<td>Button</td>
<td>1 call button with backlight</td>
</tr>
<tr>
<td>Wiegand port</td>
<td>Support</td>
</tr>
<tr>
<td>RF card reader</td>
<td>13.56MHz</td>
</tr>
<tr>
<td>Light sensor</td>
<td>1</td>
</tr>
<tr>
<td>Relays out</td>
<td>1</td>
</tr>
<tr>
<td>Inputs</td>
<td>2</td>
</tr>
<tr>
<td>Micro SD card slot</td>
<td>1</td>
</tr>
<tr>
<td>Microphone</td>
<td>1</td>
</tr>
<tr>
<td>Speaker</td>
<td>1</td>
</tr>
<tr>
<td>Ethernet port</td>
<td>RJ45, 10/100Mbps adaptive</td>
</tr>
<tr>
<td>BLE</td>
<td>Yes</td>
</tr>
<tr>
<td>WiFi</td>
<td>IEEE802.11b/g/n, 2.4GHz (E12W Only)</td>
</tr>
<tr>
<td>Vandal alarm</td>
<td>Yes</td>
</tr>
<tr>
<td>802.3af Power-over-Ethernet</td>
<td>Yes</td>
</tr>
<tr>
<td>12V DC connector</td>
<td>(if not using PoE)</td>
</tr>
<tr>
<td>Power</td>
<td>12V / 1A</td>
</tr>
<tr>
<td>Water-proof &amp; Dust-proof</td>
<td>IP65</td>
</tr>
<tr>
<td>Installation</td>
<td>Wall-mounted</td>
</tr>
<tr>
<td>Size</td>
<td>146x70x23mm</td>
</tr>
<tr>
<td>Working Humidity</td>
<td>10~90%</td>
</tr>
<tr>
<td>Working Temperature</td>
<td>-40°C ~ +60°C</td>
</tr>
<tr>
<td>Storage Temperature</td>
<td>-40°C ~ +70°C</td>
</tr>
</tbody>
</table>
<h4><br></h4><h4>Audio Specifications</h4>
<table>
<tbody>
<tr>
<th>Category</th>
<th>Details</th>
</tr>
<tr>
<td>SIP</td>
<td>v1 (RFC2543), v2 (RFC3261)</td>
</tr>
<tr>
<td>Narrowband audio codec</td>
<td>G.711a, G.711μ</td>
</tr>
<tr>
<td>Wideband audio codec</td>
<td>G.722</td>
</tr>
<tr>
<td>DTMF</td>
<td>In-band, out-of-band DTMF (RFC2833), SIP Info</td>
</tr>
<tr>
<td>Echo Cancellation</td>
<td>Yes</td>
</tr>
<tr>
<td>Voice Activation Detection</td>
<td>Yes</td>
</tr>
<tr>
<td>Comfort Noise Generator</td>
<td><p>Yes</p></td>
</tr>
</tbody>
</table>
<h4><br></h4><h4>Video Specifications</h4>
<table>
<tbody>
<tr>
<th>Category</th>
<th>Details</th>
</tr>
<tr>
<td>Sensor</td>
<td>1/2.7”, CMOS</td>
</tr>
<tr>
<td>Pixels</td>
<td>CIF, QCIF, VGA, 4CIF, 720p, 1080p</td>
</tr>
<tr>
<td>Video codec</td>
<td>H.264</td>
</tr>
<tr>
<td>Video resolution</td>
<td>up to 1920×1080</td>
</tr>
<tr>
<td>Max. image transfer rate</td>
<td>1080p – 25fps</td>
</tr>
<tr>
<td>Viewing angle</td>
<td>123°(H) / 69°(V)</td>
</tr>
<tr>
<td>White LEDs</td>
<td>for picture lighting during dark hours with internal light sensor</td>
</tr>
<tr>
<td>Door Entry Feature</td>
</tr>
<tr>
<td>Relays controlled</td>
<td>individually by DTMF tones</td>
</tr>
<tr>
<td>Camera</td>
<td>permanently operational</td>
</tr>
<tr>
<td>Auto-night mode</td>
<td>with LED illumination</td>
</tr>
<tr>
<td>White balance</td>
<td>auto</td>
</tr>
<tr>
<td>Minimum illumination</td>
<td>0.1LUX</td>
</tr>
</tbody>
</table>
<h4><br></h4><h4>Networking &amp; Protocol</h4>
<table>
<tbody>
<tr>
<th>Category</th>
<th>Details</th>
</tr>
<tr>
<td>Protocols support</td>
<td>IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP</td>
</tr>
</tbody>
</table>
<h4><br></h4><h4>Deployment &amp; Maintenance</h4>
<table>
<tbody>
<tr>
<th>Category</th>
<th>Details</th>
</tr>
<tr>
<td>Auto-Provisioning</td>
<td>Yes</td>
</tr>
<tr>
<td>Web management portal</td>
<td>Yes</td>
</tr>
<tr>
<td>Configuration backup / restore</td>
<td>Yes</td>
</tr>
<tr>
<td>Entry log export</td>
<td>Yes</td>
</tr>
<tr>
<td>Access table export / import</td>
<td>Yes</td>
</tr>
<tr>
<td>Firmware upgrade</td>
<td>Yes</td>
</tr>
<tr>
<td>System logs</td>
<td>(include door access logs)</td>
</tr>
</tbody>
</table>
<h4><br></h4><h4>Application Scenario</h4>
<table>
<tbody>
<tr>
<th>Category</th>
<th>Details</th>
</tr>
<tr>
<td>Apartment/flat intercom with door access control</td>
<td>Yes</td>
</tr>
<tr>
<td>Remote site entry over Internet</td>
<td>Yes</td>
</tr>
</tbody>
</table>

Характеристики

Бренд: Akuvox
