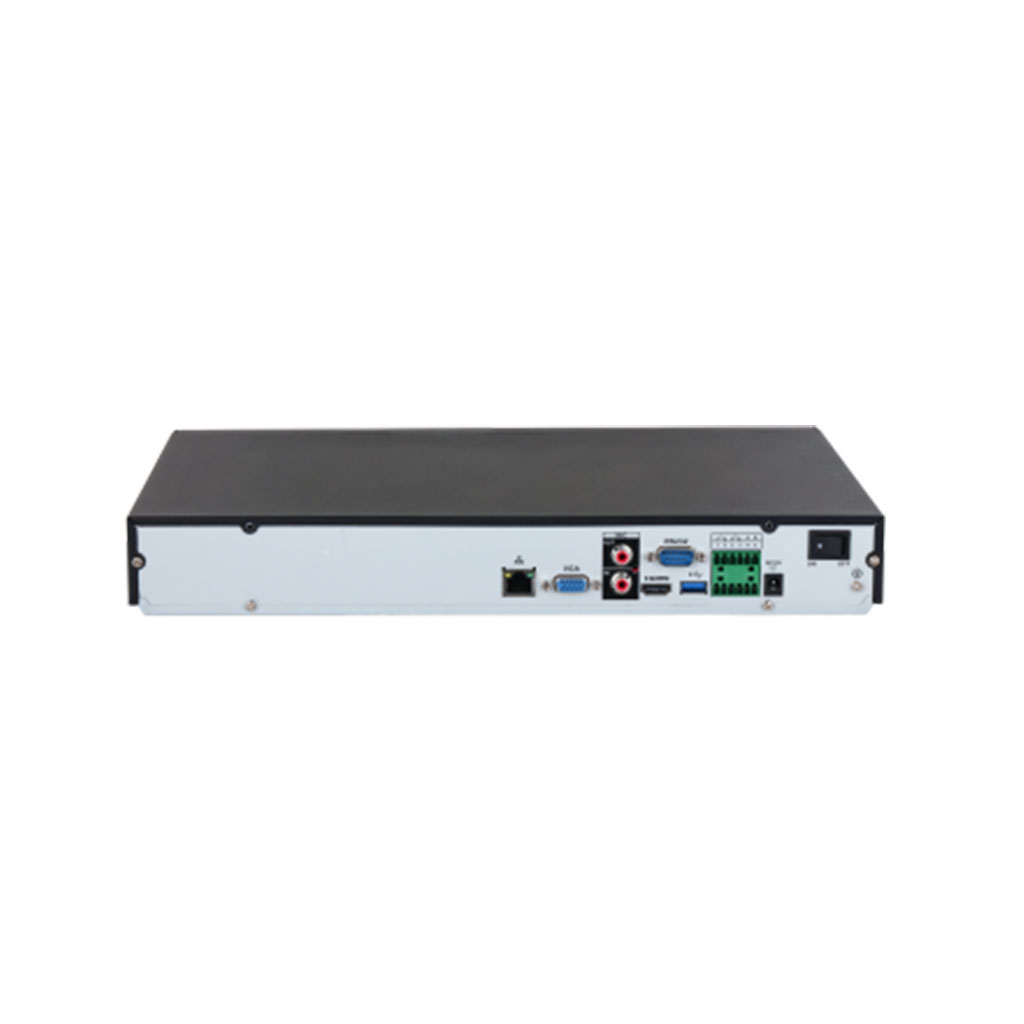

DHI-NVR5216-EI IP-видеорегистратор c ИИ

<table>
<tbody>
<tr>
<td>
<p>System</p>
</td>
</tr>
<tr>
<td>
<p>Main Processor</p>
</td>
<td>
<p>Industrial-grade processor</p>
</td>
</tr>
<tr>
<td>
<p>Operating System</p>
</td>
<td>
<p>Embedded Linux</p>
</td>
</tr>
<tr>
<td>
<p>Operating Interface</p>
</td>
<td>
<p>Web, Local GUI</p>
</td>
</tr>
<tr>
<td>
<p>AI</p>
</td>
</tr>
<tr>
<td>
<p>AI by Recorder</p>
</td>
<td>
<p>Face detection; face recognition; perimeter protection; SMD Plus</p>
</td>
</tr>
<tr>
<td>
<p>AI by Camera</p>
</td>
<td>
<p>Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map</p>
</td>
</tr>
<tr>
<td>
<p>AcuPick AI by Camera + Recorder</p>
</td>
<td>
<p>Max. 16-channel, 1 combined event per channel/s</p>
</td>
</tr>
<tr>
<td>
<p>Perimeter Protection</p>
</td>
</tr>
<tr>
<td>
<p>Perimeter Performance AI by Recorder (Number of Channels)</p>
</td>
<td>
<p>4 channels, 10 IVS rules for each channel</p>
</td>
</tr>
<tr>
<td>
<p>Perimeter Performance of AI by Camera (Number of Channels)</p>
</td>
<td>
<p>All channels (16 targets/s)</p>
</td>
</tr>
<tr>
<td>
<p>Face Detection</p>
</td>
</tr>
<tr>
<td>
<p>Face Attributes</p>
</td>
<td>
<p>Gender; age group; glasses; expressions; face mask; beard</p>
</td>
</tr>
<tr>
<td>
<p>Face Detection Performance of AI by Recorder (Number of Channels)</p>
</td>
<td>
<p>2 channels (up to 12 face images/s each channel)</p>
</td>
</tr>
<tr>
<td>
<p>Face Detection Performance of AI by Camera (Number of Channels)</p>
</td>
<td>
<p>16 channels</p>
</td>
</tr>
<tr>
<td>
<p>Face Recognition</p>
</td>
</tr>
<tr>
<td>
<p>Face Database Capacity</p>
</td>
<td>
<p>Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries &amp; regions and state can be added to each face image.</p>
</td>
</tr>
<tr>
<td>
<p>Face Recognition Performance of AI by Recorder (Number of Channels)</p>
</td>
<td>
<p>1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s</p>
<p>2. 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images/s</p>
</td>
</tr>
<tr>
<td>
<p>Face Recognition Performance of AI by Camera (Number of Channels)</p>
</td>
<td>
<p>16 channels</p>
</td>
</tr>
<tr>
<td>
<p>SMD Plus</p>
</td>
</tr>
<tr>
<td>
<p>SMD Plus by Recorder</p>
</td>
<td>
<p>8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change</p>
</td>
</tr>
<tr>
<td>
<p>SMD Plus by Camera</p>
</td>
<td>
<p>All channels (32 targets/s)</p>
</td>
</tr>
<tr>
<td>
<p>Video Metadata</p>
</td>
</tr>
<tr>
<td>
<p>Metadata Performance of AI by Camera (Number of Channels)</p>
</td>
<td>
<p>8 channels</p>
</td>
</tr>
<tr>
<td>
<p>Human Attributes</p>
</td>
<td>
<p>Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella</p>
</td>
</tr>
<tr>
<td>
<p>Motor Vehicle Attributes</p>
</td>
<td>
<p>License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location.</p>
</td>
</tr>
<tr>
<td>
<p>Non-motor Vehicle Attributes</p>
</td>
<td>
<p>Vehicle model, vehicle color, number of persons, helmet.</p>
</td>
</tr>
<tr>
<td>
<p>Vehicle License Plate Comparison</p>
</td>
</tr>
<tr>
<td>
<p>ANPR by Camera (Number of Channels)</p>
</td>
<td>
<p>All channels (8 targets/s)</p>
</td>
</tr>
<tr>
<td>
<p>License Plate Database Capacity</p>
</td>
<td>
<p>1. Create up to 20,000 plate numbers.</p>
<p>2. Blocklist and allowlist</p>
</td>
</tr>
<tr>
<td>
<p>Audio and Video</p>
</td>
</tr>
<tr>
<td>
<p>Access Channel</p>
</td>
<td>
<p>16 channels</p>
</td>
</tr>
<tr>
<td>
<p>Network Bandwidth</p>
</td>
<td>
<p>AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing</p>
<p>AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing</p>
</td>
</tr>
<tr>
<td>
<p>Resolution</p>
</td>
<td>
<p>32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF</p>
</td>
</tr>
<tr>
<td>
<p>Decoding Capability</p>
</td>
<td>
<p>AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 10-channel 6 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps</p>
<p>AI enabled: 1-channel 32 MP@25 fps; 1-channel 24 MP@25 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 6-channel 8 MP@30 fps; 8-channel 6 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps</p>
</td>
</tr>
<tr>
<td>
<p>Video Output</p>
</td>
<td>
<p>1 VGA, 1 HDMI</p>
<p>VGA:1920 × 1080, 1280 × 1024, 1280 × 720</p>
<p>HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720</p>
<p>Heterogeneous video source output for HDMI and VGA</p>
</td>
</tr>
<tr>
<td>
<p>Multi-screen Display</p>
</td>
<td>
<p>Main screen: 1/4/8/9/16</p>
<p>Sub screen: 1/4/8/9/16</p>
</td>
</tr>
<tr>
<td>
<p>Third-party Camera Access</p>
</td>
<td>
<p>ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha</p>
</td>
</tr>
<tr>
<td>
<p>Compression Standard</p>
</td>
</tr>
<tr>
<td>
<p>Video Compression</p>
</td>
<td>
<p>Smart H.265+; H.265; Smart H.264+; H.264; MJPEG</p>
</td>
</tr>
<tr>
<td>
<p>Audio Compression</p>
</td>
<td>
<p>G.711a; G.711u; PCM; G726</p>
</td>
</tr>
<tr>
<td>
<p>Network</p>
</td>
</tr>
<tr>
<td>
<p>Network Protocol</p>
</td>
<td>
<p>HTTP; HTTPS; TCP/IP; IPv4; UDP; NTP; DHCP; DNS; SMTP; UPnP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI</p>
</td>
</tr>
<tr>
<td>
<p>Mobile Phone Access</p>
</td>
<td>
<p>iOS; Android</p>
</td>
</tr>
<tr>
<td>
<p>Interoperability</p>
</td>
<td>
<p>ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK</p>
</td>
</tr>
<tr>
<td>
<p>Browser</p>
</td>
<td>
<p>Chrome; IE; Safari; Edge; Firefox</p>
</td>
</tr>
<tr>
<td>
<p>Recording Playback</p>
</td>
</tr>
<tr>
<td>
<p>Multi-channel Playback</p>
</td>
<td>
<p>Up to 16 channels</p>
</td>
</tr>
<tr>
<td>
<p>Record Mode</p>
</td>
<td>
<p>General, motion detection; intelligent; alarm; POS</p>
</td>
</tr>
<tr>
<td>
<p>Backup Method</p>
</td>
<td>
<p>USB device and network</p>
</td>
</tr>
<tr>
<td>
<p>Playback Mode</p>
</td>
<td>
<p>Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)</p>
</td>
</tr>
<tr>
<td>
<p>Storage</p>
</td>
</tr>
<tr>
<td>
<p>Disk Group</p>
</td>
<td>
<p>Yes</p>
</td>
</tr>
<tr>
<td>
<p>Alarm</p>
</td>
</tr>
<tr>
<td>
<p>General Alarm</p>
</td>
<td>
<p>Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm</p>
</td>
</tr>
<tr>
<td>
<p>Anomaly Alarm</p>
</td>
<td>
<p>Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception</p>
</td>
</tr>
<tr>
<td>
<p>Intelligent Alarm</p>
</td>
<td>
<p>Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map</p>
</td>
</tr>
<tr>
<td>
<p>Alarm Linkage</p>
</td>
<td>
<p>Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email</p>
</td>
</tr>
<tr>
<td>
<p>Port</p>
</td>
</tr>
<tr>
<td>
<p>Audio Input</p>
</td>
<td>
<p>1-channel RCA</p>
</td>
</tr>
<tr>
<td>
<p>Audio Output</p>
</td>
<td>
<p>1-channel RCA</p>
</td>
</tr>
<tr>
<td>
<p>Alarm Input</p>
</td>
<td>
<p>4 channels</p>
</td>
</tr>
<tr>
<td>
<p>Alarm Output</p>
</td>
<td>
<p>2 channels</p>
</td>
</tr>
<tr>
<td>
<p>Disk Interface</p>
</td>
<td>
<p>2 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature.</p>
</td>
</tr>
<tr>
<td>
<p>RS-232</p>
</td>
<td>
<p>1</p>
</td>
</tr>
<tr>
<td>
<p>RS-485</p>
</td>
<td>
<p>1</p>
</td>
</tr>
<tr>
<td>
<p>USB</p>
</td>
<td>
<p>2 (1 front USB 2.0 port, 1 rear USB 3.0 port)</p>
</td>
</tr>
<tr>
<td>
<p>HDMI</p>
</td>
<td>
<p>1</p>
</td>
</tr>
<tr>
<td>
<p>VGA</p>
</td>
<td>
<p>1</p>
</td>
</tr>
<tr>
<td>
<p>Network Port</p>
</td>
<td>
<p>1 (10/100/1000 Mbps Ethernet port, RJ-45)</p>
</td>
</tr>
<tr>
<td>
<p>General</p>
</td>
</tr>
<tr>
<td>
<p>Power Supply</p>
</td>
<td>
<p>12 VDC, 4 A</p>
</td>
</tr>
<tr>
<td>
<p>Power Consumption</p>
</td>
<td>
<p>Total output of NVR is ≤ 10 W (without HDD)</p>
</td>
</tr>
<tr>
<td>
<p>Net Weight</p>
</td>
<td>
<p>1.57 kg (3.46 lb)</p>
</td>
</tr>
<tr>
<td>
<p>Gross Weight</p>
</td>
<td>
<p>2.73 kg (6.02 lb)</p>
</td>
</tr>
<tr>
<td>
<p>Product Dimensions</p>
</td>
<td>
<p>375.0 mm × 284.4 mm x 56.0mm (14.76" × 11.20" × 2.20") (W × D × H)</p>
</td>
</tr>
<tr>
<td>
<p>Packaging Dimensions</p>
</td>
<td>
<p>433.0 mm × 141.0 mm × 366.0 mm (17.04" × 5.55" × 14.41") (W × D × H)</p>
</td>
</tr>
<tr>
<td>
<p>Operating Temperature</p>
</td>
<td>
<p>–10 °C to +55 °C (14 °F to +131 °F)</p>
</td>
</tr>
<tr>
<td>
<p>Storage Temperature</p>
</td>
<td>
<p>–20 °C to +60 °C (–4 °F to +140 °F)</p>
</td>
</tr>
<tr>
<td>
<p>Operating Humidity</p>
</td>
<td>
<p>10%–93% (RH), non-condensing</p>
</td>
</tr>
<tr>
<td>
<p>Installation</p>
</td>
<td>
<p>Rack or desktop</p>
</td>
</tr>
<tr>
<td>
<p>Certifications</p>
</td>
<td>
<p>FCC: 47 CFR FCC Part15, SubpartB, Class A</p>
<p>CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014</p>
<p>CE-LVD: EN 62368-1:2014</p>
</td>
</tr>
</tbody>
</table>

Характеристики

Количество SATA: 2
Количество каналов: 16
Бренд: Dahua
Запись с разрешением до: 32 Мп
Максимальная емкость одного HDD: 20 ТБ
