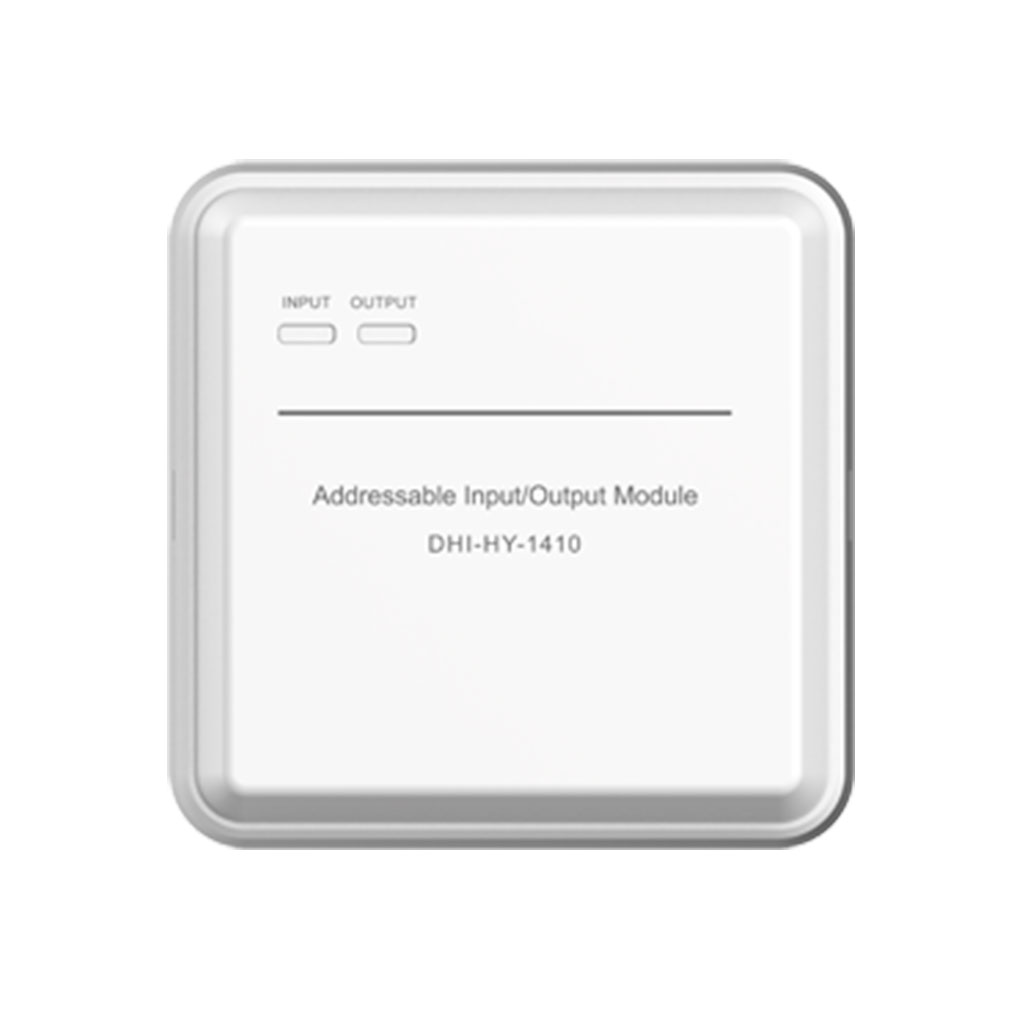

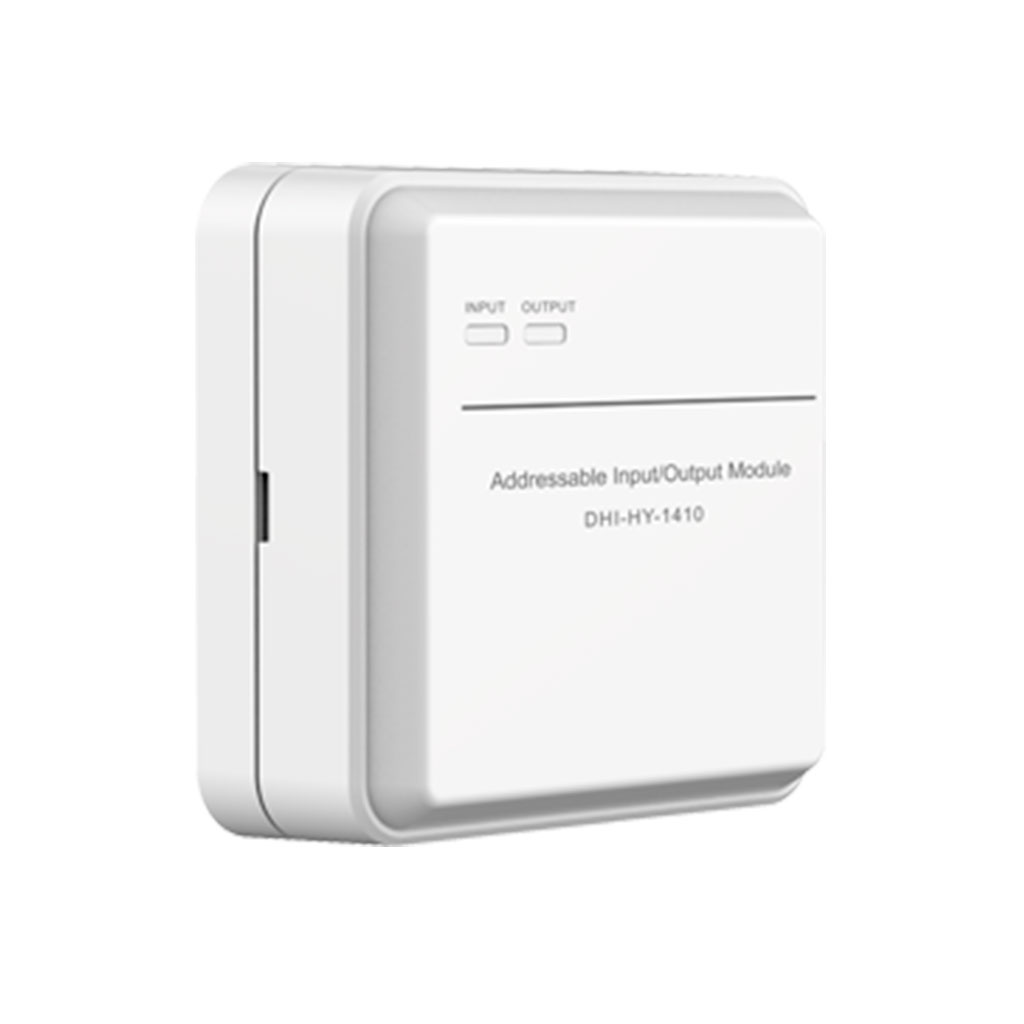

DHI-HY-1410 Dahua Адресуемый модуль ввода/вывода

<div class="table-content" data-v-7695a268="">
<div id="div_left" style="width: 100%;">
<div class="div-drop">
<table id="table001" class="NEW-TABLE TableOverride-1 tab-drag" style="width: 100%; border-spacing: 0px; table-layout: fixed; overflow-wrap: break-word;">
<tbody>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #c3c5c5; font-weight: bold;" colspan="60">
<p>Technical Specification</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Electrical</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">&nbsp;</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Working Voltage</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>24V DC</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Current</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>Monitoring current: ≤ 150μA</p>
<p>Operating current: ≤ 9mA</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Indicator</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>•Input indicator: Red LED flashes once every 6 seconds, and flashes once every 2 seconds when malfunctioned</p>
<p>•Output indicator: Red LED is constantly off when works normally, and flashes once every 2 seconds when malfunctioned</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Communication</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">&nbsp;</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Wiring</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p><span lang="zh-CN">Two-wire, polarity-free</span></p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Addressing Method</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>Electrical encoder</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Address Range</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>1–254</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Communication</p>
<p>Distance</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>≤ 1500 m</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Environment</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">&nbsp;</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Operating Temperature</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>–10°C to +55°C (+14°F to +131°F)</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Storage Temperature</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>–20°C to +65°C (–4°F to +149°F)</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Operating Humidity</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>≤ 95% RH (no condensation)</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Construction</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">&nbsp;</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Color</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>White</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Dimensions (with base)</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>90 mm × 90 mm × 37 mm (3.54" × 3.54" × 1.46")</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Weight (with base)</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>120 g (0.26 lb)</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Certifications</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>GB16806-2006</p>
</td>
</tr>
</tbody>
</table>
</div>
</div>
<div id="div_left" style="width: 100%;">
<div class="div-drop">
<table id="table002" class="NEW-TABLE TableOverride-1 tab-drag" style="width: 100%; border-spacing: 0px; table-layout: fixed; overflow-wrap: break-word;">
<tbody>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #c3c5c5; font-weight: bold;" colspan="60">
<p>Ordering Information</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Type</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="21">
<p>Part Number</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="21">
<p>Description</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Addressable Input / Output Module</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="21">
<p>DHI-HY-1410</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="21">
<p>Addressable Input / Output Module</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Accessories</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="21">
<p>DHI-HY-MKDZ2</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="21">
<p>Input / Output Module Base</p>
</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>

Характеристики

Бренд: Dahua
