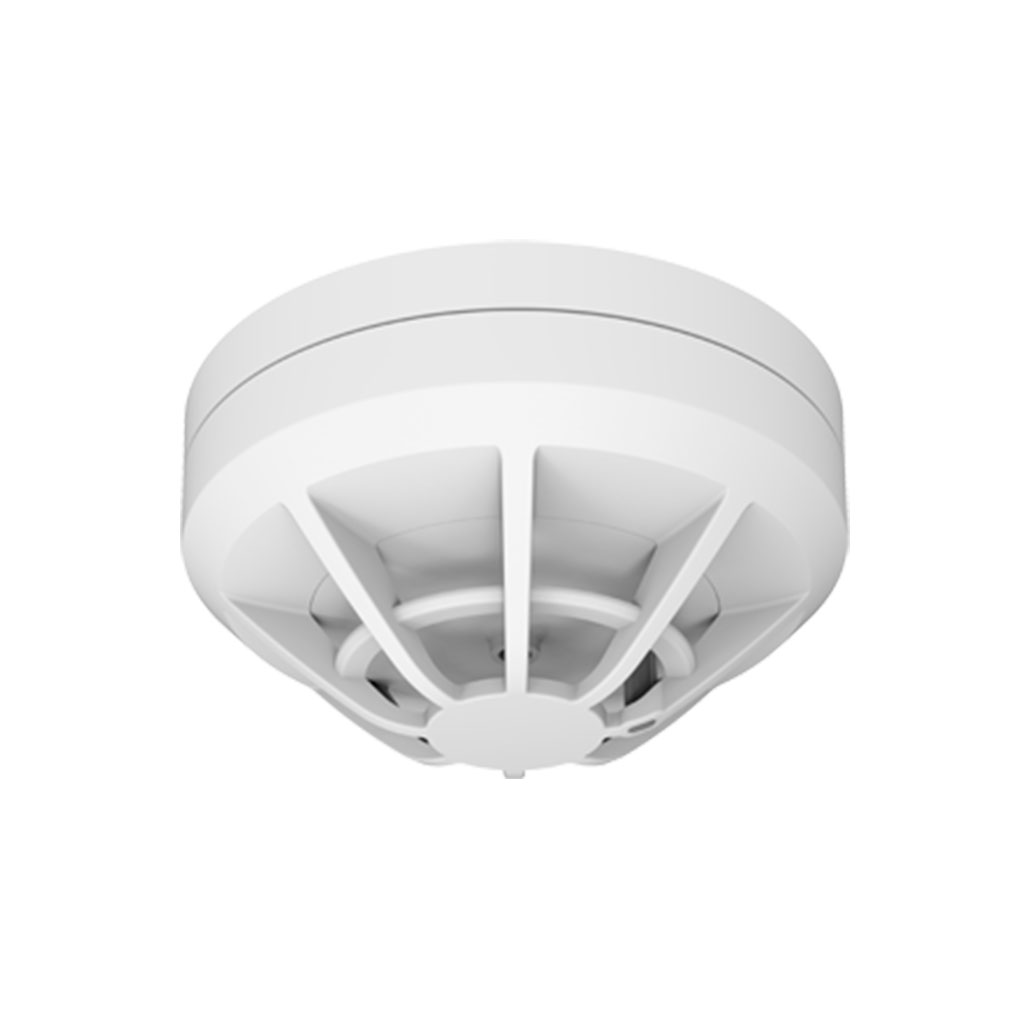

DHI-HY-1310 Dahua Адресуемый детектор тепла

<div class="table-content" data-v-7695a268="">
<div id="div_left" style="width: 100%;">
<div class="div-drop">
<table id="table001" class="NEW-TABLE TableOverride-1 tab-drag" style="width: 100%; border-spacing: 0px; table-layout: fixed; overflow-wrap: break-word;">
<tbody>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #c3c5c5; font-weight: bold;" colspan="60">
<p>Technical Specification</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Power</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>24V DC</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Current</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>Monitoring current: ≤ 120μA</p>
<p>Maximum operating current: ≤ 170μA</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Indicator</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>Red</p>
<p>Polling: Flash 6 seconds</p>
<p>Alarm: Remain lit</p>
<p>Fault: Flash 2 seconds</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Product Type</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>A2R</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Alarm Threshold</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>54°C to 62°C (129°F to 144°F)</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Wiring</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>Two-wire, polarity-free</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Addressing Method</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>Electrical encoder</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Address Range</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>1–254</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Communication Distance</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>≤ 1500 m (4921.26 ft)</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Operating Temperature</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>–10°C to +50°C (+14°F to +122°F)</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Storage Temperature</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>–20°C to +65°C (–4°F to +149°F)</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Operating Humidity</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>≤ 95% RH (no condensation)</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Color</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>White</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Dimensions (with base)</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>Φ 100 mm × 50 mm (Φ 3.00" × 1.50")</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Weight (with base)</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>81 g (0.18 lb)</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Certifications</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="42">
<p>GB 4716-2005</p>
</td>
</tr>
</tbody>
</table>
</div>
</div>
<div id="div_left" style="width: 100%;">
<div class="div-drop">
<table id="table002" class="NEW-TABLE TableOverride-1 tab-drag" style="width: 100%; border-spacing: 0px; table-layout: fixed; overflow-wrap: break-word;">
<tbody>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #c3c5c5; font-weight: bold;" colspan="60">
<p>Ordering Information</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Type</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="21">
<p>Part Number</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="21">
<p>Description</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Addressable Heat Detector</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="21">
<p>DHI-HY-1310</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="21">
<p>Addressable Heat Detector</p>
</td>
</tr>
<tr>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="18">
<p>Accessories</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="21">
<p>DHI-HY-TCDZ</p>
</td>
<td style="border: 1px solid #FFFFFF; padding: 3px 0px 3px 5px; vertical-align: middle; background-color: #f2f2f2;" colspan="21">
<p>Detector Base</p>
</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>

Характеристики

Бренд: Dahua
