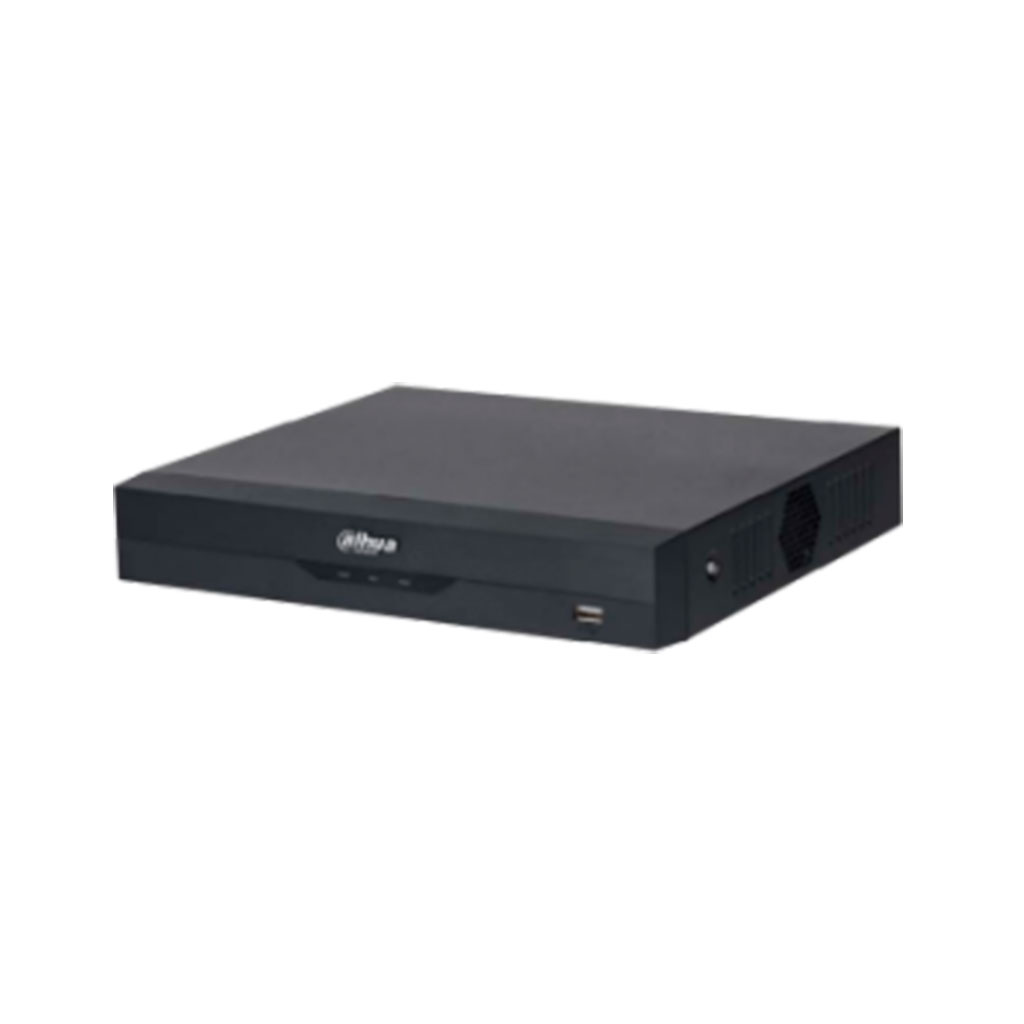

DH-XVR5108HS-4KL-I3 видеорегистратор

<table>
<tbody>
<tr>
<td colspan="60">
<p>System</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Main Processor</p>
</td>
<td colspan="42">
<p>Embedded&nbsp;processor</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Operating System</p>
</td>
<td colspan="42">
<p>Embedded linux</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Perimeter Protection</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Performance</p>
</td>
<td colspan="42">
<p>1 channel, 10 IVS for each channel</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Object classification</p>
</td>
<td colspan="42">
<p>Human/Vehicle secondary recognition for tripwire and intrusion</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>AI Search</p>
</td>
<td colspan="42">
<p>Search by target classification (Human, Vehicle)</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Face Recognition</p>
</td>
</tr>
<tr>
<td colspan="18" rowspan="2">
<p>Performance</p>
</td>
<td colspan="42">
<p>Max 8 face pictures/sec processing</p>
</td>
</tr>
<tr>
<td colspan="42">
<p>1 channel video stream face recognition, only support analog camera</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Stranger Mode</p>
</td>
<td colspan="42">
<p>Detect strangers’ faces (not in device’s face database). Similarity threshold can be set manually</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>AI Search</p>
</td>
<td colspan="42">
<p>Up to 8 target face images search at same time, similarity threshold can be set for each target face image</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Database Management</p>
</td>
<td colspan="42">
<p>Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Database Application</p>
</td>
<td colspan="42">
<p>Each database can be applied to video channels independently</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Trigger Events</p>
</td>
<td colspan="42">
<p>Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>SMD Plus</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Performance</p>
</td>
<td colspan="42">
<p>4 channels</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>AI Search</p>
</td>
<td colspan="42">
<p>Search by target classification (Human, Vehicle)</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Video and Audio</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Analog Camera Input</p>
</td>
<td colspan="42">
<p>4 channels, BNC</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>HDCVI Camera Input</p>
</td>
<td colspan="42">
<p>4K, 6MP, 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps,720p@ 25/30 fps</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>AHD Camera Input</p>
</td>
<td colspan="42">
<p>4K, 5MP, 4MP, 3MP, 1080p@ 25/30 fps, 720p@ 25/30 fps</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>TVI Camera Input</p>
</td>
<td colspan="42">
<p>4K, 5MP, 4MP, 3MP, 1080p@ 25/30 fps, 720p@ 25/30 fps</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>CVBS Camera Input</p>
</td>
<td colspan="42">
<p>PAL/NTSC</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>IP Camera Input</p>
</td>
<td colspan="42">
<p>4+4 channels, each channel up to 8MP</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Audio In/Out</p>
</td>
<td colspan="42">
<p>1/1, RCA</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Two-way Talk</p>
</td>
<td colspan="42">
<p>Reuse audio in/out, RCA</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Recording</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Compression</p>
</td>
<td colspan="42">
<p>AI Coding/H.265+/H.265/H.264+/H.264</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Resolution</p>
</td>
<td colspan="42">
<p>4K; 6MP; 5MP; 4MP; 3MP; 4M-N; 1080P; 720P; 960H; D1; CIF</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Record Rate</p>
</td>
<td colspan="42">
<p>Main stream: All channel 4K (1 fps–7 fps); 6MP (1 fps–</p>
<p>10 fps); 5MP (1 fps–12 fps); 4MP/3MP (1 fps–15 fps); 4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps);</p>
<p>Sub steram:960H (1 fps–15 fps); D1/CIF(1 fps–25/30 fps)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Bit Rate</p>
</td>
<td colspan="42">
<p>32 kbps–6144 kbps per channel</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Record Mode</p>
</td>
<td colspan="42">
<p>Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Record Interval</p>
</td>
<td colspan="42">
<p>1 min– 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Audio Compression</p>
</td>
<td colspan="42">
<p>G.711A; G.711U; PCM</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Audio Sample Rate</p>
</td>
<td colspan="42">
<p>8 KHz, 16 bit per channel</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Audio Bit Rate</p>
</td>
<td colspan="42">
<p>64 kbps per channel</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Display</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Interface</p>
</td>
<td colspan="42">
<p>1 HDMI; 1 VGA</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Resolution</p>
</td>
<td colspan="42">
<p>HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720</p>
<p>VGA: 1920 × 1080, 1280 × 1024, 1280 × 720</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Multi-screen Display</p>
</td>
<td colspan="42">
<p>When IP extension mode not enabled: 1/4</p>
<p>When IP extension mode enabled: 1/4/8/9</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>OSD</p>
</td>
<td colspan="42">
<p>Camera title; Time; Video loss; Camera lock; Motion detection; Recording</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Network</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Interface</p>
</td>
<td colspan="42">
<p>1 RJ-45 Port (100 MB)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Network Function</p>
</td>
<td colspan="42">
<p>HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.)</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Max. User Access</p>
</td>
<td colspan="42">
<p>128 users</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Smart Phone</p>
</td>
<td colspan="42">
<p>iPhone; iPad; Android</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Interoperability</p>
</td>
<td colspan="42">
<p>ONVIF 16.12, CGI Conformant</p>
</td>
</tr>
<tr>
<td colspan="60">
<p>Video Detection and Alarm</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Trigger Events</p>
</td>
<td colspan="42">
<p>Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips</p>
</td>
</tr>
<tr>
<td colspan="18">
<p>Video Detection</p>
</td>
<td colspan="42">
<p>Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis</p>
</td>
</tr>
</tbody>
</table>

Характеристики

Количество SATA: 1
Бренд: Dahua
Количество каналов: 8
Запись с разрешением до: 8 Мп
Максимальная емкость одного HDD: 16 ТБ
Количество IP каналов: 8
